Shure MX396/C-TRI: Microflex Tri-Element Cardioid Boundary Microphone with Back Cable Exit
Model
:
MX396-C-TRI
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

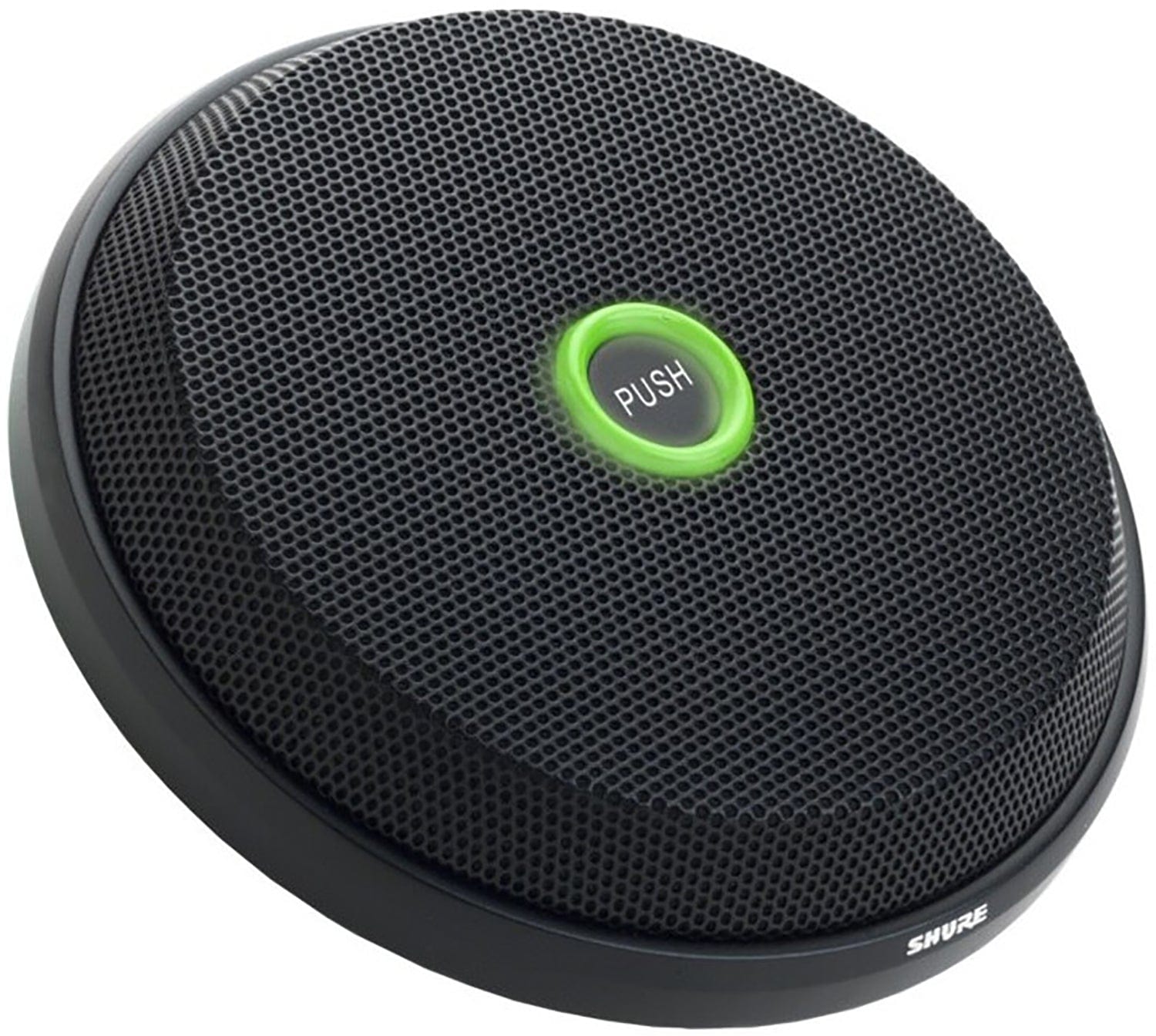

Shure MX396/C-TRI Tri-Element Boundary Microphone
The Shure MX396/C-TRI is a tri-element cardioid boundary microphone for conference room installs across Dubai, Abu Dhabi and the UAE and GCC, configurable for end-of-table, center-of-table, or cross-table coverage with individual control of each element.
Key Features:
- Three independently controlled cardioid elements for flexible table coverage
- End-of-table (300 degree), center-of-table (360 degree), or cross-table (bidirectional) patterns
- Configurable mute switch with logic output
- Bi-color status indicator with logic input/output for remote LED and mute control
- CommShield RF filtering rejects wireless interference
Technical Specifications:
| Spec | Value |
|---|---|
| Type | Condenser (electret bias) |
| Frequency Response | 50 Hz to 17,000 Hz |
| Sensitivity | -35 dBV/Pa (18 mV) at 1 kHz |
| Maximum SPL | 122 dB at 1% THD |
| Dynamic Range | 94 dB at 1 kilohm load |
| Signal-to-Noise Ratio | 66 dB referenced at 94 dB SPL |
| Cable | 20 foot (6.1 m) attached, back exit, open cable ends |
| Power Requirements | 48 to 52 Vdc phantom, 12.0 mA |
| Weight | 0.587 kg (1.29 lb) net |
Why Buy the Shure MX396/C-TRI from Trianze Tech?
- Genuine Shure Microflex boundary microphones with manufacturer warranty support
- Expert guidance choosing the right coverage pattern for your table
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure MX396/C-TRI is a tri-element cardioid boundary microphone that can be configured for end-of-table (300 degree), center-of-table (360 degree), or cross-table (bidirectional) coverage, with individual control of each of its three elements.

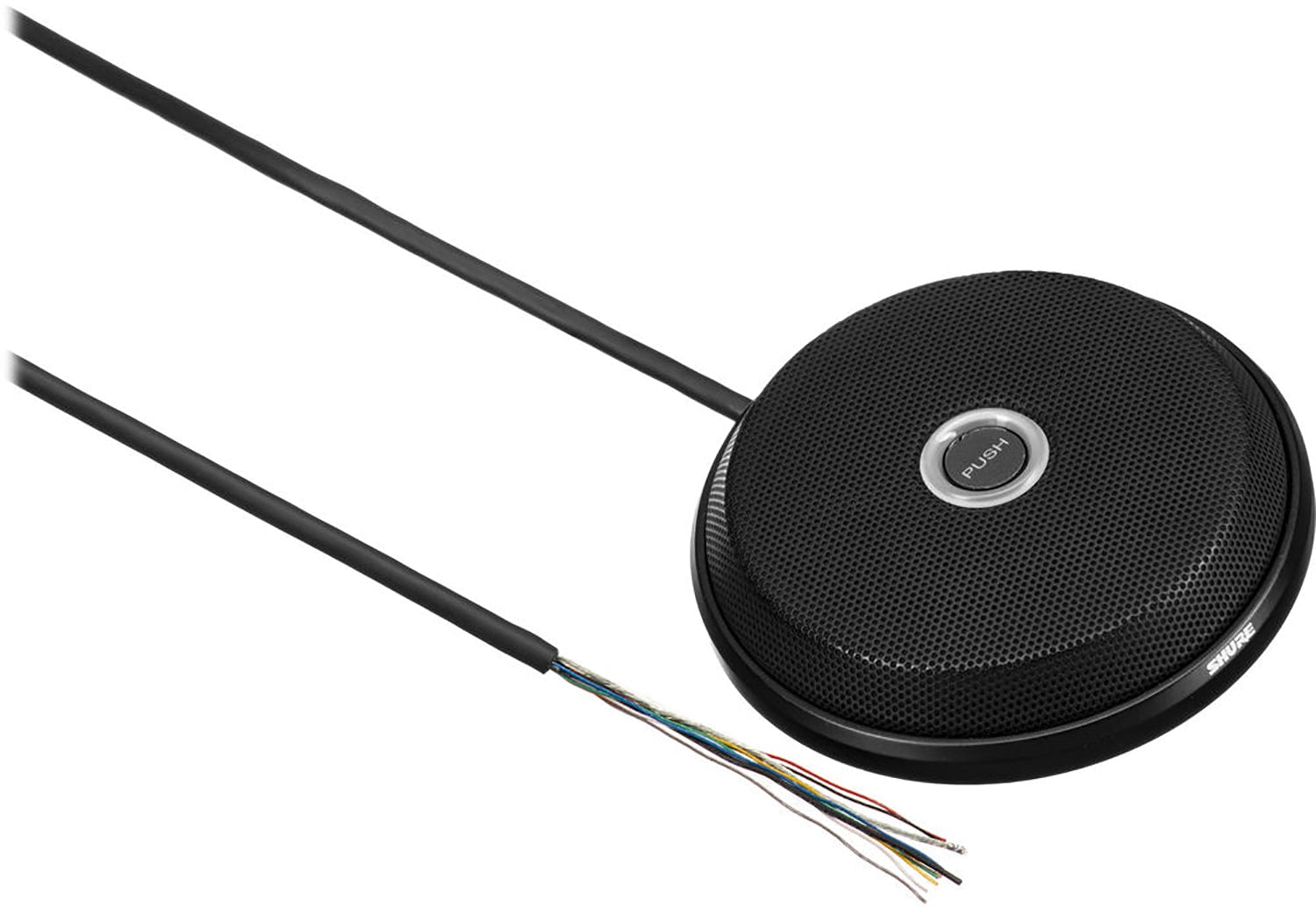

The Shure MX396/C-TRI has a 20 foot (6.1 m) attached unterminated cable with three shielded audio pairs and three shielded conductors for logic control, exiting from the back of the microphone.
The Shure MX396/C-TRI handles up to 122 dB SPL at 1% THD with a 94 dB dynamic range and a 66 dB signal-to-noise ratio referenced at 94 dB SPL.
Yes. The MX396/C-TRI has a configurable mute switch with logic output plus LED IN/LOGIC OUT connections, giving at least 50 dB of mute switch attenuation when integrated with an automatic mixer.
The Shure MX396/C-TRI weighs 0.587 kg (1.29 lb) net and requires 48 to 52 Vdc phantom power at 12.0 mA.
Trianze Tech stocks the Shure MX396/C-TRI in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
