Shure MX396-C-DUAL: Microflex Multi-Element Boundary Microphone
Model
:
MX396-C-DUAL
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

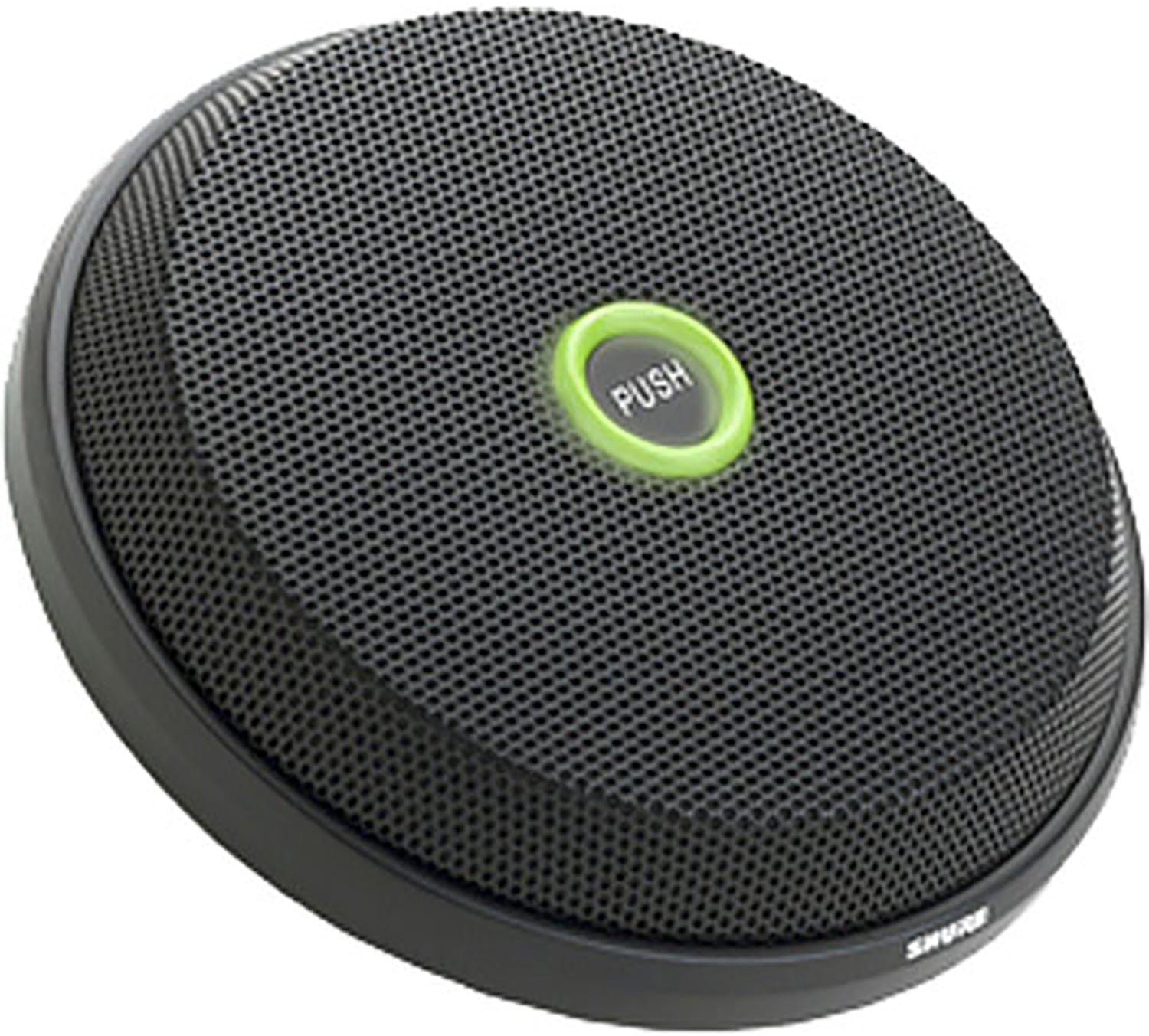

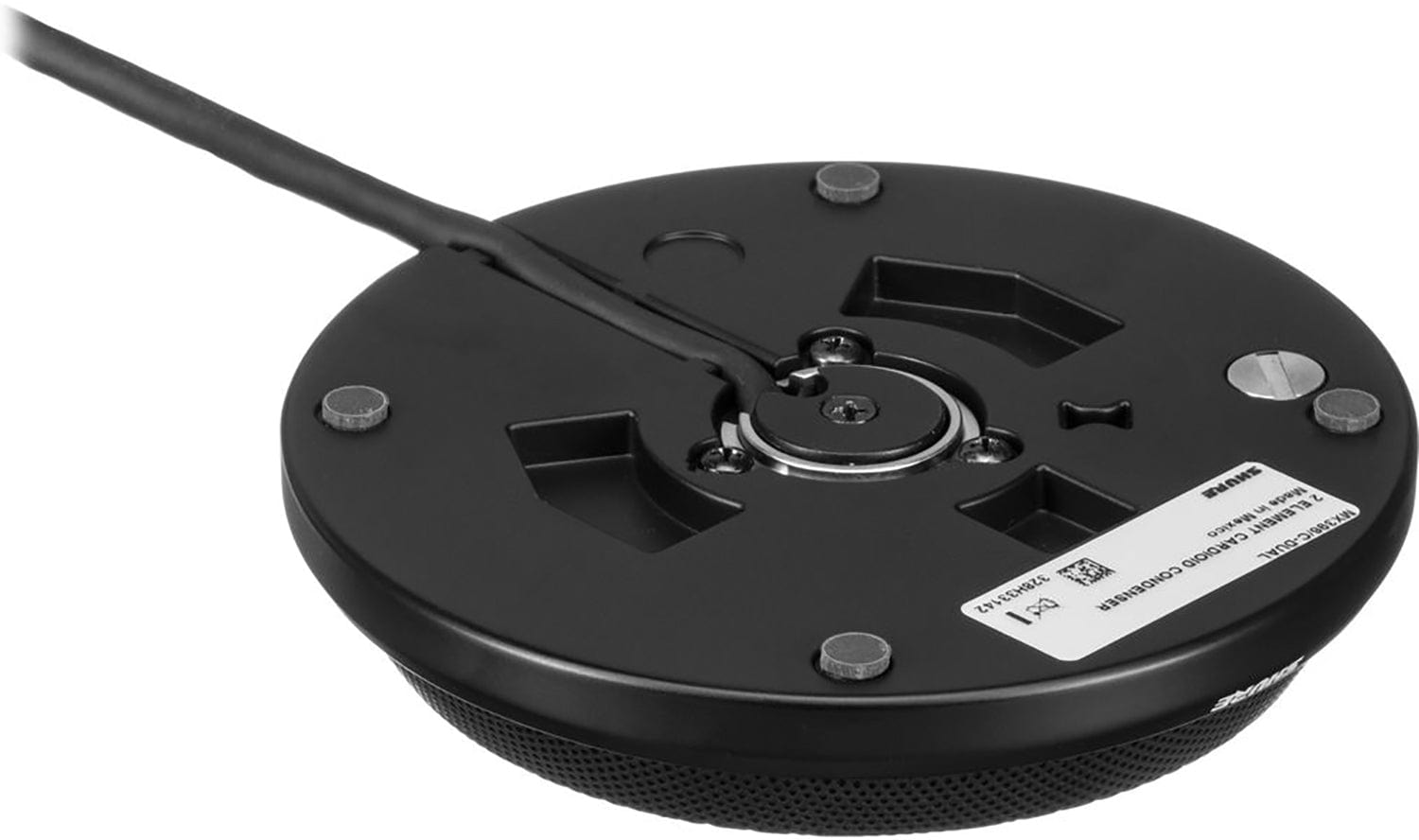

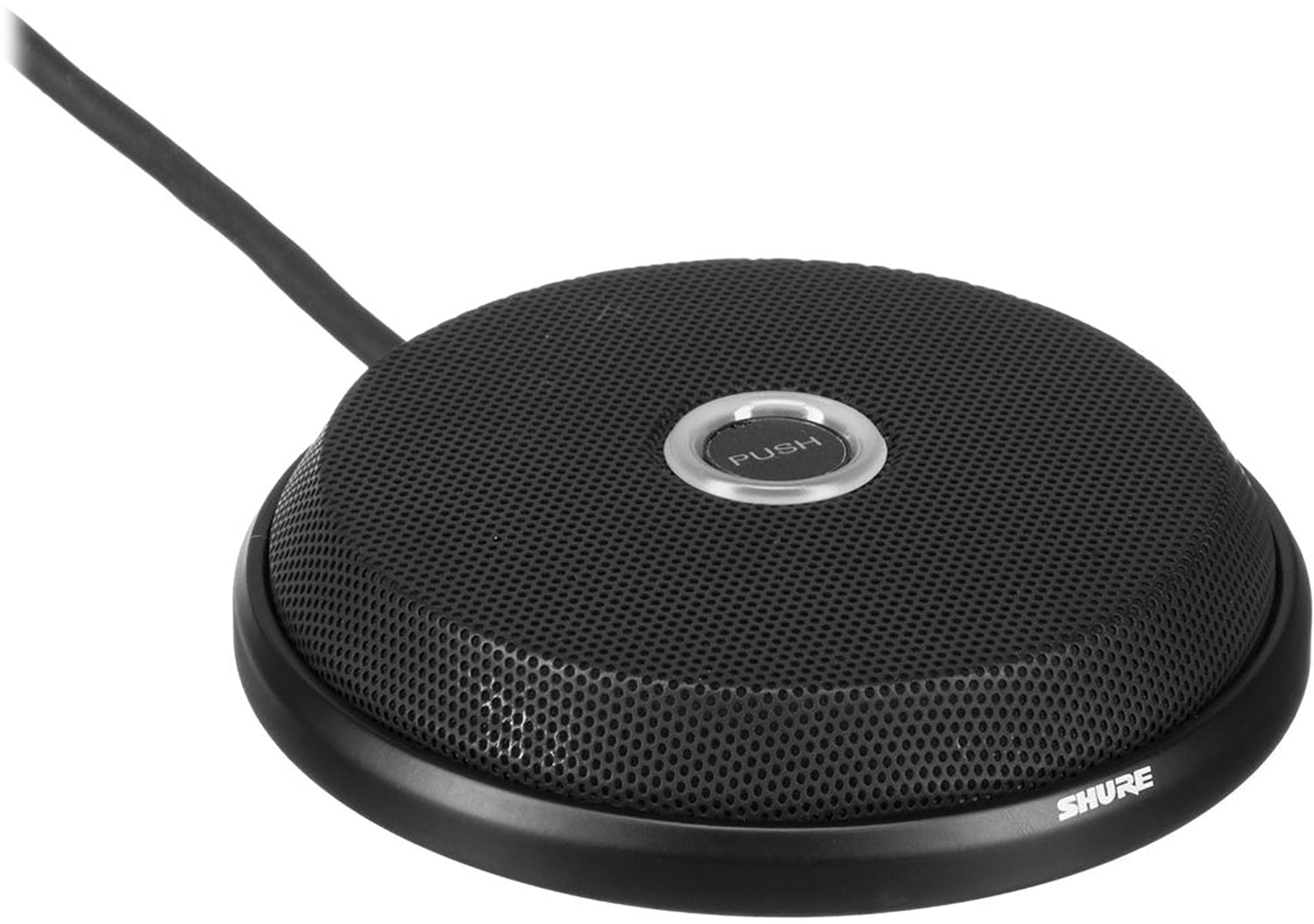

Shure MX396-C-DUAL: Microflex Multi-Element Boundary Microphone
The Shure MX396 Microflex Multi-Element Boundary microphone is a unique and versatile tool for conference room installations across Dubai and Abu Dhabi. Clean and simple in appearance, this dual-element cardioid configuration combines the coverage of two microphones into one small, compact package.
Key Features
- Low profile, aesthetic design for unobtrusive conference table placement
- Wide dynamic range and smooth frequency response
- Configurable mute switch with logic output for room system integration
- RF filtering with CommShield technology
- End of table (300 degree), center of table (360 degree), or cross table (bidirectional) coverage patterns depending on element configuration
- Individual control of each element with bi-color status indicator
- Logic input/output for remote LED and mute control
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | MX396-C-DUAL |
| Type | Condenser (electret bias), 2x cardioid elements |
| Frequency Response | 50 to 17000 Hz |
| Output Impedance | EIA rated 150 ohms (170 ohms actual), active balanced |
| Sensitivity | -35 dBV/Pa (18 mV) at 1 kHz |
| Maximum SPL | 122 dB (1 kHz at 1% THD) |
| Signal-to-Noise Ratio | 66 dB (ref. 94 dB SPL at 1 kHz) |
| Dynamic Range | 94 dB |
| Mute Switch Attenuation | -50 dB minimum |
| Cable | 6.1 m (20 ft) attached, unterminated, 3 shielded audio pairs plus 3 shielded logic conductors |
| Weight | 0.587 kg net / 0.916 kg packaged |
| Power | 48 to 52 Vdc phantom, 10.0 mA |
Why Buy the Shure MX396 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with dedicated local stock and engineering support in Dubai, removing the delays and uncertainty of international shipping for boardroom and conferencing installations.
- Genuine Shure stock sourced through authorized distribution channels
- Verified phantom power, logic wiring, and coverage pattern behavior confirmed against real console requirements
- Two-element design reduces the microphone count needed for larger conference tables
- Professional installation and system integration support across Dubai, Abu Dhabi, and the wider GCC
- Local UAE warranty backing and after-sales support, so service issues are resolved regionally rather than through overseas channels
- Volume and tiered pricing available for multi-room boardroom rollouts
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The MX396-C-DUAL combines two cardioid elements in one compact boundary microphone, each with independent control, reducing the number of separate microphones needed on a large conference table.
Depending on element configuration, the MX396 supports end of table (300 degree), center of table (360 degree), or cross table (bidirectional) coverage patterns.

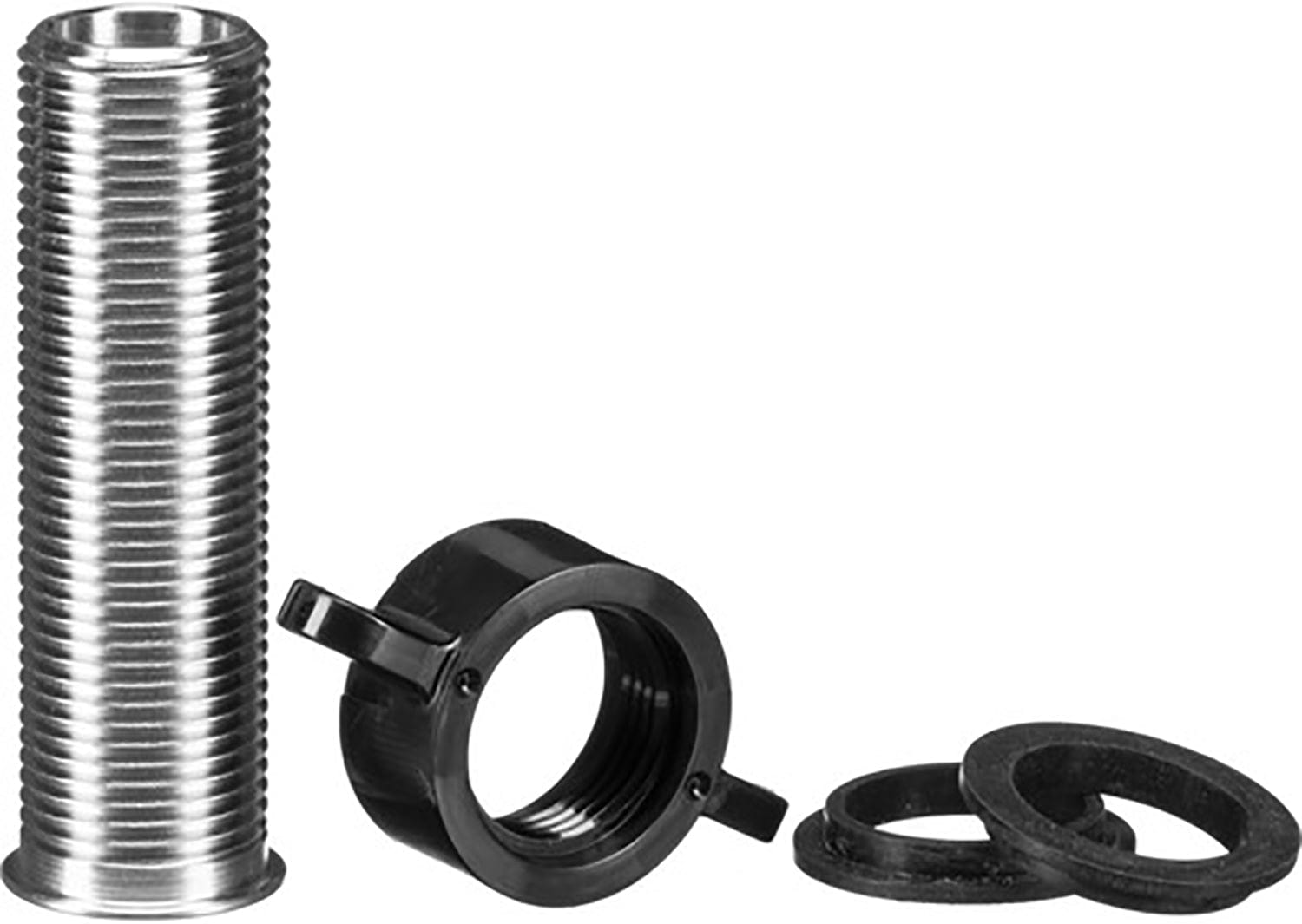

Yes. The MX396 ships with a threaded mounting post, collar ring, and washers for flush installation into a conference table, in addition to the boundary microphone unit itself.
The MX396-C-DUAL has a 6.1 m (20 ft) attached, unterminated cable with 3 shielded audio pairs plus 3 shielded conductors for logic control.
The MX396-C-DUAL requires 48 to 52 Vdc phantom power at 10.0 mA current draw per element.
Trianze Tech stocks the Shure MX396 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
