Shure HA-8089: High-Bandwidth Helical Antenna for Wireless Mic and In-Ear Monitor Systems, 460 to 900 MHz
Model
:
HA-8089
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure HA-8089: High-Bandwidth Helical Antenna for Wireless Mic and In-Ear Monitor Systems, 460 to 900 MHz

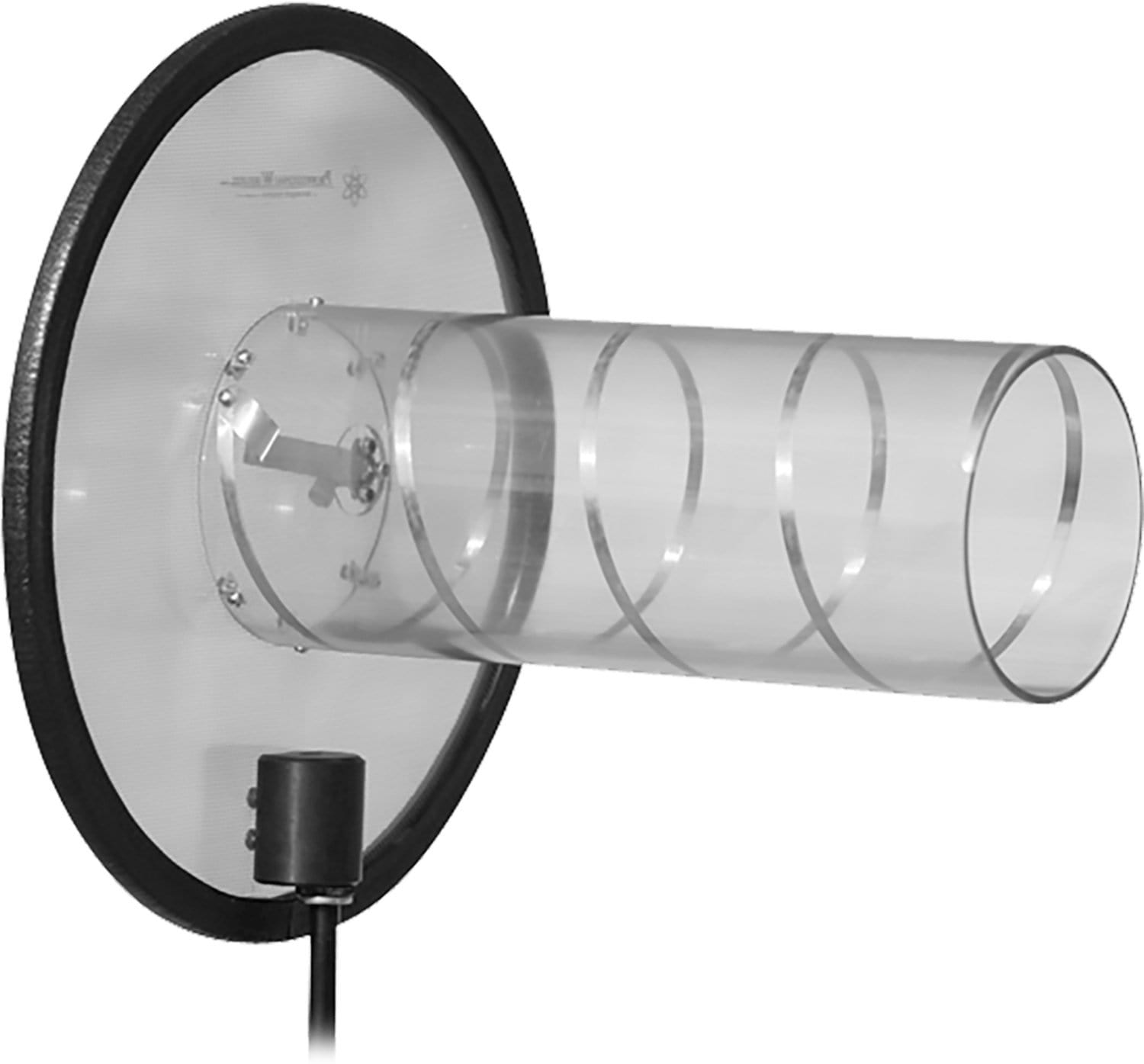

The Shure HA-8089 is a high-bandwidth helical antenna that gives greater bandwidth and longer range gain for receivers, transmitters and distribution systems in wireless microphone and in-ear monitor systems. It distributes RF energy through 360 degrees of polarization for longer range without interference and freedom of movement wherever the antenna is positioned, for venues and touring productions across Dubai, Abu Dhabi and the wider UAE.
Key Features
- High-bandwidth helical design for wireless microphone and in-ear monitor systems
- 14 dBi on-axis gain for longer range
- RF energy rotates through 360 degrees of polarization
- Passive, no power source required
- BNC female right-angle connector
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | HA-8089 |
| Frequency Range | 460 to 900 MHz (spec sheet) |
| Impedance | 50 ohms |
| Beamwidth | 57 degrees |
| Antenna Gain (On Axis) | 14 dBi |
| Power Source | Not required |
| RF Connector | BNC female, right-angle |
| Operating Temperature | -34 to 80 C (-30 to 180 F) |
| Construction / Weight | Clear polycarbonate / 1.7 kg (3 lb 11 oz) |
Why Buy the Shure HA-8089 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for RF accessories.
- Genuine Shure stock sourced through authorized distribution channels
- High gain helical design for large stages and venues
- RF and antenna placement advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for rental fleets and installations
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The HA-8089 is a high-bandwidth helical antenna for wireless microphone and in-ear monitor systems, giving greater bandwidth and longer range gain for receivers, transmitters and distribution systems.
The HA-8089 specification lists a 460 to 900 MHz frequency range, an on-axis gain of 14 dBi and a beamwidth of 57 degrees.
Its RF energy rotates through 360 degrees of polarization, so reception stays clear wherever the artist moves on stage and however the transmitter or receiver antenna is oriented.
No power source is required. It has a 50 ohm BNC female right-angle RF connector.
It has a clear polycarbonate construction and weighs 1.7 kg (3 lb 11 oz). It operates from -34 to 80 degrees C (-30 to 180 degrees F).
Trianze Tech stocks the Shure HA-8089 Antenna in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
