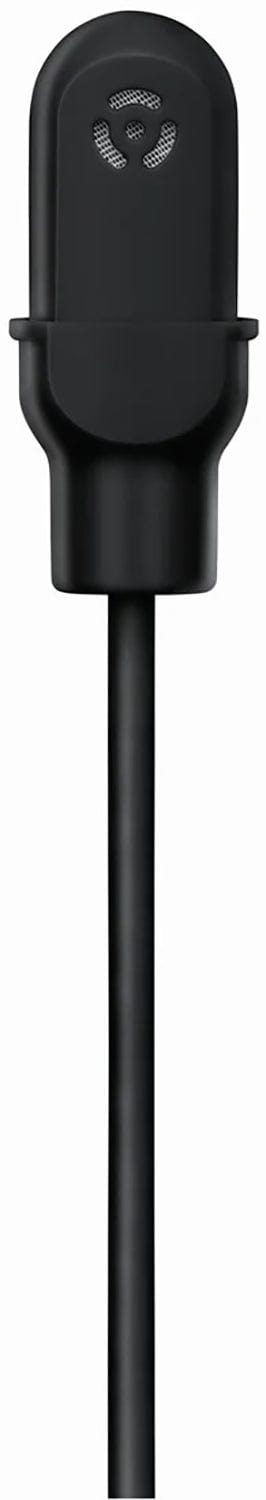

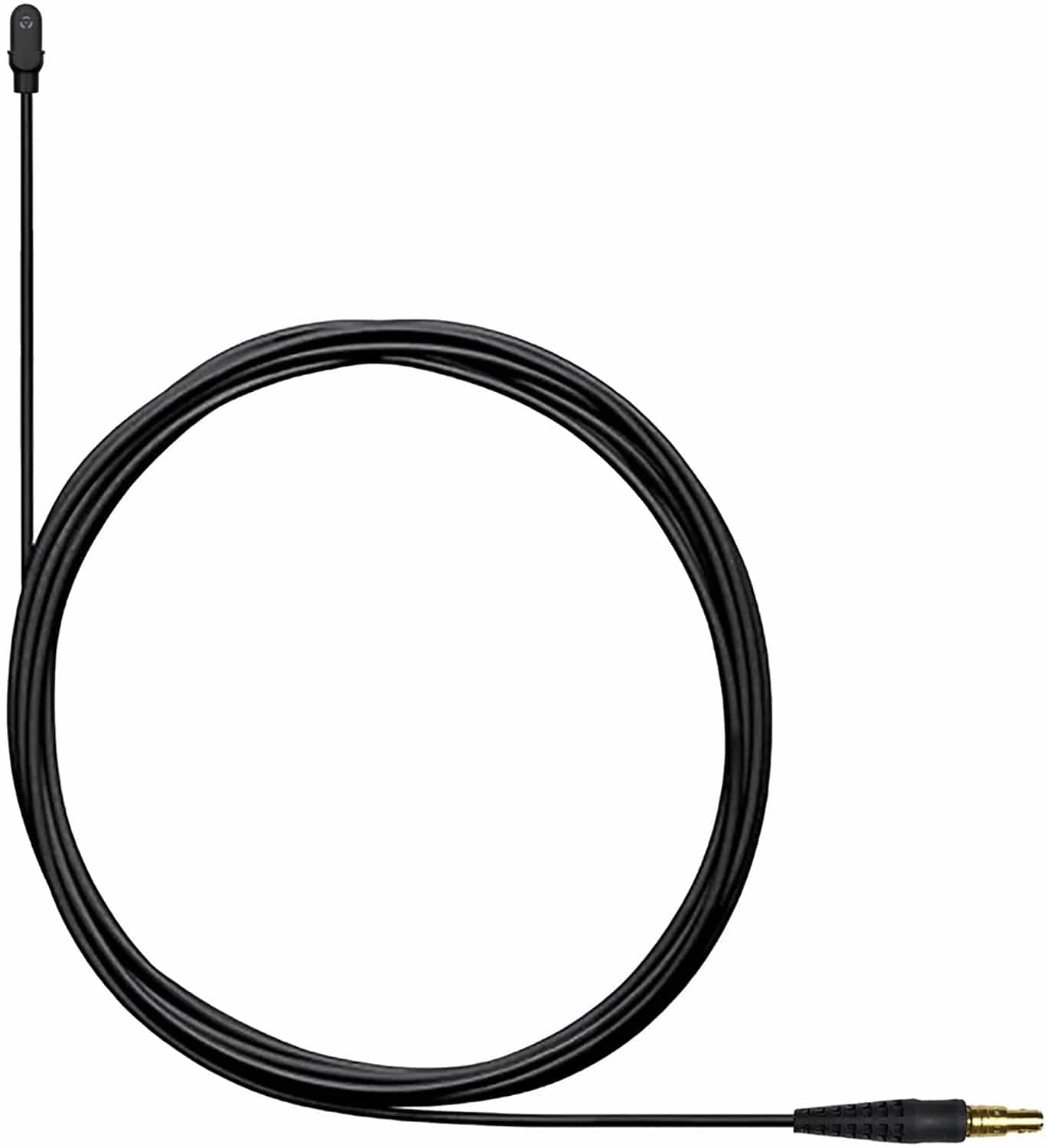

Shure DL4B/O-LM1-A: DuraPlex Omnidirectional Waterproof Lavalier Microphone with 1-Pin LEMO Connector, Black
Model
:
DL4B-O-LM1-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure DL4B/O-LM1-A: DuraPlex Omnidirectional Waterproof Lavalier Microphone with 1-Pin LEMO Connector, Black
The Shure DL4B/O-LM1-A is a black DuraPlex subminiature wireless lavalier microphone that defies the elements: consistent, long-lasting and resistant to dust, dirt, water and sweat. It offers professional-quality audio for film, broadcast, speech, theater and performance, and excels in harsh environments across Dubai, Abu Dhabi and the UAE. This version has a 1-pin LEMO connector.
Key Features
- 5 mm omnidirectional subminiature design for discreet placement and improved gain-before-feedback
- IP57 dust-resistant, waterproof rated
- Neutral, full sonic quality for broadcast audio, film sound, speech, theater and performance
- Advanced 1.6 mm Shure Plex cable with dual redundant ground as secondary shield, no memory effect or kinks, fully paintable
- Presence Cap included for a 3 to 4 dB boost near 10 kHz
- 1-pin LEMO connector, black finish
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | DL4B-O-LM1-A |
| Capsule / Pattern | MEMS / Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -42.5 dBV (7.5 mV RMS) at 1 kHz |
| Self-Noise / SNR | 31 dB SPL-A / 63 dB |
| Maximum SPL / Dynamic Range | 132 dB SPL at 1% THD / 101 dB |
| Bias / Current | 5 VDC recommended / 220 microamps maximum |
| Connector | 1-pin LEMO |
| Cable | 1.6 mm diameter, 1.67 m (66 in) |
| Capsule Size / Weight | 14.5 x 5.2 mm / 15 g (0.53 oz) |
| Housing | Molded ABS |
Why Buy the Shure DL4B/O-LM1-A from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless microphone accessories.
- Genuine Shure stock sourced through authorized distribution channels
- Wireless microphone advice across Dubai, Abu Dhabi and the GCC
- Connector and transmitter checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for broadcast and theater teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure DL4B/O-LM1-A is a black DuraPlex omnidirectional subminiature wireless lavalier microphone with a 1-pin LEMO connector. It is consistent, long-lasting and resistant to dust, dirt, water and sweat, with professional audio for film, broadcast, speech, theater and performance.
DuraPlex is IP57 dust-resistant and waterproof rated, with a molded ABS housing. Its 1.6 mm Shure Plex cable has a dual redundant ground that doubles as a secondary shield, is immune to memory effect and kinks, and can be painted with typical theater paints, pens and polishes.
It has a MEMS omnidirectional capsule, a 20 Hz to 20 kHz response, sensitivity of -42.5 dBV (7.5 mV RMS) at 1 kHz, 31 dB SPL-A self-noise, 63 dB signal-to-noise ratio, 132 dB maximum SPL and 101 dB dynamic range. The included Presence Cap adds a 3 to 4 dB boost near 10 kHz.
The DL4B/O-LM1-A has a 1-pin LEMO connector and a recommended 5 VDC bias at 220 microamps maximum. It suits wireless transmitters that use a 1-pin LEMO input, so confirm your transmitter model with Trianze Tech before ordering.
The capsule is 14.5 mm x 5.2 mm, the cable is 1.67 m (66 in) long and the microphone weighs 15 g (0.53 oz). The source lists a Presence Cap but does not itemise the other accessories, so confirm the kit with Trianze Tech.
Trianze Tech stocks the Shure DL4B/O-LM1-A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
