Shure DH5C/O-MTQG: DuraPlex Omnidirectional Subminiature Waterproof Headset Microphone with MTQG Plug, Cocoa

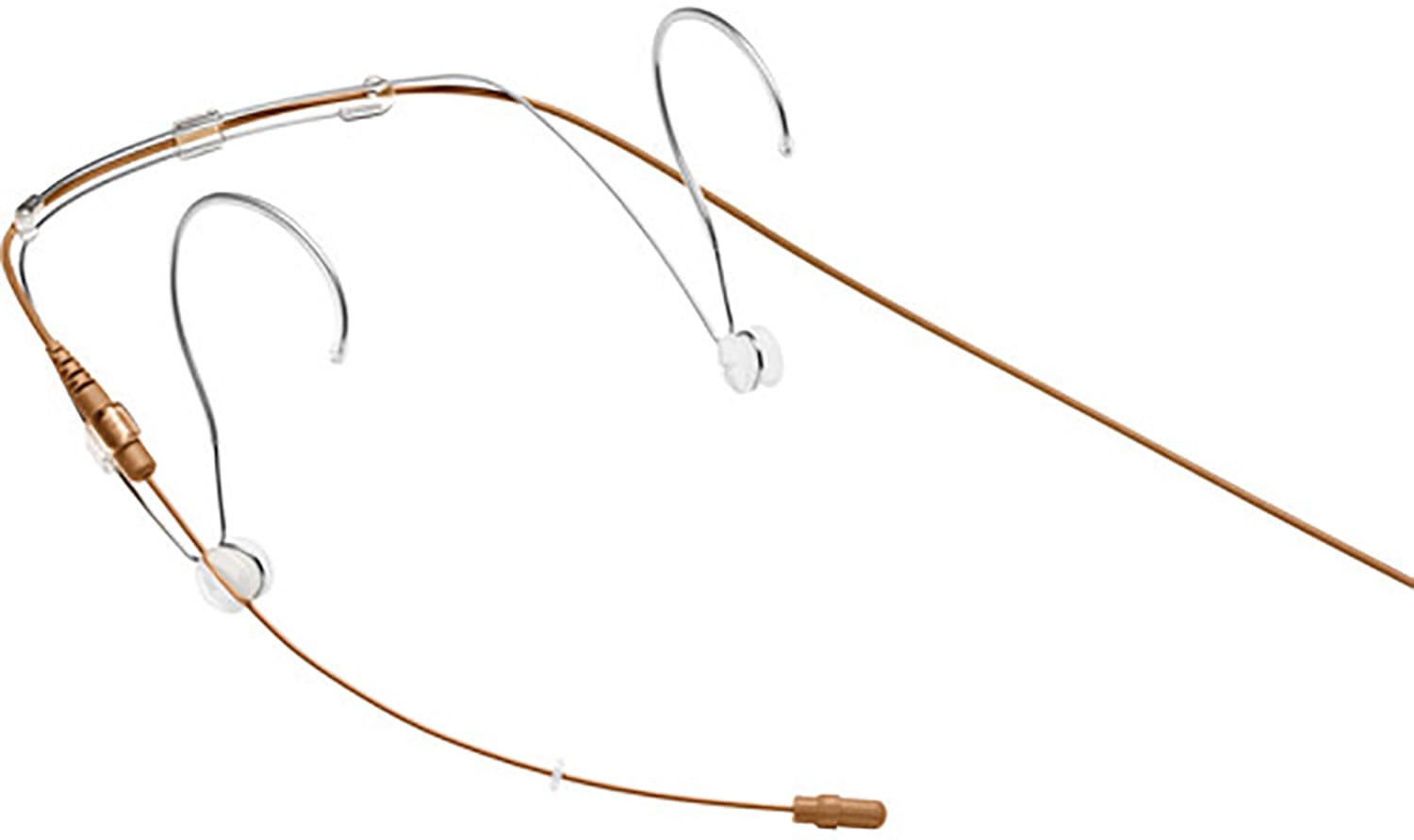

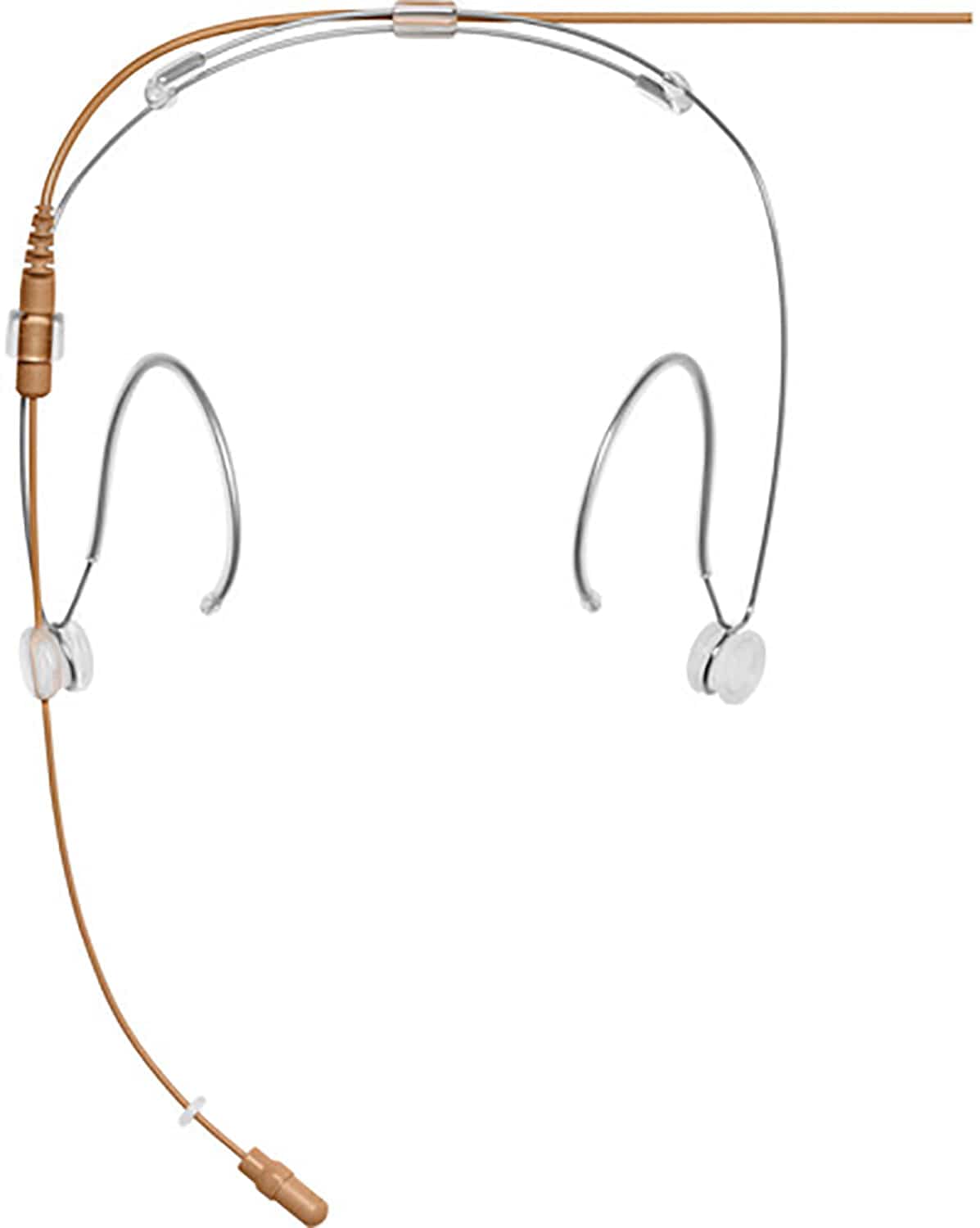

The Shure DH5C/O-MTQG is a lightweight, comfortable cocoa DuraPlex wireless headset microphone with a neutral, full sound that lifts performance, speech, music and broadcast. A long-lasting Shure Plex cable and a certified IP57 rating protect it against water, sweat, moisture, dust and dirt, so it copes with the harshest environments across Dubai, Abu Dhabi and the UAE.
Key Features
- 5 mm omnidirectional subminiature design for discreet placement and improved gain-before-feedback
- IP57 dust-resistant, waterproof rated
- Advanced 1.6 mm Shure Plex cable with dual redundant ground as secondary shield, no memory effect or kinks, fully paintable
- Presence Cap included for a 3 to 4 dB boost near 10 kHz
- TA4F (mTQG) connector, cocoa finish

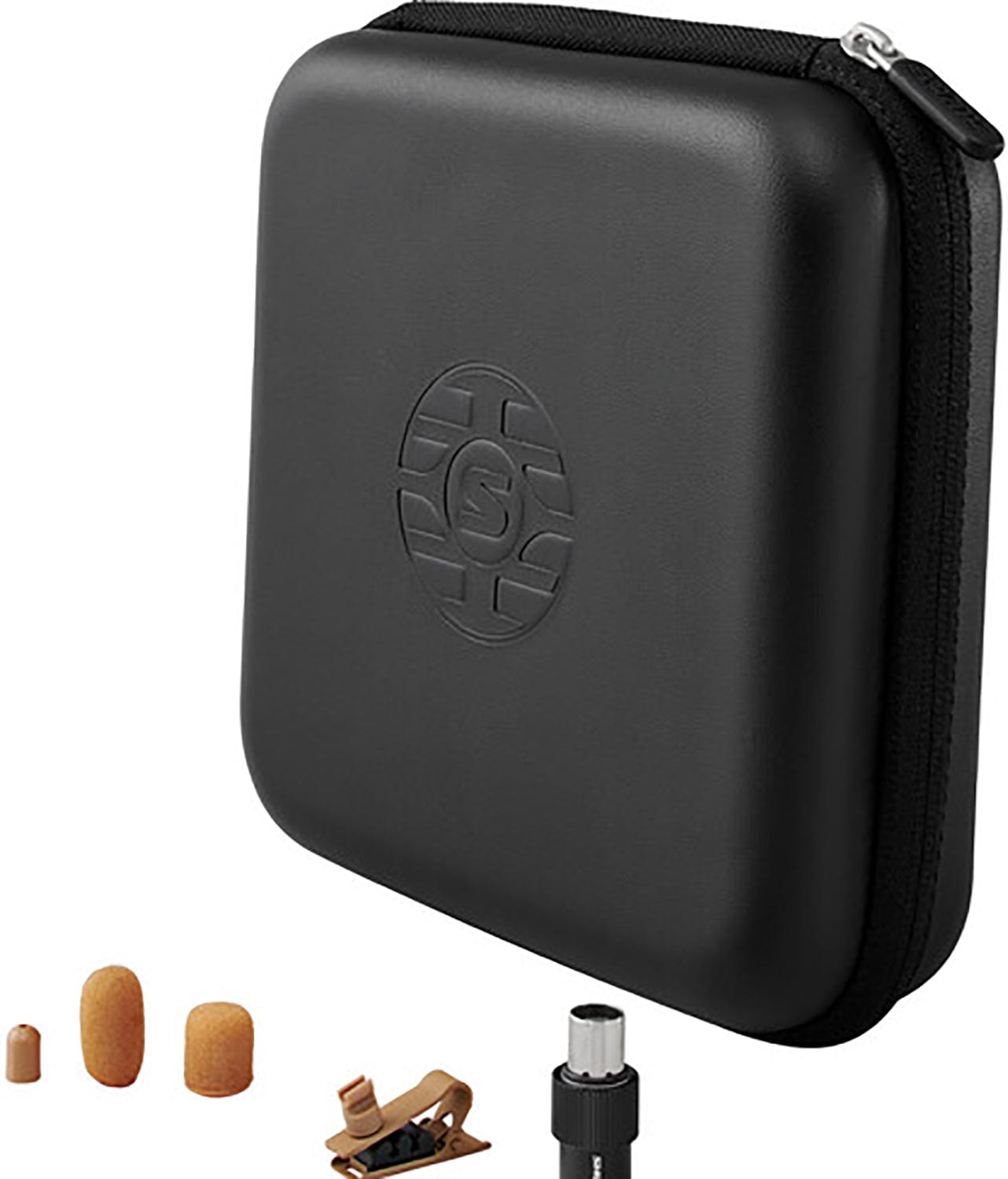

- Kit with case, foam windscreen, snap-fit windscreen, single tie clip, sticky mount and TQG locking collar
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | DH5C-O-MTQG |
| Capsule / Pattern | MEMS / Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | -42.5 dBV (7.5 mV RMS) at 1 kHz |
| Self-Noise / SNR | 31 dB SPL-A / 63 dB |
| Maximum SPL / Dynamic Range | 132 dB SPL at 1% THD / 101 dB |
| Bias / Current | 5 VDC recommended / 220 microamps maximum |
| Connector | TA4F (mTQG) |
| Cable | 1.6 mm diameter, 1.67 m (66 in) |
| Capsule Size / Weight | 14.5 x 5.2 mm / 15 g (0.53 oz) |
| Housing | Molded ABS |
Why Buy the Shure DH5C/O-MTQG from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless microphone accessories.
- Genuine Shure stock sourced through authorized distribution channels
- Wireless microphone advice across Dubai, Abu Dhabi and the GCC
- Connector and transmitter checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for broadcast and theater teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure DH5C/O-MTQG is a cocoa DuraPlex omnidirectional subminiature wireless headset microphone with an MTQG (TA4F) plug. It is lightweight and comfortable to wear, with a neutral, full sound for performance, speech, music and broadcast.
It has a certified IP57 rating, protecting against water, sweat, moisture, dust and dirt, with a molded ABS housing. Its 1.6 mm Shure Plex cable has a dual redundant ground as a secondary shield, is immune to memory effect and kinks, and can be painted with typical theater paints, pens and polishes.
It has a MEMS omnidirectional capsule, a 20 Hz to 20 kHz response, sensitivity of -42.5 dBV (7.5 mV RMS) at 1 kHz, 31 dB SPL-A self-noise, 63 dB signal-to-noise ratio, 132 dB maximum SPL and 101 dB dynamic range. The included Presence Cap adds a 3 to 4 dB boost near 10 kHz.
It uses a TA4F (mTQG) connector with a recommended 5 VDC bias at 220 microamps maximum. The kit includes a case, foam windscreen, snap-fit windscreen, single tie clip, sticky mount and a TQG locking collar, which comes with mTQG/TA4F versions only.
The capsule is 14.5 mm x 5.2 mm, the cable is 1.67 m (66 in) long and the microphone weighs 15 g (0.53 oz). The 5 mm omnidirectional subminiature design gives discreet placement and improved gain-before-feedback.
