Shure DB25-TRSM: 25 Foot 8-Channel DB25 to TRS Audio Snake
Model
:
DB25-TRSM
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

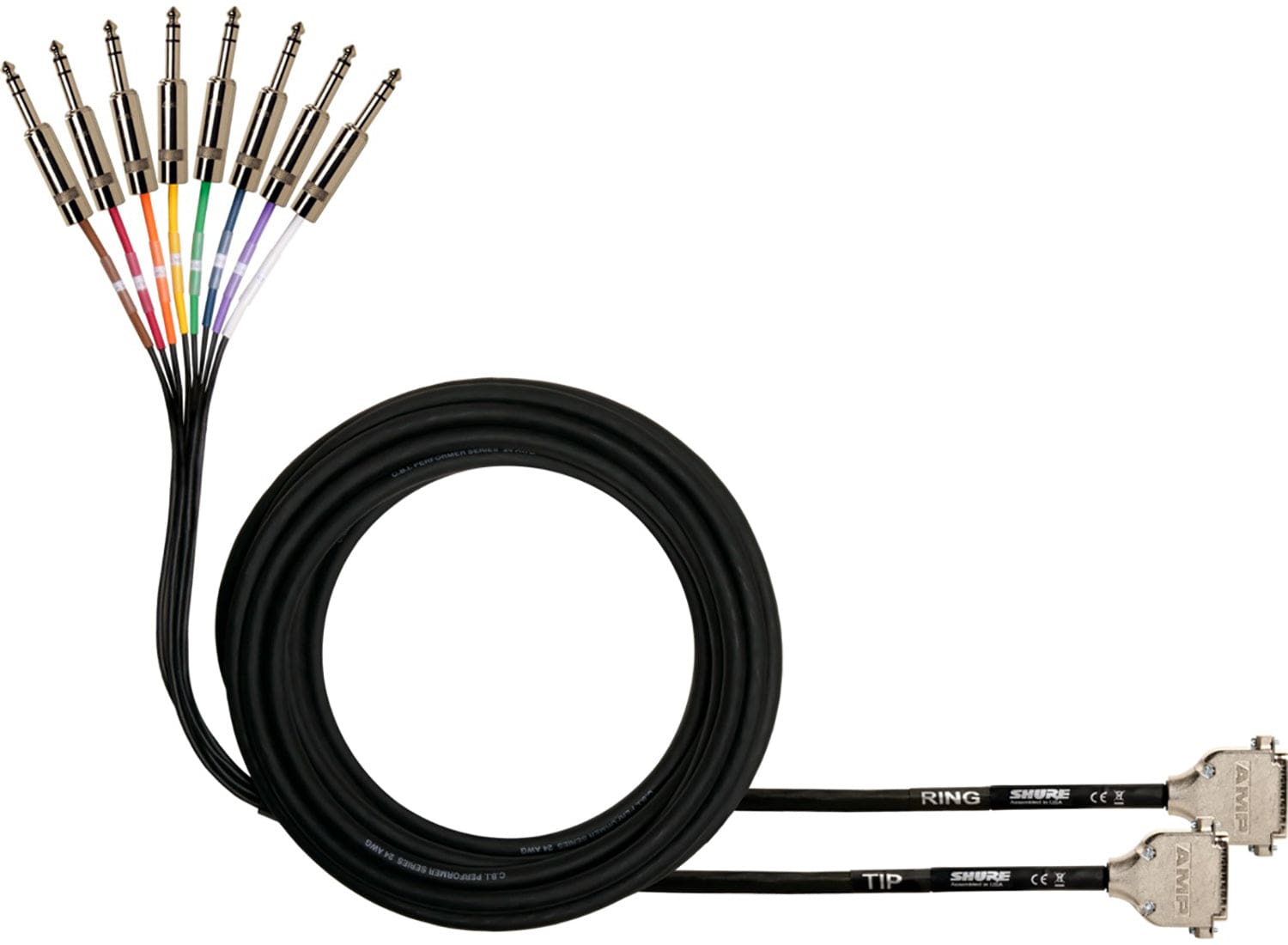

Shure DB25-TRSM 8-Channel Audio Snake
The Shure DB25-TRSM is an 8-channel DB25 to TRS breakout snake for wiring a Shure SCM820-DB25 automatic mixer's inputs and outputs to a patchbay or console, used across recording studios and control rooms in Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Eight quarter-inch TRS male insert connectors to two locking DB25 connectors
- 25 foot (7.6 meter) length
- Locking metal DB25 connectors for a secure rack connection
Technical Specifications:
| Spec | Value |
|---|---|
| Length | 25 ft (7.6 m) |
| Channels | 8 |
| DB25 End | 2x locking metal DB25 connectors |
| Breakout End | 8x quarter-inch (6.35 mm) TRS male |
| Compatible Equipment | Shure SCM820-DB25 automatic mixer |
Why Buy the Shure DB25-TRSM from Trianze Tech?
- Genuine Shure cabling backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on wiring your SCM820 to a patchbay or console
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The DB25-TRSM breaks out a single DB25 connector into eight quarter-inch TRS connectors, used to wire the 8 insert or line jacks on a Shure SCM820-DB25 automatic mixer to a patchbay, outboard processor, or console without running eight separate cables.
The Shure DB25-TRSM is 25 feet (7.6 meters) long, giving enough reach to run from a rack-mounted SCM820-DB25 mixer to a patchbay or console position across most control rooms and equipment racks.
One end has two locking metal DB25 connectors (one for the 8 inputs, one for the 8 outputs), and the other end breaks out into eight quarter-inch (6.35 mm) TRS male insert connectors.
The DB25-TRSM is built for Shure's SCM820-DB25 automatic mixer, but since it uses the industry-standard Tascam DB25 pinout for its 8 channels of TRS breakout, it can also work with other pro audio gear that uses the same standard DB25 pinout; confirm pinout compatibility before use with non-Shure equipment.
Yes, the Shure DB25-TRSM uses locking metal DB25 connectors at the mixer end, reducing the chance of accidental disconnection in a rack or under a console during a live event.
Trianze Tech stocks the Shure DB25-TRSM in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
