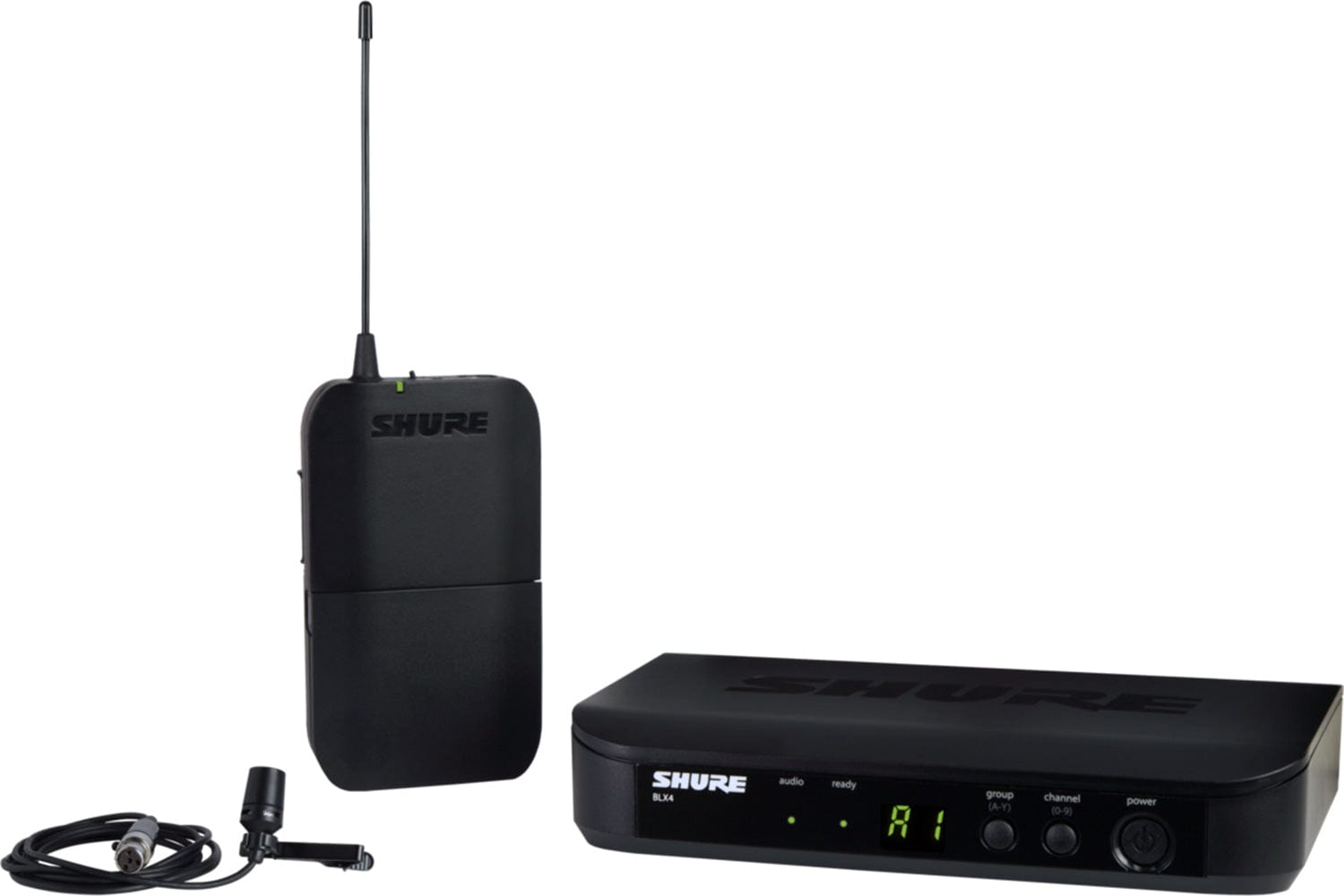

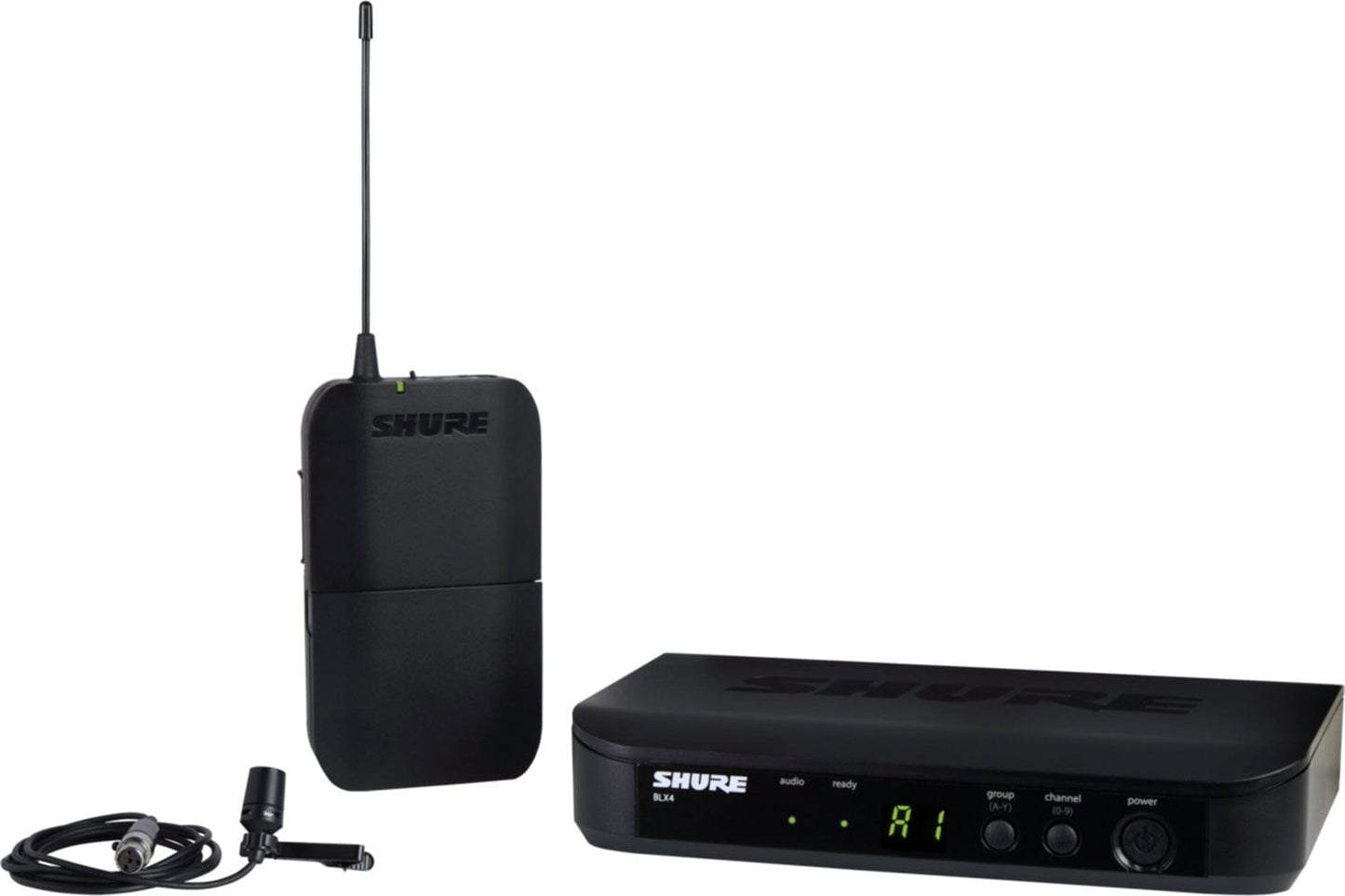

Shure BLX14 Lavalier System with CVL

Shure BLX® Wireless Systems combine professional-quality sound with simple setup and an intuitive interface for legendary audio performance right out of the box. Precision-built and available in a variety of configurations, it’s the most accessible way to own the stage.

Features:

• For Presenters and Lecturers
• CVL Cardioid Lav Mic
• Lightweight Bodypack Transmitter
• Single-Channel Tabletop Receiver
• 123 Auto-Scan Frequencies
• Internal Antenna Diversity
• 14-Hour AA Batteries
• Expandable to 12 Mic Channels/300' Range

Specifications:

• System:
  • Wireless Technology: Analog UHF
  • Number of RF Channels: 123
  • Included Transmitters: 1 x Bodypack
  • Diversity: Antenna Diversity
  • RF Frequency: Band 512 to 542 MHz
  • RF Bandwidth: 24 MHz
  • RF Channel Scanning: Auto-Scan
  • Max Operating Range: 300' / 91.4 m (Line of Sight)
  • Max Microphones per Band: 12
  • Dynamic Range: 100 dBA

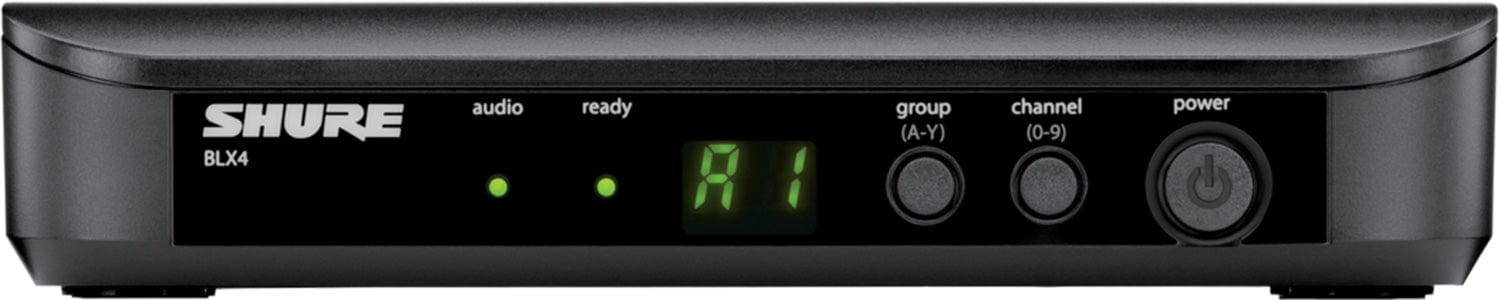

• Receiver:
  • Receiver Type: Tabletop
  • Mounting Options: Tabletop
  • Antenna: 2 x Internal, Fixed
  • Number of Audio Channels: 1

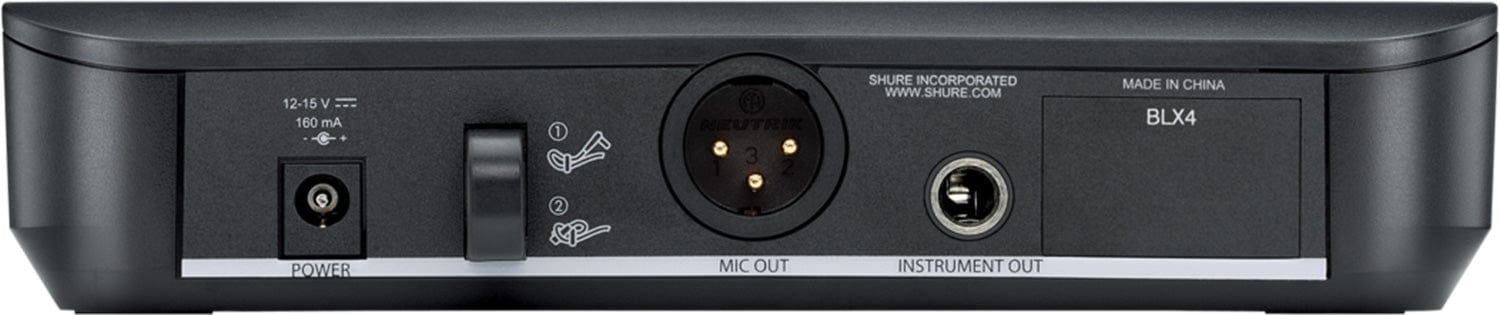

  • Audio I/O:
    • 1 x XLR 3-Pin Male Balanced Output
    • 1 x 1/4" TS Female Unbalanced Output
  • Audio Output Level:
    • XLR Output: -27 dBV (Mic Level)
    • 1/4" Output: -13 dBV (Instrument Level)
  • Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
  • Impedance:
    • XLR Output: 200 Ohms
    • 1/4" Output: 50 Ohms
  • Power Requirements: AC/DC Power Adapter
  • AC/DC Power Adapter :12 to 15 VDC at 160 mA, Center-Positive (Included)
  • Display & Indicators:
    • 1 x Multi-Segment LED (Channel, Group)
    • 2 x LED (AF Level, Sync)
  • Housing: ABS
  • Dimensions: 7.4 x 1.6 x 4.1" / 188 x 40 x 103 mm
  • Weight: 8.5 oz / 241 g

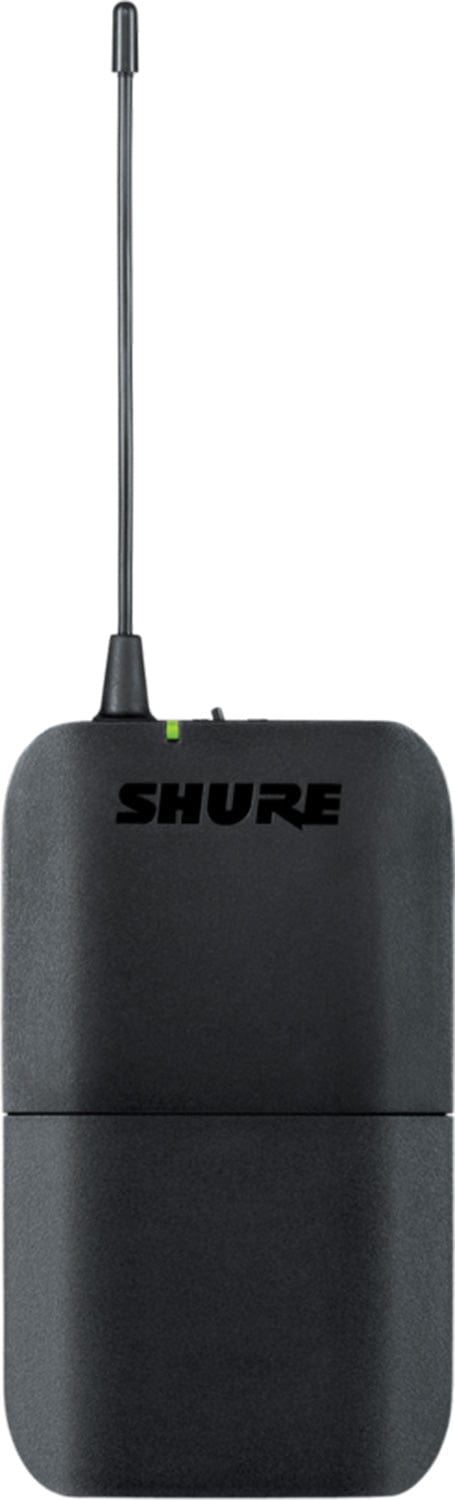

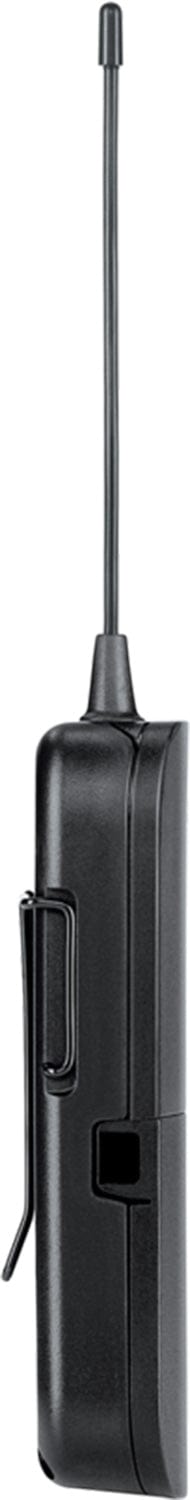

• Transmitter:
  • Transmitter Type: Bodypack
  • RF Output Power: 10 mW

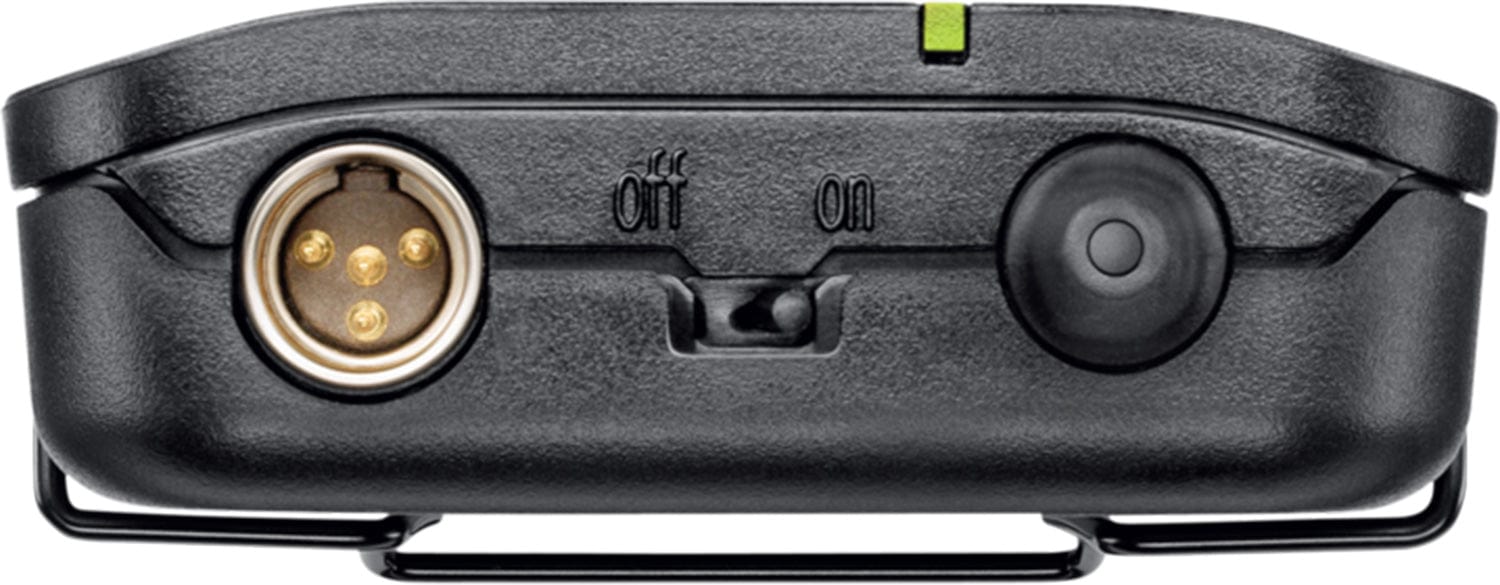

  • Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
  • Muting: Off/On Switch
  • Auto-Level Control: No
  • Gain Range: -16 to +10 dB
  • Sync Method: Manual
  • Antenna: 1 x Flexible Whip, Fixed (Beltpack)

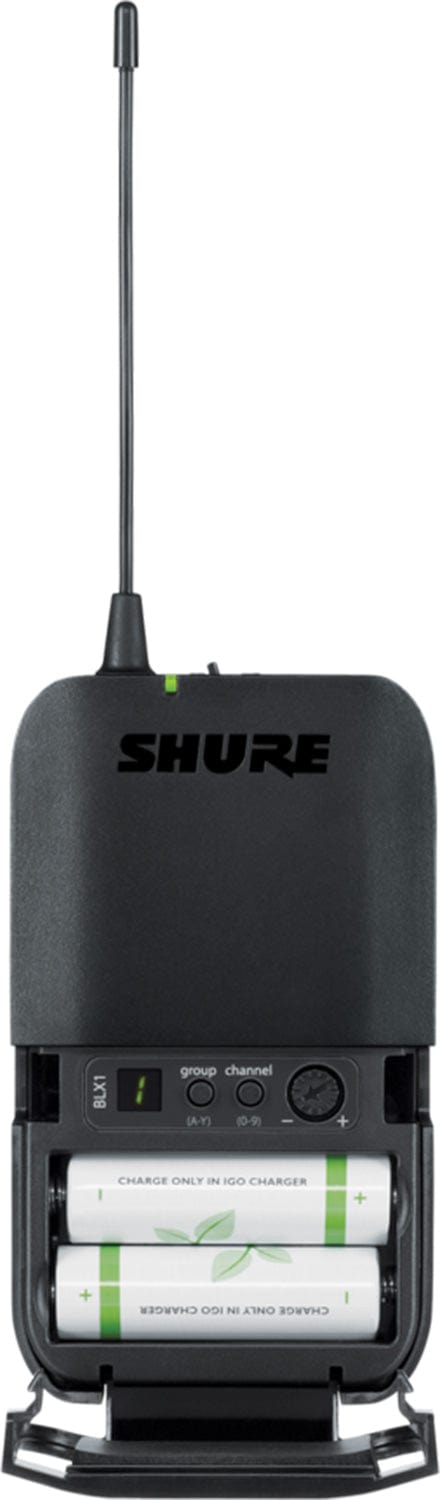

  • Power Requirements: Battery
  • Battery Type: 2 x AA (Included)
  • Approx. Battery Life: 14 Hours (Alkaline)
  • Display & Indicators:
    • 1 x Multi-Segment LED (Channel, Group)
    • 1 x LED (Battery Status, Power)
  • Housing: ABS
  • Dimensions: 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm
  • Weight: 2.6 oz / 75 g (without Batteries)
• Microphone:
  • Microphone Type: Lavalier
  • Sound Field: Mono
  • Capsule: Electret Condenser
  • Polar Pattern: Cardioid
  • Frequency Range: 50 Hz to 20 kHz
  • SNR: 72 dB
  • Equivalent Noise Level: 22 dB
  • Maximum SPL: 139 dB SPL
  • Dynamic Range: 117 dB
  • Output Connectors: 1 x TA4/Mini XLR 4-Pin Female (Lockable)
  • Cable Length: 4.27' / 1.3 m
  • Operating Voltage: 5 V
  • Weight: 0.88 oz / 25 g
