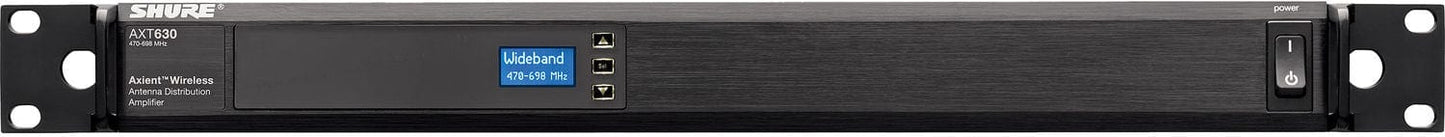

Shure AXT630US Axient Antenna Distribution System
The Shure AXT630US is a networked antenna distribution system for large Axient wireless deployments across Dubai, Abu Dhabi and the UAE and GCC, with selectable input filtering matched to Axient transmitter bands and remote control via WWB6.
Key Features:
- Ultra-linear distribution amplifier for high signal levels without distortion
- Selectable input filtering matched to Axient transmitter bands, plus a wideband option
- 4 BNC antenna output pairs and 1 unfiltered wideband cascade port
- 2 PoE-enabled Ethernet ports for networked control
- Up to 15 dB selectable RF attenuation for signal-to-noise optimization
Technical Specifications:
| Spec | Value |
|---|---|
| RF Frequency Range | 470 to 698 MHz |
| Band Filters | Wideband, G1, H4, J5, L3 |
| Antenna Outputs | 4x BNC pairs |
| Cascade Output | 1x BNC pair, unfiltered wideband |
| Power Requirements | 100 to 240 VAC, 50-60 Hz |
| Dimensions | 44 x 483 x 366 mm (1U rack) |
| Weight | 4.6 kg (10.1 lb) |
Why Buy the Shure AXT630US from Trianze Tech?
- Genuine Shure Axient RF infrastructure backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on antenna distribution design for large wireless deployments
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.

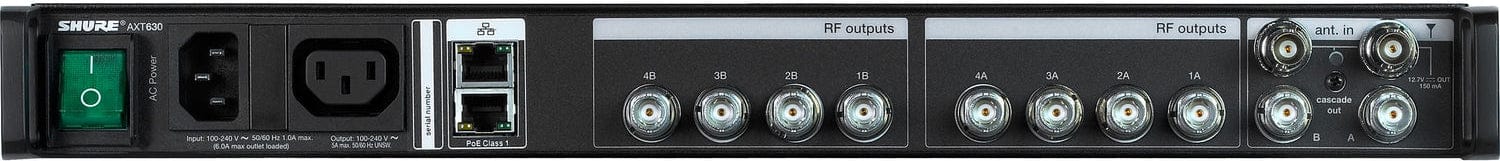

The Shure AXT630US provides 4 BNC antenna output pairs to distribute filtered RF signal to multiple receivers, plus an unfiltered wideband RF cascade port for connecting devices like the Axient Spectrum Manager.
The AXT630US offers selectable 60 MHz input filters matched to Axient transmitter bands: G1 (470-530 MHz), H4 (518-578 MHz), J5 (578-638 MHz), and L3 (638-698 MHz), plus a wideband option covering 470 to 698 MHz.
Yes. The AXT630US has 2 PoE-enabled Ethernet ports and can be controlled through Shure's WWB6 software, allowing remote adjustment of filtering ranges, antenna bias power, and up to 15 dB of RF attenuation.
The AXT630US accepts universal 100 to 240 VAC 50-60 Hz power, so it runs on UAE mains voltage, but confirm the supplied AC cord and connector type with Trianze Tech at the time of order since this is a US-region SKU.
The Shure AXT630US measures 44 x 483 x 366 mm (1.7 x 19.0 x 14.4 in), a standard 1U rack width unit, and weighs 4.6 kg (10.1 lb) in a steel and extruded aluminum housing.
