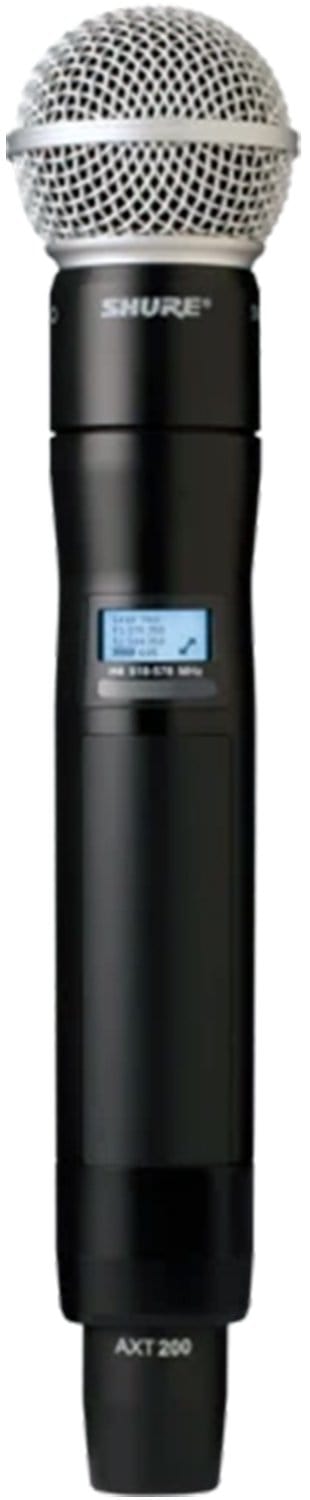

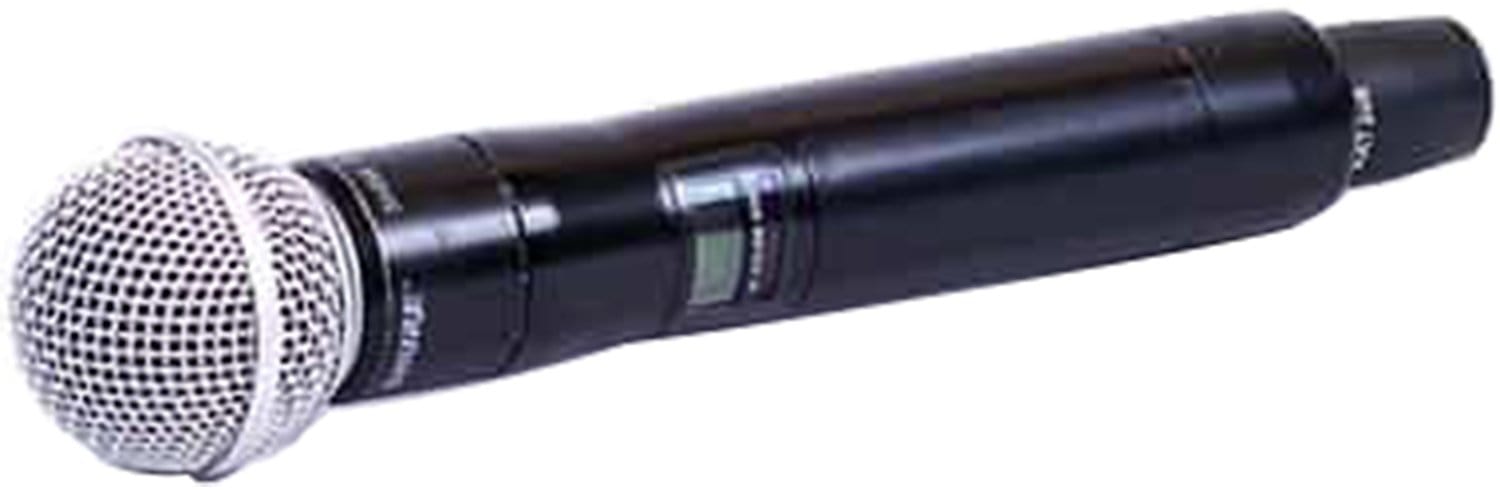

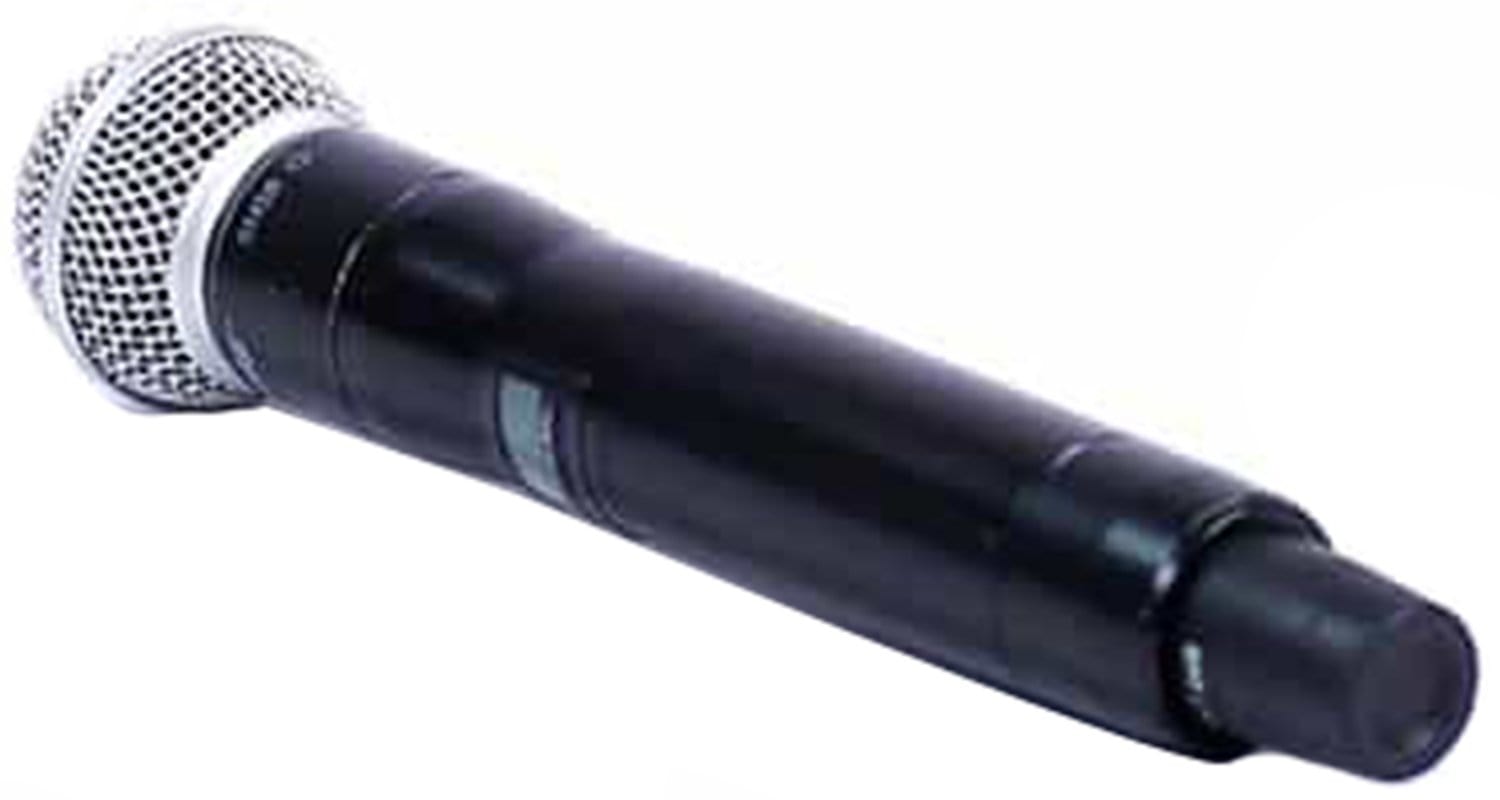

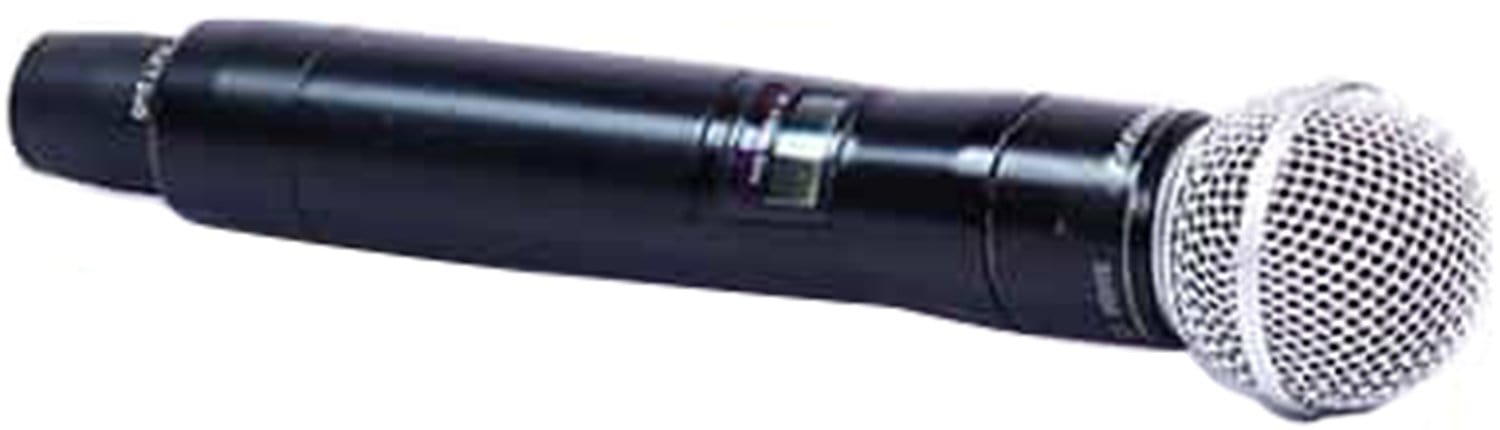

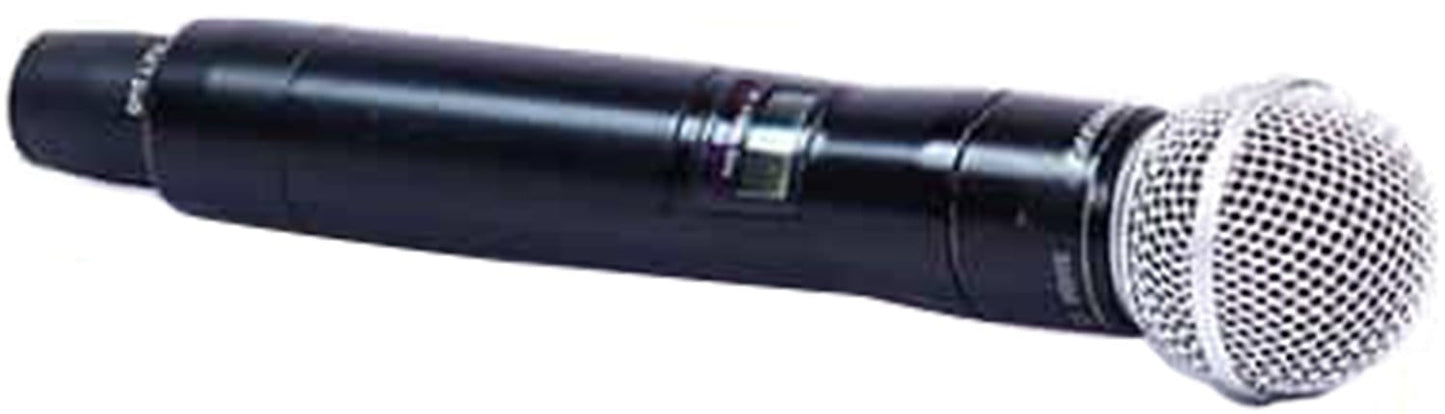

Shure AXT200/SM58 J5: Axient Frequency Diversity Handheld Transmitter with SM58, J5 Band 578 to 638 MHz
Model
:
AXT200/SM58 J5
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure AXT200/SM58 J5 Axient Handheld
The Shure AXT200/SM58 J5 is an Axient Frequency Diversity handheld transmitter with the SM58 capsule, tuning 578 to 638 MHz. It transmits on two independent frequencies for seamless audio, with ultra-linear RF, ShowLink remote control, IR sync and up to 9 hours on an AXT920 battery, for broadcast and major events across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Frequency Diversity or single carrier mode
- SM58 vocal capsule
- ShowLink real-time remote control
- IR sync to receiver frequency
- 42 dB adjustable gain
Technical Specifications:
| Spec | Value |
|---|---|
| RF Band | J5, 578 to 638 MHz |
| Range | About 150 m typical, 500 m line of sight |
| Audio Response | 40 Hz to 18 kHz (mic dependent) |
| Dynamic Range | Over 113 dB A-weighted |
| Gain Range | -10 to +32 dB in 1 dB steps |
| Battery | AXT920 Li-ion, up to 9 h (single carrier) |
| ShowLink | IEEE 802.15.4, 2.40 to 2.4835 GHz |
| Housing | Machined aluminium |
| Weight | 395 g with batteries |
Why Buy the Shure AXT200/SM58 J5 from Trianze Tech?
- Shure Axient transmitter with local support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Help pairing to your AXT400
- Dedicated AV support team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The J5 version tunes 578 to 638 MHz in 25 kHz steps.
It transmits on two independent frequencies at once for seamless audio; single carrier mode is available when it is not needed.
Up to 9 hours on a Shure AXT920 lithium-ion battery in low power, single carrier mode.
Shure quotes about 150 m under typical conditions and up to 500 m line of sight outdoors.
The AXT200/SM58 weighs 395 g with batteries and has a machined aluminium housing.
Trianze Tech stocks the Shure AXT200/SM58 J5 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
