Shure ADX5DUS-A: Axient Digital Dual-Channel Portable Wireless Receiver, A Band
Model
:
ADX5DUS-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure ADX5DUS-A Axient Digital Dual-Channel Portable Receiver, A Band
The Shure ADX5DUS-A is a dual-channel, slot-in Axient Digital portable receiver built for mobile sound, sports video, film and reality TV production across Dubai, Abu Dhabi and the UAE and GCC, mounting directly on a camera or in a bag rig with a battery sled.
Key Features:
- Dual-channel slot-in receiver with true digital diversity per channel
- ShowLink Direct Mode for remote transmitter control with no external hardware
- AES 256 encryption and low latency down to 2.08 ms
- High-resolution OLED display with per-channel Channel Quality meters
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | A (approximately 470 to 636 MHz) |
| Working Range | 246 ft (75 m) SD mode, 131 ft (40 m) HD mode |
| RF Sensitivity | -90 dBm |
| Audio Dynamic Range | 129 dB, 0.0006% THD |
| Latency | 2.08 ms (SD), 2.96 ms (HD) |
| Power | 6 to 18 VDC, 4.2 W nominal |
| Dimensions / Weight | 29 x 88 x 108 mm, 0.24 kg |
Why Buy the Shure ADX5DUS-A from Trianze Tech?
- Genuine Shure Axient Digital receiver backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on band planning for camera-mount and ENG kit bags
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure ADX5DUS-A covers the A band, approximately 470 to 636 MHz, as part of Axient Digital's ADX Series wireless receiver line.
The ADX5DUS-A is designed to work with Shure's AD and ADX Series Axient Digital transmitters, including ADX1 bodypacks and ADX2/ADX2FD handhelds on the matching A band.

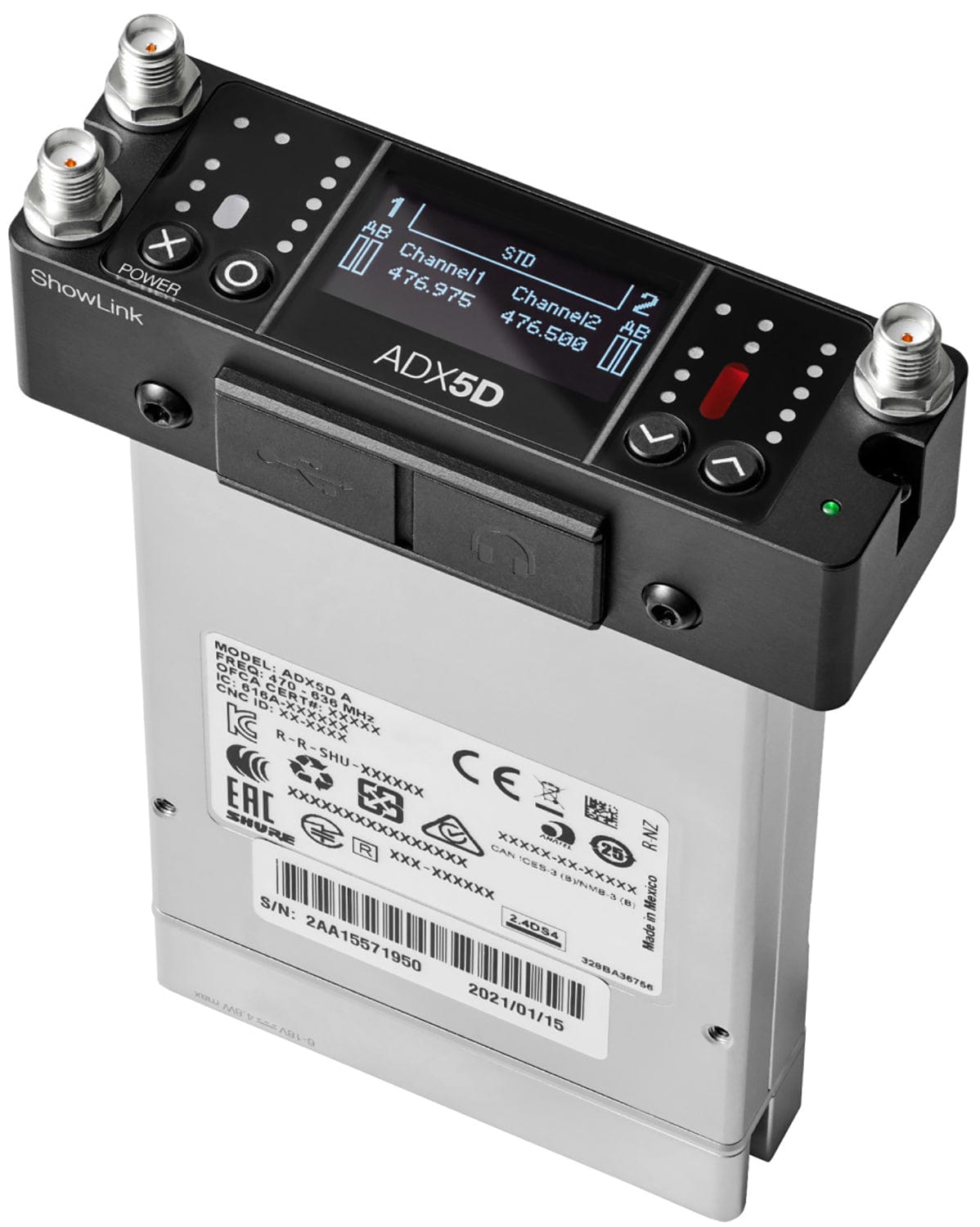

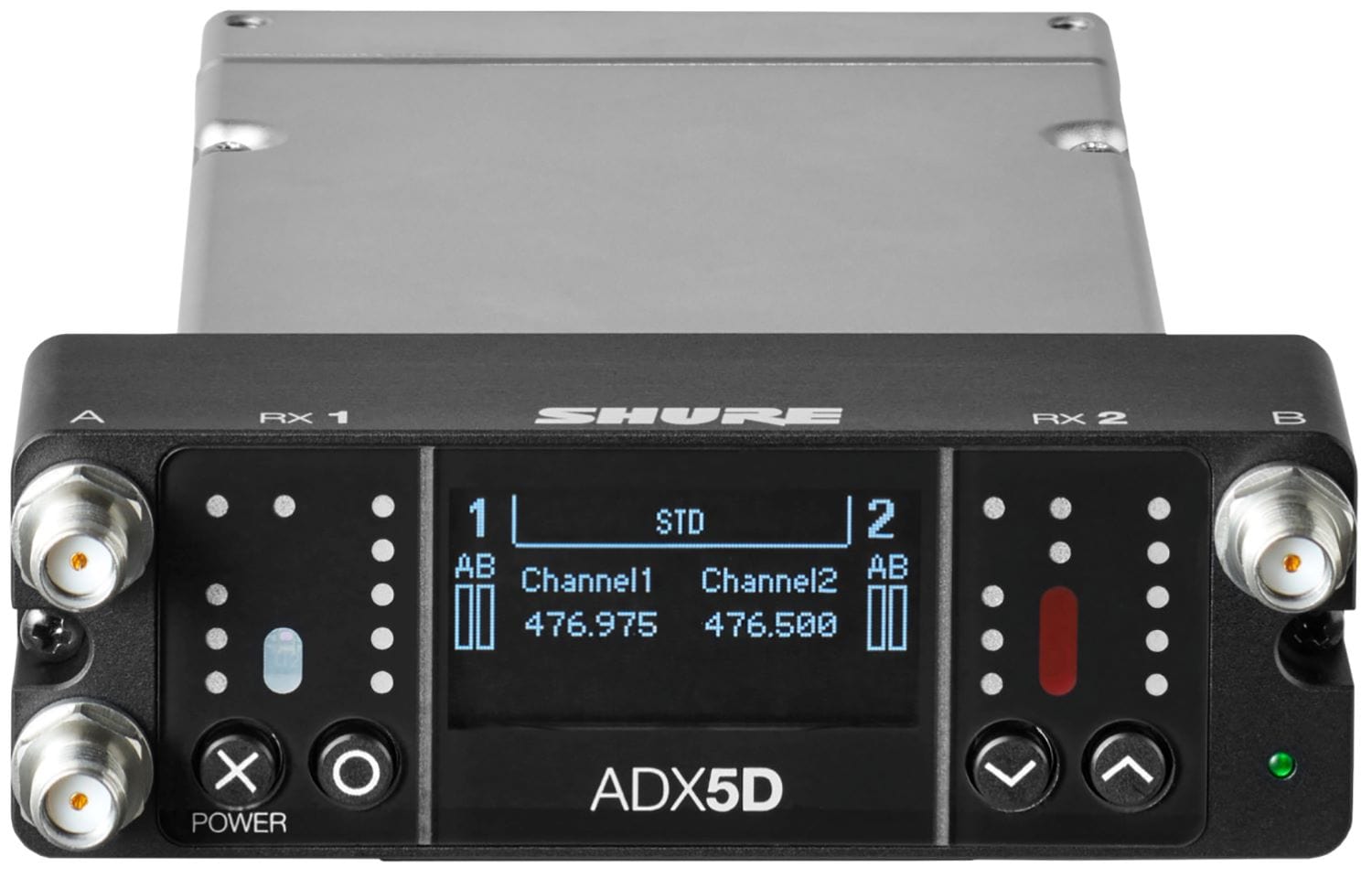

The ADX5DUS-A includes a high-resolution OLED display with 5-segment Channel Quality meters per channel, letting an operator monitor per-channel RF link quality at a glance.
Yes. The ADX5DUS-A supports networked control through Shure Wireless Workbench software and the ShurePlus Channels iOS app, alongside standalone operation.
The ADX5DUS-A measures 1.1 x 3.4 x 4.25 in (29 x 88 x 108 mm) and weighs 0.53 lb (0.24 kg), in a machined aluminum housing built for camera-mount and bag rig use.
Trianze Tech stocks the Shure ADX5DUS-A portable dual-channel receiver in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
