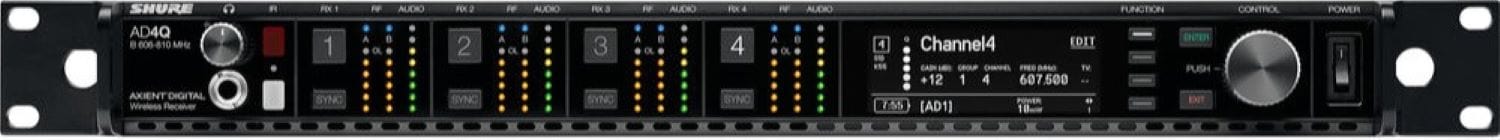

Shure AD4Q-DC-A: Axient Digital 4-Channel Quad Receiver with DC Power Module, A Band
Model
:
AD4Q-DC-A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure AD4Q-DC-A Axient Digital 4-Channel Quad Receiver
The Shure AD4Q-DC-A is a 4-channel Axient Digital quad receiver with a DC power module, built for major events and high-end installations across Dubai, Abu Dhabi and the UAE and GCC that demand transparent digital audio and maximum spectral efficiency in a single rack space.
Key Features:
- Quadversity mode for extended antenna coverage and improved RF signal-to-noise
- DC Power Module supports backup power sources and remote operation
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel
- Switchable XLR/AES3 outputs plus AES67 and Dante
- Networked control with Wireless Workbench and ShurePlus Channels app
Technical Specifications:
| Spec | Value |
|---|---|
| Channels | 4 |
| Frequency Band | A (470 to 636 MHz) |
| Power | 100-240 VAC 0.68A max; DC 10.9-14.8V 4.0A max |
| Dimensions / Weight | 44 x 483 x 333 mm, 4.8 kg without antennas |
| Networking | 10/100 Mbps, 1 Gbps, Dante |
Why Buy the Shure AD4Q-DC-A from Trianze Tech?
- Genuine Shure Axient Digital receiver backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on Axient Digital system design and band planning
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure AD4Q-DC-A is a 4-channel Axient Digital quad receiver in a single 1RU rack space, with Quadversity mode for extended antenna coverage and improved RF signal-to-noise across all four channels.
The AD4Q-DC-A operates on the A band, 470 to 636 MHz, a 166 MHz wide tuning range, and must be paired with Axient Digital transmitters tuned to the same A band.

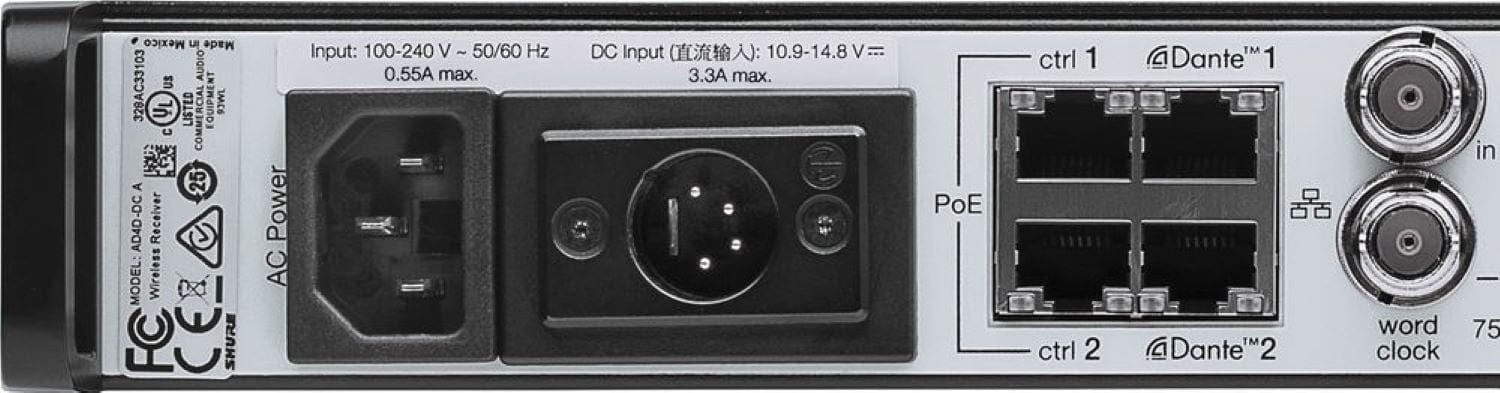

Yes. The AD4Q-DC-A includes a DC Power Module (10.9 to 14.8 VDC, 4.0 A maximum) that supports backup power sources and remote operation, in addition to its standard 100 to 240 VAC input.

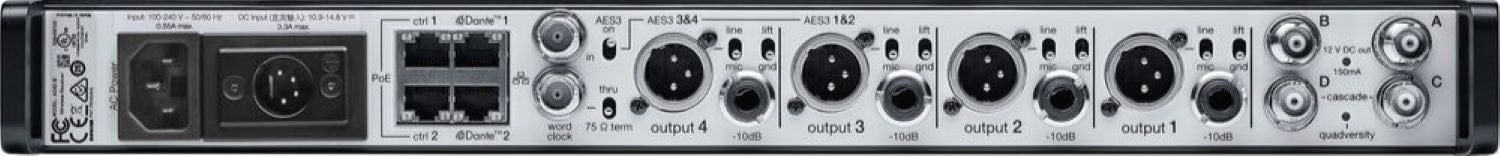

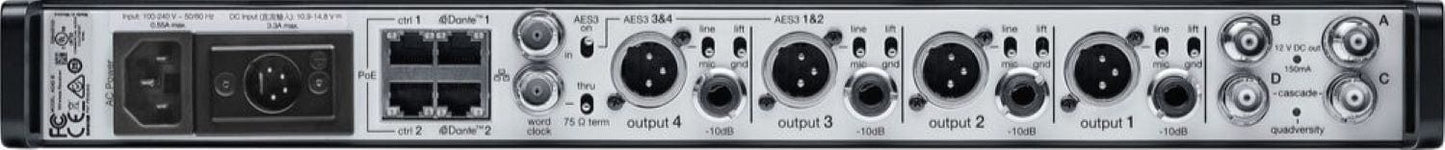

The AD4Q-DC-A offers switchable XLR/AES3 outputs plus AES67 and Dante networked audio, with a configurable Ethernet switch for redundant Dante output and a front panel headphone jack for Dante Cue and Dante Browse monitoring.
The AD4Q-DC-A measures 44 x 483 x 333 mm (1.7 x 19.0 x 13.1 in) and weighs 4.8 kg (10.6 lb) without antennas, housed in steel and extruded aluminum.
Trianze Tech stocks the Shure AD4Q-DC-A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
