Shure AD4DNP-B: Axient Digital 2-Channel AC-Only Receiver, B Band
Model
:
AD4DNP-B
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure AD4DNP-B Axient Digital 2-Channel AC-Only Receiver
The Shure AD4DNP-B is a 2-channel Axient Digital receiver built for fixed installations across Dubai, Abu Dhabi and the UAE and GCC that run on standard AC mains power without needing a DC backup module, keeping cost and complexity down for venue-based deployments.
Key Features:
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel
- Networked control with Wireless Workbench and ShurePlus Channels app

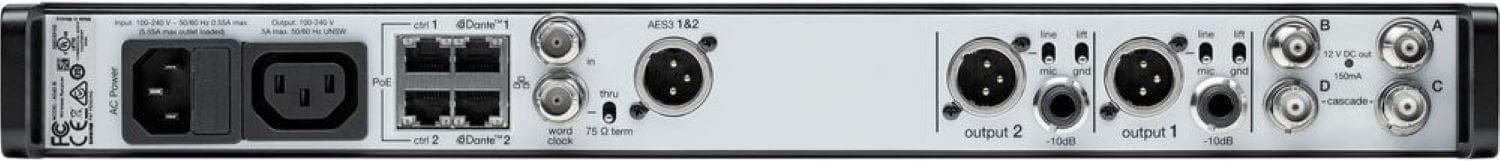

- Dante networking with configurable Ethernet switch for redundant output

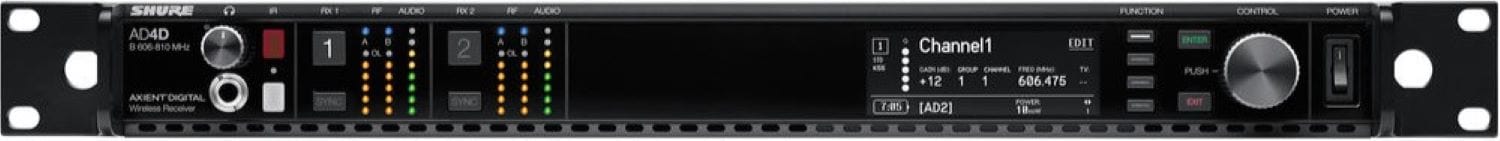

- Front panel headphone jack for Dante Cue and Dante Browse monitoring
- Dedicated AES3 output
Technical Specifications:
| Spec | Value |
|---|---|
| Channels | 2 |
| Frequency Band | B (606 to 810 MHz) |
| Power | 100-240 VAC, 0.26 A max (AC only, no DC power module) |
| Dimensions / Weight | 44 x 483 x 333 mm, 4.6 kg without antennas |
| Networking | 10/100 Mbps, 1 Gbps, Dante |
Why Buy the Shure AD4DNP-B from Trianze Tech?
- Genuine Shure Axient Digital receiver backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on Axient Digital system design and band planning
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The AD4DNP-B is an AC-only 2-channel Axient Digital receiver without the DC power module found on the AD4D-DC, drawing a lower 0.26 A maximum on its 100 to 240 VAC input, for fixed installations that do not need battery or vehicle DC power.
The AD4DNP-B operates on the B band, 606 to 810 MHz, with a wide tuning range up to 184 MHz.
Yes. The AD4DNP-B supports Dante networked audio with a configurable Ethernet switch for redundant output and a front panel headphone jack for Dante Cue and Dante Browse monitoring, plus a dedicated AES3 output.
The AD4DNP-B weighs 4.6 kg (10.1 lb) without antennas, measuring 44 x 483 x 333 mm (1.7 x 19.0 x 13.1 in) in a steel and extruded aluminum housing.

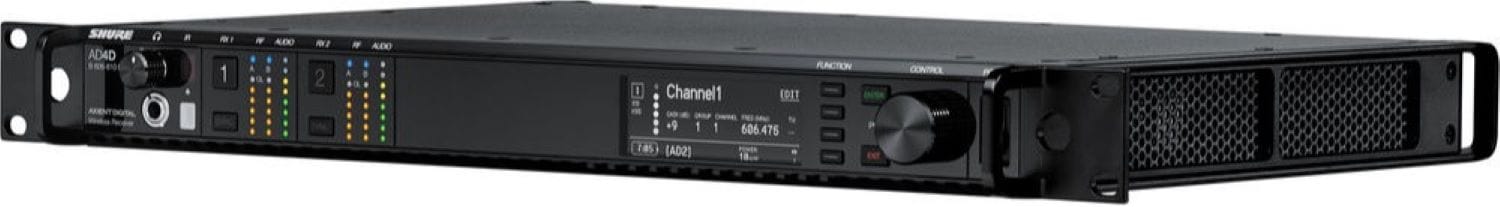

The AD4DNP-B is a 2-channel Axient Digital dual receiver in a single 1RU rack space, with true digital diversity reception per channel for drop-out resistance.
Trianze Tech stocks the Shure AD4DNP-B in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
