Shure AD4D-DC-C: Axient Digital 2-Channel Receiver with DC Power Module, C Band
Model
:
AD4D-DC-C
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

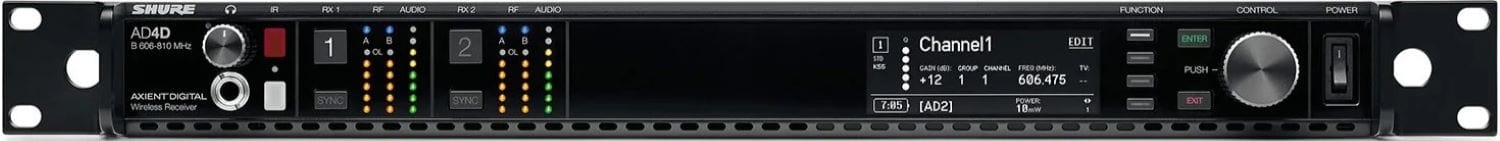

Shure AD4D-DC-C Axient Digital 2-Channel Receiver with DC Power Module
The Shure AD4D-DC-C is a 2-channel Axient Digital receiver with a built-in DC power module, purpose-built for broadcast production trucks and vehicles across Dubai, Abu Dhabi and the UAE and GCC while still accepting standard AC power for redundancy at fixed venues.
Key Features:
- Built-in DC power module for production trucks and vehicles, plus AC redundancy
- 166 MHz ultrawide tuning range covering the entire C band
- True digital diversity reception
- Low 2 to 2.9 ms selectable latency
- AES-256 encrypted transmission

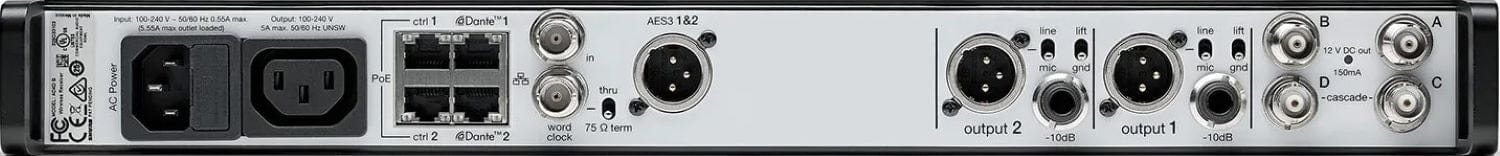

- XLR/AES3 plus AES67/Dante outputs, Dante Cue and Dante Browse monitoring
Technical Specifications:
| Spec | Value |
|---|---|
| Channels | 2 |
| Frequency Band | C (750 to 960 MHz) |
| RF Sensitivity | Approximately -98 dBm |
| Adjacent Channel Isolation | Greater than 70 dB |

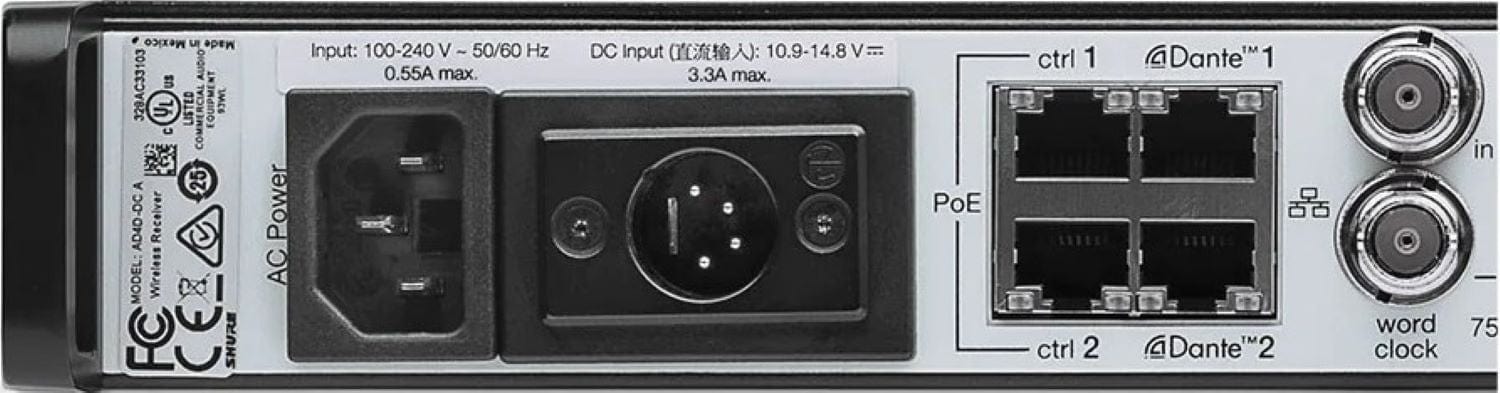

| Power | AC 100-240V 0.68A max; DC 10.9-14.8V 3.3A (included adapter) |
| Dimensions / Weight | 483 x 44 x 333 mm, 4.6 kg without antennas |
Why Buy the Shure AD4D-DC-C from Trianze Tech?
- Genuine Shure Axient Digital receiver backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on Axient Digital system design and band planning
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The AD4D-DC-C has a built-in DC power module that accepts DC power directly, ideal for broadcast production trucks and vehicles, while still accepting standard AC power for redundancy at fixed venues.
The AD4D-DC-C operates on the C band, 750 to 960 MHz, a single 166 MHz ultrawide tuning bandwidth.
In standard mode an Axient Digital system built around AD4D-DC-C receivers supports over 120 simultaneous channels; in High Density mode it can support up to 47 active transmitters per 6 MHz TV channel.
The AD4D-DC-C offers approximately -98 dBm RF sensitivity and greater than 70 dB adjacent channel isolation, with true digital diversity reception for reliable signal reception in demanding RF environments.
The AD4D-DC-C weighs 4.6 kg (10.1 lb) without antennas, measuring 483 x 44 x 333 mm (19 x 1.7 x 13.1 in) in a 1 RU rackmount steel housing.
Trianze Tech stocks the Shure AD4D-DC-C in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
