Shure AD4D-DC-B: Axient Digital 2-Channel Receiver with DC Power Module, B Band
Model
:
AD4D-DC-B
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

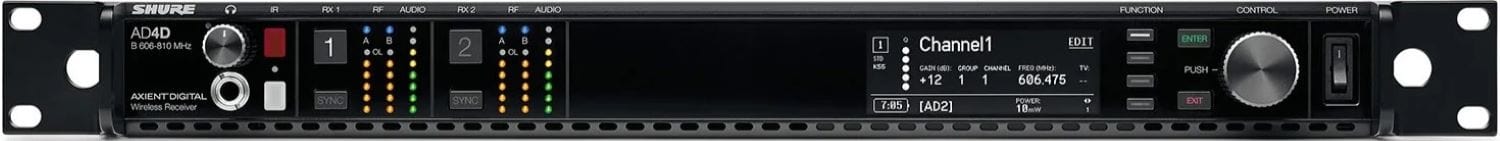

Shure AD4D-DC-B Axient Digital 2-Channel Receiver
The Shure AD4D-DC-B is a 2-channel Axient Digital receiver with a built-in DC power module, built for broadcast production trucks and mission-critical events across Dubai, Abu Dhabi and the UAE and GCC that need AC and DC power redundancy in one rack-mount chassis.
Key Features:
- Built-in DC power module plus standard AC input for redundancy
- True Digital Diversity reception across a 166 MHz ultrawide tuning range
- Expandable to 120+ transmitters per band
- 4 x Gigabit Ethernet ports with Dante networking
- XLR, AES3 and quarter-inch TRS outputs
- Secure AES-256 encryption
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | B (approximately 606 to 810 MHz) |
| RF Bandwidth | 166 MHz ultrawide tuning |
| Audio Channels | 2, true digital diversity |
| Power | AC 100-240 VAC or DC 10.9-14.8 VDC at 3.3A |
| Rack Size | 1 RU full rack |
| Dimensions / Weight | 483 x 44 x 333 mm, 4.6 kg without antennas |
Why Buy the Shure AD4D-DC-B from Trianze Tech?
- Genuine Shure Axient Digital receiver backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on Axient Digital system design and band planning
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure AD4D-DC-B operates on the B band, approximately 606 to 810 MHz, a 166 MHz ultrawide tuning range that can host up to 120 transmitters simultaneously.

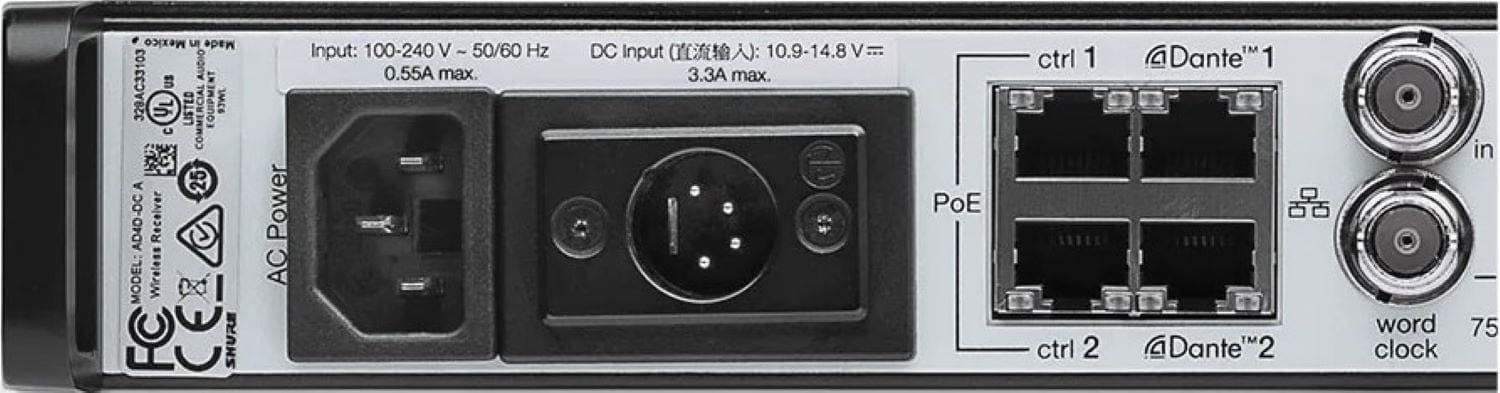

Yes. The AD4D-DC-B has a built-in DC power module accepting 10.9 to 14.8 VDC at 3.3 A, purpose-built for broadcast production trucks, and it also accepts standard AC power (100 to 240 VAC) for redundancy.

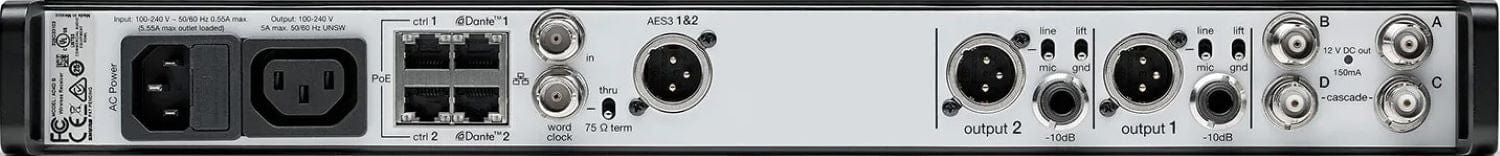

The AD4D-DC-B provides 2 digital audio channels with true digital diversity reception in a single 1 RU full-rack chassis, with 2 XLR, 1 AES3, 2 quarter-inch TRS, and a headphone output.
Yes. The AD4D-DC-B includes 4 RJ45 Gigabit Ethernet ports supporting Dante, DHCP, and manual IP configuration, letting it integrate directly into a networked audio system.
The AD4D-DC-B has a maximum operating range of approximately 328 feet (100 m) line of sight, with true digital diversity reception via 2 rear-mounted half-wave BNC antennas for reliable pickup.
Trianze Tech stocks the Shure AD4D-DC-B in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
