Shure AD1LEMO3-X55: Axient Digital Bodypack Transmitter with LEMO3 Input, X55 Band
Model
:
AD1LEMO3-X55
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

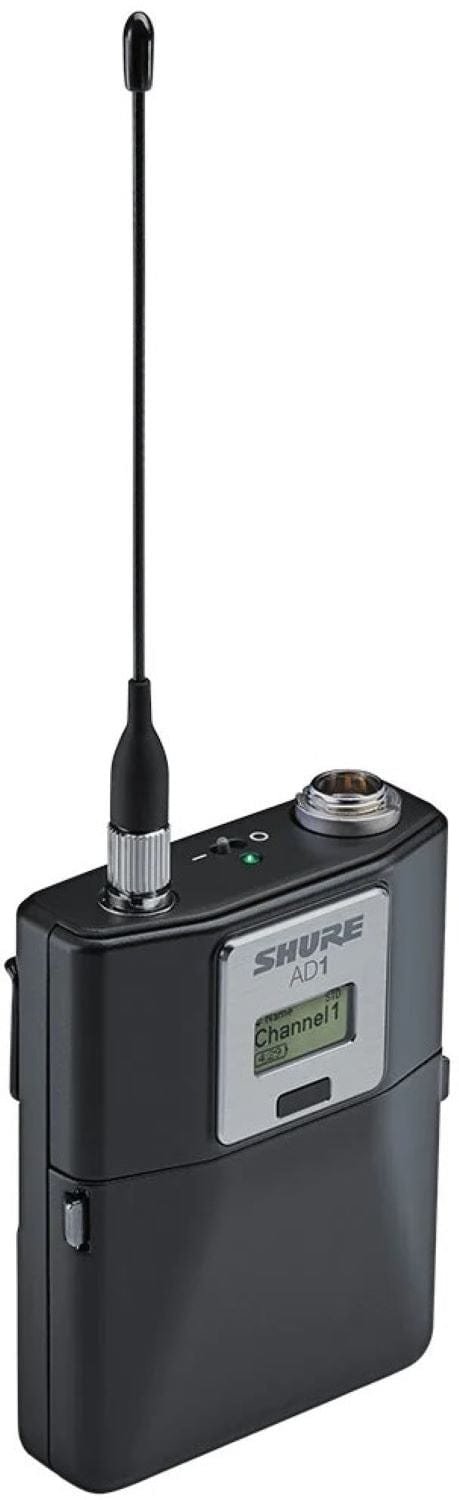

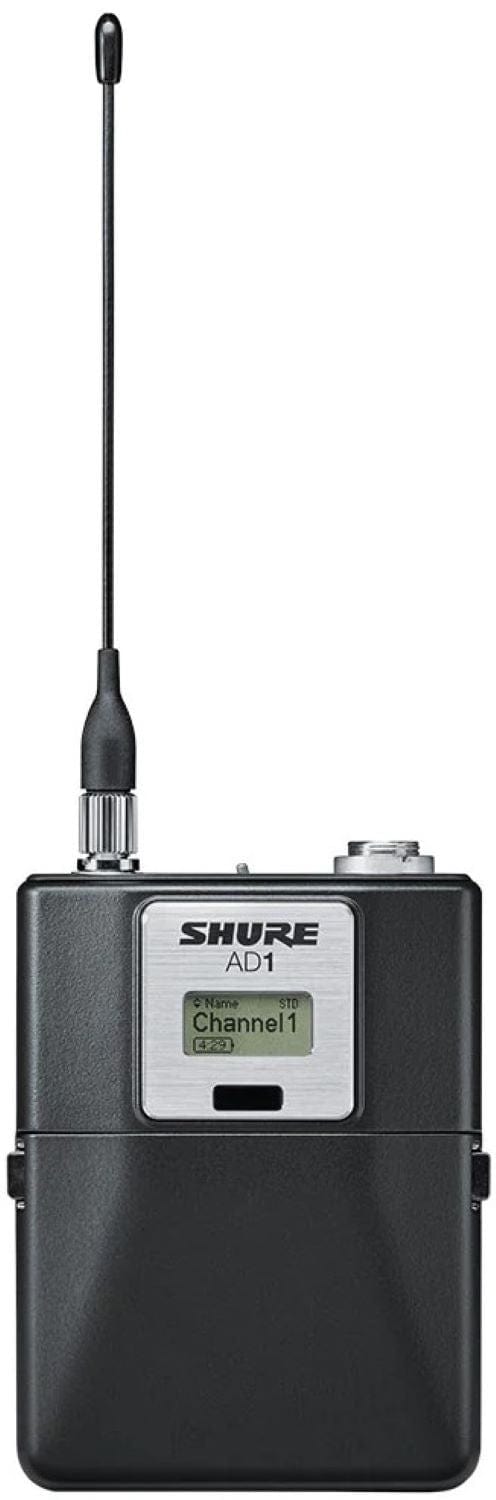

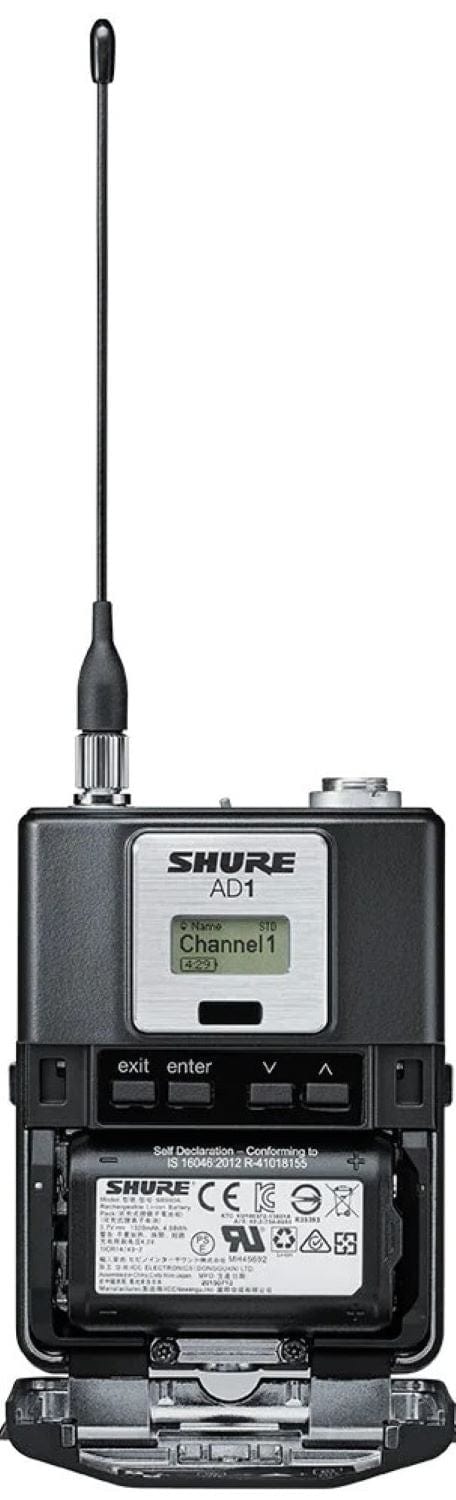

Shure AD1LEMO3-X55 Axient Digital Bodypack Transmitter
The Shure AD1LEMO3-X55 is the LEMO3 connector version of the Axient Digital AD1 bodypack, built for select third-party lavalier and headset microphones terminated in LEMO 3-pin plugs. It runs on the X55 band, 941 to 960 MHz, with Standard and High Density modes and AES-256 encryption, for broadcast and theatre work across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:

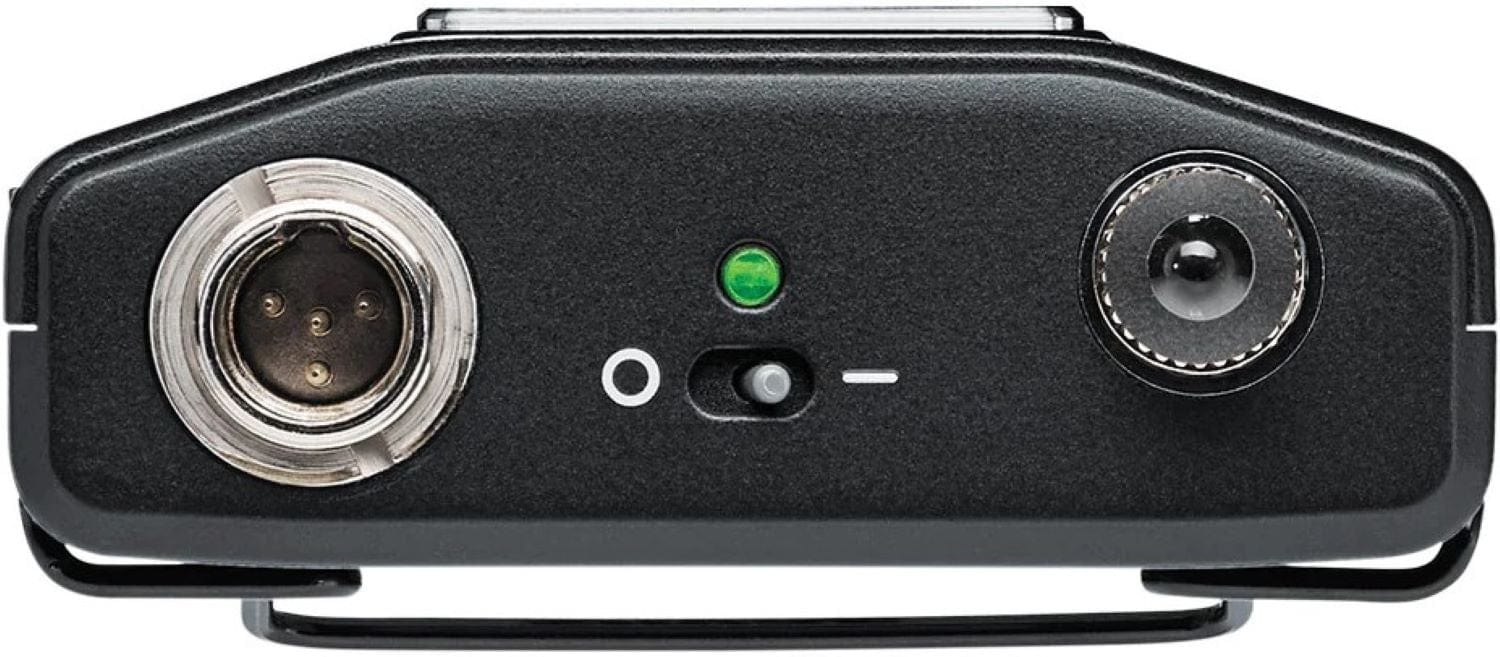

- LEMO 3-pin input for third-party lavalier and headset microphones
- Standard and High Density transmission modes
- Selectable 2/10/35 mW RF output power
- AES-256 encryption and 12 dB input pad
- Detachable 1/4 wave antenna, cast aluminum housing
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | X55 (941 to 960 MHz) |
| Audio Input | LEMO3, unbalanced, 8.2 MOhm |
| Maximum Input Level | 8.5 dBV pad off, 20.5 dBV pad on (1 kHz, 1% THD) |
| Gain Offset | -12 to +21 dB in 1 dB steps |
| Preamp EIN | -120 dBV A-weighted (gain setting +20 or higher) |
| RF Output | 2, 10, 35 mW; SMA connector, 1/4 wave antenna |
| Battery | 2x AA up to 8 hours or SB900A up to 9 hours (at 10 mW) |
| Housing / Dimensions | Cast aluminum, 86 x 66 x 23 mm |
Why Buy the Shure AD1LEMO3-X55 from Trianze Tech?
- Genuine Shure Axient Digital transmitter with manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Help matching LEMO3 microphones and the X55 band to your system
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The AD1LEMO3-X55 has a LEMO 3-pin input (8.2 MOhm) for select third-party microphones, while the standard AD1-X55 has a TA4M input (1 MOhm) for Shure TA4F-terminated mics. RF performance and features are otherwise the same.
The AD1LEMO3-X55 operates on the X55 band, 941 to 960 MHz. Pair it with an Axient Digital receiver on the same band and confirm local regulations for wireless use.
The AD1LEMO3-X55 offers selectable 2, 10 and 35 mW RF output (region dependent) through an SMA-connected, detachable 1/4 wave antenna.
Shure specifies the AD1LEMO3-X55 preamp equivalent input noise at -120 dBV A-weighted with system gain at +20 or higher, which suits quiet dialogue on sensitive lavalier mics.
The AD1LEMO3-X55 runs up to 8 hours on 2 AA alkaline batteries or up to 9 hours on a Shure SB900A rechargeable at 10 mW, with external contacts for docked charging.
Trianze Tech stocks the Shure AD1LEMO3-X55 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
