Shure AD1-X55: Axient Digital Bodypack Transmitter with TA4M Input, X55 Band
Model
:
AD1-X55
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support

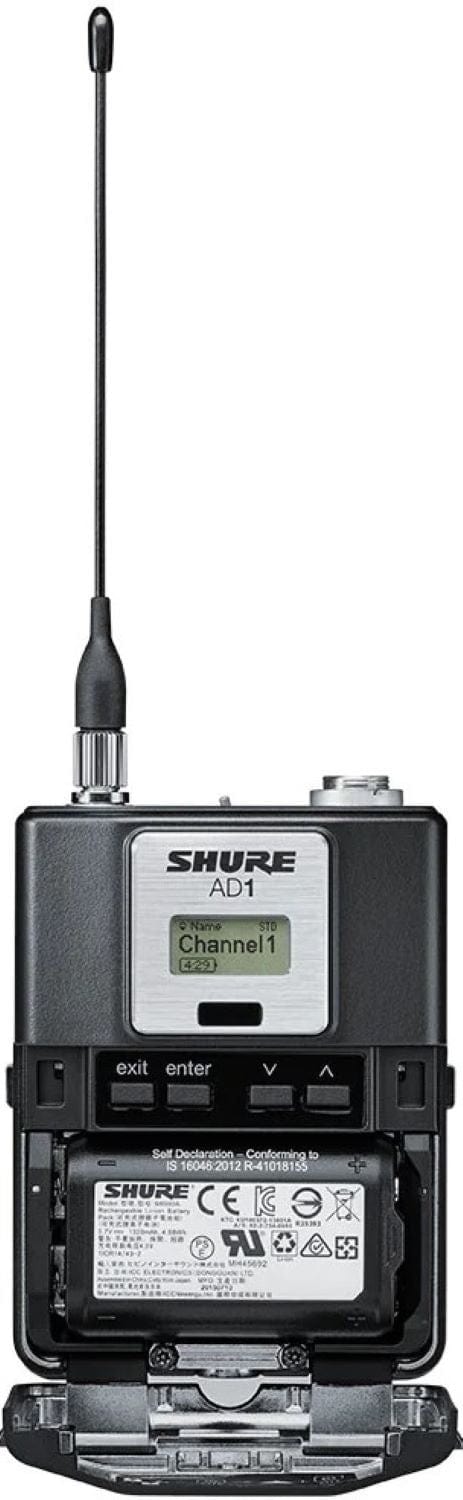

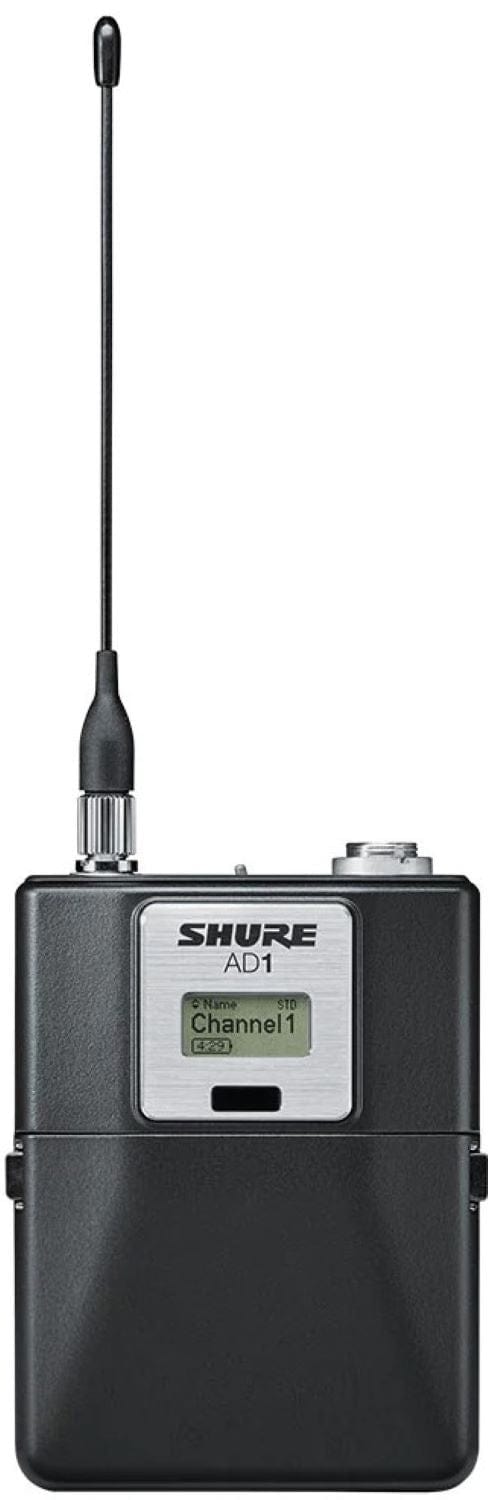

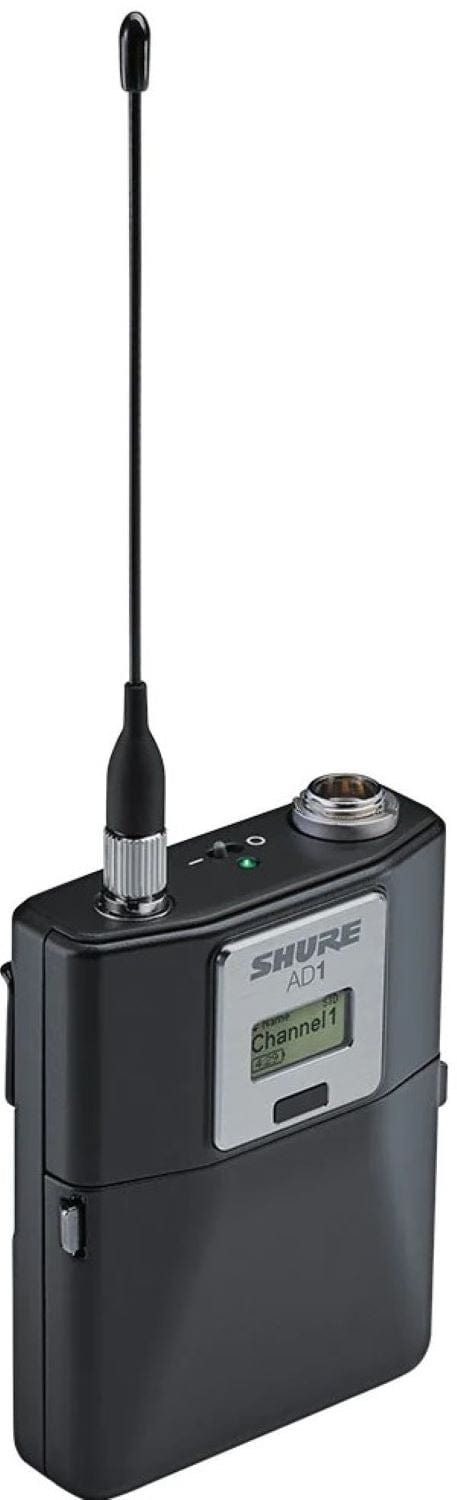

Shure AD1-X55 Axient Digital Bodypack Transmitter
The Shure AD1-X55 is an Axient Digital bodypack transmitter on the X55 band, 941 to 960 MHz, with a TA4M input for lavalier and headset microphones. It offers Standard and High Density transmission modes, AES-256 encryption and a flat 20 Hz to 20 kHz audio path, for theatre, broadcast and corporate productions across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- TA4M (4-pin mini) input for lavalier, headset and instrument sources
- Standard and High Density transmission modes
- Selectable 2/10/35 mW RF output power (region dependent)
- AES-256 encryption, automatic input staging and a 12 dB pad
- Detachable 1/4 wave antenna and cast aluminum housing
Technical Specifications:
| Spec | Value |
|---|---|
| Frequency Band | X55 (941 to 960 MHz) |
| Audio Input | TA4M, unbalanced, 1 MOhm |
| Maximum Input Level | 8.5 dBV pad off, 20.5 dBV pad on (1 kHz, 1% THD) |
| Gain Offset | -12 to +21 dB in 1 dB steps |
| Audio Performance | 20 Hz to 20 kHz, over 120 dB dynamic range |
| RF Output | 2, 10, 35 mW; SMA connector, 1/4 wave antenna |
| Battery | 2x AA up to 8 hours or SB900A up to 9 hours (at 10 mW) |
| Housing / Dimensions | Cast aluminum, 86 x 66 x 23 mm |
Why Buy the Shure AD1-X55 from Trianze Tech?
- Genuine Shure Axient Digital transmitter with manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Help matching the X55 band and microphones to your system
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.

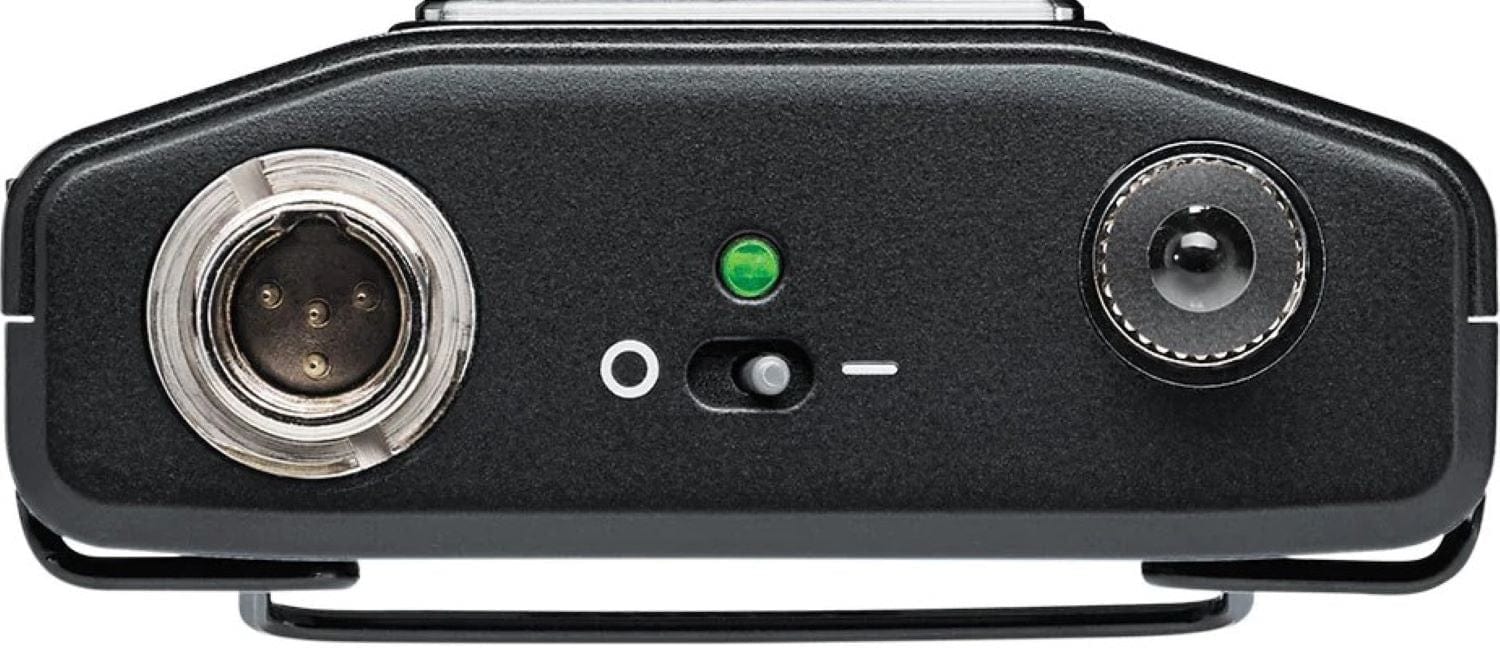

The Shure AD1-X55 has a TA4M (4-pin mini) unbalanced input with 1 MOhm impedance, which accepts Shure TA4F-terminated lavalier, headset and instrument cables. For LEMO3-terminated microphones, the AD1LEMO3 version is the right choice.
The AD1-X55 operates on the X55 band, 941 to 960 MHz, and must be paired with an Axient Digital receiver on the same band. Wireless use in this range is subject to local regulation.
High Density mode on the AD1-X55 uses a narrower signal so far more channels fit in the same spectrum: up to 47 channels per 6 MHz TV channel versus 17 in Standard mode, according to Shure's AD1 specifications.
At 10 mW the AD1-X55 runs up to 8 hours on 2 AA alkaline batteries or up to 9 hours on a Shure SB900A lithium-ion rechargeable, which can be charged in the transmitter through external docking contacts.
Yes. The AD1-X55 accepts up to 8.5 dBV with the pad off and 20.5 dBV with its 12 dB pad engaged, and gain offset is adjustable from -12 to +21 dB in 1 dB steps.
Trianze Tech stocks the Shure AD1-X55 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
