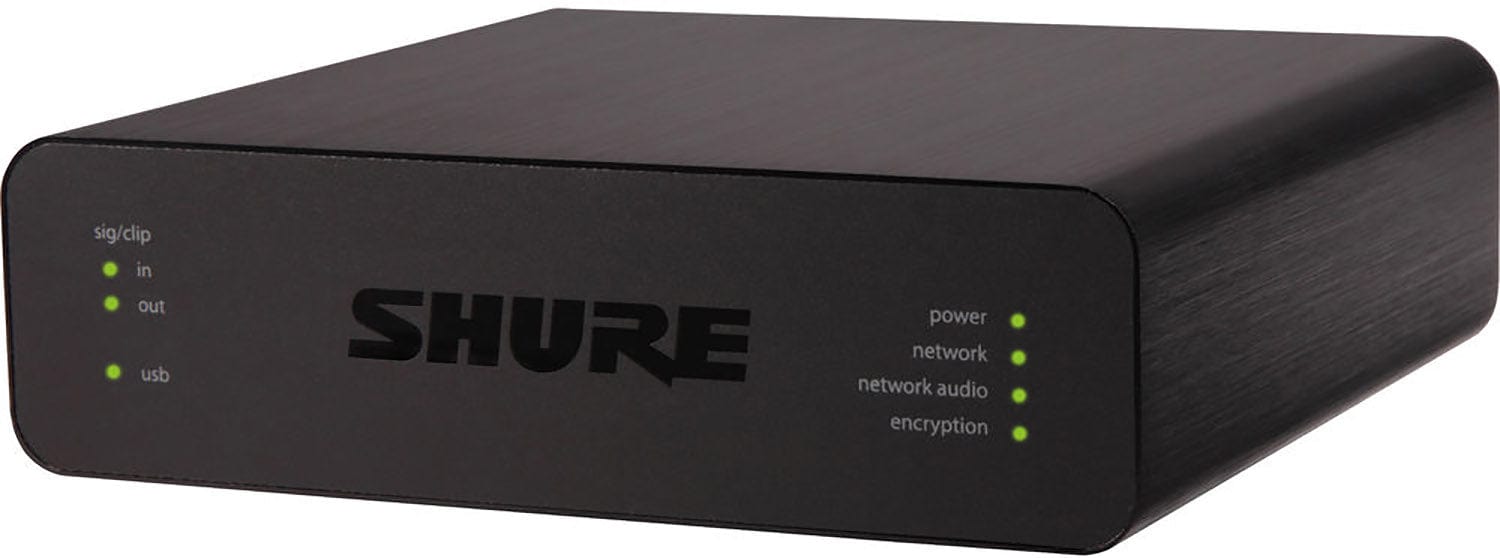

  • Shure ANIUSB-MATRIX USB audio network interface, main product view
  • Shure ANIUSB-MATRIX USB audio network interface, additional product photo 2
  • Shure ANIUSB-MATRIX USB audio network interface, additional product photo 3
  • Shure ANIUSB-MATRIX USB audio network interface, additional product photo 4
1 4

Shure ANIUSB-MATRIX: USB Audio Network Interface with Matrix Mixing and Dante for Meeting Rooms

  • USB audio network interface with matrix mixer
  • 4 Dante in, 2 Dante out, 1 analog in and out
  • 4-band parametric EQ on analog and USB outputs
  • PoE powered, browser-based control
Brand :Shure
Model : ANIUSB-MATRIX

Part of Our Solution Executive Boardrooms & Smart Meeting Spaces
View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Applications & Use Cases

  • Small and Medium Meeting Rooms: premium Microflex microphones into a conferencing system
  • PC-Based Conferencing: USB link to a laptop or room PC
  • Codec AEC Rooms: relies on the codec for echo cancellation
  • Flexible Routing: internal matrix mixer for any input to any output
Shure ANIUSB-MATRIX USB audio network interface, additional product photo 2
Shure ANIUSB-MATRIX
  • Specifications
  • Details

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Shure ANIUSB-MATRIX: USB Audio Network Interface with Matrix Mixing and Dante for Meeting Rooms

The Shure ANIUSB-MATRIX is a USB audio network interface that connects 4 Microflex Advance or Microflex Wireless microphone channels over Dante to a room conferencing system or a PC-based conferencing application. It delivers performance, connectivity and value for small and medium meeting rooms where a premium microphone solution is wanted and the acoustic echo cancellation of the AV conferencing codec will be used, in offices and boardrooms across Dubai, Abu Dhabi and the wider UAE.

Key Features

  • 4 Dante inputs and 2 Dante outputs, 1 analog block input and 1 analog block output
  • USB 2.0 Type B for a laptop or room PC
  • Internal matrix mixer routes any input to any output
  • 4-band parametric EQ on the analog and USB outputs
  • Power over Ethernet, no outboard power supply
  • Compact form factor mounts without an equipment rack, HTML5 browser-based control

Technical Specifications

Spec Detail
Model / Part Number ANIUSB-MATRIX
Dante 1 x RJ45, 4 input channels, 2 output channels
USB USB 2.0 Type B, 1 input and 1 output channel (summed mono)
Analog 1 block in, 1 block out
Power PoE Class 0 (PoE Plus compatible), 6.5 W maximum
Control HTML5 browser-based application
Dimensions / Weight 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in) / 668 g (1.5 lb)
Operating Temperature -6.7 to 40 C (20 to 104 F)

Why Buy the Shure ANIUSB-MATRIX from Trianze Tech?

Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for conferencing projects.

  • Genuine Shure stock sourced through authorized distribution channels
  • Pairs with Microflex Advance and Microflex Wireless systems
  • Dante and conferencing integration support across Dubai, Abu Dhabi and the GCC
  • Local UAE warranty backing and after-sales support
  • Volume pricing available for multi-room rollouts

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • 1x Shure ANIUSB-MATRIX USB audio network interface
  • PoE switch or injector, cabling and microphones are sold separately; confirm accessories with Trianze Tech at time of order

Warranty

  • Standard Shure manufacturer warranty, honoured in the UAE through Trianze Tech

Sustainability

  • Draws a maximum of 6.5 W over PoE and needs no outboard power supply

Expandability

  • Complements the ANI4IN, ANI4OUT and ANI22 interfaces on a Dante network

Distribution

  • Stocked and distributed in the UAE by Trianze Tech, serving integrators and corporate AV teams across Dubai, Abu Dhabi and the GCC

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Questions our clients ask before signing.

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
It connects 4 Microflex Advance or Microflex Wireless microphone channels over Dante (4 in, 2 out) to a room conferencing system through 1 analog input and 1 analog output, or to a PC-based conferencing application through USB, for small and medium meeting rooms.
Yes. An internal matrix mixer routes any input to any output, and a 4-band parametric EQ filter is available on the analog and USB outputs.
It is powered over Ethernet (PoE Class 0, PoE Plus compatible) with a maximum draw of 6.5 W, so no outboard power supply is needed.
It is controlled through an HTML5 browser-based application over the network, so no dedicated software installation is required.
It measures 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in) and weighs 668 g (1.5 lb). The USB 2.0 Type B port carries 1 input and 1 output channel as summed mono.
