Shure ANI22-BLOCK: Two Channel Analog to Dante Audio Network Interface with Two Inputs and Two Outputs
Model
:
ANI22-BLOCK
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure ANI22-BLOCK: Two Channel Analog to Dante Audio Network Interface with Two Inputs and Two Outputs
The Shure ANI22 connects 2 analog mic or line inputs and 2 analog outputs to a Dante network for easy audio routing and convenient browser-based remote control. It complements the ANI4IN and ANI4OUT and suits conference rooms, auditoriums and AV installations across Dubai, Abu Dhabi and the wider UAE. This listing is the block connector version.
Key Features
- Converts up to 2 mic or line analog signals onto Dante and 2 Dante signals to analog
- Power over Ethernet, no outboard power supply
- Per channel EQ (4-band parametric on Dante channels), mute, limiter and gain, plus channel summing
- HTML5 browser-based control
- Compact form factor mounts without an equipment rack
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | ANI22-BLOCK |
| Analog I/O | 2 x 6-pin block in, 2 x 3-pin block out |
| Dante | 1 x RJ45, 2 inputs and 2 outputs, 24-bit / 48 kHz |
| Frequency Response | 20 Hz to 20 kHz, plus or minus 1 dB |
| Dynamic Range | 113 dB, A-weighted, typical |
| Analog Gain Range | 51 dB in 3 dB steps |
| Latency | 0.35 ms analog to Dante, 0.71 ms Dante to analog (excluding Dante latency) |
| Power | PoE Class 0 (PoE Plus compatible), 11 W maximum |
| Dimensions / Weight | 4 x 14 x 12.8 cm (1.6 x 5.5 x 5.0 in) / 672 g (1.5 lb) |
Why Buy the Shure ANI22 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for Dante and conferencing projects.
- Genuine Shure stock sourced through authorized distribution channels
- Two inputs and two outputs in one compact PoE powered unit
- Dante integration support across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for multi-room rollouts
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The ANI22 connects 2 analog mic or line inputs and 2 analog outputs to a Dante network for easy audio routing and browser-based remote control. It complements the ANI4IN and ANI4OUT interfaces.

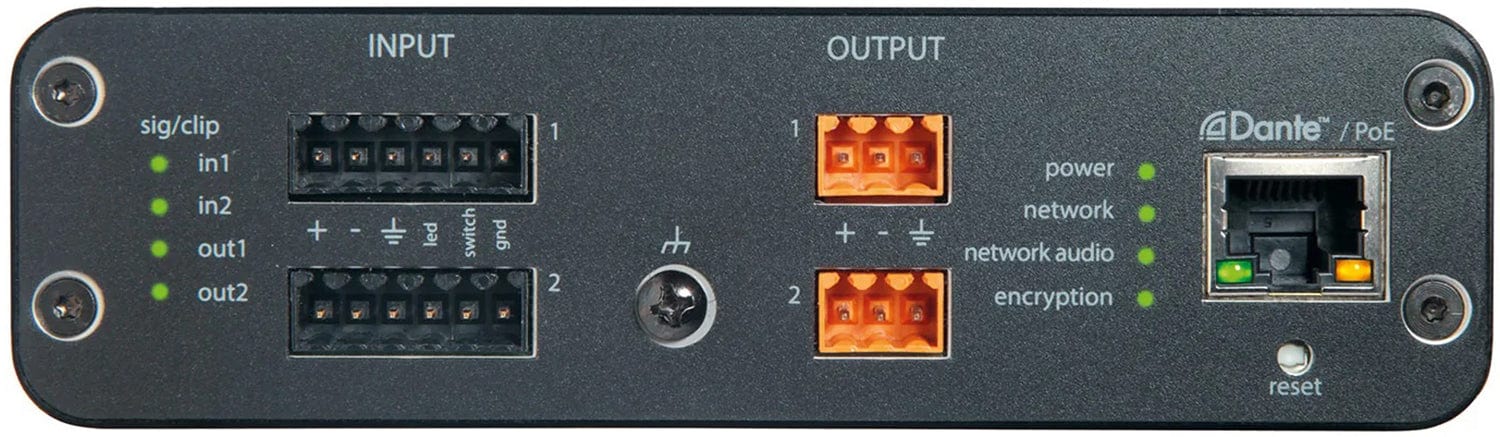

It has two 6-pin block analog inputs, two 3-pin block analog outputs and one RJ45 Dante connection carrying 2 input and 2 output channels. This listing is the block connector version, ANI22-BLOCK.
It is powered over Ethernet (PoE Class 0, PoE Plus compatible) with a maximum consumption of 11 W, so no outboard power supply is needed. It mounts without an equipment rack.
The ANI22 has a 20 Hz to 20 kHz response (plus or minus 1 dB), 24-bit / 48 kHz Dante audio, a 113 dB dynamic range and a 51 dB analog gain range in 3 dB steps. Latency is 0.35 ms analog to Dante and 0.71 ms Dante to analog, excluding Dante latency.
Per channel it offers mute, a limiter and gain with a 140 dB range, plus a 4-band parametric EQ on Dante channels and system channel summing, controlled by an HTML5 application. It measures 4 x 14 x 12.8 cm and weighs 672 g.
Trianze Tech stocks the Shure ANI22 Audio Network Interface in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
