Shure ADX5BP-TA3: Dual TA3 Back Plate for Axient Digital ADX5D Wireless Receiver with AES3 Output Option
Model
:
ADX5BP-TA3
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure ADX5BP-TA3: Dual TA3 Back Plate for Axient Digital ADX5D Wireless Receiver with AES3 Output Option

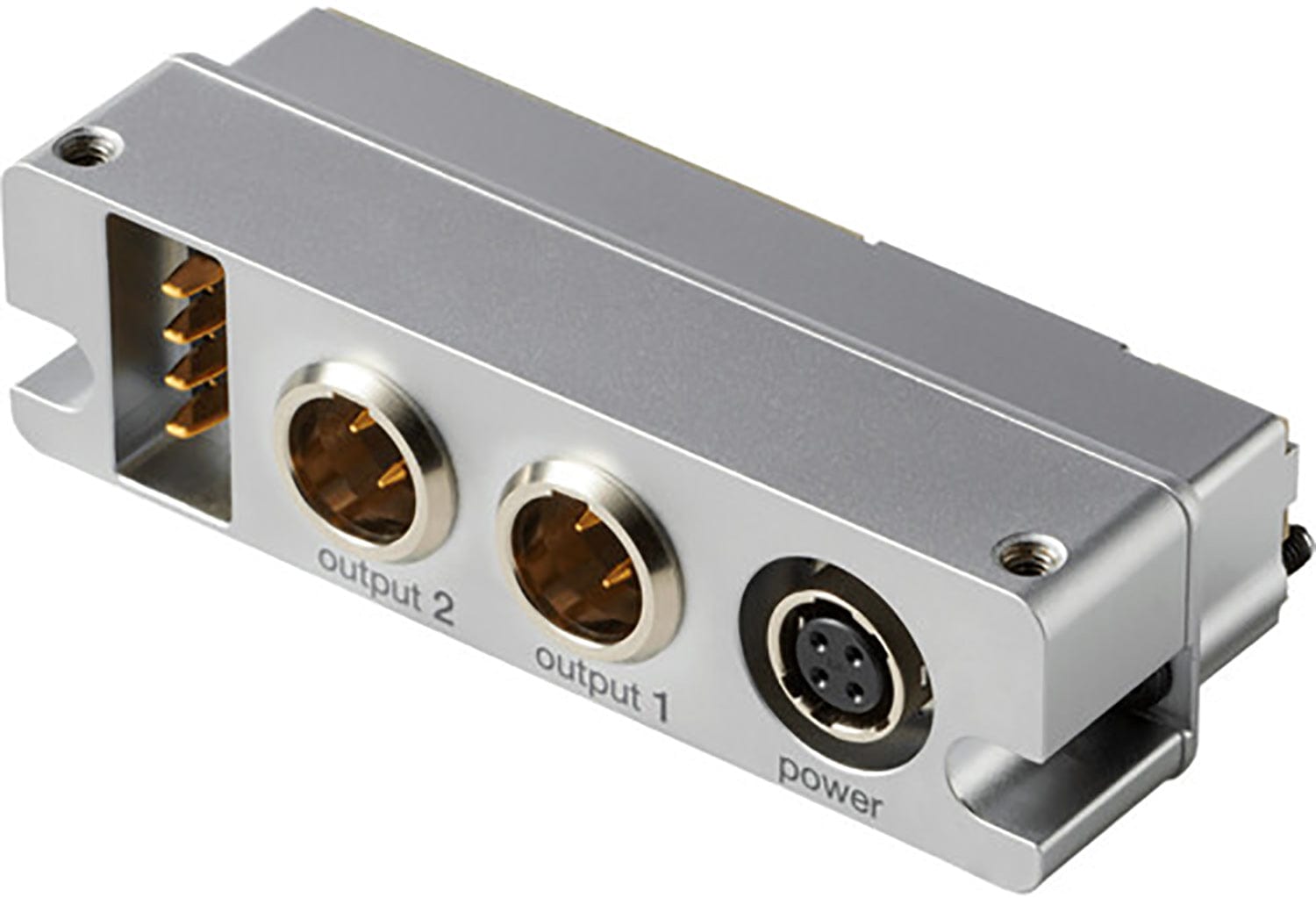

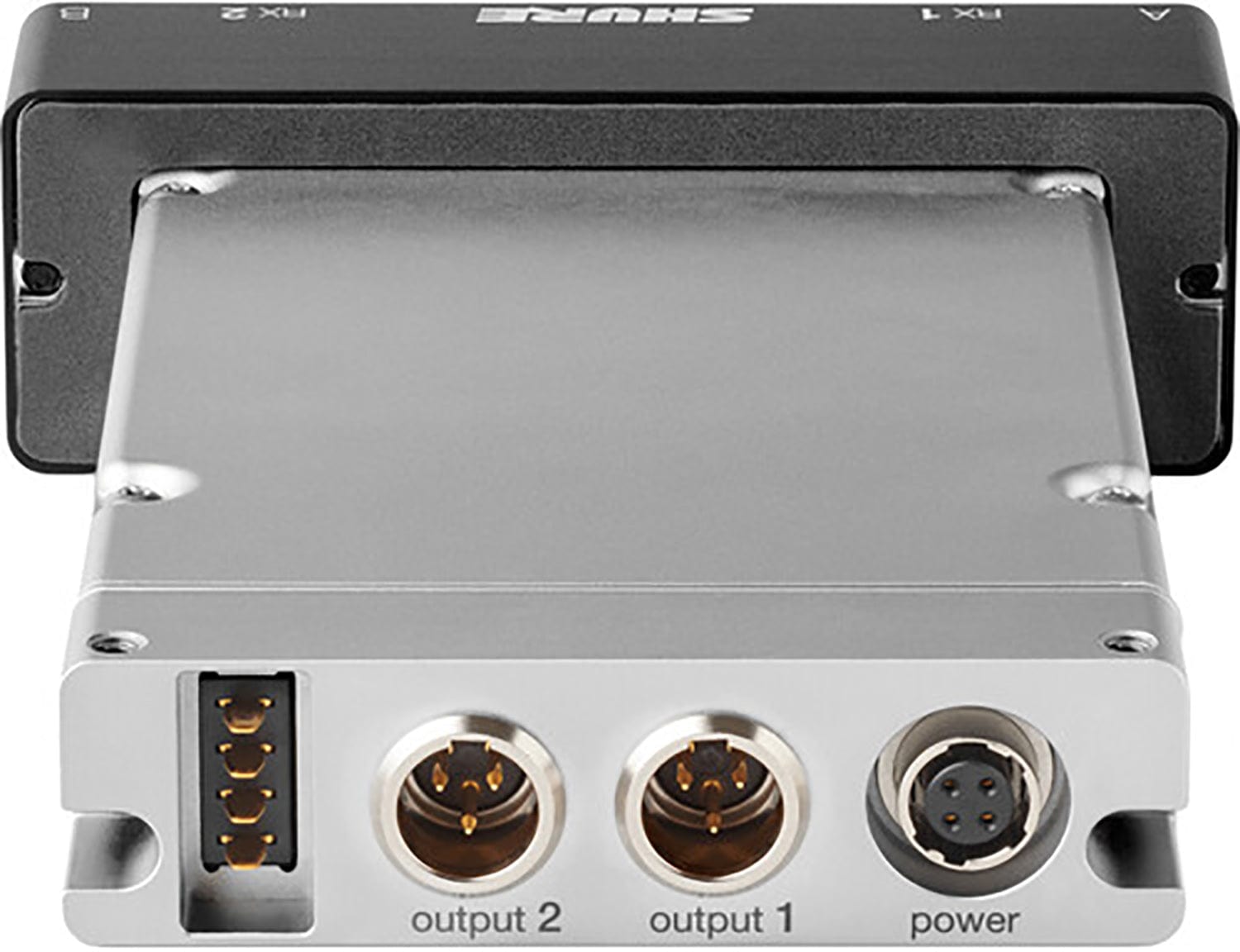

The Shure ADX5BP-TA3 back plate provides standalone connectivity for the Axient Digital ADX5D slot-in receiver, making it easy to integrate into professional broadcast cameras, multi-coupler devices and battery distribution systems (BDS). It has a 4-pin connector for a Shure battery sled, two TA3 (mini 3-pin XLR) audio outputs and a 4-pin locking Hirose power input, and it is available in Dubai, Abu Dhabi and across the UAE.
Key Features
- 2 x TA3 analog outputs; Output 1 can be configured as two-channel AES3 digital output (Output 2 is disabled when AES3 is selected)
- 4-pin connector for mating with a Shure battery sled
- 4-pin locking Hirose power input, 6 to 18 V DC
- Captive Phillips-head screws for simple installation on the ADX5D
- Compatible with the Shure WA451 audio cable (TA3F to XLR)
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | ADX5BP-TA3 |
| Fits | Axient Digital ADX5D receiver |
| Audio Outputs | 2 x TA3 (mini 3-pin XLR), analog or AES3 on Output 1 |
| Power Inputs | 4-pin locking Hirose; 4-pin battery sled connector |
| Input Voltage | 6 to 18 V DC |
| Cable | Compatible with Shure WA451 (TA3F to XLR) |
Why Buy the Shure ADX5BP-TA3 from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for wireless accessories.
- Genuine Shure stock sourced through authorized distribution channels
- Axient Digital system advice across Dubai, Abu Dhabi and the GCC
- Receiver compatibility checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for broadcast and production teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure ADX5BP-TA3 is a dual TA3 back plate for the Axient Digital ADX5D receiver. It provides standalone connectivity for integration into professional broadcast cameras, multi-coupler devices and battery distribution systems (BDS).
It has two TA3 (mini 3-pin XLR) outputs. Both are analog, and Output 1 can be configured as two-channel AES3 digital output in the device menu, which disables analog Output 2.
It has a 4-pin connector that mates with a Shure battery sled and a 4-pin locking Hirose power input, accepting 6 V DC to 18 V DC. This lets the ADX5D run from a battery distribution system or a battery sled.
Captive Phillips-head screws make installation on the ADX5D simple. The back plate is compatible with the Shure WA451 audio cable (TA3F to XLR) for connecting to standard XLR inputs.
The ADX5BP-TA3 is made for the Axient Digital ADX5D dual-channel portable receiver only. The ADX5D itself is a slot-in receiver and is sold separately, so confirm your receiver band with Trianze Tech.
