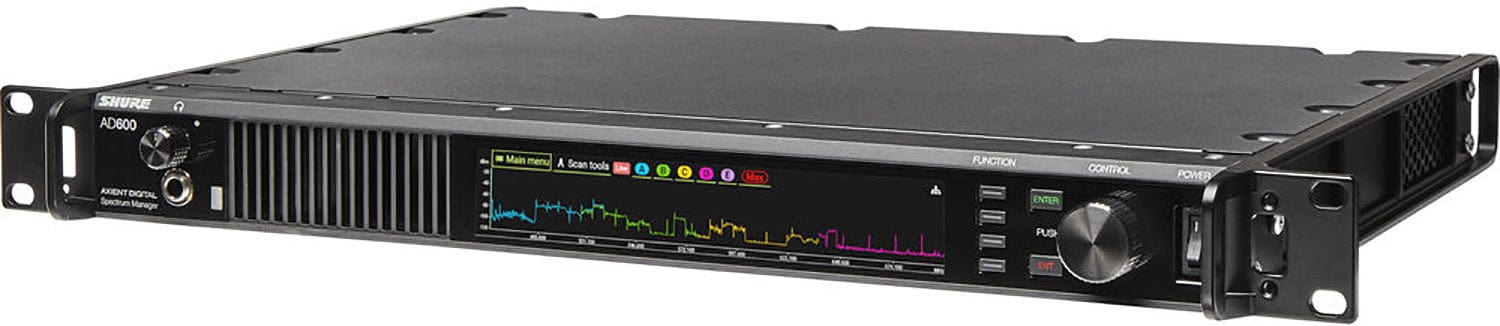

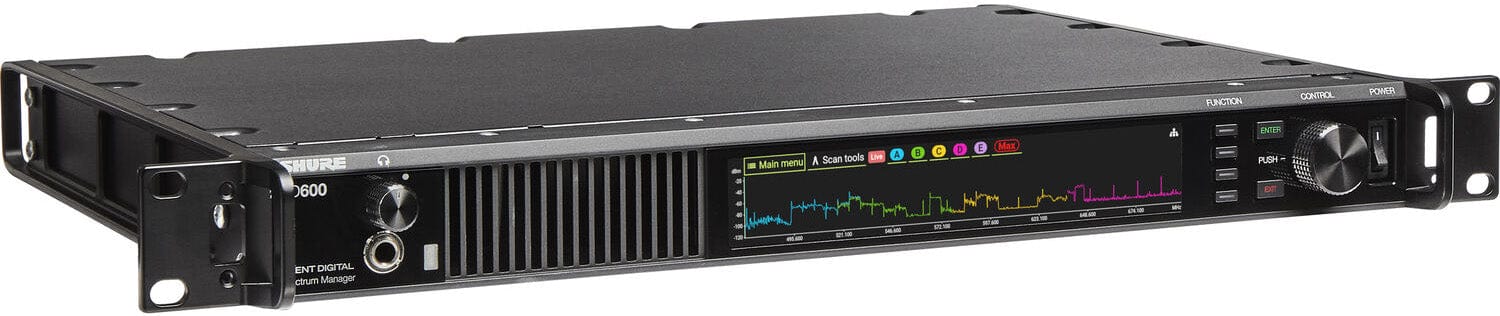

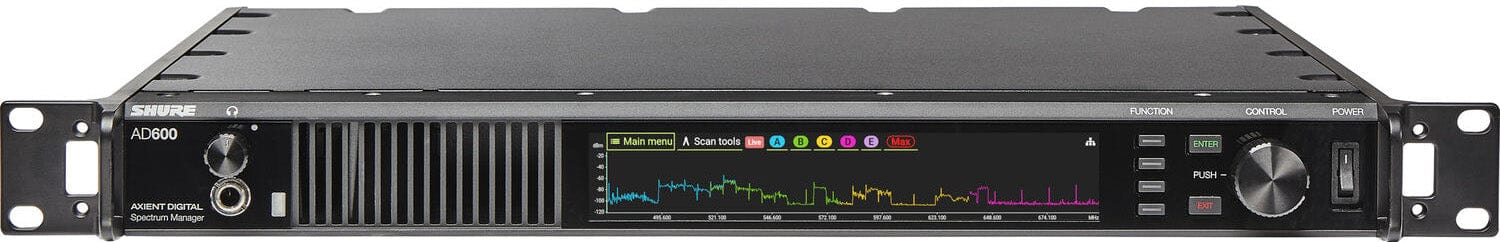

Shure AD600US: Axient Digital Spectrum Manager with 6.6 Inch Display, 174 MHz to 2 GHz Tuning and Dante, US Power Supply Included
Model
:
AD600US
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Shure AD600US: Axient Digital Spectrum Manager with 6.6 Inch Display, 174 MHz to 2 GHz Tuning and Dante, US Power Supply Included
The Shure AD600 Axient Digital Spectrum Manager is a next-generation tool for planning and managing frequency coordination in professional audio. Guided Coordination menus plan, scan and deploy frequencies to a whole system, additional tools analyze the spectrum, capture data and support site RF surveys, and Dante Browse lets you listen to demodulated audio from the network. It suits touring, broadcast and venue RF teams across Dubai, Abu Dhabi and the UAE. The AD600US ships with a US power supply.
Key Features
- Fast real-time scanning to find available frequencies and monitor RF activity
- Large full-color 6.6 inch display for viewing and analyzing the RF spectrum
- Guided RF coordination for challenging RF environments
- Tuning range from 174 MHz to 2 GHz, with six antenna connections
- Data capture and storage, with USB connections for scans and event logs
- Network enabled and Dante enabled for audio monitoring
- Compatible with Wireless Workbench; AC and DC powered options
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | AD600US |
| RF Tuning Range / Step | 174 to 2000 MHz / 25 kHz or 200 kHz |
| Noise Floor | -154 dBm/Hz |
| Image Rejection / Spurious | Above 90 dB / below -100 dBm typical |

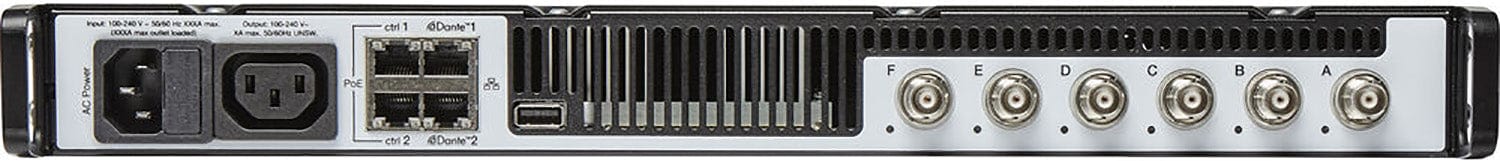

| RF Input | 6 x BNC, 50 ohm, +10 dBm maximum; 12 to 13.5 V bias, 150 mA per antenna |
| Headphone Output | 1/4 inch stereo, 63 ohm, 350 mW |
| Network | Quad-port Ethernet 10/100/1000 with redundant Dante, PoE on control ports |
| Power | 110 to 240 V AC, 50 to 60 Hz, 1.2 A; DC module 10.9 to 16 V |
| Size / Weight | 1.7 x 19.0 x 11.25 in (H x W x D) / 3.7 kg |
| Housing | Steel |
Why Buy the Shure AD600US from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for professional wireless.
- Genuine Shure stock sourced through authorized distribution channels
- Axient Digital system design and RF coordination advice across Dubai, Abu Dhabi and the GCC
- Power supply plug checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for touring and venue teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure AD600 is a next-generation tool for planning and managing frequency coordination in professional audio. Guided Coordination menus plan, scan and deploy frequencies across a whole system, and tools analyze the spectrum, capture data and support site RF surveys. The AD600US includes a US power supply.
It tunes from 174 MHz to 2 GHz in 25 kHz or 200 kHz steps and has six BNC antenna connections (50 ohm, maximum +10 dBm input, 12 to 13.5 V bias at 150 mA per antenna) for multiple antennas and zones. Noise floor is -154 dBm/Hz with more than 90 dB image rejection.
It has a quad-port 10/100/1000 Ethernet interface with redundant Dante support and PoE on the control ports. Dante Browse and listen-over-Dante let you monitor demodulated audio from the network, and a 1/4 inch stereo headphone output (63 ohm, 350 mW) is provided.

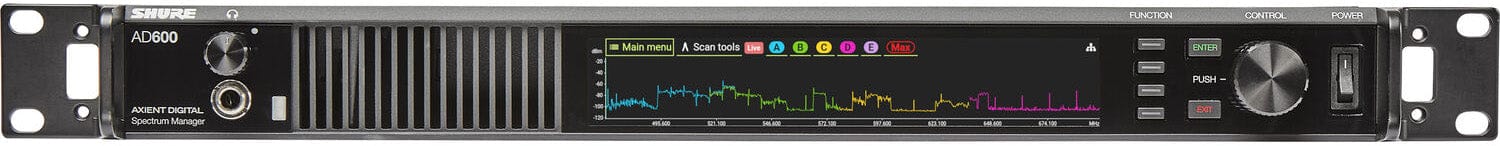

A large full-color 6.6 inch front panel screen shows real-time scanning and RF activity. USB connections store scans and event logs, data capture archives RF information, and Wireless Workbench extends control and monitoring.
It is a 1U steel unit measuring 1.7 x 19.0 x 11.25 in (H x W x D) and weighing 3.7 kg (8.15 lb). It runs on 110 to 240 V AC at 50 to 60 Hz (1.2 A), with a DC module option from 10.9 to 16 V. The AD600US ships with a US power supply, so confirm the UAE plug with Trianze Tech.
Trianze Tech stocks the Shure AD600US in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
