Shure AD4QUS-B: 4-Channel Axient Digital Wireless Receiver, US Power Supply, B Band
Model
:
AD4QUS-B
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

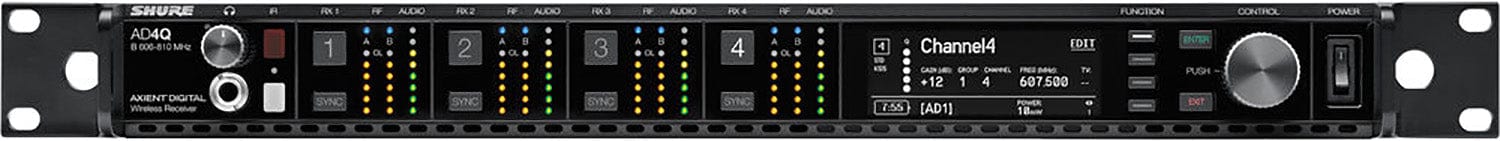

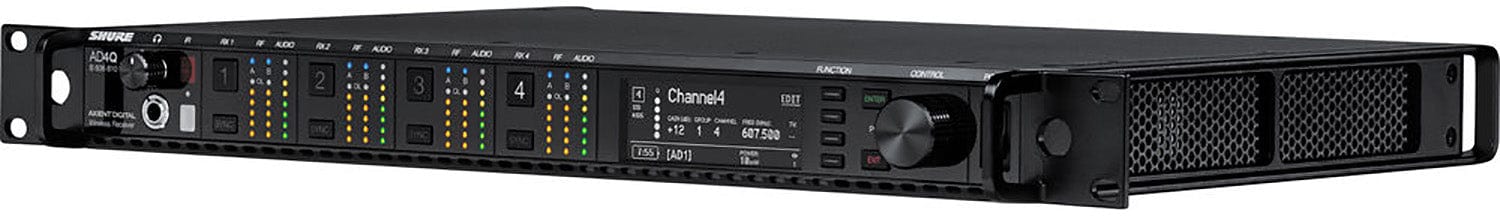

Shure AD4QUS-B Axient Digital Quad Receiver
The Shure AD4QUS-B is a 4-channel Axient Digital receiver for large-scale wireless deployments across Dubai, Abu Dhabi and the UAE and GCC, with wide tuning, Quadversity antenna diversity, and networked Dante, AES3 and AES67 output.
Key Features:
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel
- Quadversity mode for extended antenna coverage and improved signal-to-noise
- Networked control via Wireless Workbench and ShurePlus Channels app
- Switchable XLR/AES3 outputs plus Dante and AES67 digital audio
- Configurable Ethernet switch for redundant Dante output
Technical Specifications:
| Spec | Value |
|---|---|
| Channels | 4 (Quad) |
| RF Frequency Range (B Band) | 606 to 810 MHz |
| Gain Adjustment | -18 to +42 dB in 1 dB steps |
| Networking | 10/100 Mbps, 1 Gbps, Dante Digital Audio |
| Power Requirements | 100 to 240 VAC, 50-60 Hz |
| Dimensions | 44 x 483 x 333 mm (1U rack) |
| Weight | 4.8 kg (10.6 lb) without antennas |
Why Buy the Shure AD4QUS-B from Trianze Tech?
- Genuine Shure Axient Digital receivers backed by manufacturer warranty support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Expert guidance on frequency coordination and Dante network integration
- Competitive pricing with dedicated AV support
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The AD4QUS-B covers the B band, 606 to 810 MHz, with a wide tuning range up to 184 MHz within that band. Wireless frequency use is subject to local regulation, so confirm this band is licensed for use in your country before deployment.
The AD4QUS-B and AD4QUS-C are the same 4-channel Axient Digital receiver hardware, differing only in the RF band they are tuned for: the B band covers 606 to 810 MHz while the C band covers 750 to 960 MHz. Choose the band that matches your region's available spectrum and your transmitters.
The AD4QUS-B is a 4-channel (quad) Axient Digital receiver compatible with all Shure Axient Digital transmitters operating in the same B band, with true digital diversity reception per channel and Quadversity mode for extended antenna coverage.

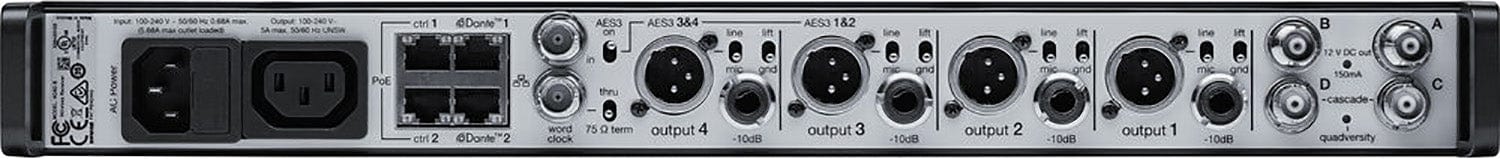

The AD4QUS-B outputs AES3, AES67, and Dante digital audio in addition to switchable analog XLR/AES3 outputs, with a configurable Ethernet switch supporting redundant Dante digital output for mission-critical installations.

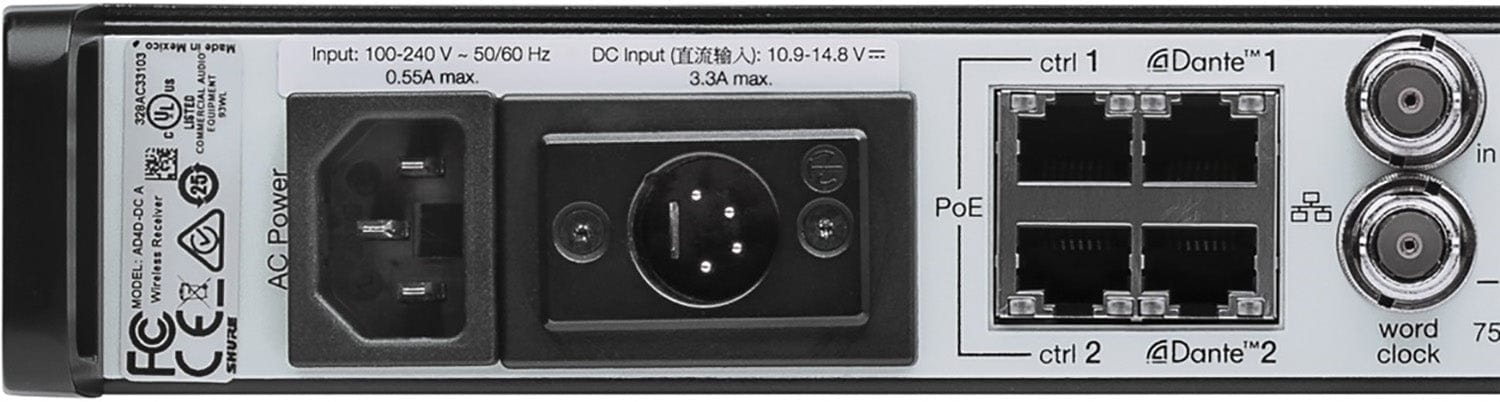

The AD4QUS-B accepts universal 100 to 240 VAC, 50 to 60 Hz power, so it operates on UAE mains voltage, but confirm the included AC cord and connector type with Trianze Tech at the time of order since this is a US-region SKU.
Trianze Tech stocks the Shure AD4QUS-B in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
