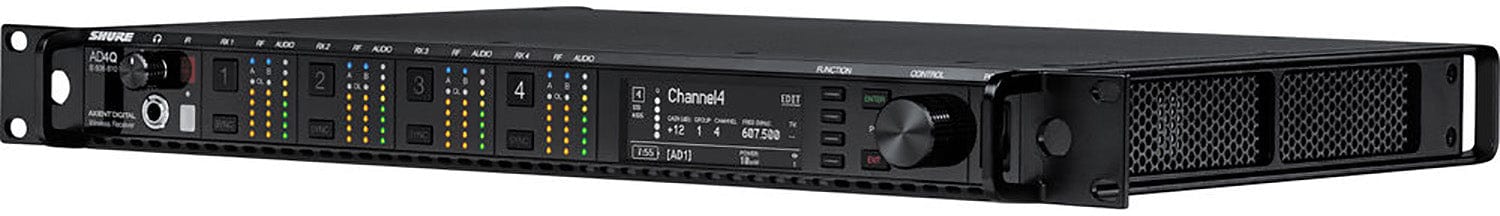

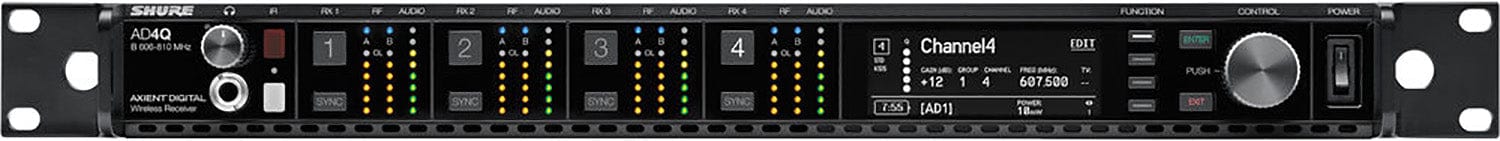

Shure AD4QNP-C: Axient Digital 4-Channel Wireless Receiver for AD and ADX Transmitters with Dante and Quadversity, C Band, 750 to 960 MHz
Model
:
AD4QNP-C
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure AD4QNP-C: Axient Digital 4-Channel Wireless Receiver for AD and ADX Transmitters with Dante and Quadversity, C Band, 750 to 960 MHz
The Shure AD4QNP-C is an Axient Digital four-channel digital receiver that sets a new standard in spectral efficiency. Wide tuning, low latency, High Density mode and Quadversity keep performance solid in the most challenging RF environments, while networked control, AES3, AES67 and Dante output and signal routing options add flexibility for venues, broadcasters and touring teams across Dubai, Abu Dhabi and the UAE. This listing is the C band, 750 to 960 MHz.
Key Features
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel
- Quadversity mode for extended antenna coverage and improved RF signal-to-noise
- Networked control with Wireless Workbench and the ShurePlus Channels app
- Front panel headphone jack for Dante Cue and Dante Browse monitoring
- Configurable Ethernet switch for redundant Dante output; switchable XLR/AES3 outputs
- Channel Quality meter, locking AC connectors, optional DC module for redundant power
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | AD4QNP-C |
| RF Carrier Range | 750 to 960 MHz (C band) |
| Working Range / Sensitivity | 100 m / -98 dBm at 10-5 BER |
| Latency (analog) | 2.08 ms Standard; 2.96 ms High Density |
| Dynamic Range | XLR line 120 dB A-weighted; digital 130 dB A-weighted |
| Gain / THD | -18 to +42 dB in 1 dB steps / below 0.01% |

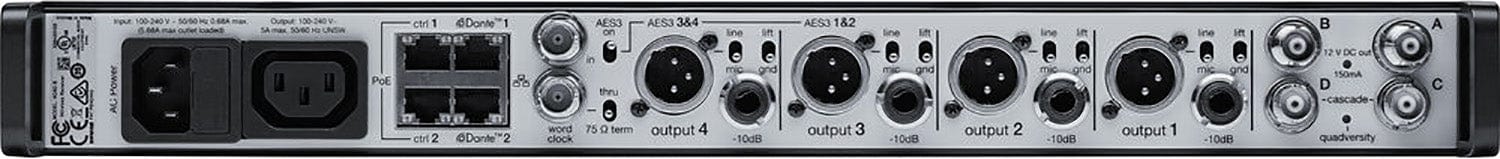

| Outputs | XLR and TRS transformer-coupled balanced; AES3, AES67 and Dante |
| Cascade Output | BNC, one additional receiver in the same band |

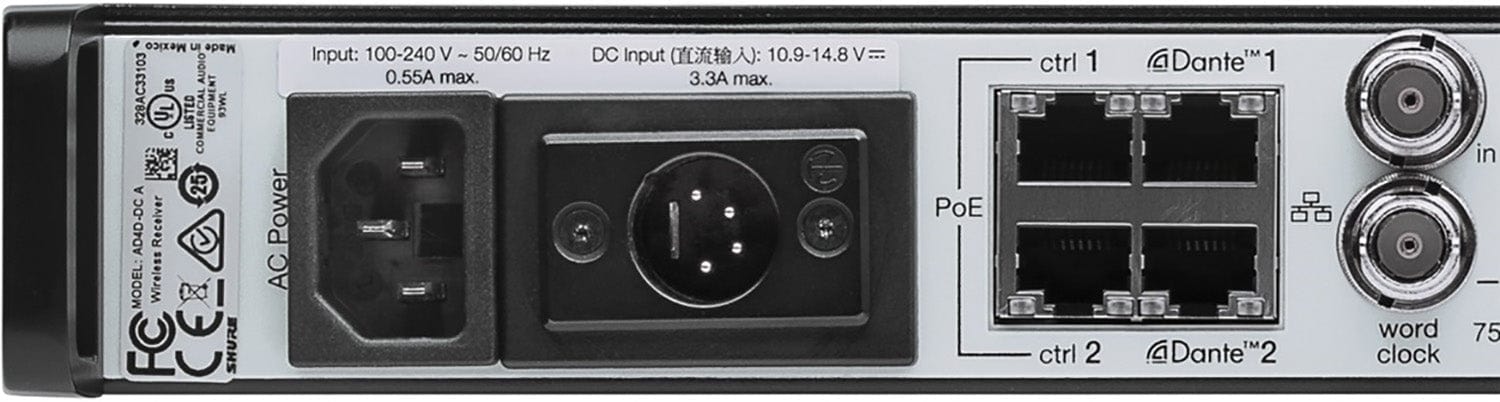

| Power | 100 to 240 V AC, 0.68 A max; optional DC module 10.5 to 32 V |
| Size / Weight | 44 x 483 x 333 mm / 4.8 kg without antennas |
Why Buy the Shure AD4QNP-C from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for professional wireless.
- Genuine Shure stock sourced through authorized distribution channels
- Axient Digital system design and band planning across Dubai, Abu Dhabi and the GCC
- Band and transmitter checking before you order
- Local UAE warranty backing and after-sales support
- Volume pricing available for touring and venue teams
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The Shure AD4QNP-C is an Axient Digital four-channel receiver for AD and ADX transmitters on the C band, 750 to 960 MHz. It offers wide tuning, low latency, High Density mode and Quadversity, with networked control and AES3, AES67 and Dante output.
Working range is 100 m (330 ft), RF sensitivity is -98 dBm at 10-5 BER and analog output latency is 2.08 ms in Standard mode and 2.96 ms in High Density mode. Tuning steps are 25 kHz and image rejection is above 70 dB.
It has transformer-coupled balanced XLR and TRS outputs with -18 to +42 dB gain, a 30 dB mic/line pad and phantom power protection, plus switchable AES3 and Dante digital output. Dynamic range is 120 dB A-weighted on the XLR line output and 130 dB on digital, with THD below 0.01%.
Quadversity mode extends antenna coverage and improves RF signal-to-noise. A BNC cascade output (unbalanced, passive, 0 dB typical insertion loss) connects one additional receiver in the same band, and RF inputs supply 12 to 13.5 V bias at 150 mA maximum per antenna.
It measures 44 x 483 x 333 mm, weighs 4.8 kg without antennas and runs on 100 to 240 V AC (0.68 A max), with an optional DC module for redundant power. Wireless frequency use is subject to local regulation, so Trianze Tech confirms the band for your UAE project before ordering.
Trianze Tech stocks the Shure AD4QNP-C in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
