Shure AD4Q: Axient Digital Four Channel Wireless Receiver with Quadversity and Dante
Model
:
AD4Q
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

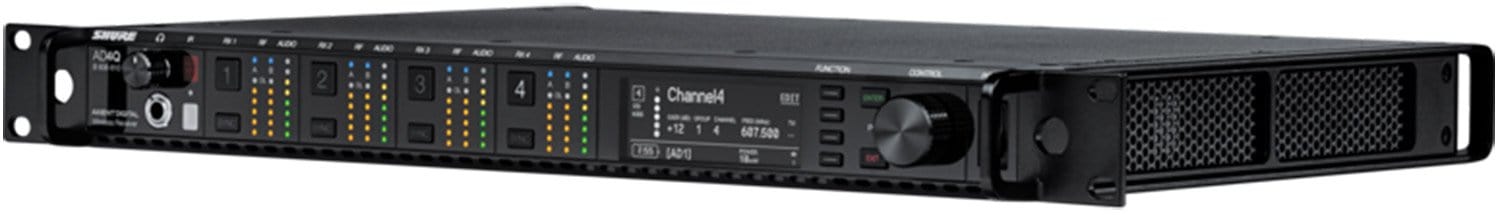

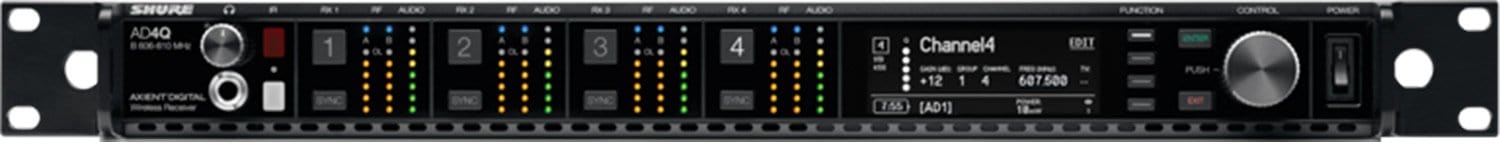

Shure AD4Q Axient Digital Quad Receiver
The Shure AD4Q is the four channel Axient Digital receiver, with wide tuning, low latency, High Density mode and Quadversity for extended antenna coverage. Networked control through Wireless Workbench, AES3, AES67 and Dante outputs and a front panel headphone jack for Dante Cue make it a flagship receiver for large systems across Dubai, Abu Dhabi and the UAE and GCC.
Key Features:
- Four channels in one rack unit
- Quadversity mode for extended antenna coverage
- True digital diversity per channel
- Dante, AES67 and switchable XLR/AES3 outputs
- Networked control with Wireless Workbench
Technical Specifications:
| Spec | Value |
|---|---|
| Channels | 4 |
| Frequency Versions | A 470 to 636 MHz, B 606 to 810 MHz, C 750 to 960 MHz |
| Gain Range | -18 to +42 dB in 1 dB steps |
| Outputs | XLR and 1/4 inch balanced, AES3, Dante |
| Network | 10/100 Mbps and 1 Gbps |
| Power | 100 to 240 V AC, 0.68 A max |
| Dimensions | 44 x 483 x 333 mm |
| Weight | 4.8 kg without antennas |
Why Buy the Shure AD4Q from Trianze Tech?
- Shure Axient Digital with local support
- Fast delivery across Dubai, Abu Dhabi and the UAE and GCC
- Frequency and Dante planning help
- Dedicated AV support team
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The AD4Q is a four channel Axient Digital receiver in one rack unit.
Quadversity uses four antennas per channel for extended antenna coverage and better RF signal-to-noise in large spaces.
Shure makes the AD4Q in A (470 to 636 MHz), B (606 to 810 MHz) and C (750 to 960 MHz) versions. Confirm the version with Trianze Tech before ordering.

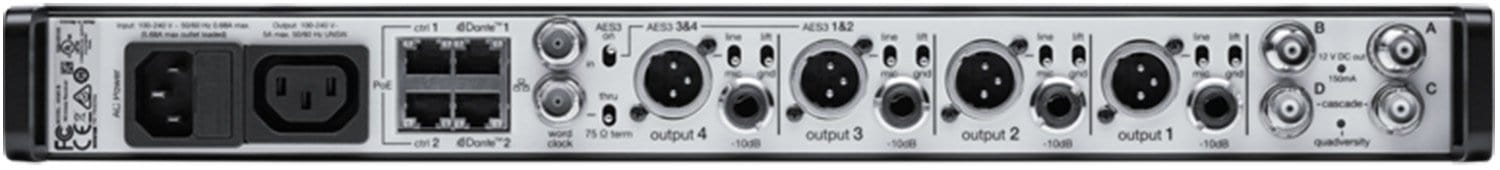

The AD4Q has balanced XLR and 1/4 inch outputs, switchable XLR/AES3, and Dante and AES67 network audio with a configurable Ethernet switch for redundancy.
Yes. Handheld and bodypack Axient Digital transmitters can be supplied with the AD4Q. Contact Trianze Tech for a system quote.
Trianze Tech stocks the Shure AD4Q in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
