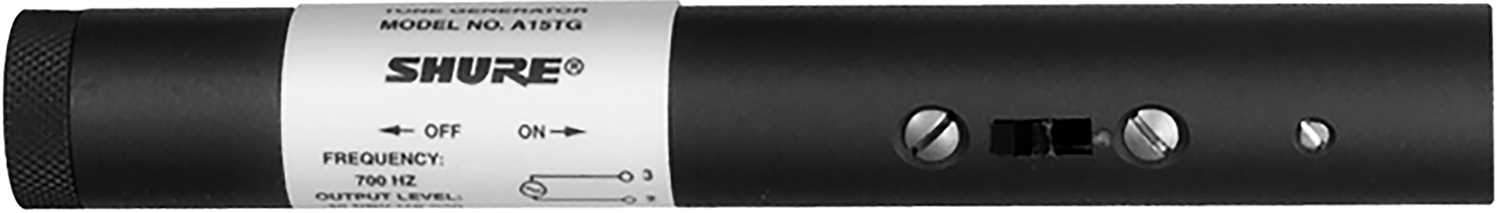

Shure A15TG: Battery-Powered 700 Hz Tone Generator for Microphone Line Troubleshooting
Model
:
A15TG
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure A15TG: Battery-Powered 700 Hz Tone Generator for Microphone Line Troubleshooting
The Shure A15TG is a battery-powered 700 Hz signal source used to troubleshoot audio systems by checking microphone lines for correct patching and detecting unusual noise. Its barrel design plugs into a microphone cable or straight into a mixer input, which makes it a useful tool for installers, venue technicians and live sound crews across Dubai, Abu Dhabi and the wider UAE.
Key Features
- 700 Hz test tone at approximately -42 dBV for mic or line inputs
- Barrel design connects to a mic cable or directly to a mixer input
- Tolerates phantom power and a short circuit on the driven line
- Male XLR output, recessed on/off switch
- 1,000 hours of continuous battery life
- Removable end cap for easy battery changes
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | A15TG |
| Signal | 700 Hz tone |
| Output Level | Approximately -42 dBV |
| Output Connector | Male XLR |
| Battery Life | 1,000 hours continuous |
| Battery Type | 1.5 V button cell (A76 alkaline, 357 silver oxide or 675 zinc air) |
Why Buy the Shure A15TG from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for installation and test tools.
- Genuine Shure stock sourced through authorized distribution channels
- Fast checks of microphone lines and patching before a show or handover
- Practical testing advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for installers and rental companies
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The A15TG is a battery-powered 700 Hz signal source used to troubleshoot audio systems by checking microphone lines for correct patching and detecting unusual noise.
The output is approximately -42 dBV, so it works with either microphone level or line level inputs, and its barrel design connects to a microphone cable or directly to a mixer input.
Battery life is 1,000 hours of continuous use. Any 1.5 volt button cell that fits can be used, including A76 alkaline, 357 silver oxide and 675 zinc air hearing aid batteries.
Yes. The A15TG can tolerate the presence of phantom power or a short circuit in the line it is driving.
It has a male XLR output connector, a recessed on/off switch and a removable end cap for easy battery installation and removal.
Trianze Tech stocks the Shure A15TG Tone Generator in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
