Shure A15AS: In-Line Switchable XLR Attenuator with 15, 20 and 25 dB Pads and Phantom Power Pass-Through
Model
:
A15AS
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Shure A15AS: In-Line Switchable XLR Attenuator with 15, 20 and 25 dB Pads and Phantom Power Pass-Through

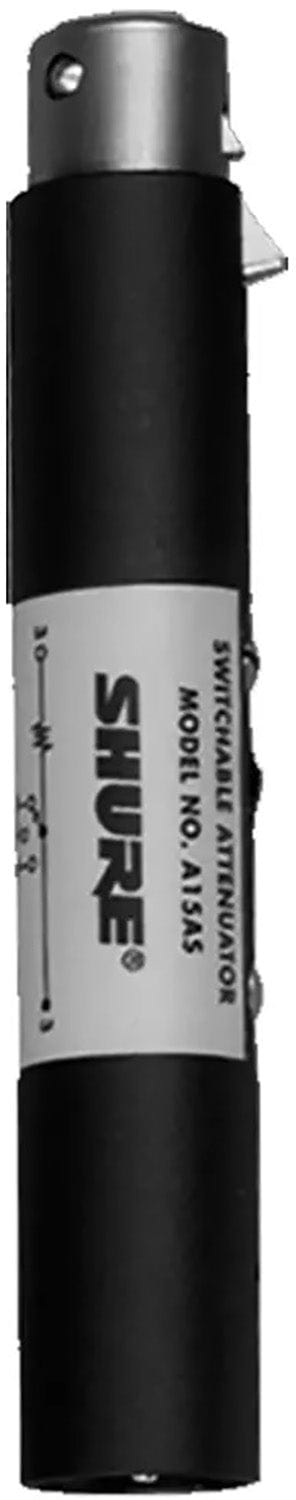

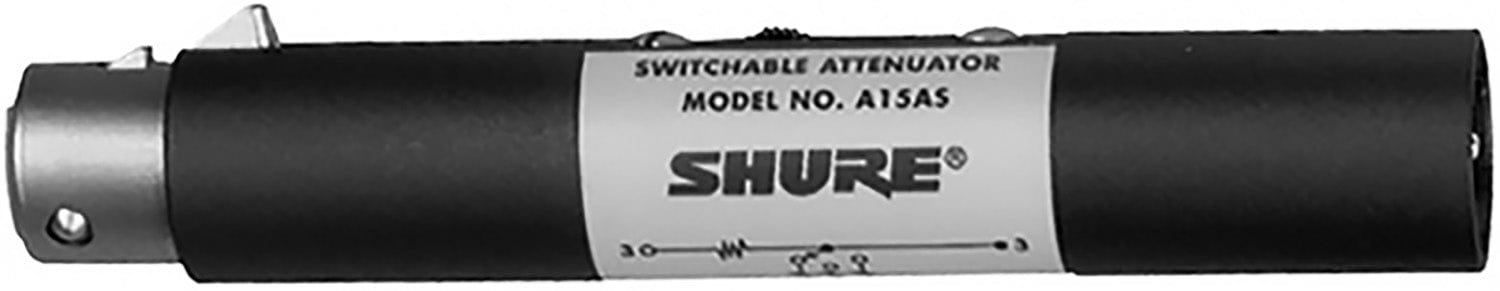

The Shure A15AS is a switchable in-line attenuator that reduces the level of any balanced microphone or line-level signal by 15, 20 or 25 dB. It stops a high-output microphone overloading a mixer or recorder input at high sound pressure levels, and it passes phantom power so it works with condenser microphones, which suits live sound, broadcast and recording work across Dubai, Abu Dhabi and the wider UAE.
Key Features
- 15, 20 or 25 dB of attenuation on a three-position slide switch
- Passes phantom power from the mixer to the microphone
- Female 3-pin XLR input and male 3-pin XLR output
- Can also reduce a line-level mixer output to protect a recorder aux input
- Full magnetic shield in a steel case with gray enamel finish
Technical Specifications
| Spec | Detail |
|---|---|
| Model / Part Number | A15AS |
| Type | In-line attenuator / pad, 1 channel |
| Attenuation | -15 / -20 / -25 dB, selectable |
| Connectors | 1 x XLR 3-pin female input, 1 x XLR 3-pin male output |
| Input Impedance | 1 kilohm |
| Output Impedance | 150 ohms |
| Phantom Power | Passes through |
| Dimensions | 11.4 x 1.9 cm (4.5 x 0.7 in) |
Why Buy the Shure A15AS from Trianze Tech?
Trianze Tech is a UAE-based Pro AV distributor with local stock in Dubai, removing the delays of international shipping for live sound accessories.
- Genuine Shure stock sourced through authorized distribution channels
- Protects mixer and recorder inputs from hot microphones and loud sources
- Gain staging advice across Dubai, Abu Dhabi and the GCC
- Local UAE warranty backing and after-sales support
- Volume pricing available for rental fleets and venues
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The A15AS is a switchable in-line attenuator that reduces a balanced microphone or line-level signal by 15, 20 or 25 dB, selected with a three-position slide switch.
Yes. The A15AS passes phantom power from the mixer through to the microphone, so it can be used with phantom-powered condenser microphones as well as low-impedance microphones.
Use it to stop a high-output microphone overloading a mixer or recorder input at high sound pressure levels, or to reduce a line-level mixer output so it does not overload the aux-level input of a recorder.
It has a female 3-pin XLR input and a male 3-pin XLR output, with a 1 kilohm input impedance and a 150 ohm output impedance.
The A15AS measures 11.4 x 1.9 cm (4.5 x 0.7 in) in a steel case with a gray enamel finish and a full magnetic shield.
Trianze Tech stocks the Shure A15AS Attenuator in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
