Bose ShowMatch SMAFMP: Array Frame Multipoint Rigging Bracket | 845332-0110
Model
:
845332-0110
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

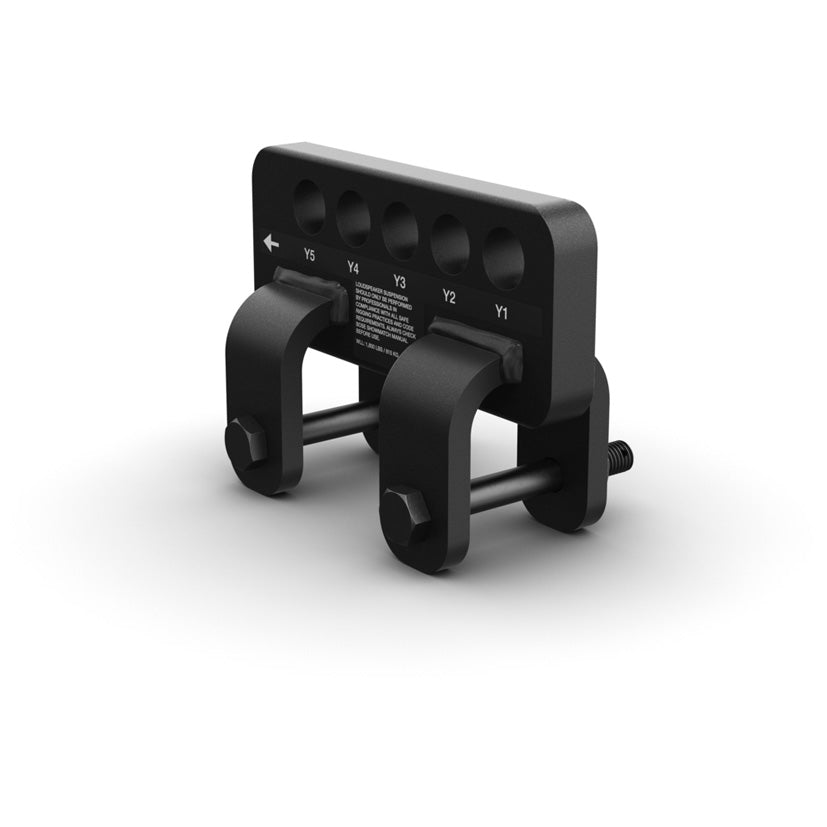

Bose ShowMatch SMAFMP Array Frame Multipoint Bracket
The Bose ShowMatch SMAFMP expands the number of rigging points along the center rail of the Array Frame (SMAF) or T Bar Array Frame (SMAFT) from 7 to 45 possible points, distributed across Dubai, Abu Dhabi and the wider UAE and GCC by Trianze Tech.
Key Features
- Expands center rail rigging points from 7 to 45 possible positions
- Compatible with both the SMAF Array Frame and SMAFT T Bar Array Frame
- Rated to a 1800 lb (815 kg) working load limit
- Includes an installation guide and one SMAFMP bracket per package
Technical Specifications
| Part Number | 845332-0110 |
| Dimensions (H x W x D) | 5.0 x 4.2 x 6.9 in (127 x 107 x 176 mm) |
| Net Weight | 5.6 lb (2.5 kg) |
| Working Load Limit | 1800 lb (815 kg) |
| Compatibility | ShowMatch SMAF Array Frame and SMAFT T Bar Array Frame |
| Color | Black |
Why Buy the Bose ShowMatch SMAFMP from Trianze Tech?
- Genuine Bose Professional rigging hardware sourced and supported locally in the UAE
- Fast delivery and certified rigging installation support across Dubai, Abu Dhabi and the GCC
- Dedicated line array and touring sound support from Trianze Tech
Frequently asked
Questions our clients ask before signing.
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant — most queries are answered in a 15-minute call.
The SMAFMP (845332-0110) expands the number of usable rigging points along the center rail of a ShowMatch SMAF or SMAFT array frame from 7 to as many as 45 positions, giving riggers finer control over array trim angle.
The SMAFMP is rated to a 1800 lb (815 kg) working load limit.
Yes, the SMAFMP works with both the Bose ShowMatch SMAF Array Frame and the SMAFT T Bar Array Frame.
The SMAFMP weighs 5.6 lb (2.5 kg) and measures 5.0 x 4.2 x 6.9 in (127 x 107 x 176 mm).
Each SMAFMP package includes one bracket and an installation guide.
Trianze Tech stocks the Bose ShowMatch SMAFMP Array Frame Multipoint Bracket in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
