Key Features

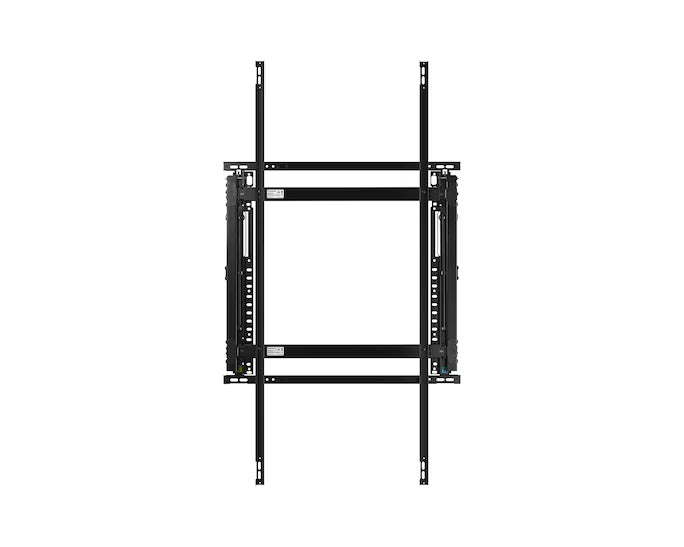

The Samsung WMN-46VD mounting framework drastically reduces installation timelines and deployment headaches for commercial multi-screen video arrays. Rather than forcing structural integrators to calculate tedious spatial math or measure variable tolerance offsets manually, this mount mirrors the physical exactness of matching Samsung 46-inch signage displays. System integrators simply map out and anchor the modular back-frame grid first, then mechanically drop the modular display panel down into position. Built-in push-and-pull pop-up mechanisms facilitate effortless single-screen rear access, allowing on-site technical teams to complete clean electrical cabling loops or perform panel upgrades without dismantling surrounding components.

Technical Specifications & Performance Detail

• Global Product Coding and Suffix Configurations: Documented officially under production model identifier code WMN-46VD, with primary manufacturing inventory numbers spanning regional regional distributions WMN-46VD/ZA and WMN-46VD/EN.

• Display Size and Chassis Backplane Matching: Tailored with factory dimension consistency to natively clamp, carry, and lock down premium 46-inch commercial display backplanes.

• Maximum Mechanical Structural Loading Threshold: Built from industrial cold-rolled structural steel components rated to support a maximum continuous screen weight capacity of up to 29 kilograms (63.93 lbs).

• Multi-Axis Alignment Calibration Control: Features dedicated mechanical adjustment mechanics across the X-axis for up-and-down leveling, Y-axis for lateral shifts, and Z-axis for push-to-pop front-and-back micro-adjustments.

• Physical Structural Footprint Profile Depth: Keeps display infrastructure streamlined via a minimum native installation profile thickness of exactly 39.0 millimeters, with built-in micro-adjustment tolerances reaching up to an additional 8.0 millimeters.

• VESA Standard Compliance Patterns: Configured with universal industrial pattern spacing including 400 x 400 millimeter, 600 x 400 millimeter, and 400 x 600 millimeter structural anchor points.

• Landscape Frame Outer Configurations: Outlined in standard horizontal landscape orientation with an outer frame width of 1213 millimeters, a total frame height of 539.8 millimeters, and a structural back-depth of 39 millimeters.

• Portrait Frame Outer Configurations: Outlined in vertical portrait orientation with an adaptive frame width of 576.6 millimeters, a total height layout of 539.8 millimeters, and a matching structural profile depth of 39 millimeters.

Hardware Framework & Video Wall Array Ecosystem Compatibility

• Samsung SMART Signage Compatibility: Custom-optimized for seamless pairing with the ultra-narrow bezel Samsung UD Series and slim-profile UE Series 46-inch commercial panels.

• Structural Array Scalability: Modular layout design allows adjacent brackets to interlock seamlessly for unlimited array patterns (e.g., 2x2, 3x3, or custom multi-tier creative ribbon walls).

• Pop-Out Service Access: Integrated quick-release pop-out mechanisms provide easy front-service access to center-row displays without disrupting the balance of adjacent screens.

Regional Regulatory & Electrical Safety Certification

• UAE Market Compliance Certification: Fully cleared under regional engineering guidelines and certified for institutional deployment within corporate environments across the UAE.

• Structural Facility Approval: Built to meet major global fire, safety, and structural integrity standards, facilitating fast facility sign-off from structural engineers and corporate site inspectors.

Logistics, Packaging & Spatial Handling Parameters

• Net Unpacked Hardware Mass: Tracks a total unladen structural bracket weight of 10.4 kilograms per unit to facilitate rapid, calculated layout anchoring on diverse commercial wall surfaces.

• Gross Protective Shipping Dimensions: Enclosed in heavy-duty commercial freight boxes tracking an outer shipping layout width of 1110 millimeters, an overall box height of 630 millimeters, and a package depth thickness of 122 millimeters.

• Gross Freight Transit Weight Infrastructure: Computes an aggregated total package shipping weight of 11.3 kilograms per single crated box to ensure seamless logistics planning through regional freight routes.
