Q-SYS Zip4-PTT Mic-Std: Dante Paging Interface With PTT Mic Input
Model
:
Zip4-PTT Mic-Std
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS Zip4-PTT Mic-Std at a Glance
- Brand
- Q-SYS
- Model
- Zip4-PTT Mic-Std
- Category
- Audio Interfaces
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS Zip4-PTT Mic-Std Overview

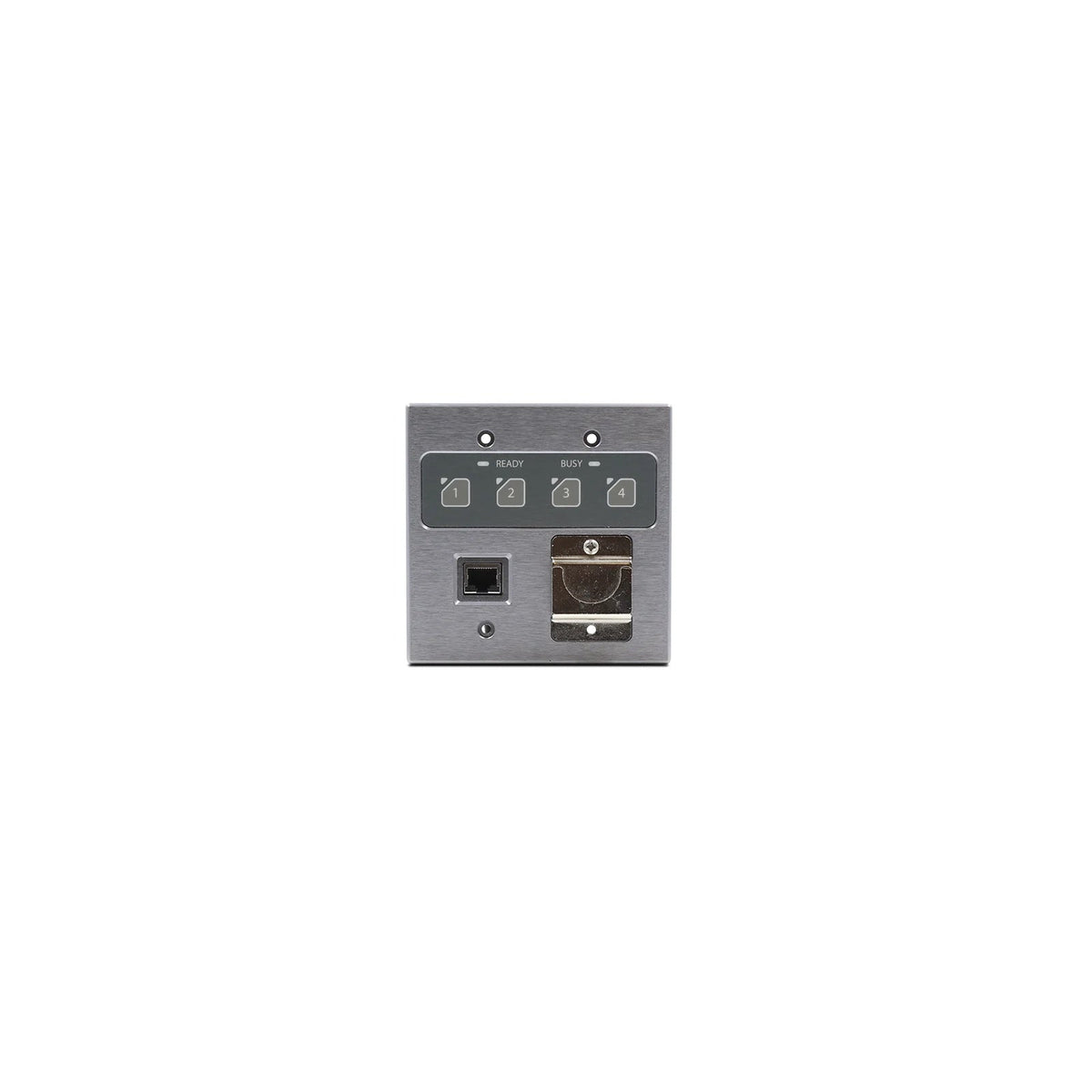

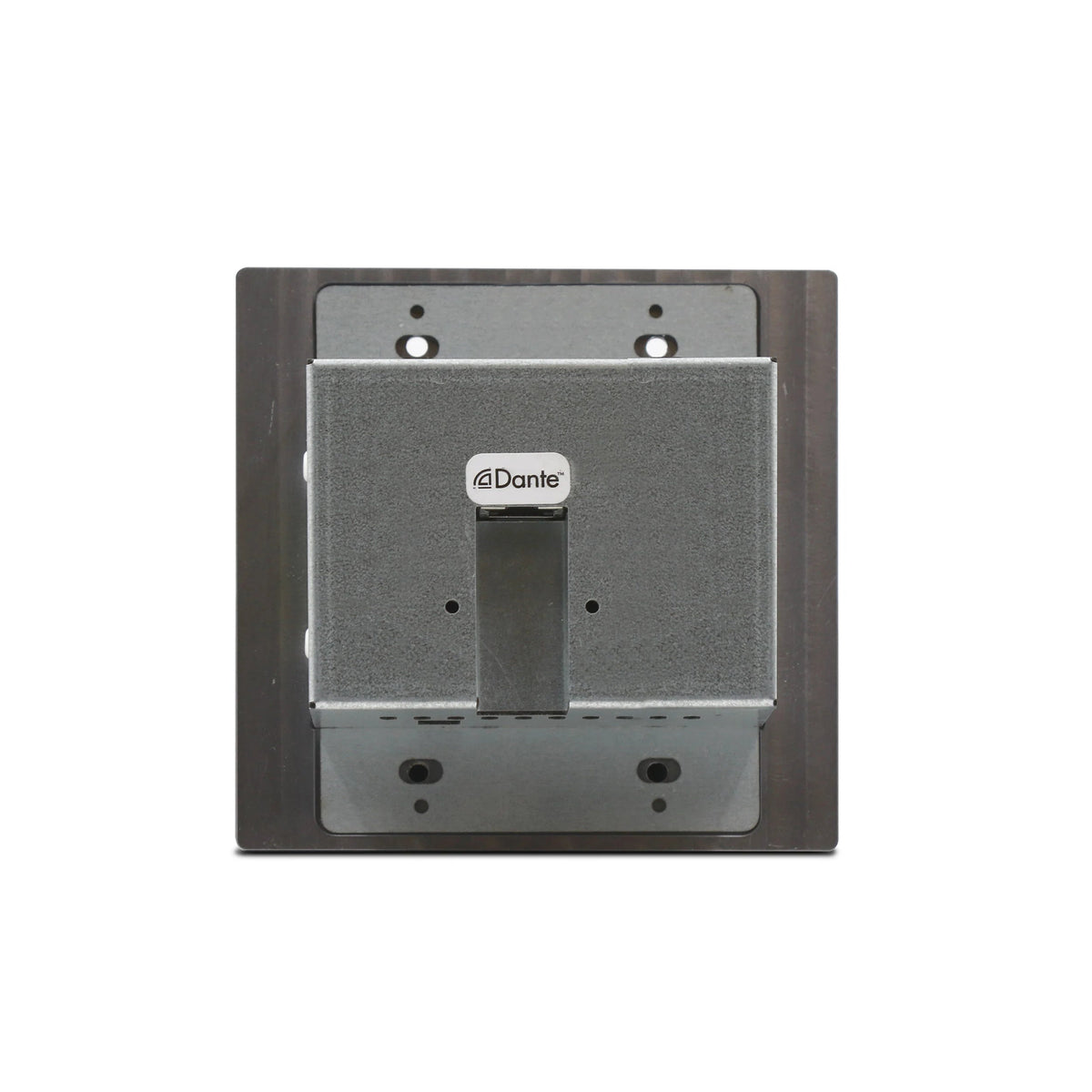

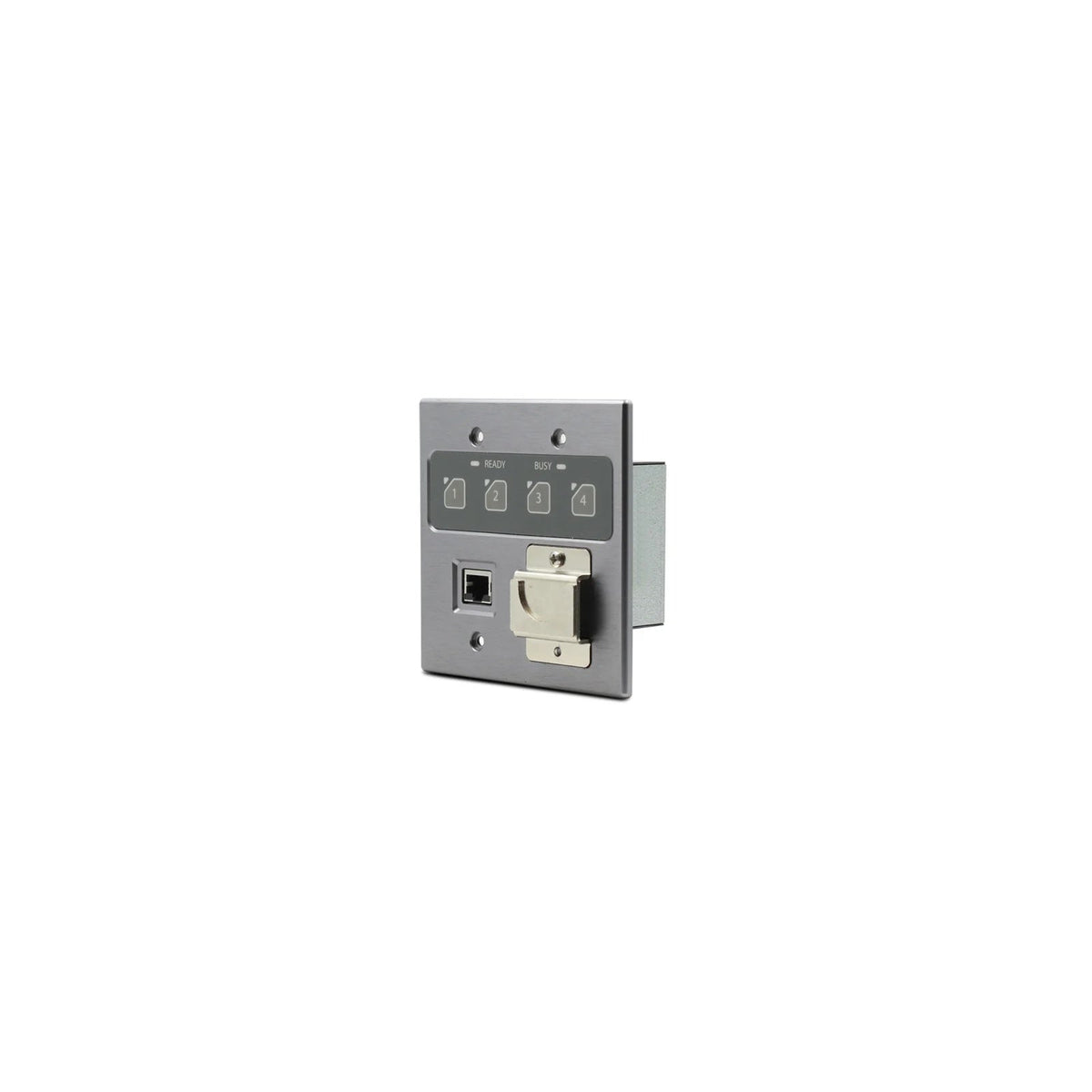

The Attero Tech Zip4 is a four-zone Dante/AES67 paging interface that addresses the unique communications needs of large sporting venues, transit hubs like airport terminals and train stations, as well as convention centers and corporate facilities. Paging audio and bi-directional control status data can be routed over a Dante or AES67 network to Q-SYS, third-party network AV system or other Paging Management System controllers to distribute paging audio in up to four zones. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Paging audio and bi-directional control status data can be routed over a Dante or AES67 network to Q-SYS, third-party network AV system or other Paging Management System controllers to distribute paging audio in up to four zones.
- Zone buttons: Four, white backlit, each with an associated bicolor status LED. LED state is fully controlled over the network, and
- Ready and busy: Bi-color Ready and Busy system status LEDs. LED state is full controlled over the network
- Microphone/PTT input: RJ-45 and side-mounted 6-pin depluggable. PTT input is dry contact, closed is active
- Microphone gain: +25 dB (with automatic phantom power) and +35 dB
- Power over Ethernet: 802.3af PoE PD compliant
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Zip4-PTT Mic-Std |
| Brand | Q-SYS |
| Zone buttons | Four, white backlit, each with an associated bicolor status LED. LED state is fully controlled over the network, and button state can be monitored over the network. |
| Ready and busy | Bi-color Ready and Busy system status LEDs. LED state is full controlled over the network |
| Microphone/PTT input | RJ-45 and side-mounted 6-pin depluggable. PTT input is dry contact, closed is active |
| Microphone gain | +25 dB (with automatic phantom power) and +35 dB |
| Power over Ethernet | 802.3af PoE PD compliant |
| Dimensions (HWD) | 4.2 x 3.5 x 2 in (106.7 x 88.9 x 50.8 mm) |
Why Buy the Q-SYS Zip4-PTT Mic-Std from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the Zip4-PTT Mic-Std
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS Zip4-PTT Mic-Std: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Attero Tech Zip4 is a four-zone Dante/AES67 paging interface that addresses the unique communications needs of large sporting venues, transit hubs like airport terminals and train stations, as well as convention centers and corporate facilities. Paging audio and bi-directional control status data can be routed over a Dante or AES67 network to Q-SYS, third-party network AV system or other Paging Management System controllers to distribute paging audio in up to four zones.
For the Q-SYS Zip4-PTT Mic-Std, Q-SYS lists the following. Microphone/PTT input: RJ-45 and side-mounted 6-pin depluggable. PTT input is dry contact, closed is active.
For the Q-SYS Zip4-PTT Mic-Std, Q-SYS lists the following. Zone buttons: Four, white backlit, each with an associated bicolor status LED. LED state is fully controlled over the network, and button state can be monitored over the; Ready and busy: Bi-color Ready and Busy system status LEDs. LED state is full controlled over the network; Microphone/PTT input: RJ-45 and side-mounted 6-pin depluggable. PTT input is dry contact, closed is active; Microphone gain: +25 dB (with automatic phantom power) and +35 dB.
For the Q-SYS Zip4-PTT Mic-Std, Q-SYS lists the following. Power over Ethernet: 802.3af PoE PD compliant.
For the Q-SYS Zip4-PTT Mic-Std, Q-SYS lists the following. Dimensions (HWD): 4.2 x 3.5 x 2 in (106.7 x 88.9 x 50.8 mm).
Trianze Tech stocks the Q-SYS Zip4-PTT Mic-Std in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
