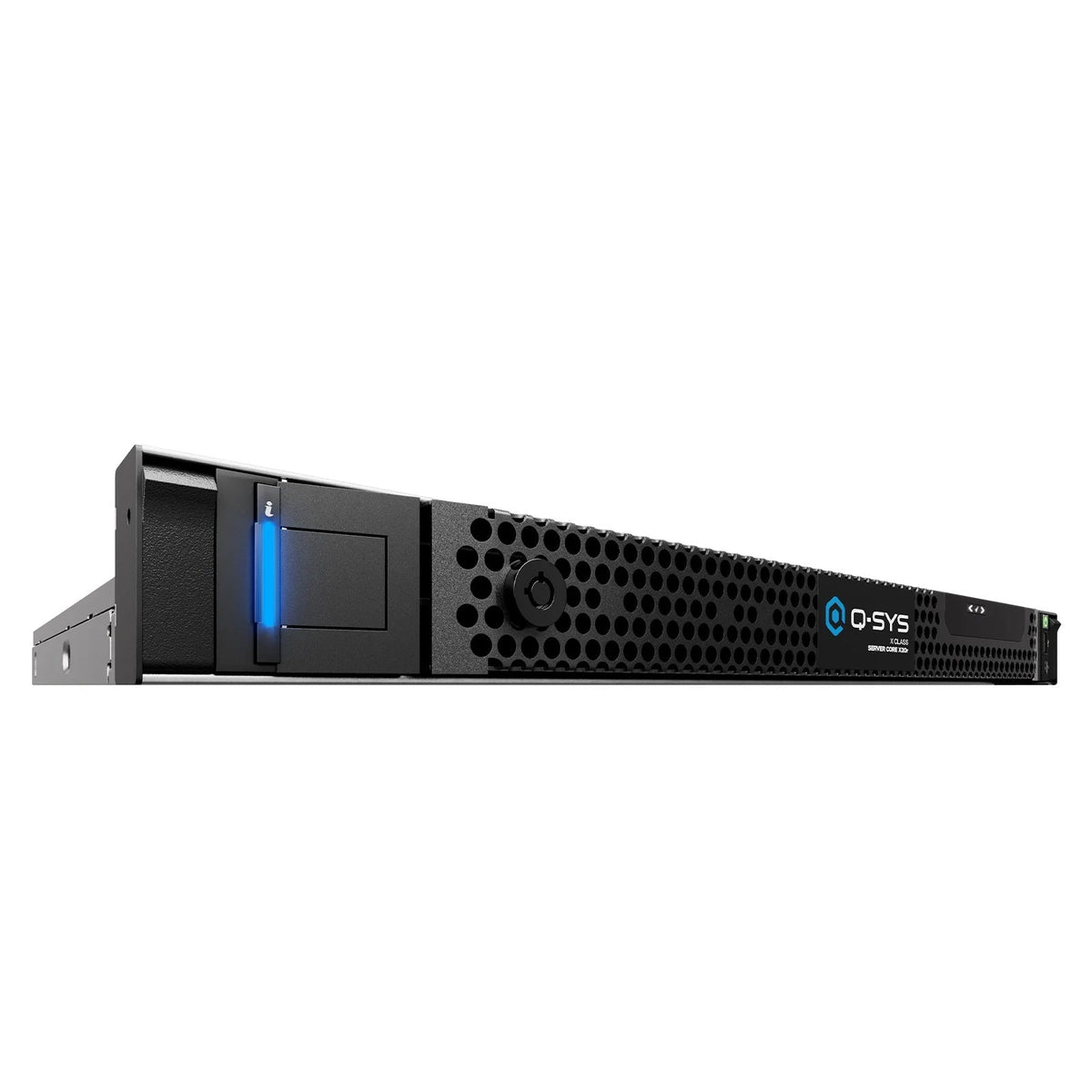

Q-SYS Server Core X20r: Network I/O Processor
Model
:
Server Core X20r
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS Server Core X20r at a Glance
- Brand
- Q-SYS
- Model
- Server Core X20r
- Category
- Video Conferencing Accessories
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS Server Core X20r Overview
The Server Core X20r combines the Q-SYS Full Stack AV Platform with enterprise-grade Dell server hardware to deliver a flexible and scalable audio, video and control solution for larger scale applications in corporate, higher ed, hospitality, entertainment and beyond. It enables applications requiring increased processing capabilities and network channel capacity by serving as a central processor and efficiently distributing network I/O to where it is needed most. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- It enables applications requiring increased processing capabilities and network channel capacity by serving as a central processor and efficiently distributing network I/O to where it is needed most.
- Q-SYS Capacities: Total network I/O channels: 384 x 384
- Q-SYS Capacities: Total network I/O streams: 192 x 192
- Q-SYS Capacities: Dante network I/O: 8 x 8 included (up to 256 x 256 with Software-based Dante feature license)
- Q-SYS Capacities: Media/WAN channel capacity: 96 x 96
- Q-SYS Capacities: VoIP softphones: 64
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Server Core X20r |
| Brand | Q-SYS |
| Q-SYS Capacities: Total network I/O channels | 384 x 384 |
| Q-SYS Capacities: Total network I/O streams | 192 x 192 |
| Q-SYS Capacities: Dante network I/O | 8 x 8 included (up to 256 x 256 with Software-based Dante feature license) |
| Q-SYS Capacities: Media/WAN channel capacity | 96 x 96 |
| Q-SYS Capacities: VoIP softphones | 64 |
| Q-SYS Capacities: AEC channels (at 200 ms tail length) | 128 |
| Q-SYS Capacities: Audio recording / playback | 4 channels recording / 16 channels playback, [expandable up to 256 channels playback with optional multi track playback license (SLMTP-32) stackable up to 8x] |
| Q-SYS Capacities: Media drive capacity | 480 GB (at least 400 GB available for user media, or at least 800 hours of uncompressed 48 kHz, 24 bit, mono WAV format audio files) |

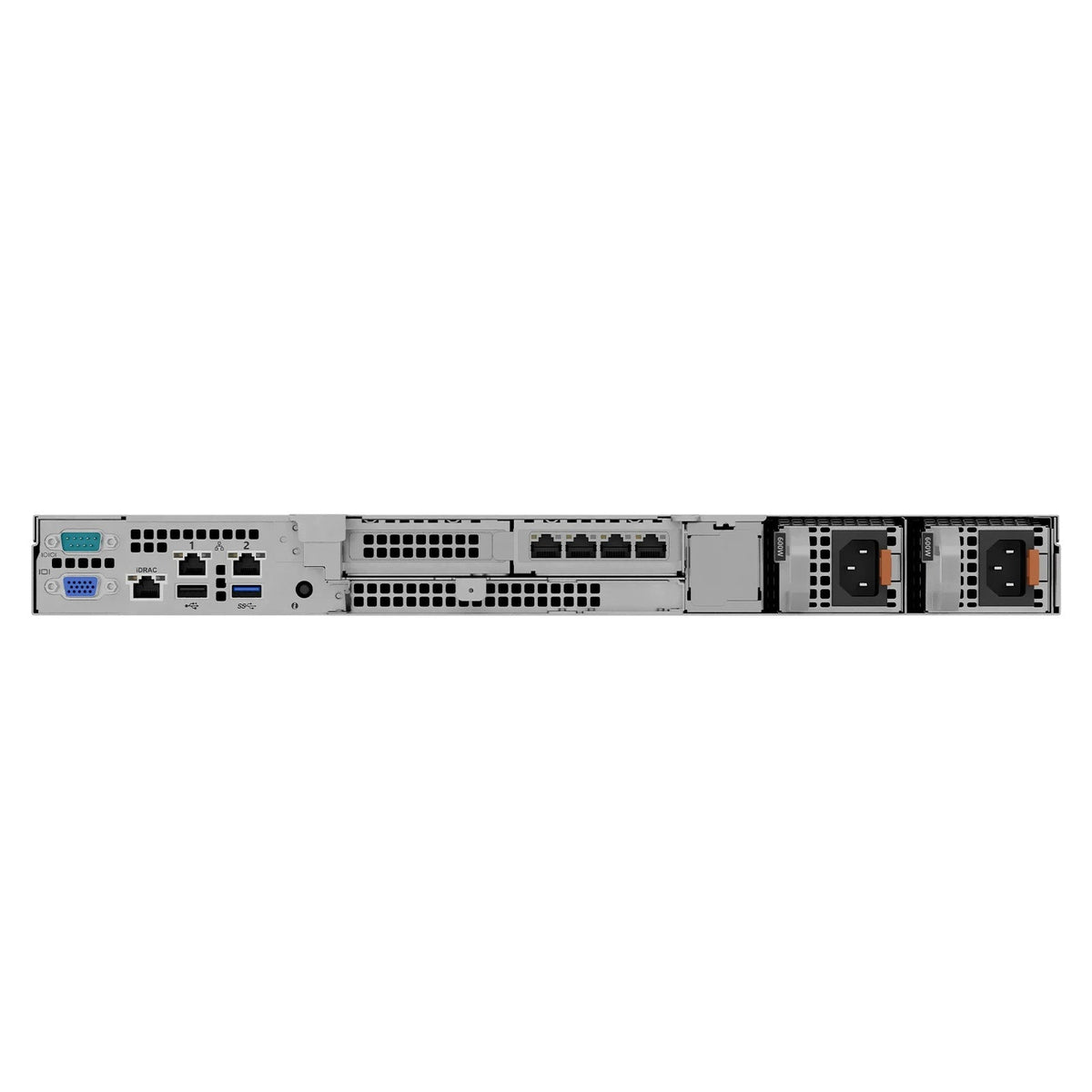

| Hardware: Platform | Dell R360XE |
| Hardware: Power | 2x universal input, 600 W PSU module |
| Hardware: LAN | 4x 1000 Mbps ports (2x Q-SYS Multimedia, 2x Q-SYS Aux) |
| Hardware: RS232 | 1x DB-9 RS-232 port (rear panel), 16550-compliant |
| Hardware: USB | 2x USB-A |
| Hardware: VGA | 1x VGA port |
| Hardware: iDRAC | 1x dedicated iDRAC v9 Ethernet port (rear) 1x iDRAC Direct (Micro-AB USB) port (front) |
| Hardware: Ventilation | Forced air, front intake, rear exhaust |

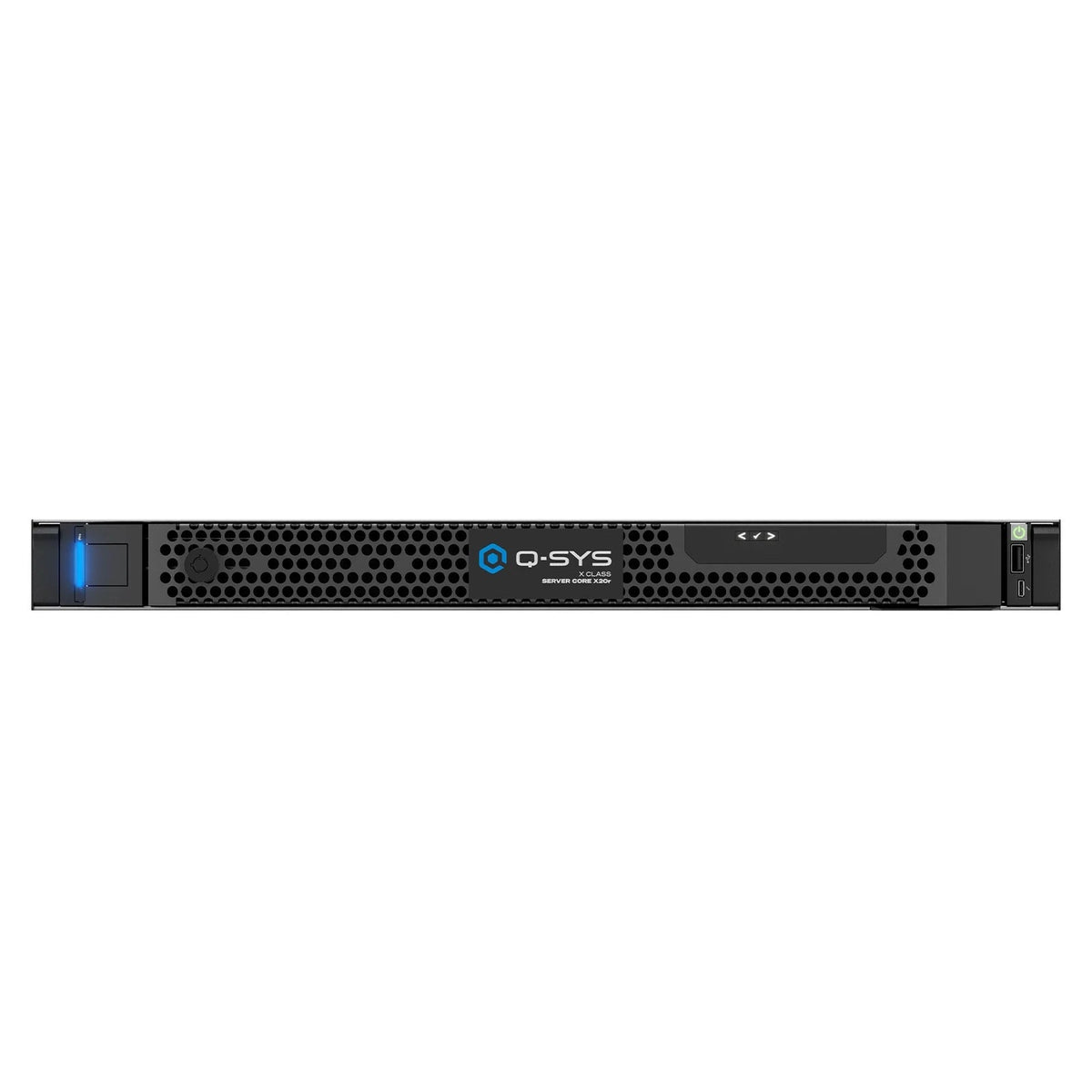

| Controls and Indicators: Front | Blue Power LED White LED Device Rest Button Front Panel LCD module displays IP address 2 navigation buttons (left, right) + 1 selection button to navigate between screens on the front display |
| Packaging and Accessories: Product dimensions (L x W x H) | 23.6 x 19.0 x 1.68 in (599 x 482.0 x 42.8 mm), including rack ears and handles |
| Packaging and Accessories: Product weight | 29.17 lb (13.23 kg) |
| Packaging and Accessories: Shipping carton dimensions (L x W x H) | 36.0 x 23.5 x 10.0 in (914 x 597 x 254 mm) |
| Packaging and Accessories: Shipping weight | 38.3 lb (17.4 kg) |
| Packaging and Accessories: Included accessories | Rail kit Environmental and Regulatory information booklet 2x Region-specific power cords (for dual power supplies) Quick Start Guide |
| Miscellaneous: Line voltage | 100-240 VAC, to 50/60 Hz |
| Miscellaneous: Current draw | 2.0 A |
| Miscellaneous: Operating temperature range | 0 C to +40 C |
| Miscellaneous: Storage temperature | -40 C to +70 C |
| Miscellaneous: BTU/hour | 2250 BTU/Hr |
| Miscellaneous: Humidity | 10% to 85% |
| Miscellaneous: Regulatory | FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1 |
| Miscellaneous: Battery chemistry (embedded, non-accessible) | Lithium manganese dioxide |
Why Buy the Q-SYS Server Core X20r from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the Server Core X20r
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS Server Core X20r: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Server Core X20r combines the Q-SYS Full Stack AV Platform with enterprise-grade Dell server hardware to deliver a flexible and scalable audio, video and control solution for larger scale applications in corporate, higher ed, hospitality, entertainment and beyond. It enables applications requiring increased processing capabilities and network channel capacity by serving as a central processor and efficiently distributing network I/O to where it is needed most.
For the Q-SYS Server Core X20r, Q-SYS lists the following. Q-SYS Capacities: Total network I/O channels: 384 x 384; Q-SYS Capacities: Total network I/O streams: 192 x 192; Q-SYS Capacities: Dante network I/O: 8 x 8 included (up to 256 x 256 with Software-based Dante feature license); Hardware: LAN: 4x 1000 Mbps ports (2x Q-SYS Multimedia, 2x Q-SYS Aux); Hardware: USB: 2x USB-A; Controls and Indicators: Front: Blue Power LED White LED Device Rest Button Front Panel LCD module displays IP address 2 navigation buttons (left, right) + 1 selection.
For the Q-SYS Server Core X20r, Q-SYS lists the following. Q-SYS Capacities: Total network I/O channels: 384 x 384; Q-SYS Capacities: Media/WAN channel capacity: 96 x 96; Q-SYS Capacities: AEC channels (at 200 ms tail length): 128; Q-SYS Capacities: Media drive capacity: 480 GB.
For the Q-SYS Server Core X20r, Q-SYS lists the following. Hardware: Power: 2x universal input, 600 W PSU module; Miscellaneous: Line voltage: 100-240 VAC, to 50/60 Hz.
For the Q-SYS Server Core X20r, Q-SYS lists the following. Packaging and Accessories: Product dimensions (L x W x H): 23.6 x 19.0 x 1.68 in (599 x 482.0 x 42.8 mm), including rack ears and handles; Packaging and Accessories: Product weight: 29.17 lb (13.23 kg); Packaging and Accessories: Shipping carton dimensions (L x W x H): 36.0 x 23.5 x 10.0 in (914 x 597 x 254 mm); Packaging and Accessories: Shipping weight: 38.3 lb (17.4 kg).
Trianze Tech stocks the Q-SYS Server Core X20r in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
