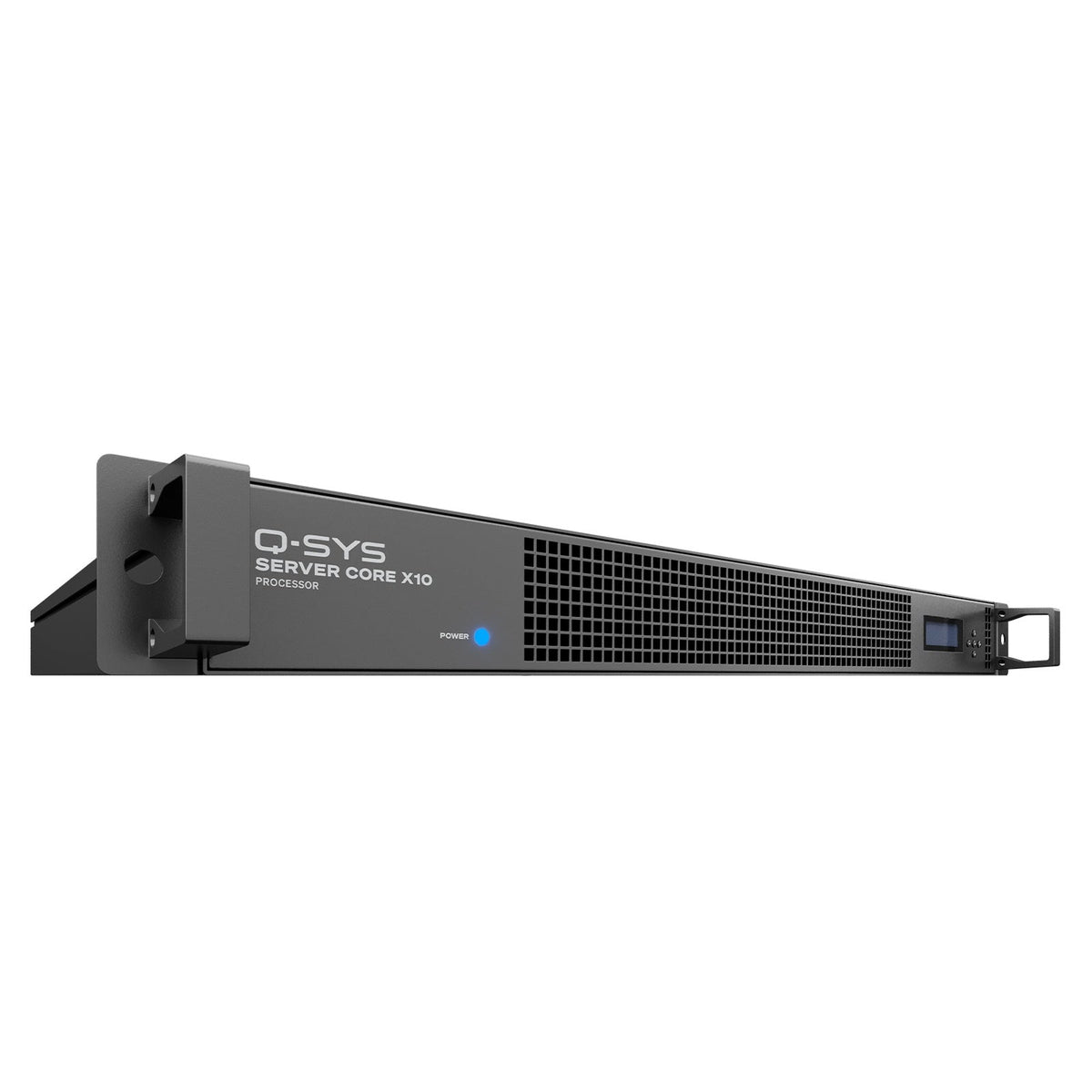

Q-SYS Server Core X10: Network I/O Processor
Model
:
Server Core X10
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS Server Core X10 at a Glance
- Brand
- Q-SYS
- Model
- Server Core X10
- Category
- Video Conferencing Accessories
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS Server Core X10 Overview
The Server Core X10 combines the Q-SYS Full Stack AV Platform with enterprise-grade server hardware to deliver a flexible and scalable audio, video and control solution for medium and large scale applications. The Server Core X10 functions effectively as a central processor for multiple zones or spaces with distributed network I/O or paired with distributed processing. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- The Server Core X10 functions effectively as a central processor for multiple zones or spaces with distributed network I/O or paired with distributed processing.
- Q-SYS Capacities: Total network I/O channels: 256 x 256
- Q-SYS Capacities: Total network I/O streams: 128 x 128
- Q-SYS Capacities: Dante network I/O: 8 x 8 included (up to 128 x 128 with Software-based Dante feature license)
- Q-SYS Capacities: Media/WAN channel capacity: 64 x 64
- Q-SYS Capacities: VoIP softphones: 32
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Server Core X10 |
| Brand | Q-SYS |
| Q-SYS Capacities: Total network I/O channels | 256 x 256 |
| Q-SYS Capacities: Total network I/O streams | 128 x 128 |
| Q-SYS Capacities: Dante network I/O | 8 x 8 included (up to 128 x 128 with Software-based Dante feature license) |
| Q-SYS Capacities: Media/WAN channel capacity | 64 x 64 |
| Q-SYS Capacities: VoIP softphones | 32 |
| Q-SYS Capacities: AEC channels (at 200 ms tail length) | 64 |
| Q-SYS Capacities: Audio recording / playback | 4 channels recording / 16 channels playback, [expandable up to 128 channels playback with optional multi track playback license (SLMTP-32) stackable up to 4x] |
| Q-SYS Capacities: Media drive capacity | 256 GB (at least 200 GB available for user media, or at least 400 hours of uncompressed 48 kHz, 24 bit, mono WAV format audio files) |
| Hardware: Power | 1x universal input, 500 W PSU module |

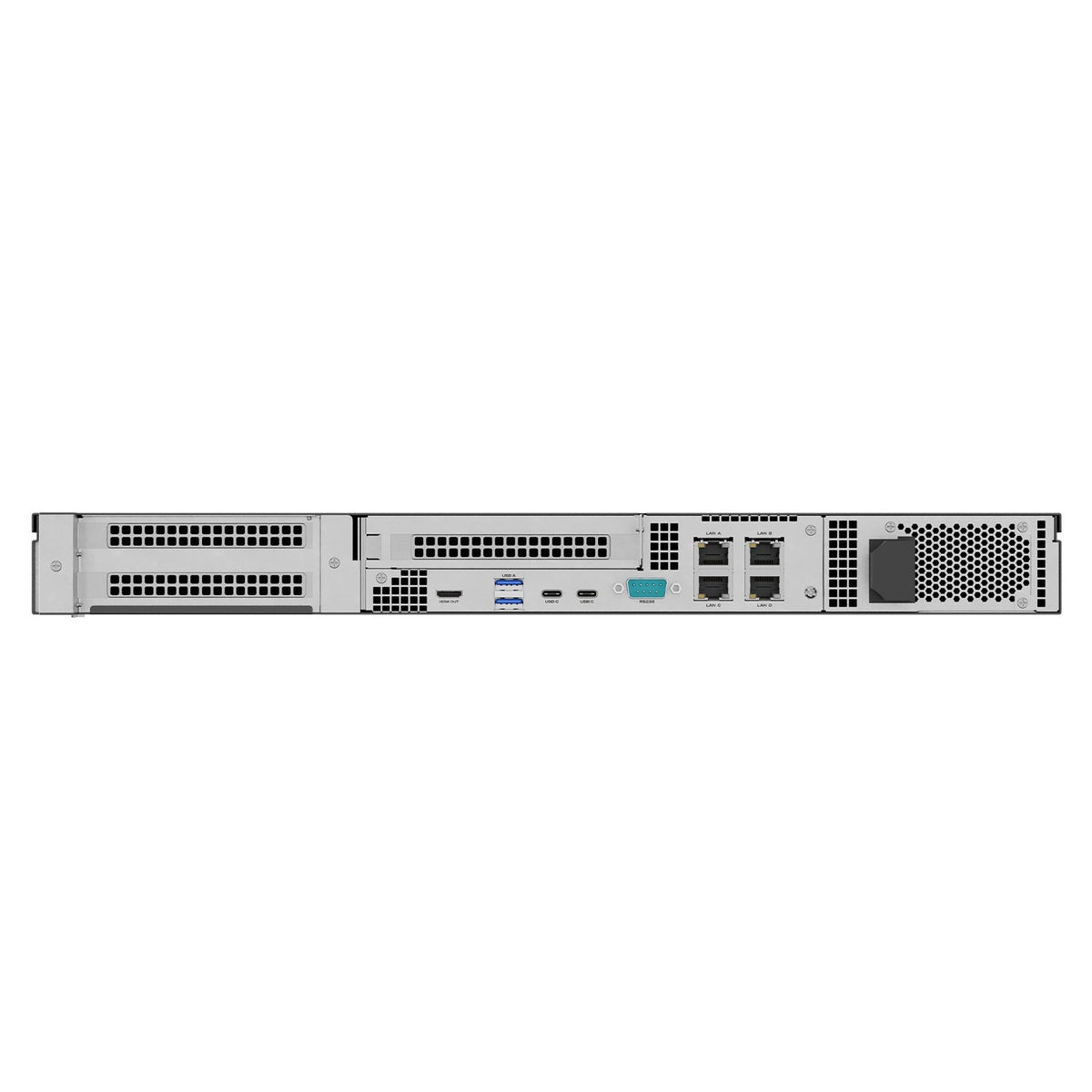

| Hardware: LAN | 4x 2500 Mbps ports (2x Q-SYS Multimedia, 2x Q-SYS Aux) |
| Hardware: RS232 | 1x DB-9 RS-232 port (rear panel), 16550-compliant |
| Hardware: USB | 2 USB-A and 2 USB-C port |
| Hardware: Ventilation | Forced air, front intake, rear exhaust |

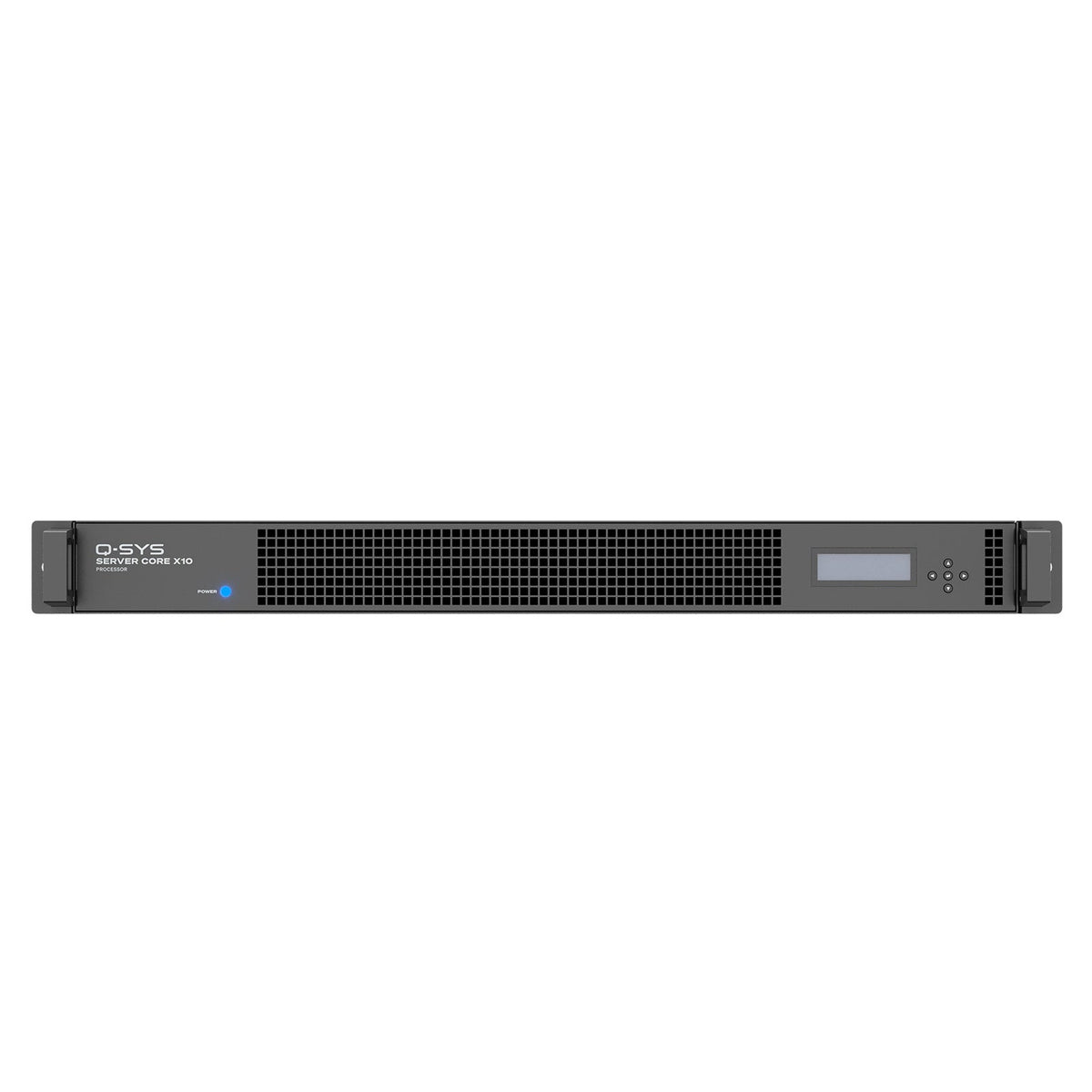

| Controls and Indicators: Front | Power LED Front Panel LCD module, white backlight 4 navigation buttons (up, down, left, right) + 1 selection button to navigate between screens on the front display |
| Packaging and Accessories: Product dimensions (L x W x H) | 18.11 x 17.24 x 1.73 in (460 x 438 x 44 mm) |
| Packaging and Accessories: Product weight | 18.7 lb (8.5 kg) |
| Packaging and Accessories: Shipping carton dimensions (L x W x H) | 24.0 x 22.0 x 8.0 in (610 x 559 x 203 mm) |
| Packaging and Accessories: Shipping weight | 28.1 lb (12.7 kg) |
| Packaging and Accessories: Included accessories | Rail kit Safety information & regulatory statements pamphlet 1x region-specific power cord Rack ear handles |
| Miscellaneous: Line voltage | 100-240 VAC, to 50/60 Hz |
| Miscellaneous: Current draw | 2.0 A |
| Miscellaneous: Operating temperature range | 0 C to +40 C |
| Miscellaneous: Storage temperature | -40 C to +70 C |
| Miscellaneous: BTU/hour | 136 BTU/Hr |
| Miscellaneous: Humidity | 10% to 85% |
| Miscellaneous: Regulatory | FCC 47 CFR Part 15 Subpart B, Canada ICES-003, EN 55032, EN 55035, EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, REACH, China RoHS GB/T26572, RCM, IEC/EN/UL 62368-1 |
| Miscellaneous: Battery chemistry (embedded, non-accessible) | Lithium Carbon Monofluoride |
Why Buy the Q-SYS Server Core X10 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the Server Core X10
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS Server Core X10: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Server Core X10 combines the Q-SYS Full Stack AV Platform with enterprise-grade server hardware to deliver a flexible and scalable audio, video and control solution for medium and large scale applications. The Server Core X10 functions effectively as a central processor for multiple zones or spaces with distributed network I/O or paired with distributed processing.
For the Q-SYS Server Core X10, Q-SYS lists the following. Q-SYS Capacities: Total network I/O channels: 256 x 256; Q-SYS Capacities: Total network I/O streams: 128 x 128; Q-SYS Capacities: Dante network I/O: 8 x 8 included (up to 128 x 128 with Software-based Dante feature license); Hardware: LAN: 4x 2500 Mbps ports (2x Q-SYS Multimedia, 2x Q-SYS Aux); Hardware: USB: 2 USB-A and 2 USB-C port; Controls and Indicators: Front: Power LED Front Panel LCD module, white backlight 4 navigation buttons (up, down, left, right) + 1 selection button to navigate between.
For the Q-SYS Server Core X10, Q-SYS lists the following. Q-SYS Capacities: Total network I/O channels: 256 x 256; Q-SYS Capacities: Media/WAN channel capacity: 64 x 64; Q-SYS Capacities: AEC channels (at 200 ms tail length): 64; Q-SYS Capacities: Media drive capacity: 256 GB.
For the Q-SYS Server Core X10, Q-SYS lists the following. Hardware: Power: 1x universal input, 500 W PSU module; Miscellaneous: Line voltage: 100-240 VAC, to 50/60 Hz.
For the Q-SYS Server Core X10, Q-SYS lists the following. Packaging and Accessories: Product dimensions (L x W x H): 18.11 x 17.24 x 1.73 in (460 x 438 x 44 mm); Packaging and Accessories: Product weight: 18.7 lb (8.5 kg); Packaging and Accessories: Shipping carton dimensions (L x W x H): 24.0 x 22.0 x 8.0 in (610 x 559 x 203 mm); Packaging and Accessories: Shipping weight: 28.1 lb (12.7 kg).
Trianze Tech stocks the Q-SYS Server Core X10 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
