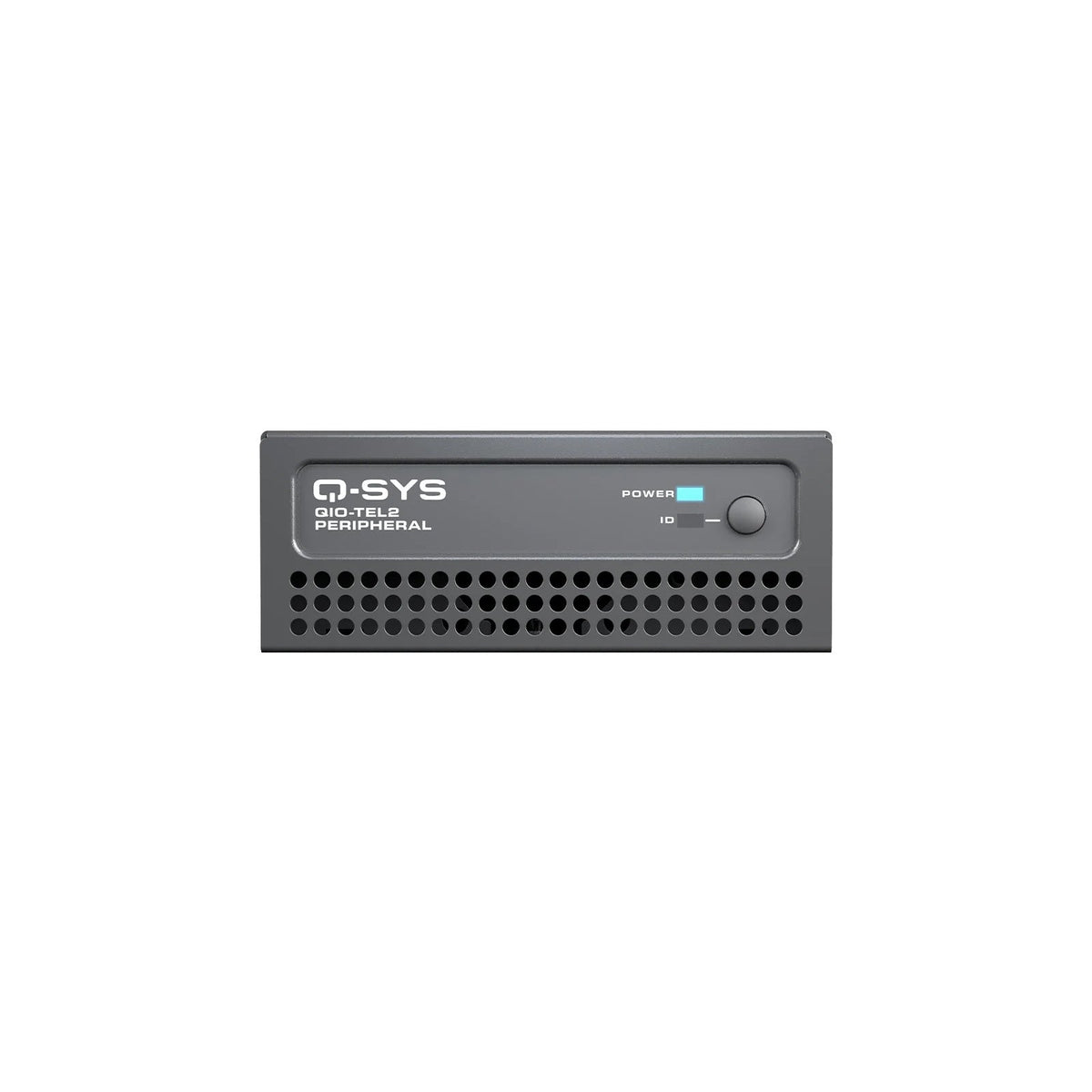

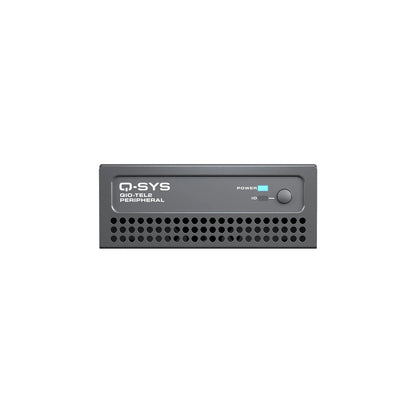

Q-SYS QIO-TEL2: Analog Telephony Interface for Q-SYS Systems
Model
:
QIO-TEL2
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS QIO-TEL2 at a Glance
- Brand
- Q-SYS
- Model
- QIO-TEL2
- Category
- Audio Interfaces
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS QIO-TEL2 Overview
The Q-SYS QIO-TEL2 expands your Q-SYS system's capabilities to enable streamlined interoperability with analog telephony systems. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
- Telephone Lines: Impedance: 600 ohm, nominal
- Telephone Lines: Frequency response: 300 Hz to 3.3 kHz, +/-1.0 dB
- Telephone Lines: THD+Noise: < 0.5%
- Telephone Lines: Signal-to-noise ratio: > 62 dB
- Telephone Lines: Ringer Equivalence Number: 0.1
Technical Specifications:
| Spec | Value |
|---|---|
| Model | QIO-TEL2 |
| Brand | Q-SYS |
| Telephone Lines: Impedance | 600 ohm, nominal |
| Telephone Lines: Frequency response | 300 Hz to 3.3 kHz, +/-1.0 dB |
| Telephone Lines: THD+Noise | < 0.5% |
| Telephone Lines: Signal-to-noise ratio | > 62 dB |
| Telephone Lines: Ringer Equivalence Number | 0.1 |

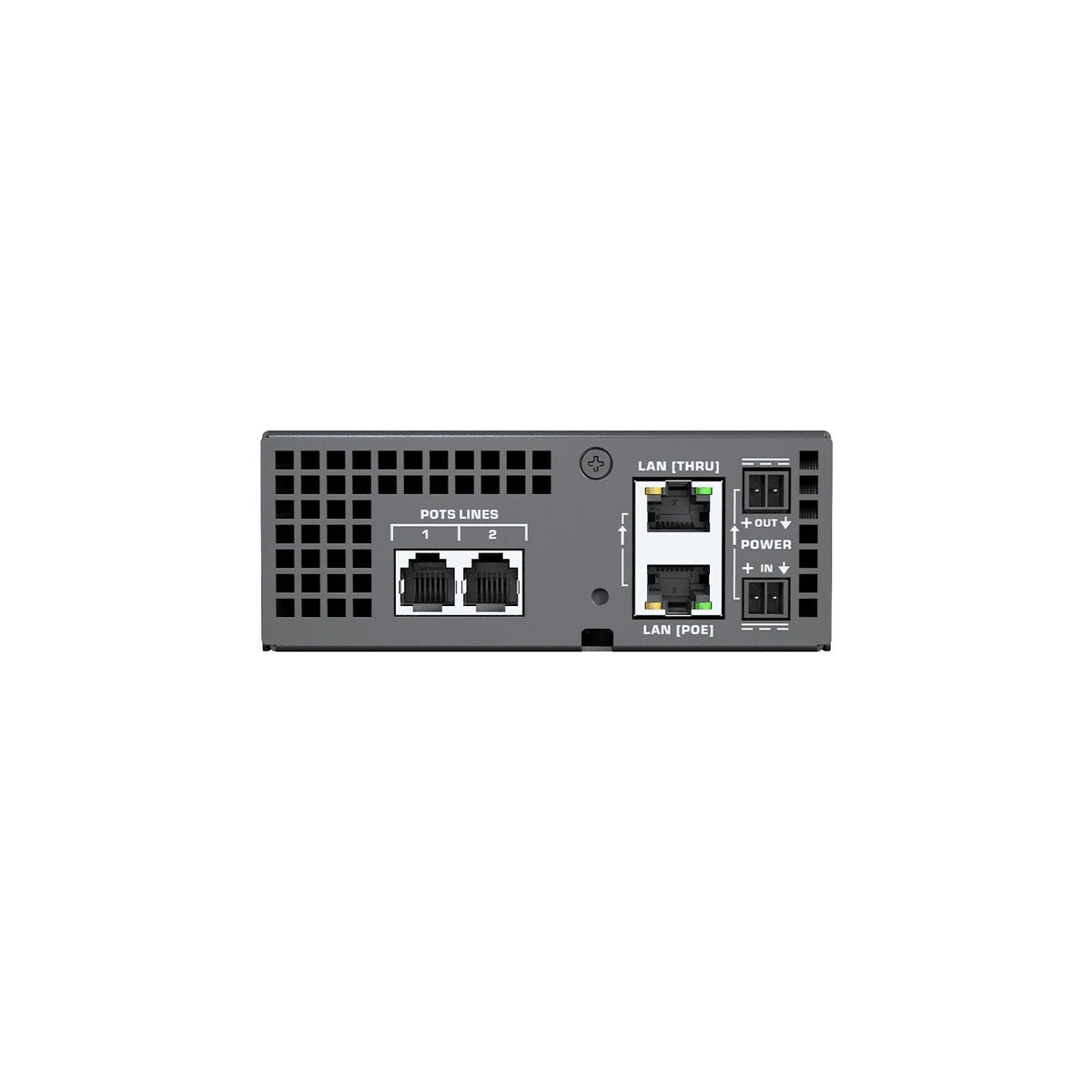

| Other Connectors: External power supply | 24 VDC nominal, 2.5A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately) |
| Other Connectors: LAN (PoE) | Gigabit LAN connection for Q-LAN, PoE |
| Other Connectors: PoE specification | Conforms to IEEE 802.3af Type 1, Class 1 |
| Other Connectors: LAN (Thru) | Ethernet daisy-chaining |
| General: Dimensions | 8.5 x 4.25 x 1.59 in (215.9 x 108 x 40.4 mm) |
| General: Weight | 1.63 lb (0.74 kg) |
| General: Mounting options | Surface- and wall-mountable (hardware included). Rack-mountable, 1RU, -rack width (QIO-RMK rack kit sold separately) |
Why Buy the Q-SYS QIO-TEL2 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the QIO-TEL2
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS QIO-TEL2: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS QIO-TEL2 expands your Q-SYS system's capabilities to enable streamlined interoperability with analog telephony systems. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
For the Q-SYS QIO-TEL2, Q-SYS lists the following. Other Connectors: External power supply: 24 VDC nominal, 2.5A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately); Other Connectors: LAN (PoE): Gigabit LAN connection for Q-LAN, PoE; Other Connectors: PoE specification: Conforms to IEEE 802.3af Type 1, Class 1; Other Connectors: LAN (Thru): Ethernet daisy-chaining.
For the Q-SYS QIO-TEL2, Q-SYS lists the following. Telephone Lines: Impedance: 600 ohm, nominal; Telephone Lines: Frequency response: 300 Hz to 3.3 kHz, +/-1.0 dB.
For the Q-SYS QIO-TEL2, Q-SYS lists the following. Other Connectors: External power supply: 24 VDC nominal, 2.5A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately); Other Connectors: LAN (PoE): Gigabit LAN connection for Q-LAN, PoE; Other Connectors: PoE specification: Conforms to IEEE 802.3af Type 1, Class 1.
For the Q-SYS QIO-TEL2, Q-SYS lists the following. General: Dimensions: 8.5 x 4.25 x 1.59 in (215.9 x 108 x 40.4 mm); General: Weight: 1.63 lb (0.74 kg).
Trianze Tech stocks the Q-SYS QIO-TEL2 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
