Q-SYS QIO-LVR4: Low-Voltage Relay Network I/O Expander
Model
:
QIO-LVR4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS QIO-LVR4 at a Glance
- Brand
- Q-SYS
- Model
- QIO-LVR4
- Category
- Loudspeaker Management Systems
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS QIO-LVR4 Overview
The Q-SYS QIO-LVR4 expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked control devices via low-voltage relay connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
- Connectivity: Four (4) dry contact closure relay circuits with Normally Open (NO), Common (C), and Normally Closed (NC) connections
- Rating: 30 V AC @ 1A 24 V DC @ 2A

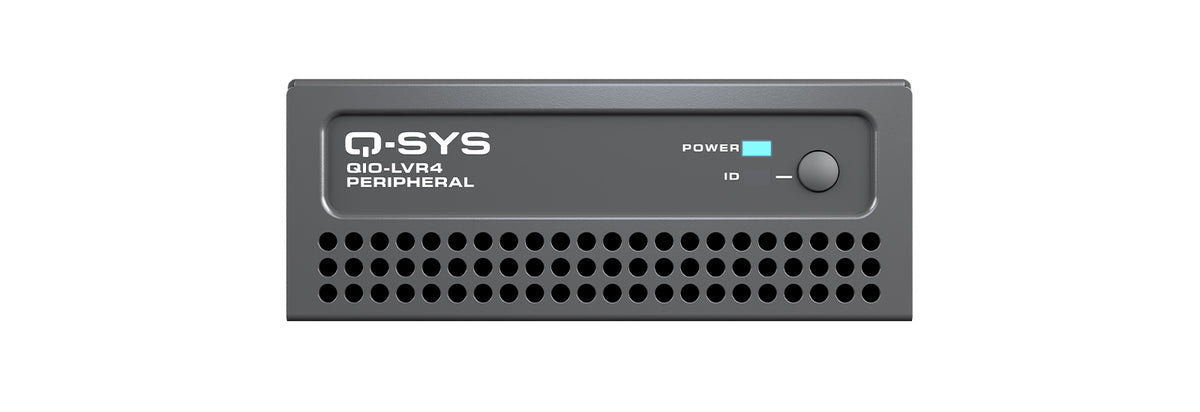

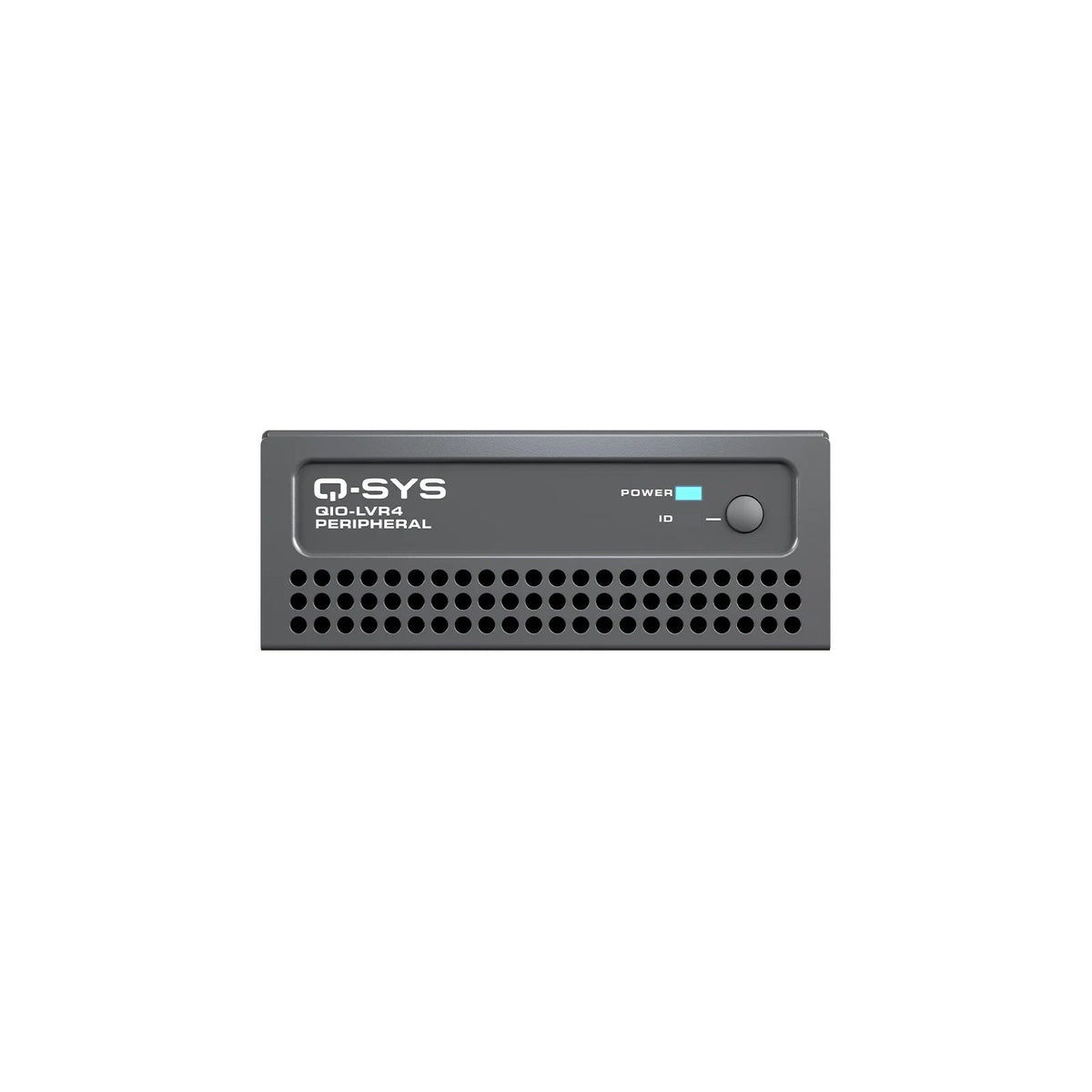

- Panel Indicators & Controls: Front panel LEDs: Power (blue LED), ID (green LED)
- Panel Indicators & Controls: Front panel control: ID button (momentary)

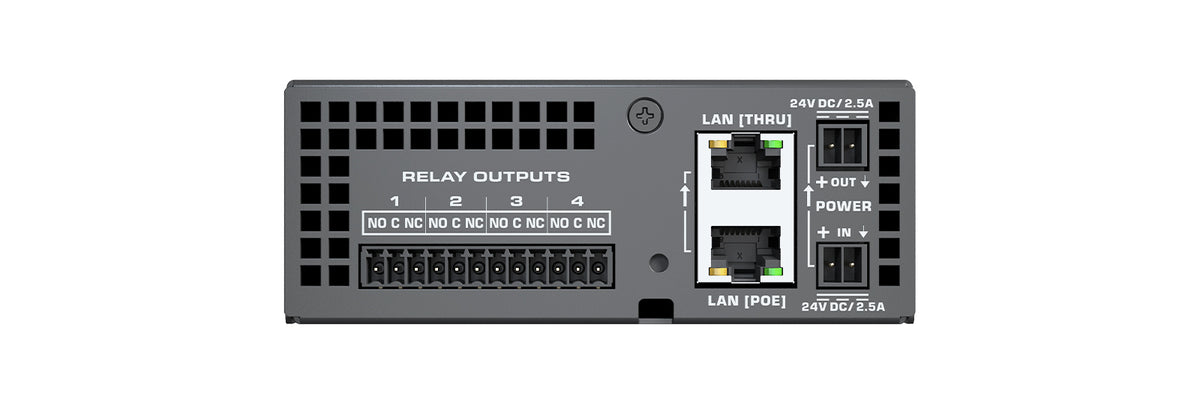

- Panel Indicators & Controls: Rear panel indicators: LAN (Thru), link, speed, activity multi-color LEDs LAN (PoE), link, speed, activity multi-color LEDs
Technical Specifications:
| Spec | Value |
|---|---|
| Model | QIO-LVR4 |
| Brand | Q-SYS |
| Connectivity | Four (4) dry contact closure relay circuits with Normally Open (NO), Common (C), and Normally Closed (NC) connections |
| Rating | 30 V AC @ 1A 24 V DC @ 2A |
| Panel Indicators & Controls: Front panel LEDs | Power (blue LED), ID (green LED) |
| Panel Indicators & Controls: Front panel control | ID button (momentary) |
| Panel Indicators & Controls: Rear panel indicators | LAN (Thru), link, speed, activity multi-color LEDs LAN (PoE), link, speed, activity multi-color LEDs |
| Other Connectors: External power supply | 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately) |
| Other Connectors: LAN (PoE) | Gigabit LAN connection for Q-LAN, PoE |
| Other Connectors: PoE specification | Conforms to IEEE 802.3af Type 1, Class 1 |
| Other Connectors: LAN (Thru) | Ethernet daisy-chaining |
| General: Dimensions | 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm) |
| General: Weight | 1.18 lb |
| General: Shipping Weight | 1.84 lb (0.83 kg) |
| General: Mounting options | Surface- and wall-mountable (hardware included) Rack-mountable; 1RU, half-rack width (QIO-RMK rack kit sold separately) |
| Environmental: Power consumption | 2.2 W typical |
| Environmental: Ambient operating temperature range | 0 C to + 50 C |
| Environmental: Humidity | 5% to 85% RH through 30 C, non-condensing |
| Environmental: Storage temperature | -20 C to + 70 C |
| Environmental: Heat load | 7.5 BTU/hr |
| Environmental: Compliance | FCC Part 15 Subpart B, ICES-003:2020, cTUVus, CAN/CSA 22.2, IEC 62368-1, RoHS 2, WEEE, CE, EN 55032, EN 55035, RCM: AS/NZS CISPR 32, NOM, GB8898, GB13837, GB17625.1, China RoHS, KS C 9035, KS C 9032, KC 62368-1 |
Why Buy the Q-SYS QIO-LVR4 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the QIO-LVR4
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS QIO-LVR4: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS QIO-LVR4 expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked control devices via low-voltage relay connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
For the Q-SYS QIO-LVR4, Q-SYS lists the following. Panel Indicators & Controls: Front panel LEDs: Power (blue LED), ID (green LED); Panel Indicators & Controls: Front panel control: ID button (momentary); Panel Indicators & Controls: Rear panel indicators: LAN (Thru), link, speed, activity multi-color LEDs LAN (PoE), link, speed, activity multi-color LEDs; Other Connectors: External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately); Other Connectors: LAN (PoE): Gigabit LAN connection for Q-LAN, PoE; Other Connectors: PoE specification: Conforms to IEEE 802.3af Type 1, Class 1.
For the Q-SYS QIO-LVR4, Q-SYS lists the following. Connectivity: Four (4) dry contact closure relay circuits with Normally Open (NO), Common (C), and Normally Closed (NC) connections; Rating: 30 V AC @ 1A 24 V DC @ 2A; Panel Indicators & Controls: Front panel LEDs: Power (blue LED), ID (green LED); Panel Indicators & Controls: Front panel control: ID button (momentary).
For the Q-SYS QIO-LVR4, Q-SYS lists the following. Other Connectors: External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately); Other Connectors: LAN (PoE): Gigabit LAN connection for Q-LAN, PoE; Other Connectors: PoE specification: Conforms to IEEE 802.3af Type 1, Class 1.
For the Q-SYS QIO-LVR4, Q-SYS lists the following. General: Dimensions: 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm); General: Weight: 1.18 lb; General: Shipping Weight: 1.84 lb (0.83 kg); Environmental: Ambient operating temperature range: 0 C to + 50 C.
Trianze Tech stocks the Q-SYS QIO-LVR4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
