Q-SYS QIO-IR1x4: Network I/O Expander
Model
:
QIO-IR1x4
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS QIO-IR1x4 at a Glance
- Brand
- Q-SYS
- Model
- QIO-IR1x4
- Category
- Loudspeaker Management Systems
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS QIO-IR1x4 Overview
The Q-SYS QIO-IR1x4 expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked control devices via IR connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.

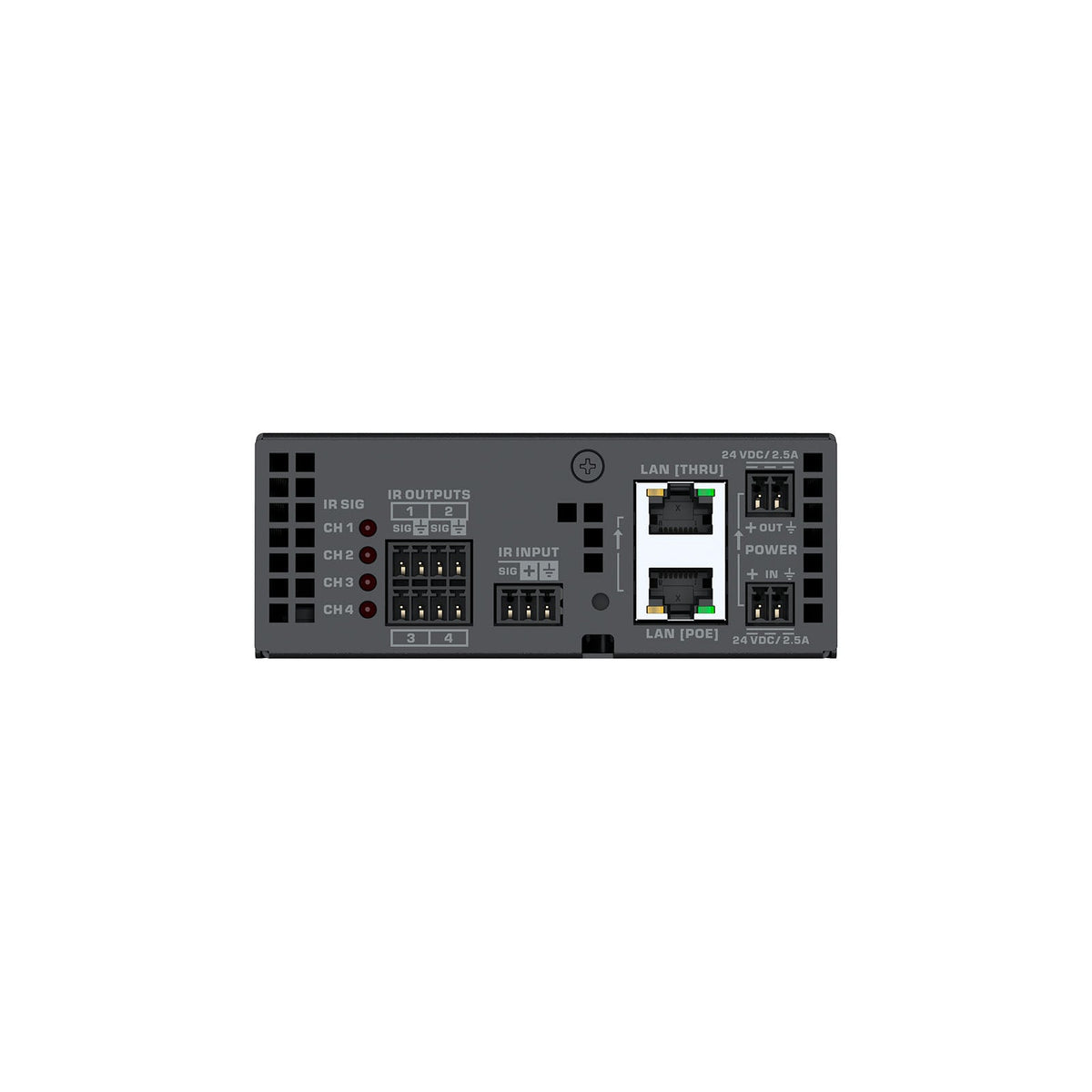

- IR/Serial Output Ports: IR output or RS-232 (transmit only): Four (4) configurable ports
- IR/Serial Output Ports: RS232: Configurable baud rate
- IR/Serial Output Ports: LED indicators: IR transmit activity
- IR Input Ports: One (1) port, bandwidth TBD
- Other Connectors: External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | QIO-IR1x4 |
| Brand | Q-SYS |
| IR/Serial Output Ports: IR output or RS-232 (transmit only) | Four (4) configurable ports |
| IR/Serial Output Ports: RS232 | Configurable baud rate |
| IR/Serial Output Ports: LED indicators | IR transmit activity |
| IR Input Ports | One (1) port, bandwidth TBD |
| Other Connectors: External power supply | 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately) |
| Other Connectors: LAN (PoE) | Gigabit LAN connection for Q-LAN, PoE |
| Other Connectors: PoE specification | Conforms to IEEE 802.3af Type 1 |
| Other Connectors: LAN (Thru) | Ethernet daisy-chaining |
| General: Dimensions | 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm) |
| General: Weight | 1.18 lb (0.54 kg) |

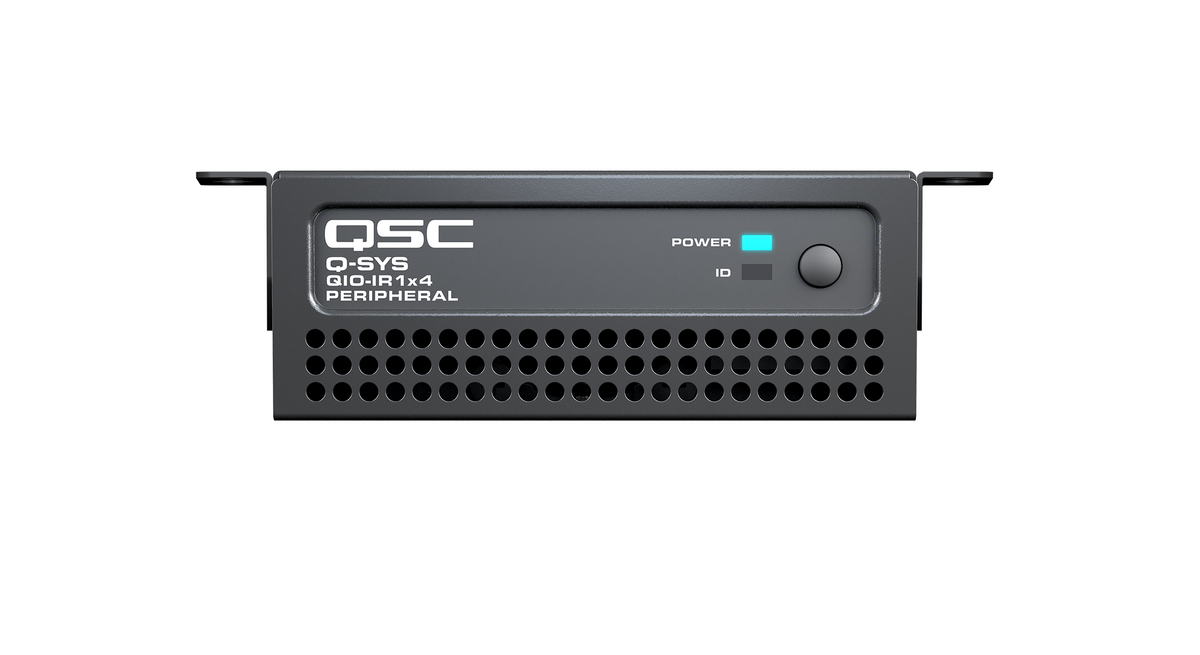

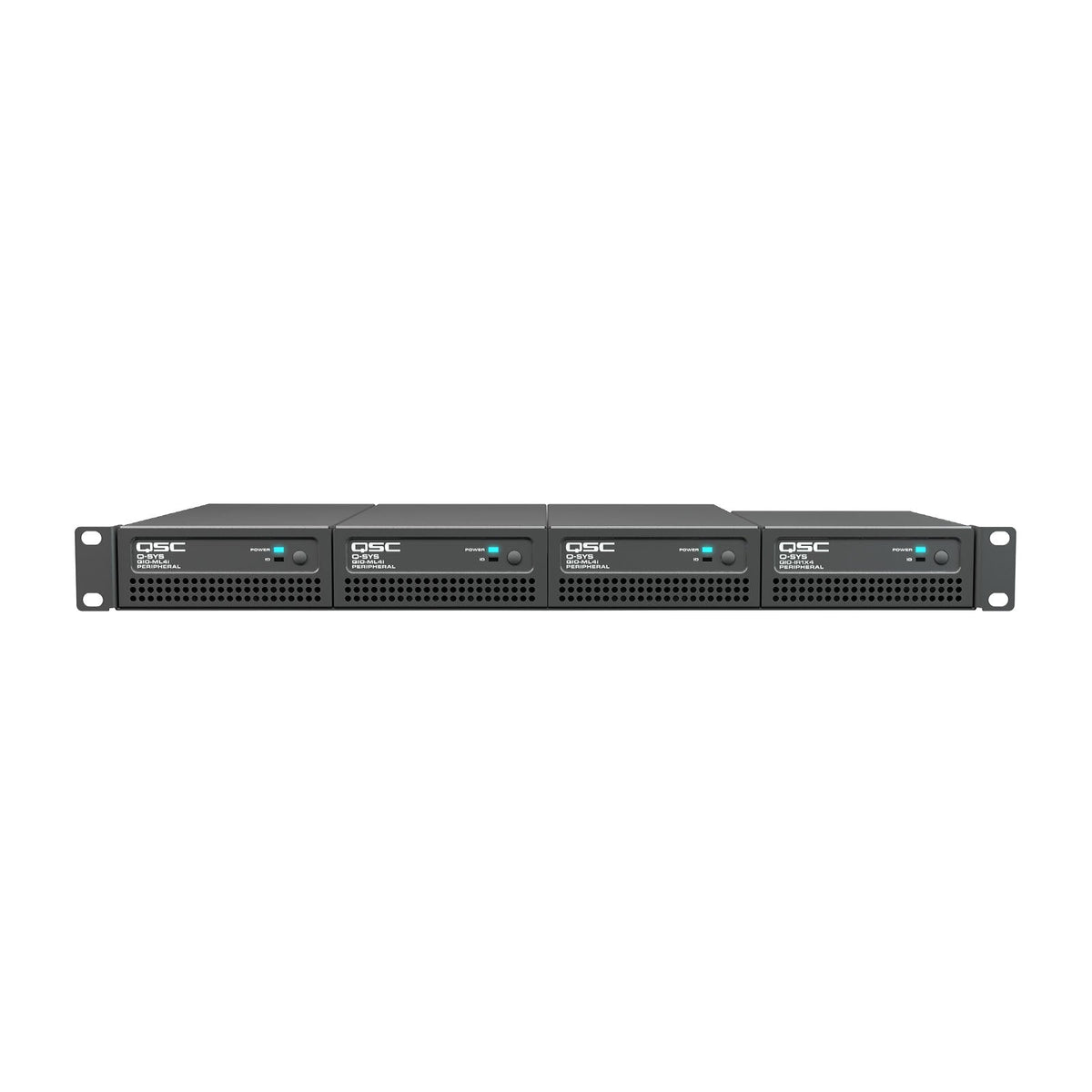

| General: Mounting options | Surface- and wall-mountable (hardware included) Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately) |
| Environmental: Ambient operating temperature range | 0 C to +50 C |
| Environmental: Humidity | 0%-85% through 30 C non-condensing |
| Environmental: Storage temperature | -20 C to +70 C |
| Environmental: Compliance | FCC 47 CFR Part 15, IC ICES-003, CE (EN55032, EN55035), EU RoHS directive 2011/65/EU, WEEE directive 2012/19/EU, China RoHS directive GB/T26572, EAC, UL, C-UL, NOM-019 |
Why Buy the Q-SYS QIO-IR1x4 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the QIO-IR1x4
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS QIO-IR1x4: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS QIO-IR1x4 expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked control devices via IR connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
For the Q-SYS QIO-IR1x4, Q-SYS lists the following. IR/Serial Output Ports: IR output or RS-232 (transmit only): Four (4) configurable ports; IR/Serial Output Ports: RS232: Configurable baud rate; IR/Serial Output Ports: LED indicators: IR transmit activity; IR Input Ports: One (1) port, bandwidth TBD; Other Connectors: External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately); Other Connectors: LAN (PoE): Gigabit LAN connection for Q-LAN, PoE.
For the Q-SYS QIO-IR1x4, Q-SYS lists the following. IR/Serial Output Ports: IR output or RS-232 (transmit only): Four (4) configurable ports; IR/Serial Output Ports: RS232: Configurable baud rate; IR/Serial Output Ports: LED indicators: IR transmit activity; IR Input Ports: One (1) port, bandwidth TBD.
For the Q-SYS QIO-IR1x4, Q-SYS lists the following. Other Connectors: External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately); Other Connectors: LAN (PoE): Gigabit LAN connection for Q-LAN, PoE; Other Connectors: PoE specification: Conforms to IEEE 802.3af Type 1.
For the Q-SYS QIO-IR1x4, Q-SYS lists the following. General: Dimensions: 5.5 x 4.25 x 1.59 in (139.7 x 108 x 40.4 mm); General: Weight: 1.18 lb (0.54 kg); Environmental: Ambient operating temperature range: 0 C to +50 C; Environmental: Humidity: 0%-85% through 30 C non-condensing.
Trianze Tech stocks the Q-SYS QIO-IR1x4 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
