Q-SYS QIO-FLEX4A: Modular Network I/O Expander for Q-SYS
Model
:
QIO-FLEX4A
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS QIO-FLEX4A at a Glance
- Brand
- Q-SYS
- Model
- QIO-FLEX4A
- Category
- Audio Interfaces
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS QIO-FLEX4A Overview
The Q-SYS QIO-FLEX4A expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked audio and control devices. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.

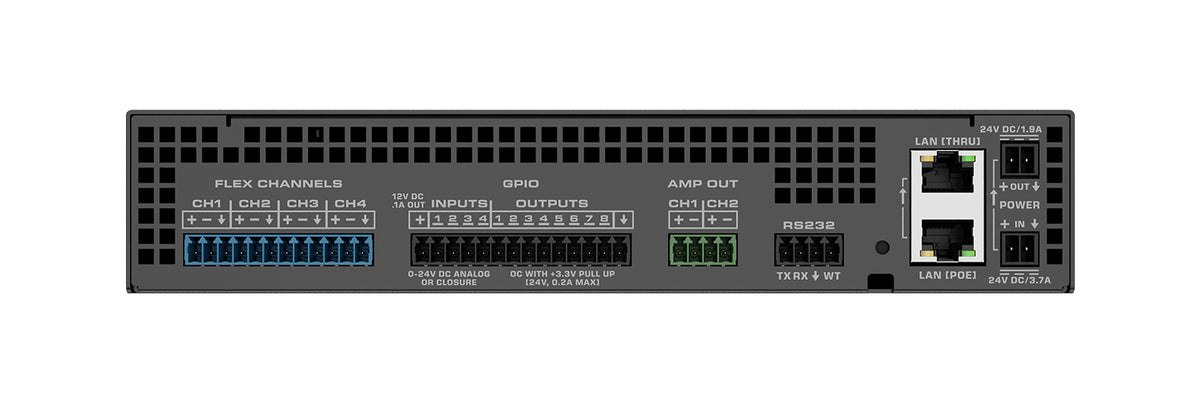

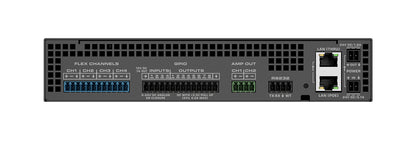

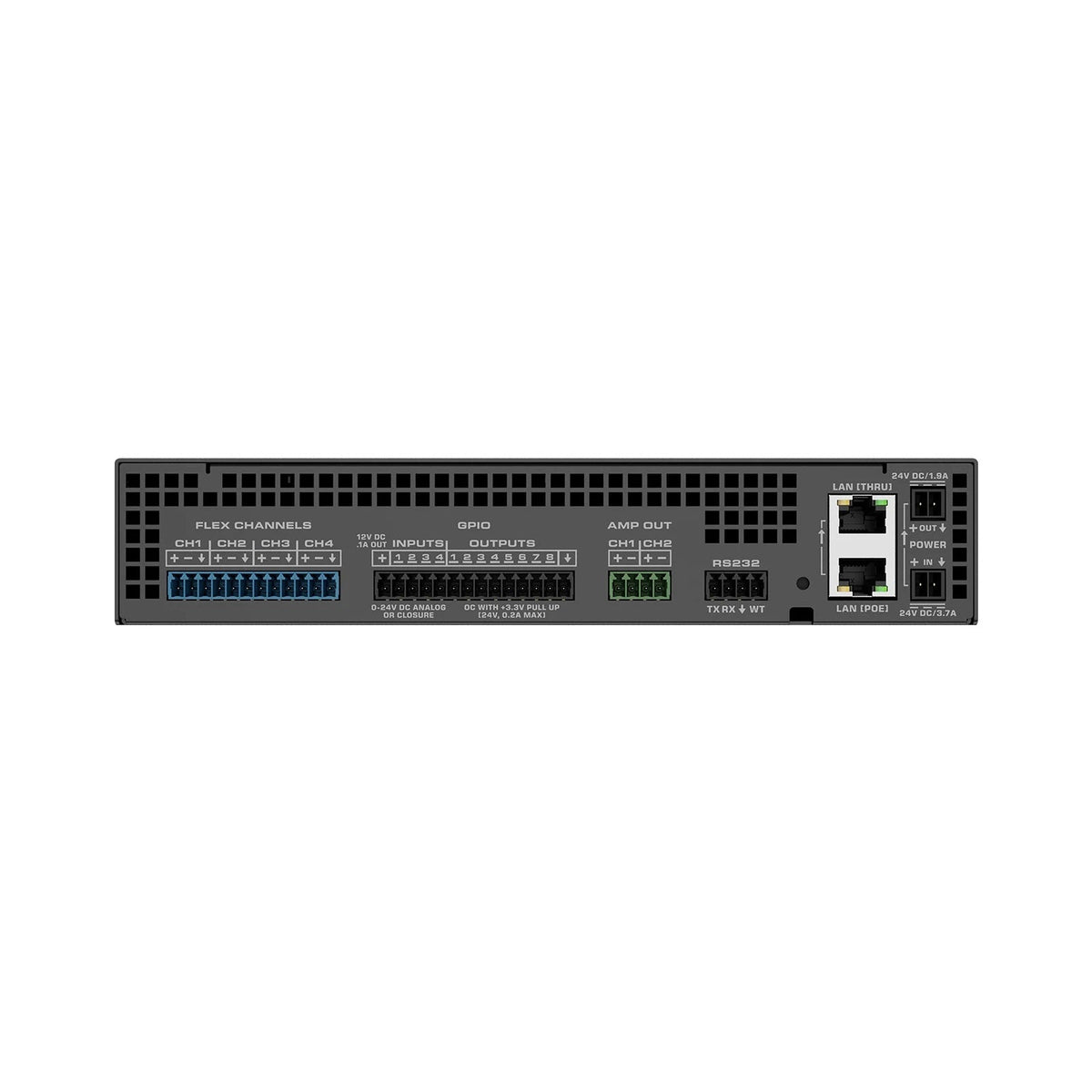

- Connectivity: Four (4) Flex I/O, 4x8 GPIO, one (1) RS232, two (2) amplifier outputs
- Mic/Line Inputs: Maximum input level: +24 dBu (balanced), +18 dBu (unbalanced)
- Mic/Line Inputs: Preamplifier gain range: 0 dB to 60 dB
- Mic/Line Inputs: Phantom power: +48 V DC (10 mA per channel, IEC 61938 P48 compliant)
- Mic/Line Inputs: Equivalent input noise: <-120 dBu, no weighting @ 20 Hz to 20 kHz
Technical Specifications:
| Spec | Value |
|---|---|
| Model | QIO-FLEX4A |
| Brand | Q-SYS |
| Connectivity | Four (4) Flex I/O, 4x8 GPIO, one (1) RS232, two (2) amplifier outputs |
| Mic/Line Inputs: Maximum input level | +24 dBu (balanced), +18 dBu (unbalanced) |
| Mic/Line Inputs: Preamplifier gain range | 0 dB to 60 dB |
| Mic/Line Inputs: Phantom power | +48 V DC (10 mA per channel, IEC 61938 P48 compliant) |
| Mic/Line Inputs: Equivalent input noise | <-120 dBu, no weighting @ 20 Hz to 20 kHz |
| Mic/Line Inputs: Input to input crosstalk @ 1 kHz | > 110 dB Typical, > 95 dB Minimum |
| Mic/Line Inputs: Input impedance | 10 k ohm (balanced), 5 k ohm (unbalanced) |
| Mic/Line Inputs: Input Dynamic Range | @ +24 dBu sensitivity, > 108 dB @ +10 dBu sensitivity, > 105 dB @ -10 dBu sensitivity, > 100 dB @ -36 dBu sensitivity, > 80 dB |
| Mic/Line Outputs: Max output level range | -37 dBu to +24 dBu |
| Mic/Line Outputs: Output dynamic range | 108 dB |
| Mic/Line Outputs: Output to output crosstalk @ 1 kHz | > 102 dB Typical, > 90 dB Minimum |
| Mic/Line Outputs: Output impedance | 200 ohm (balanced), 100 ohm (unbalanced) |
| Mic/Line Outputs: Sample rate | 48 kHz |
| Mic/Line Outputs: Bit depth | 24 bit |
| Amp Outputs: Max speaker output power (Aux 24VDC Power) | 9 W @ 4 ohm, per channel |
| Amp Outputs: Max speaker output power (PoE+) | 5 W @ 4 ohm, per channel |
| Amp Outputs: Output impedance | 4-8 ohm nominal |
| Control: RS232 | 1 port |
| Control: GPIO | 4x8 |
| Other Connectors: External power supply | 24 VDC nominal, 3.7 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately) |
| Other Connectors: LAN (PoE) | Gigabit LAN connection for Q-LAN, PoE |
| Other Connectors: PoE specification | Conforms to IEEE 802.3at Type 2, Class 4 Accepts IEEE 802.3af Type 1, Class 3 (amplifier disabled at this power level) |
| Other Connectors: LAN (Thru) | Ethernet daisy-chaining |
| General: Dimensions | 5.5 x 8.62 x 1.59 in (139.7 x 219.1 x 40.4 mm) |
| General: Weight | 2.3 lbs. (1.04 kg) |
| General: Mounting options | Surface- and wall-mountable (hardware included) Rack-mountable; 1RU, half-rack width (QIO-RMK rack kit sold separately) |
| Environmental: Power consumption | Aux 24 VDC Power (@ 9 W per amp channel max), 43.5 W PoE+ (@ 5 W per amp channel max), 25.5 W PoE (Amplifier Disabled), 12.95 W |
| Environmental: Ambient operating temperature range | 0 C to +50 C |
| Environmental: Humidity | 5% to 85% RH through 30 C, non-condensing |
| Environmental: Storage temperature | -20 C to +70 C |
| Environmental: Heat load | 45 BTU/hr |
| Environmental: Compliance | FCC Part 15B, ICES-003:2020, TUV, CAN/CSA 22.2, IEC62368-1, IEC60065, RoHS2, WEEE, CE, EN55032, EN55035, RCM: AS/NZS CISPR 32, NOM, GB8898, GB13837, GB17625.1, SJ/T 1164 (RoHS), SANS 941, BIS, KC 9032, KC 9035, SASO, RoHS3 |
Why Buy the Q-SYS QIO-FLEX4A from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the QIO-FLEX4A
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS QIO-FLEX4A: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS QIO-FLEX4A expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked audio and control devices. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
For the Q-SYS QIO-FLEX4A, Q-SYS lists the following. Mic/Line Inputs: Maximum input level: +24 dBu (balanced), +18 dBu (unbalanced); Mic/Line Inputs: Preamplifier gain range: 0 dB to 60 dB; Mic/Line Inputs: Phantom power: +48 V DC (10 mA per channel, IEC 61938 P48 compliant); Mic/Line Inputs: Equivalent input noise: <-120 dBu, no weighting @ 20 Hz to 20 kHz; Mic/Line Inputs: Input to input crosstalk @ 1 kHz: > 110 dB Typical, > 95 dB Minimum; Mic/Line Inputs: Input impedance: 10 k ohm (balanced), 5 k ohm (unbalanced).
For the Q-SYS QIO-FLEX4A, Q-SYS lists the following. Mic/Line Inputs: Input impedance: 10 k ohm (balanced), 5 k ohm (unbalanced); Mic/Line Outputs: Output impedance: 200 ohm (balanced), 100 ohm (unbalanced); Mic/Line Outputs: Sample rate: 48 kHz; Amp Outputs: Output impedance: 4-8 ohm nominal.
For the Q-SYS QIO-FLEX4A, Q-SYS lists the following. Mic/Line Inputs: Phantom power: +48 V DC (10 mA per channel, IEC 61938 P48 compliant); Amp Outputs: Max speaker output power (Aux 24VDC Power): 9 W @ 4 ohm, per channel; Amp Outputs: Max speaker output power (PoE+): 5 W @ 4 ohm, per channel.
For the Q-SYS QIO-FLEX4A, Q-SYS lists the following. General: Dimensions: 5.5 x 8.62 x 1.59 in (139.7 x 219.1 x 40.4 mm); General: Weight: 2.3 lbs. (1.04 kg); Environmental: Ambient operating temperature range: 0 C to +50 C; Environmental: Humidity: 5% to 85% RH through 30 C, non-condensing.
Trianze Tech stocks the Q-SYS QIO-FLEX4A in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
