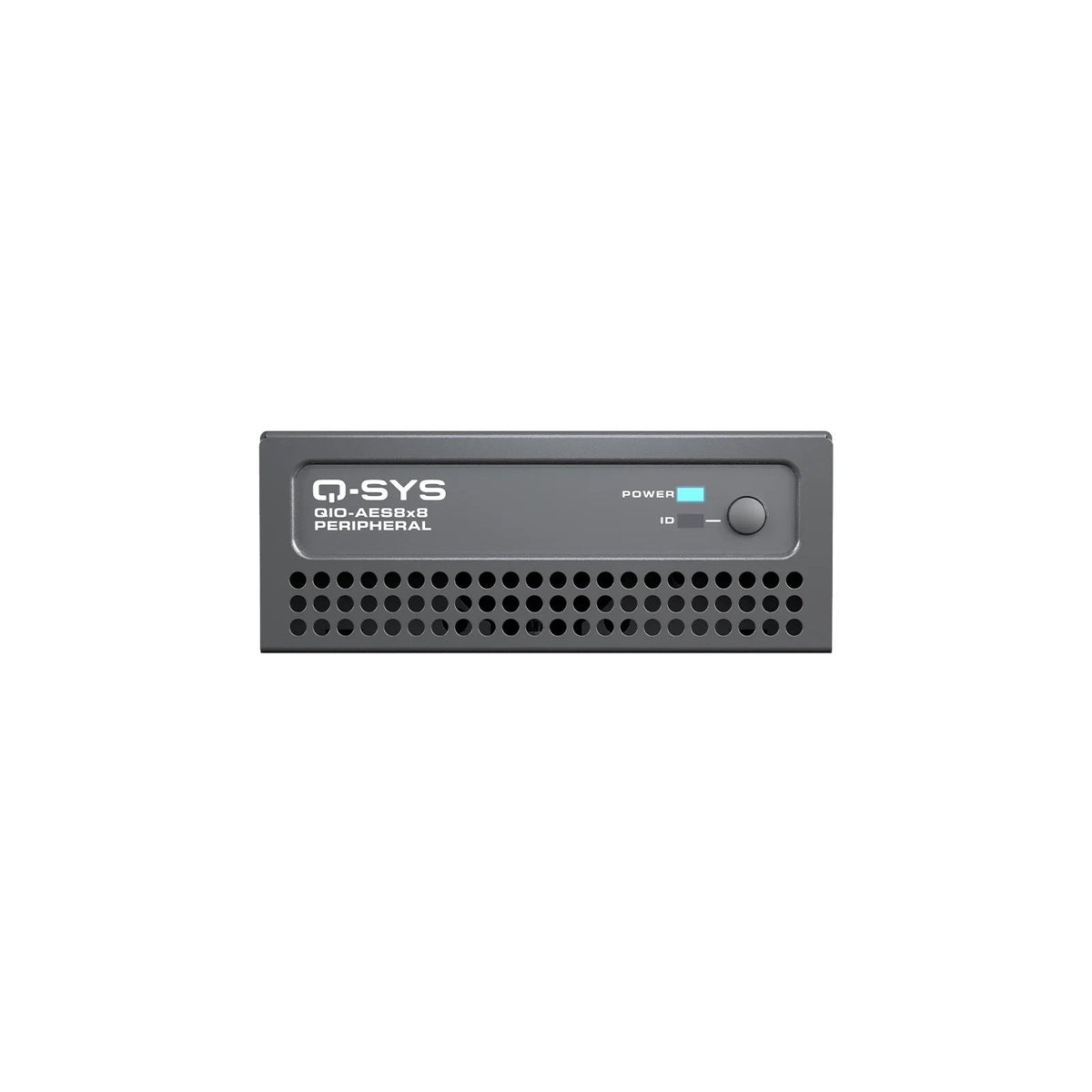

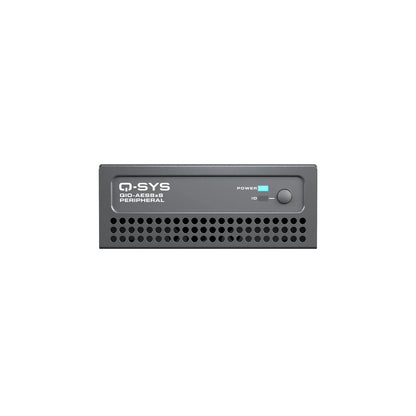

Q-SYS QIO-AES8x8: 8-Channel AES3 Digital I/O Network Peripheral
Model
:
QIO-AES8x8
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS QIO-AES8x8 at a Glance
- Brand
- Q-SYS
- Model
- QIO-AES8x8
- Category
- Audio Interfaces
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS QIO-AES8x8 Overview
The Q-SYS QIO-AES8x8 expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked digital audio devices via AES3 connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
- Connectivity: Four (4) stereo pairs of AES3 digital inputs and four (4) stereo pairs of AES3 digital outputs
- AES3 Digital I/O: Input impedance: 110 ohm (balanced)
- AES3 Digital I/O: Output impedance: 110 ohm (balanced)
- AES3 Digital I/O: Group delay: 65 samples with SRC enabled
- AES3 Digital I/O: Sample rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (with sample rate conversion to Q-SYS system rate of 48 kHz)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | QIO-AES8x8 |
| Brand | Q-SYS |

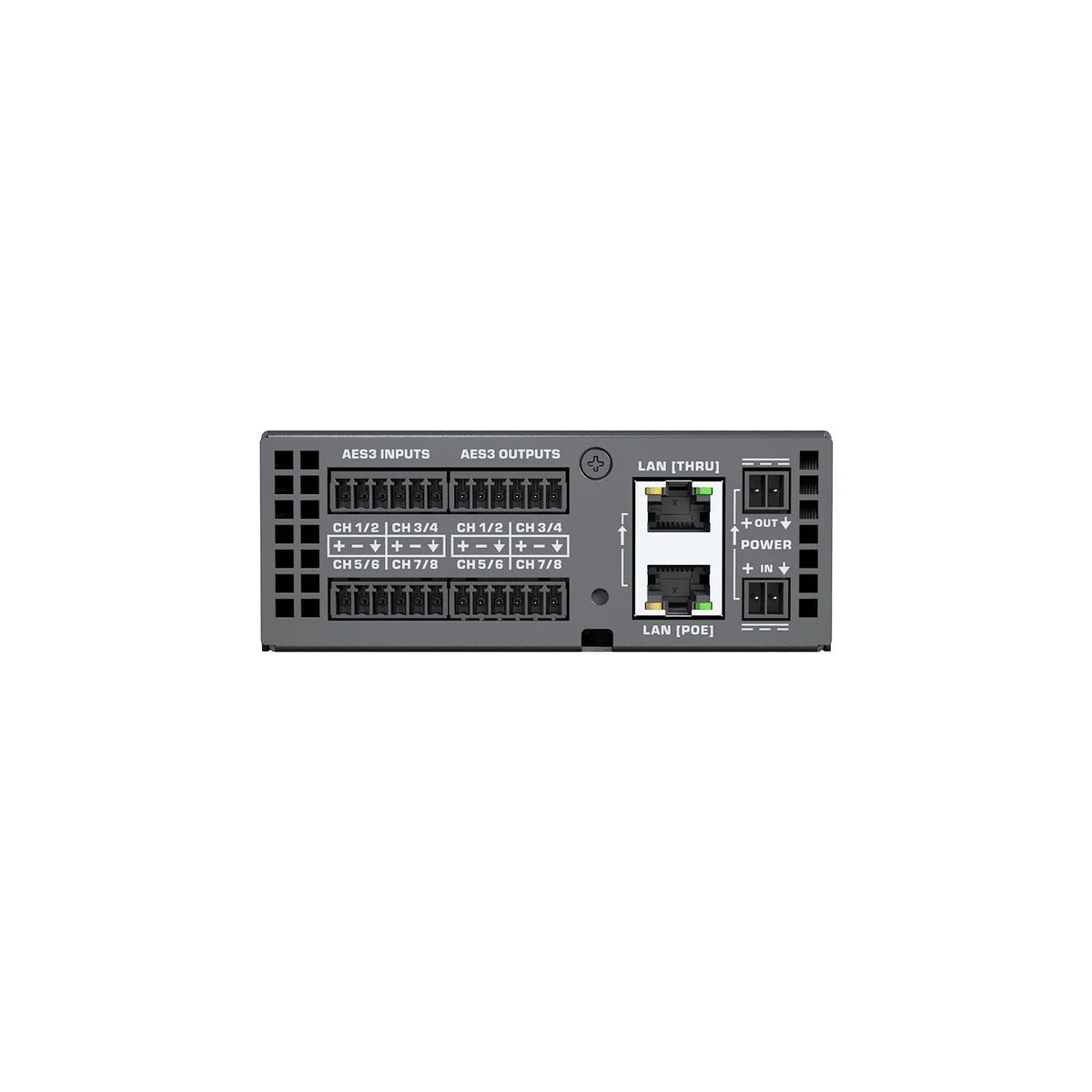

| Connectivity | Four (4) stereo pairs of AES3 digital inputs and four (4) stereo pairs of AES3 digital outputs (8 input and output channels total) |
| AES3 Digital I/O: Input impedance | 110 ohm (balanced) |
| AES3 Digital I/O: Output impedance | 110 ohm (balanced) |
| AES3 Digital I/O: Group delay | 65 samples with SRC enabled |
| AES3 Digital I/O: Sample rate | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (with sample rate conversion to Q-SYS system rate of 48 kHz) |
| AES3 Digital I/O: Bit depth | 24 bit |
| Other Connectors: External power supply | 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately) |
| Other Connectors: LAN (PoE) | Gigabit LAN connection for Q-LAN, PoE |
| Other Connectors: PoE specification | Conforms to IEEE 802.3af Type 1, Class 2 |
| Other Connectors: LAN (Thru) | Ethernet daisy-chaining |
| General: Dimensions | 8.5 x 4.25 x 1.59 in (215.9 x 108 x 40.4 mm) |
| General: Weight | 1.72 lb (0.78 kg) |
| General: Mounting options | Surface- and wall-mountable (hardware included) Rack-mountable; 1RU, quarter-rack width (QIO-RMK rack kit sold separately) |
Why Buy the Q-SYS QIO-AES8x8 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the QIO-AES8x8
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS QIO-AES8x8: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS QIO-AES8x8 expands your Q-SYS system's capabilities to enable streamlined interoperability with non-networked digital audio devices via AES3 connectivity. By separating local I/O from processing hardware, the QIO Series offer modular and easily scalable network I/O to support your desired topology.
For the Q-SYS QIO-AES8x8, Q-SYS lists the following. AES3 Digital I/O: Input impedance: 110 ohm (balanced); AES3 Digital I/O: Output impedance: 110 ohm (balanced); Other Connectors: External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately); Other Connectors: LAN (PoE): Gigabit LAN connection for Q-LAN, PoE; Other Connectors: PoE specification: Conforms to IEEE 802.3af Type 1, Class 2; Other Connectors: LAN (Thru): Ethernet daisy-chaining.
For the Q-SYS QIO-AES8x8, Q-SYS lists the following. AES3 Digital I/O: Input impedance: 110 ohm (balanced); AES3 Digital I/O: Output impedance: 110 ohm (balanced); AES3 Digital I/O: Sample rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (with sample rate conversion to Q-SYS system rate of 48 kHz).
For the Q-SYS QIO-AES8x8, Q-SYS lists the following. Other Connectors: External power supply: 24 VDC nominal, 2.5 A on Euro connector with second connector for daisy-chaining (QIO-PSU power supply sold separately); Other Connectors: LAN (PoE): Gigabit LAN connection for Q-LAN, PoE; Other Connectors: PoE specification: Conforms to IEEE 802.3af Type 1, Class 2.
For the Q-SYS QIO-AES8x8, Q-SYS lists the following. General: Dimensions: 8.5 x 4.25 x 1.59 in (215.9 x 108 x 40.4 mm); General: Weight: 1.72 lb (0.78 kg).
Trianze Tech stocks the Q-SYS QIO-AES8x8 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
