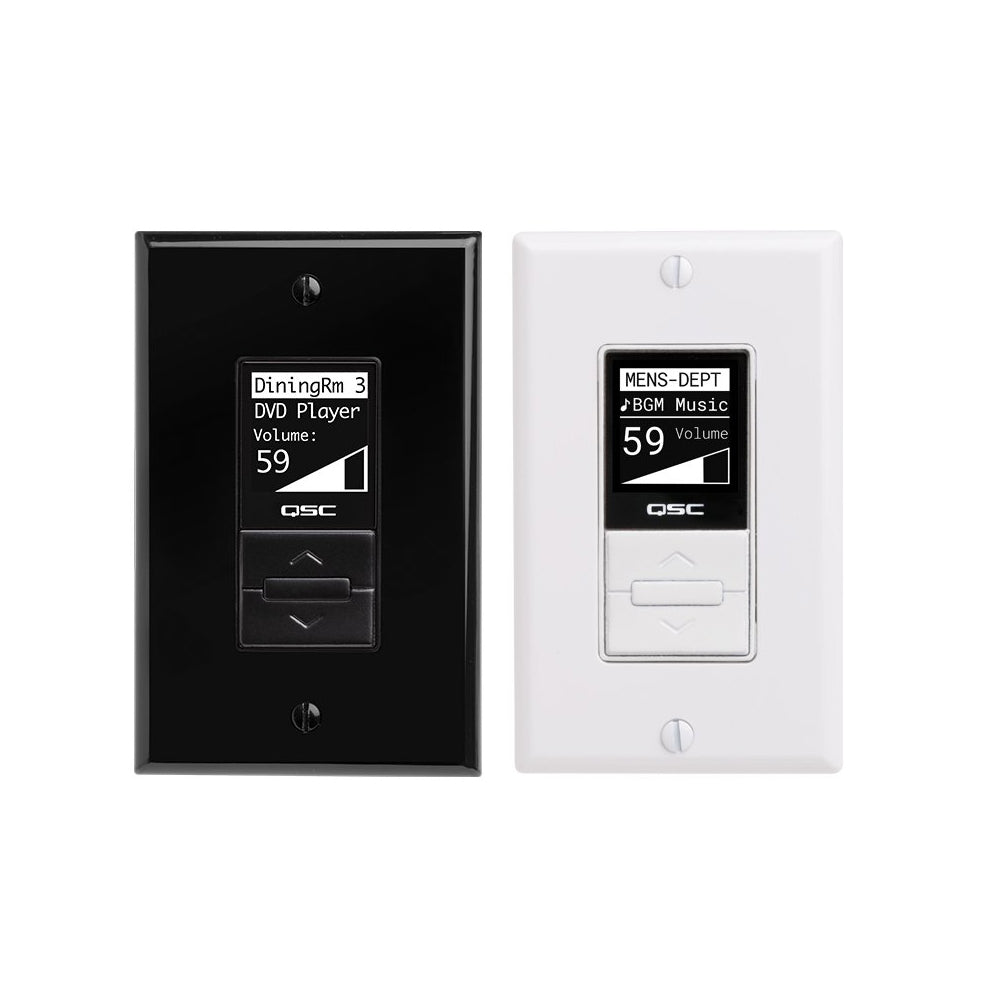

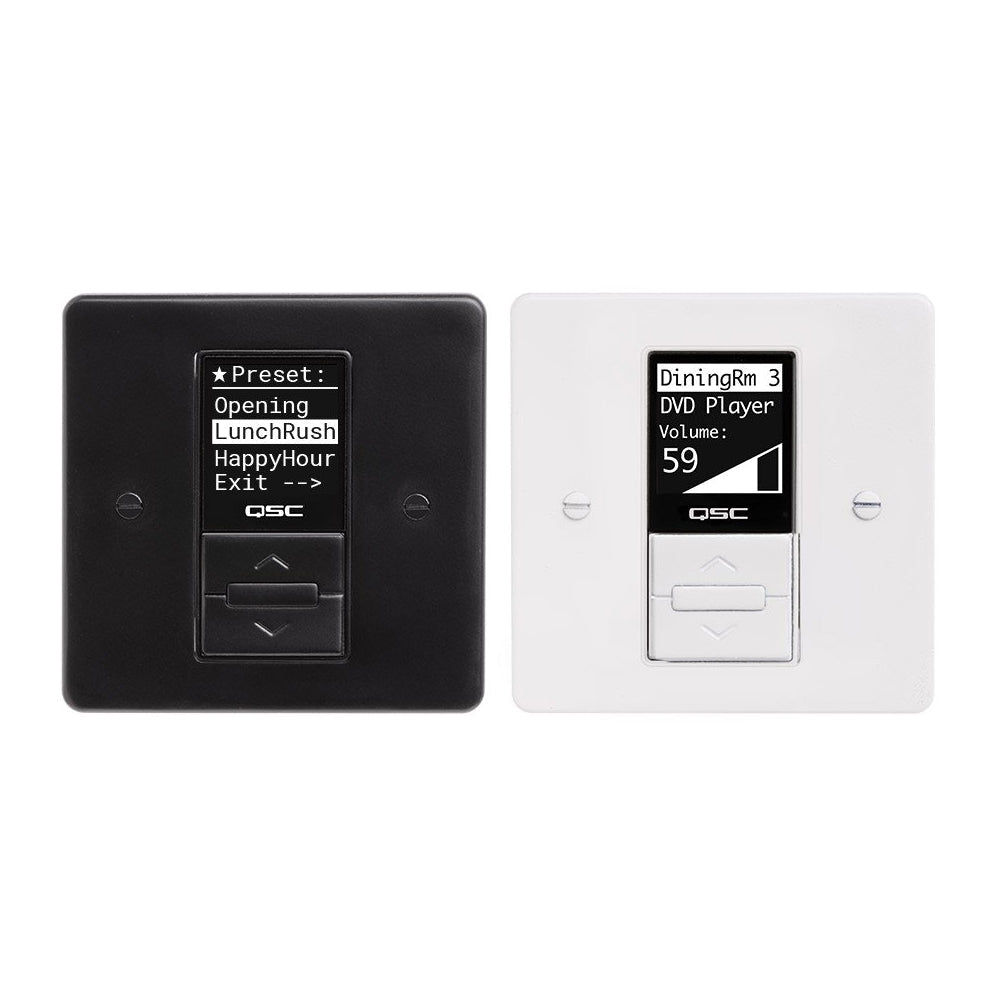

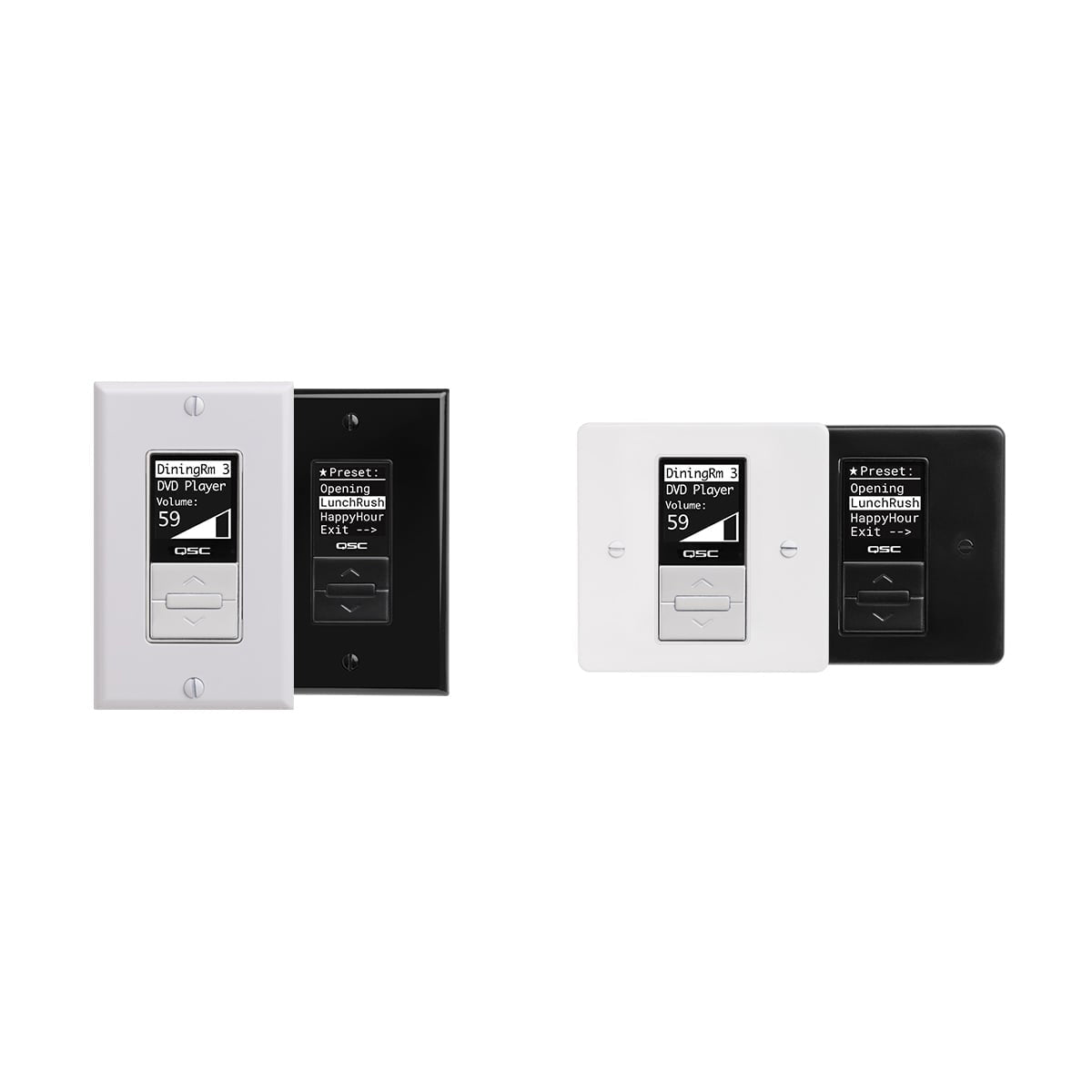

Q-SYS MP-MFC Controller: Wall mount controller for MP-M Series mixers
Model
:
MP-MFC Controller
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS MP-MFC Controller at a Glance
- Brand
- Q-SYS
- Model
- MP-MFC Controller
- Category
- Remote Controls
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS MP-MFC Controller Overview
The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.
- Controls: Three buttons (increment, decrement, and select)
- Connectors: 2x RJ45
- Display: 128 x 128 pixels, 27 (L) x 26 (W) mm viewing area
- Available Colors: Black, white
- Connection Max: Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length Total: Up to 8 controllers per
Technical Specifications:
| Spec | Value |
|---|---|
| Model | MP-MFC Controller |
| Brand | Q-SYS |
| Controls | Three buttons (increment, decrement, and select) |
| Connectors | 2x RJ45 |
| Display | 128 x 128 pixels, 27 (L) x 26 (W) mm viewing area |
| Available Colors | Black, white |
| Connection Max | Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length Total: Up to 8 controllers per MP-M Series mixer |
| Versions | MP-MFC-NA-BK, North American version, black MP-MFC-NA-WH, North American version, white MP-MFC-EU-BK, European version, black MP-MFC-EU-WH, European version, white |
| Dimensions (H x W x D) North American versions | 114 x 7 x 35 mm 4.5 x 2.75 x 1.4 in |
| Dimensions (H x W x D) European versions | 89 x 89 x 36 mm 3.5 x 3.5 x 1.4 in |
| Net Weight | All Versions: 0.1 kg / 0.2 lb |
Why Buy the Q-SYS MP-MFC Controller from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the MP-MFC Controller
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS MP-MFC Controller: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.
For the Q-SYS MP-MFC Controller, Q-SYS lists the following. Controls: Three buttons (increment, decrement, and select); Connectors: 2x RJ45.
For the Q-SYS MP-MFC Controller, Q-SYS lists the following. Display: 128 x 128 pixels, 27 (L) x 26 (W) mm viewing area.
For the Q-SYS MP-MFC Controller, Q-SYS lists the following. Dimensions (H x W x D) North American versions: 114 x 7 x 35 mm 4.5 x 2.75 x 1.4 in; Dimensions (H x W x D) European versions: 89 x 89 x 36 mm 3.5 x 3.5 x 1.4 in; Net Weight: All Versions: 0.1 kg / 0.2 lb.
The model code is MP-MFC Controller. Quote this code when you call or message Trianze Tech so we match the exact product.
Trianze Tech stocks the Q-SYS MP-MFC Controller in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
