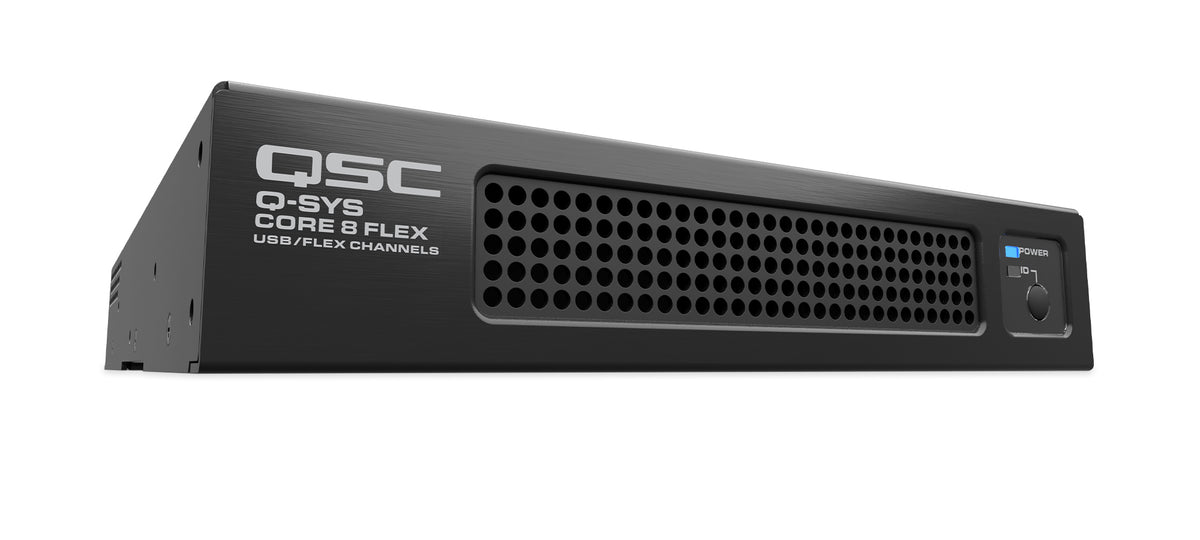

Q-SYS Core 8 Flex: Network and Analog I/O Processor
Model
:
Core 8 Flex
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS Core 8 Flex at a Glance
- Brand
- Q-SYS
- Model
- Core 8 Flex
- Category
- Video Conferencing Accessories
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS Core 8 Flex Overview
The Core 8 Flex audio, video and control (AV&C) processor extends the applications of the Q-SYS Platform into a wider range of smaller-scale installations across corporate, higher education, healthcare and beyond. Built on the same foundational technologies and driven by the same Q-SYS OS as the rest of the Q-SYS processor portfolio, including the best-in-class Q-SYS Core 110f, Core 8 Flex is designed for applications with lower network or analog channel capacity and/or targeted processing requirements. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Built on the same foundational technologies and driven by the same Q-SYS OS as the rest of the Q-SYS processor portfolio, including the best-in-class Q-SYS Core 110f, Core 8 Flex is designed for applications with lower network or analog channel capacity and/or targeted processing requirements.
- Channel Capacity: Total network I/O channels: 64 x 64
- Channel Capacity: Total network I/O streams: 32 x 32
- Channel Capacity: Dante channels: 8 x 8 (included); licensable up to 32 x 32
- Channel Capacity: Local analog I/O channels: 8 flex
- Channel Capacity: AEC processors: 8
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Core 8 Flex |
| Brand | Q-SYS |
| Channel Capacity: Total network I/O channels | 64 x 64 |
| Channel Capacity: Total network I/O streams | 32 x 32 |
| Channel Capacity: Dante channels | 8 x 8 (included); licensable up to 32 x 32 |
| Channel Capacity: Local analog I/O channels | 8 flex |
| Channel Capacity: AEC processors | 8 |
| Channel Capacity: VoIP instances | 2 |
| Channel Capacity: Audio recording / playback | 4 ch recording / 16 ch playback (expandable to 32 ch with optional license) |
| Channel Capacity: Q-SYS NM-T1 capacity | 3 (base capacity); 6 (with Capacity Scaling License) |
| Channel Capacity: Network peripherals | up to 32 |
| Mic/line inputs: Phantom power | +48 VDC, 10 mA per input max |
| Mic/line inputs: A/D-D/A converters | 24 bit |
| Mic/line inputs: Sample rate | 48 kHz |
| Control: RS-232 | 2 ports |
| Control: GPIO | 8 x 8 |
| USB Inputs & Outputs: Channel count | 8 x 8 |
| USB Inputs & Outputs: Bit depth | 16 bit |
| USB Inputs & Outputs: Sample rate | 48 kHz |
| USB Inputs & Outputs: USB audio device hosting | Support for standard USB headset, speakerphone |
| Environmental: Power consumption | 40 W typical |
| Physical: Device dimensions (H x W x D) | 1.72 x 8.66 x 11.28 in (43.6 x 220 x 286.6 mm) |
| Physical: Weight | 4.0 lbs (1.8 kg) |
| Physical: Battery chemistry (embedded, non-accessible) | Lithium Carbon Monofluoride |
Why Buy the Q-SYS Core 8 Flex from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the Core 8 Flex
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS Core 8 Flex: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Core 8 Flex audio, video and control (AV&C) processor extends the applications of the Q-SYS Platform into a wider range of smaller-scale installations across corporate, higher education, healthcare and beyond. Built on the same foundational technologies and driven by the same Q-SYS OS as the rest of the Q-SYS processor portfolio, including the best-in-class Q-SYS Core 110f, Core 8 Flex is designed for applications with lower network or analog channel capacity and/or targeted processing requirements.
For the Q-SYS Core 8 Flex, Q-SYS lists the following. Channel Capacity: Total network I/O channels: 64 x 64; Channel Capacity: Total network I/O streams: 32 x 32; Channel Capacity: Dante channels: 8 x 8 (included); licensable up to 32 x 32; Channel Capacity: Local analog I/O channels: 8 flex; Channel Capacity: Network peripherals: up to 32; Mic/line inputs: Phantom power: +48 VDC, 10 mA per input max.
For the Q-SYS Core 8 Flex, Q-SYS lists the following. Channel Capacity: Total network I/O channels: 64 x 64; Channel Capacity: Total network I/O streams: 32 x 32; Channel Capacity: Dante channels: 8 x 8 (included); licensable up to 32 x 32; Channel Capacity: Local analog I/O channels: 8 flex; Channel Capacity: AEC processors: 8.
For the Q-SYS Core 8 Flex, Q-SYS lists the following. Mic/line inputs: Phantom power: +48 VDC, 10 mA per input max; Environmental: Power consumption: 40 W typical.
For the Q-SYS Core 8 Flex, Q-SYS lists the following. Physical: Device dimensions (H x W x D): 1.72 x 8.66 x 11.28 in (43.6 x 220 x 286.6 mm); Physical: Weight: 4.0 lbs (1.8 kg).
Trianze Tech stocks the Q-SYS Core 8 Flex in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
