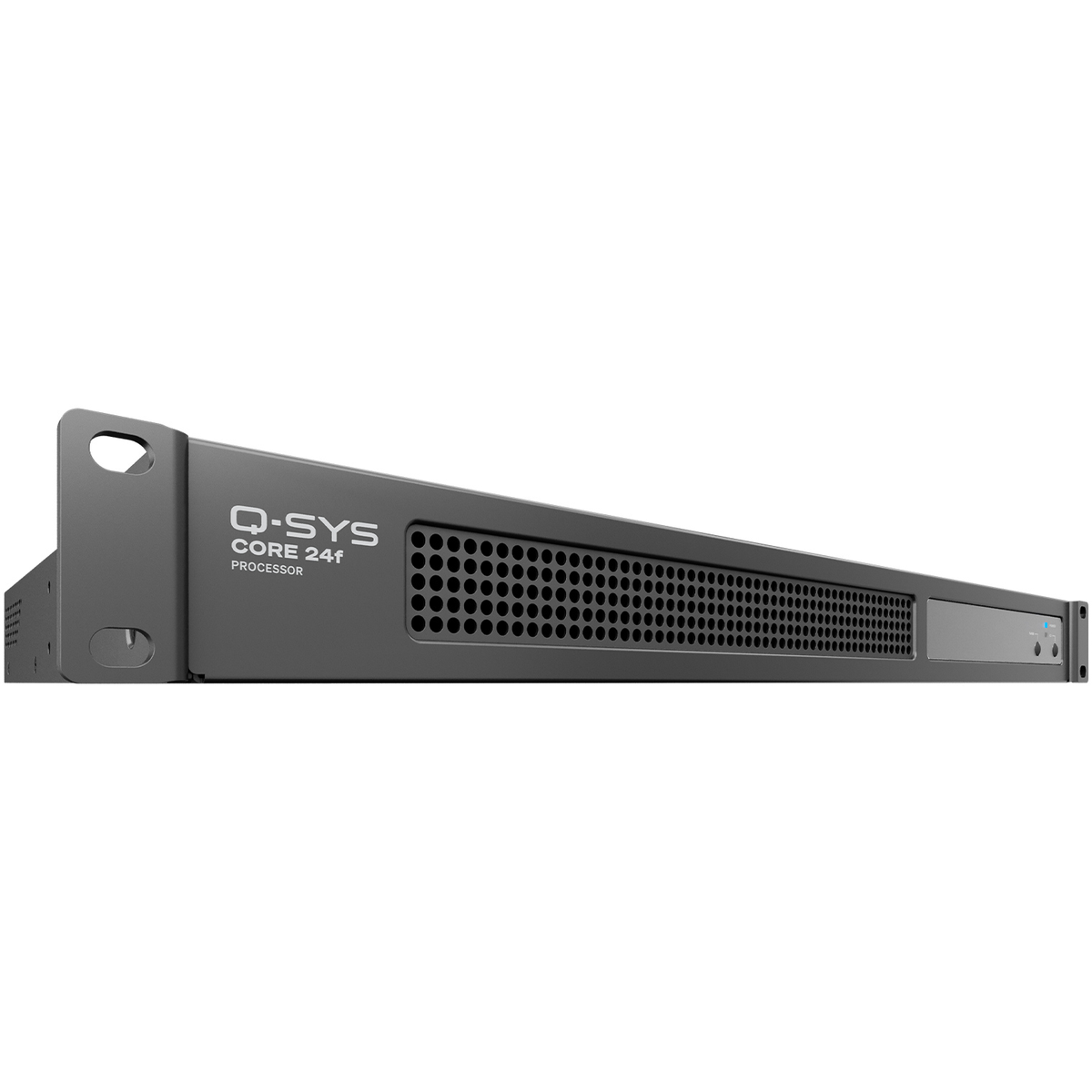

Q-SYS Core 24f: Network and analog I/O processor
Model
:
Core 24f
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS Core 24f at a Glance
- Brand
- Q-SYS
- Model
- Core 24f
- Category
- Video Conferencing Accessories
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS Core 24f Overview
The Q-SYS Core 24f ushers in the next-generation of Q-SYS processing capabilities, delivering a fully integrated audio, video, and control solution that enables a blank canvas to deliver unique experiences across a broad range of application types. Combining the convenience of ample onboard I/O with robust processing and network I/O capacity, the Core 24f can serve a broad range of corporate, higher education, entertainment and hospitality applications requiring in-room processing. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Combining the convenience of ample onboard I/O with robust processing and network I/O capacity, the Core 24f can serve a broad range of corporate, higher education, entertainment and hospitality applications requiring in-room processing.
- Processor: Intel 64-bit architecture
- Audio processing: 32-bit floating point
- Q-LAN network audio transport: 32-bit floating point
- Q-SYS Capacities: Total network I/O channels: 160 x 160
- Q-SYS Capacities: Total network I/O streams: 80 x 80
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Core 24f |
| Brand | Q-SYS |
| Processor | Intel 64-bit architecture |
| Audio processing | 32-bit floating point |
| Q-LAN network audio transport | 32-bit floating point |
| Q-SYS Capacities: Total network I/O channels | 160 x 160 |
| Q-SYS Capacities: Total network I/O streams | 80 x 80 |
| Q-SYS Capacities: Analog I/O | 24x (8x mic/line in, 8x line out, 8x Flex) |
| Q-SYS Capacities: Dante channels | 8 x 8 included (up to 64 x 64 with Software-based Dante feature license) |
| Q-SYS Capacities: AEC channels | 24 |
| Q-SYS Capacities: Q-SYS NM-T1 capacity | 10 |
| Q-SYS Capacities: WAN / media streaming channels | 36 x 36 |
| Q-SYS Capacities: Network peripherals | Up to 96 |
| Q-SYS Capacities: VoIP softphones | 8 |
| Q-SYS Capacities: Audio recording / playback | 4 channels recording / 16 channels playback, [expandable up to 64 channels playback with optional multi track playback license (SLMTP-32) stackable up to 2x] |
| Q-SYS Capacities: Media drive capacity | 128 GB (at least 100 GB available for user media, or at least 200 hours of uncompressed 48kHz, 24 bit, mono WAV format audio files) |
| Control: RS232 | 2 ports |
| Control: GPIO | 8 x 8 |
| Controls and Indicators: Front | Power LED 2x20 character OLED display PAGE button provides navigation between screens on the front display (forward direction only) ID button and indicator (blinks when enabled from Q-SYS designer Software) |
| USB Inputs & Outputs: USB | 2x USB-A and 1x USB-C port |
| USB Inputs & Outputs: AV bridging | Via USB-C |
| USB Inputs & Outputs: USB HID routing | Via USB-C |
| USB Inputs & Outputs: USB audio device hosting | Support for standard USB headset, speakerphone on USB-C connection (3 devices max at a time, each having up to 8x8 USB audio channels, up to 16x16 total channels) |
| USB-C (Audio bridging): Bit depth | 16 bit |
| USB-C (Audio bridging): Channel count | 16 x 16 |
| USB-C (Audio bridging): Sample rate | 48 kHz |
| USB-A Input: Sample rate | 48 kHz or 16 kHz, mono |
| USB-A Input: Resolution | 8-bit, 16-bit, 24-bit or 32-bit, float |
| USB-A Input: Format | Little-endian, signed or unsigned |
| USB-A Output: Sample rate | 48 kHz only, stereo |
| USB-A Output: Resolution | 8-bit, 16-bit, 24-bit or 32-bit, float |
| USB-A Output: Format | Little-endian, signed or unsigned |
| Physical: Product dimensions (L x W x H) | 19.0 x 12.2 x 1.7 in (482.6 x 310.9 x 43.6 mm) |
| Physical: Product weight | 12.0 lb (5.44 kg) |
| Physical: Shipping carton dimensions (L x W x H) | 22.4 x 16.1 x 4.65 in (569 x 410 x 118 mm) |
| Physical: Shipping weight | 12.3 lb (5.58 kg) |
| Physical: Included accessories | Regulatory statements pamphlet 1x AC mains power cords I/O connector kit Removable rack ears Warranty statement |
| Environmental & Safety: Power consumption | 60 W typical, 150 W maximum |
| Environmental & Safety: Line voltage | 100-240 VAC, to 50/60 Hz |
| Environmental & Safety: Operating temperature range | 0 C to +50 C |
Why Buy the Q-SYS Core 24f from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the Core 24f
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS Core 24f: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS Core 24f ushers in the next-generation of Q-SYS processing capabilities, delivering a fully integrated audio, video, and control solution that enables a blank canvas to deliver unique experiences across a broad range of application types. Combining the convenience of ample onboard I/O with robust processing and network I/O capacity, the Core 24f can serve a broad range of corporate, higher education, entertainment and hospitality applications requiring in-room processing.
For the Q-SYS Core 24f, Q-SYS lists the following. Q-LAN network audio transport: 32-bit floating point; Q-SYS Capacities: Total network I/O channels: 160 x 160; Q-SYS Capacities: Total network I/O streams: 80 x 80; Q-SYS Capacities: Analog I/O: 24x (8x mic/line in, 8x line out, 8x Flex); Q-SYS Capacities: Dante channels: 8 x 8 included (up to 64 x 64 with Software-based Dante feature license); Q-SYS Capacities: Network peripherals: Up to 96.
For the Q-SYS Core 24f, Q-SYS lists the following. Q-SYS Capacities: Total network I/O channels: 160 x 160; Q-SYS Capacities: Dante channels: 8 x 8 included (up to 64 x 64 with Software-based Dante feature license); Q-SYS Capacities: AEC channels: 24; Q-SYS Capacities: Q-SYS NM-T1 capacity: 10; Q-SYS Capacities: WAN / media streaming channels: 36 x 36.
For the Q-SYS Core 24f, Q-SYS lists the following. Environmental & Safety: Power consumption: 60 W typical, 150 W maximum; Environmental & Safety: Line voltage: 100-240 VAC, to 50/60 Hz.
For the Q-SYS Core 24f, Q-SYS lists the following. Physical: Product dimensions (L x W x H): 19.0 x 12.2 x 1.7 in (482.6 x 310.9 x 43.6 mm); Physical: Product weight: 12.0 lb (5.44 kg); Physical: Shipping carton dimensions (L x W x H): 22.4 x 16.1 x 4.65 in (569 x 410 x 118 mm); Physical: Shipping weight: 12.3 lb (5.58 kg).
Trianze Tech stocks the Q-SYS Core 24f in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
