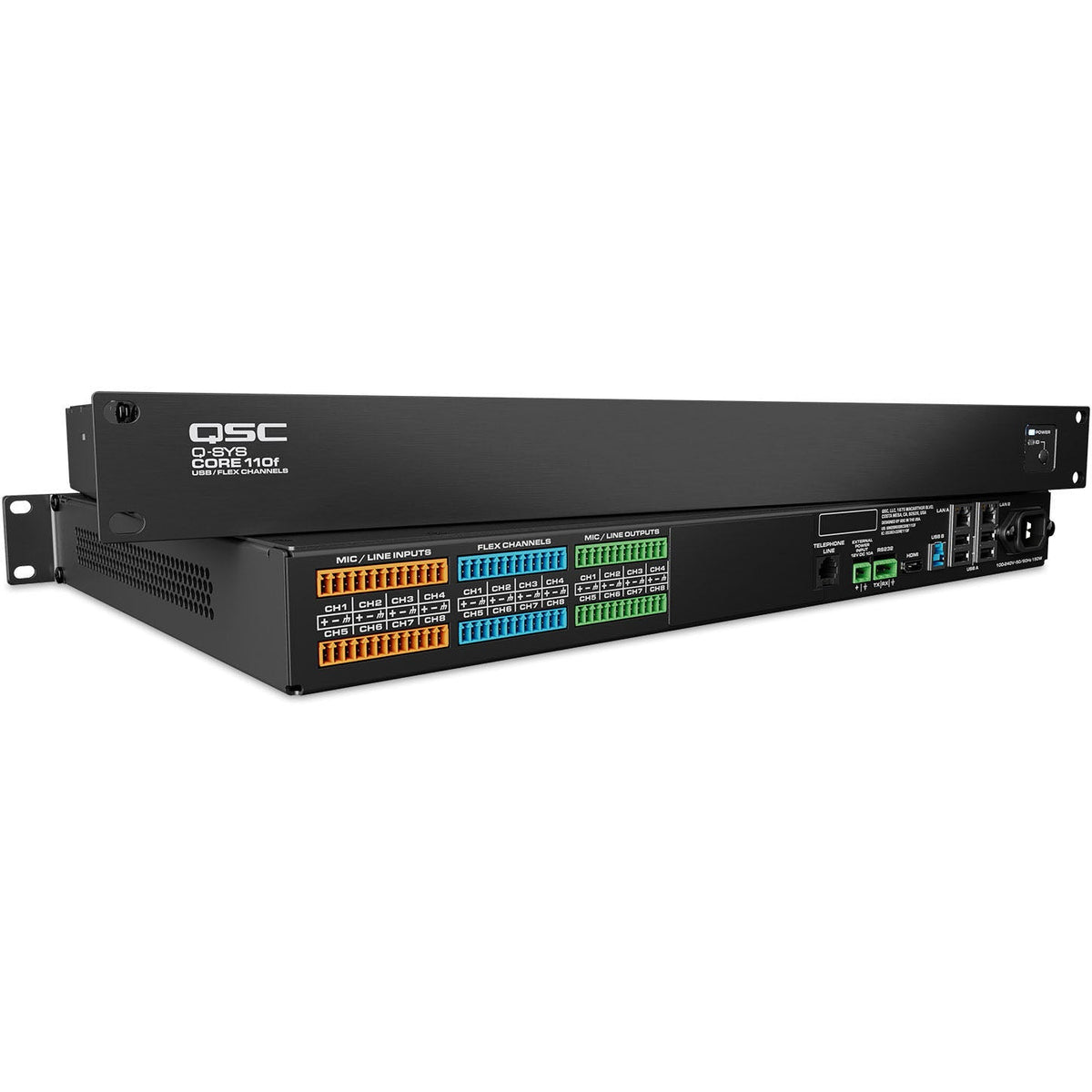

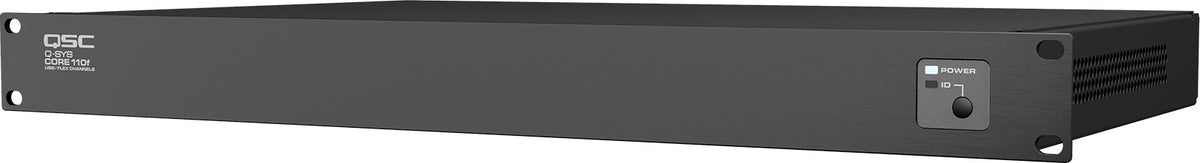

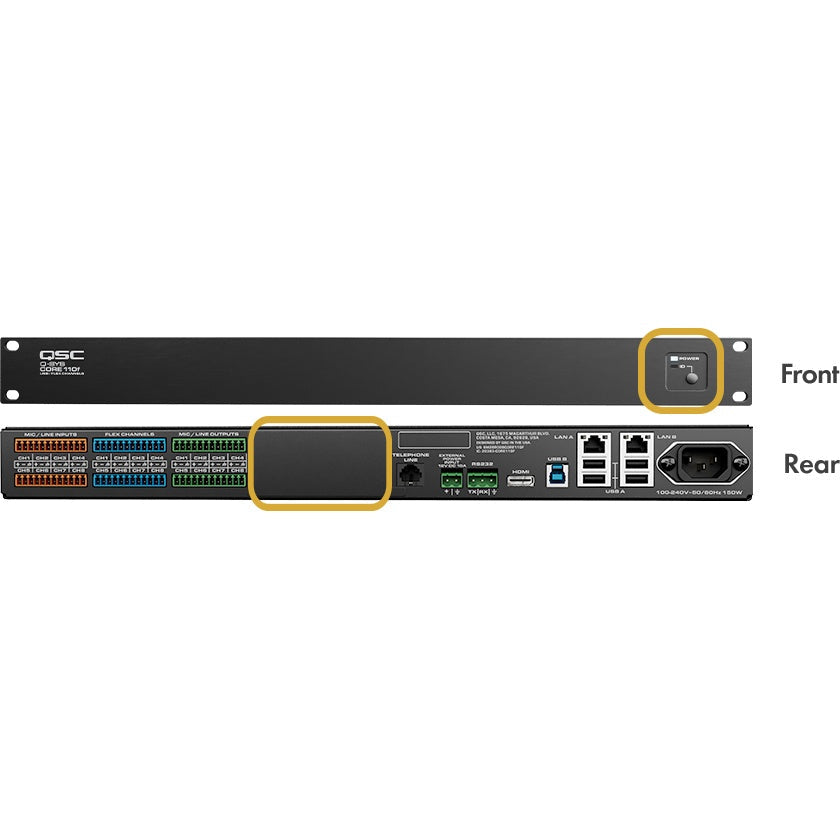

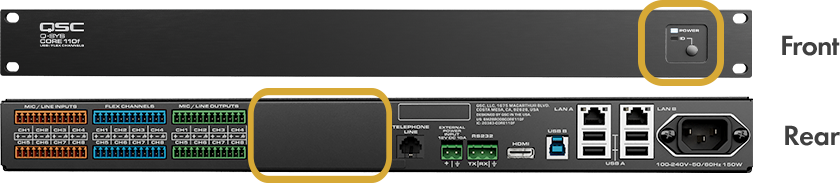

Q-SYS Core 110f: Network and Analog I/O Processor (V2)
Model
:
Core 110f
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS Core 110f at a Glance
- Brand
- Q-SYS
- Model
- Core 110f
- Category
- Video Conferencing Accessories
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS Core 110f Overview
The Q-SYS Core 110f v2 processor provides a fully integrated audio, video and control solution for installations with a mixture of analog and network channels, supporting medium-sized rooms through the largest Enterprise scale deployments. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Input THD+N @ 1KHz: @ +21 dBu Sensistivity & +21 dBu input: < 0.1%
- Input THD+N @ 1KHz: @ +21 dBu Sensistivity & +10 dBu input: < 0.0015%
- Input THD+N @ 1KHz: @ +10 dBu Sensistivity & +8 dBu input: < 0.0007%
- Input THD+N @ 1KHz: @ -10 dBu Sensistivity & -10.5 dBu input: < 0.0006%
- Input THD+N @ 1KHz: @ -39 dBu Sensistivity & -39.5 dBu input: < 0.007%
- Input THD+N @ 1KHz: EIN (no weighting, 20Hz to 20kHz): < -121dB
Technical Specifications:
| Spec | Value |
|---|---|
| Model | Core 110f |
| Brand | Q-SYS |
| Input THD+N @ 1KHz: @ +21 dBu Sensistivity & +21 dBu input | < 0.1% |
| Input THD+N @ 1KHz: @ +21 dBu Sensistivity & +10 dBu input | < 0.0015% |
| Input THD+N @ 1KHz: @ +10 dBu Sensistivity & +8 dBu input | < 0.0007% |
| Input THD+N @ 1KHz: @ -10 dBu Sensistivity & -10.5 dBu input | < 0.0006% |
| Input THD+N @ 1KHz: @ -39 dBu Sensistivity & -39.5 dBu input | < 0.007% |
| Input THD+N @ 1KHz: EIN (no weighting, 20Hz to 20kHz) | < -121dB |
| Input THD+N @ 1KHz: Input to Input Crosstalk @1kHz | >110dB Typical, 90dB Max |
| Input Dynamic Range: @ +21 dBu Sensitivity | > 109.5dB |
| Input Dynamic Range: @ +10 dBu Sensitivity | > 106.4dB |
| Input Dynamic Range: @ -10 dBu Sensitivity | > 104.6dB |
| Input Dynamic Range: @ -39 dBu Sensitivity | > 104.6dB |
| Input Common Mode Noise Rejection: @ +10 dBu Sensitivity | 56.5 |
| Input Common Mode Noise Rejection: @ -10 dBu Sensitivity | 73.2 |
| Input Common Mode Noise Rejection: @ -39 dBu Sensitivity | 63.2 |
| Input Common Mode Noise Rejection: Input Impedance (balanced) | 5K Ohms Nominal |
| Input Common Mode Noise Rejection: Input Sensitivity Range (1dB Steps) | -39 dBu min to +21 dBu max |
| Input Common Mode Noise Rejection: Phantom Power | +48v DC, 10mA per input max |
| Input Common Mode Noise Rejection: Sampling Rate | 48kHz |
| Input Common Mode Noise Rejection: A/D, D/A Converters | 24-bit |
| Input Common Mode Noise Rejection: Overall Dimensions/Weight | Device Height: 44 mm (1.75 in) Device Width: 483 mm (19 in) Device Depth: 282.5 mm (11.12 in) Device Weight: 5 kg (11 lb) Shipping Height: 152 mm (6 in) Shipping Width: 584 mm (23 in) Shipping Depth: 356 mm (14 in) Shipping |
| Output Frequency Response: Output THD | 0.003%, +10 dBu Max output level |
| Output Frequency Response: Output Crosstalk @1khZ | >100dB Typical, 90dB max |
| Output Frequency Response: Output Dynamic Range | >108dB |
| Output Frequency Response: Output Impedance (balanced) | 220 0hms |
| Output Frequency Response: Output Level Range: (1dB Steps) | -39 dBu min to +21 dBu max |
| USB B: Bit Depth | 16-bit |
| USB B: Number of Channels | up to 16 x 16 |
| USB B: Sample Rate | 48kHz |
| Environmental: Power Consumption | 60 watts, typical. 120 watts max |
| Environmental: BTU/Heat load: | 205 BTU/Hour |
| General: Compliance | FCC Part 15B (USA), FCC part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand), ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 |
| General: Battery chemistry (embedded, non-accessible) | Lithium Carbon Monofluoride |
Why Buy the Q-SYS Core 110f from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the Core 110f
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS Core 110f: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS Core 110f v2 processor provides a fully integrated audio, video and control solution for installations with a mixture of analog and network channels, supporting medium-sized rooms through the largest Enterprise scale deployments.
For the Q-SYS Core 110f, Q-SYS lists the following. Input THD+N @ 1KHz: @ +21 dBu Sensistivity & +21 dBu input: < 0.1%; Input THD+N @ 1KHz: @ +21 dBu Sensistivity & +10 dBu input: < 0.0015%; Input THD+N @ 1KHz: @ +10 dBu Sensistivity & +8 dBu input: < 0.0007%; Input THD+N @ 1KHz: @ -10 dBu Sensistivity & -10.5 dBu input: < 0.0006%; Input THD+N @ 1KHz: @ -39 dBu Sensistivity & -39.5 dBu input: < 0.007%; Input THD+N @ 1KHz: EIN (no weighting, 20Hz to 20kHz): < -121dB.
For the Q-SYS Core 110f, Q-SYS lists the following. Input Dynamic Range: @ +21 dBu Sensitivity: > 109.5dB; Input Dynamic Range: @ +10 dBu Sensitivity: > 106.4dB; Input Dynamic Range: @ -10 dBu Sensitivity: > 104.6dB; Input Dynamic Range: @ -39 dBu Sensitivity: > 104.6dB; Input Common Mode Noise Rejection: @ +10 dBu Sensitivity: 56.5.
For the Q-SYS Core 110f, Q-SYS lists the following. Input Common Mode Noise Rejection: Phantom Power: +48v DC, 10mA per input max; Environmental: Power Consumption: 60 watts, typical. 120 watts max.
For the Q-SYS Core 110f, Q-SYS lists the following. Input THD+N @ 1KHz: EIN (no weighting, 20Hz to 20kHz): < -121dB; Input Common Mode Noise Rejection: Overall Dimensions/Weight: Device Height: 44 mm (1.75 in) Device Width: 483 mm (19 in) Device Depth: 282.5 mm (11.12 in) Device.
Trianze Tech stocks the Q-SYS Core 110f in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
