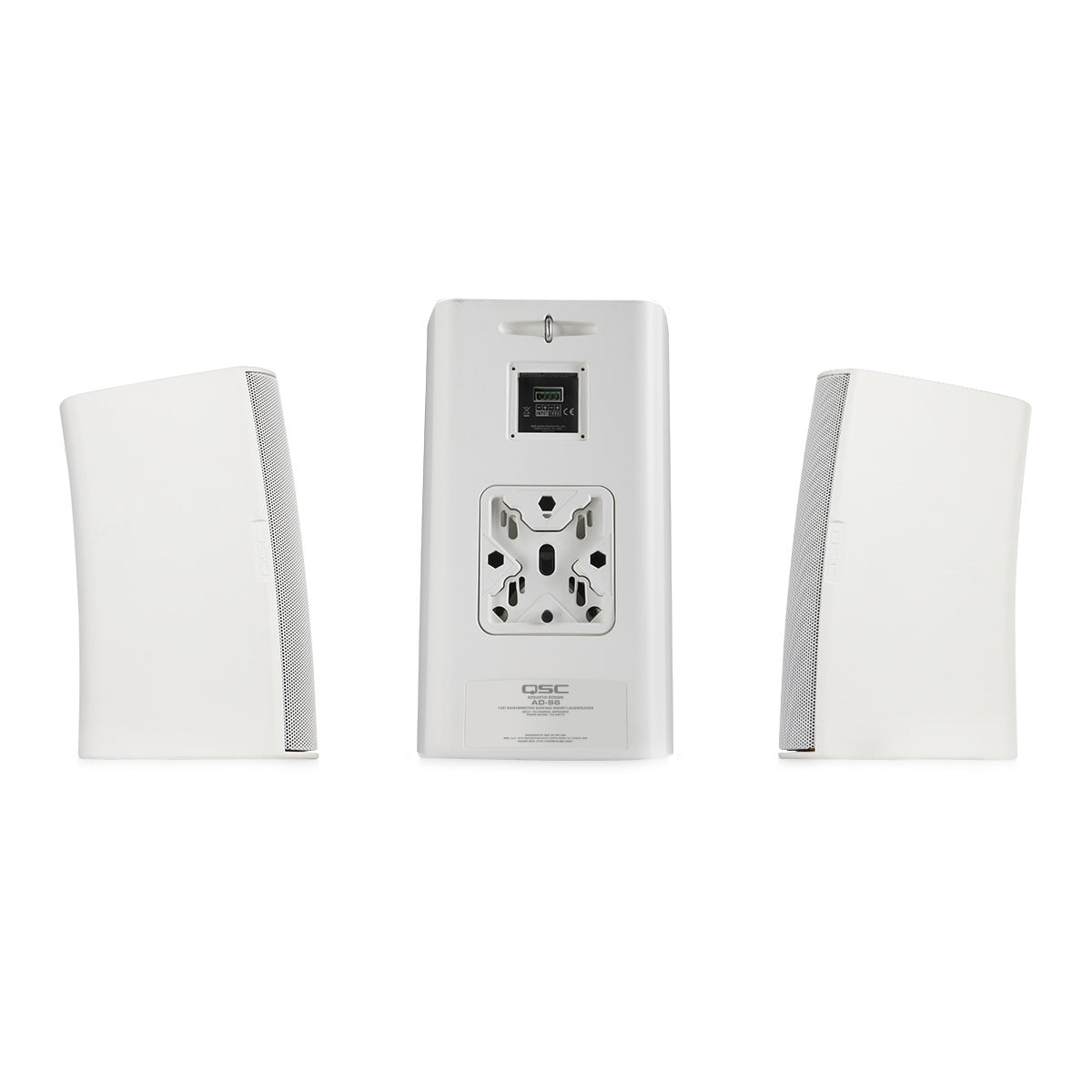

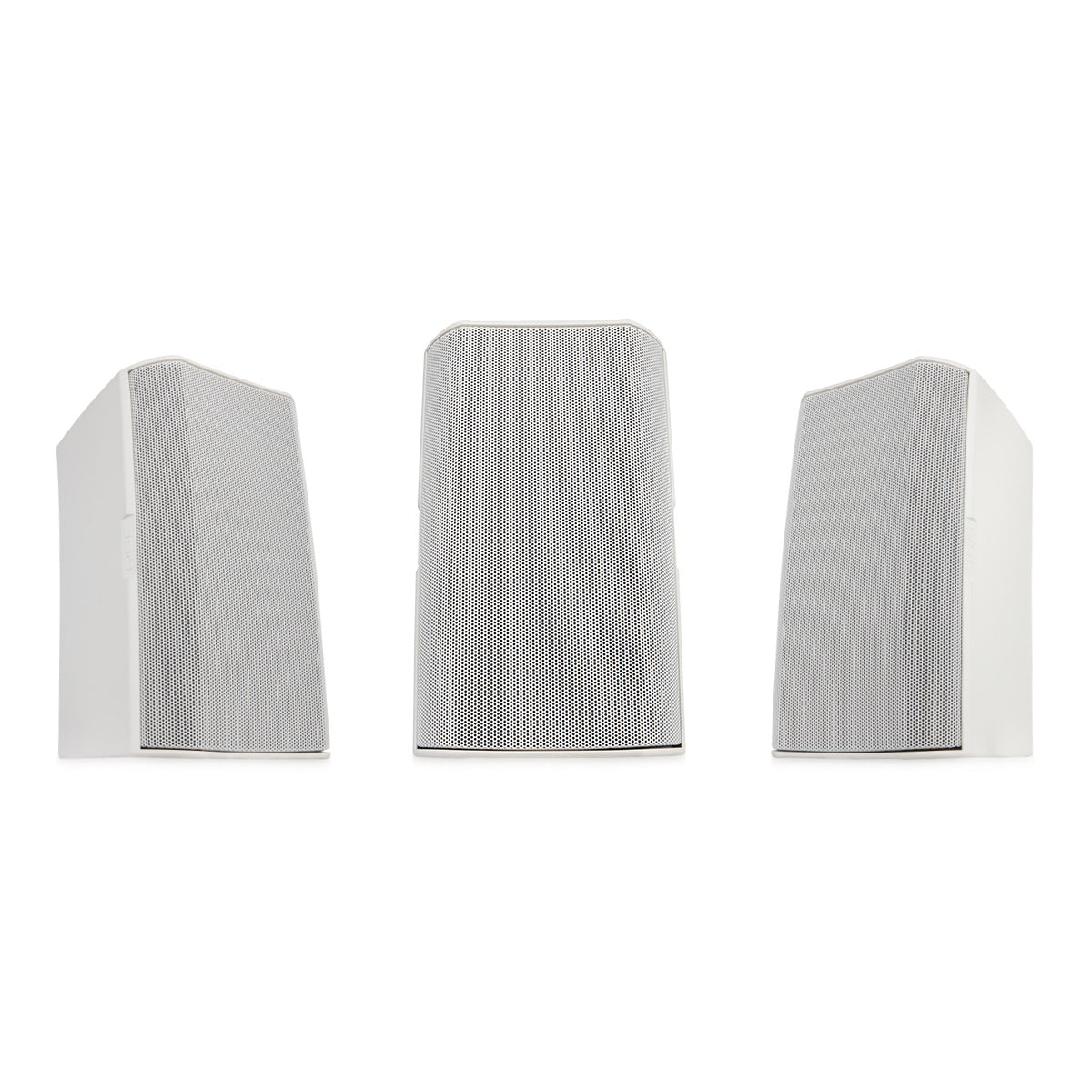

Q-SYS AD-S6-WH: Surface Mount Speaker, White
Model
:
AD-S6-WH
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS AD-S6-WH at a Glance
- Brand
- Q-SYS
- Model
- AD-S6-WH
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS AD-S6-WH Overview
The Q-SYS AD-S6-WH is a compact surface mount loudspeaker built for installed audio applications that need consistent coverage, flexible aiming, and reliable operation in challenging environments. Its 6.5-inch weather treated woofer and horn-loaded 1-inch silk dome tweeter are designed to deliver broad 105 degrees conical DMT coverage, helping integrators achieve even sound distribution across audience areas. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- HF transducer: 1" silk dome tweeter / 1" voice coil, horn loaded
- LF transducer: 6.5" weather treated paper cone woofer 1.5" / 38 mm voice coil
- Effective frequency range 1,2,3,8: 58 Hz to 20k Hz
- Rated noise power / voltage 6: 150 W / 49 V (rms)
- Broadband sensitivity 2,3,4,8: 89 dB SPL
- Coverage angle (-6 dB) 2,5,8: 105 degrees conical DMT
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AD-S6-WH |
| Brand | Q-SYS |
| HF transducer | 1" silk dome tweeter / 1" voice coil, horn loaded |
| LF transducer | 6.5" weather treated paper cone woofer 1.5" / 38 mm voice coil |
| Effective frequency range 1,2,3,8 | 58 Hz to 20k Hz |
| Rated noise power / voltage 6 | 150 W / 49 V (rms) |
| Broadband sensitivity 2,3,4,8 | 89 dB SPL |
| Coverage angle (-6 dB) 2,5,8 | 105 degrees conical DMT |
| Directivity factor (Q) 2,5,8 | 5 |
| Directivity Index | 7 dB |
| Maximum continuous SPL 7 | 110 dB |
| Maximum peak SPL 7 | 116 dB |
| Rated impedance | 16 ohm |
| Recommended amplifier power | 300 W |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Enclosure Details: Ingress protection | IP-54 |
| Enclosure Details: Operating environment | Designed for indoor and outdoor use |
| Enclosure Details: Testing | The AD-S6 Series loudspeakers qualified for outdoor use using the following tests: Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days High and low |
| Enclosure Details: Operarating temperature range | -20 to 50 C / -4 to 122 F |
| Enclosure Details: Net weight | 11.6 lb / 5.26 kg |
| Enclosure Details: Product dimensions (HWD) inches | 14.4 x 8.5 x 8.5 |
| Enclosure Details: Product dimensions (HWD) mm | 365 x 215 x 215 |
| Enclosure Details: Shipping weight | 28.7 lb / 13.02 kg (pair packed) |
| Enclosure Details: Shipping dimensions (HWD) inches | 20 x 12 x 23 (pair packed) |
| Enclosure Details: Shipping dimensions (HWD) mm | 510 x 305 x 585 (pair packed) |
| Enclosure Details: Included accessories | Patented X-Mount mounting system, Euroblock connector, input panel cover |
Why Buy the Q-SYS AD-S6-WH from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the AD-S6-WH
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS AD-S6-WH: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS AD-S6-WH is a compact surface mount loudspeaker built for installed audio applications that need consistent coverage, flexible aiming, and reliable operation in challenging environments. Its 6.5-inch weather treated woofer and horn-loaded 1-inch silk dome tweeter are designed to deliver broad 105 degrees conical DMT coverage, helping integrators achieve even sound distribution across audience areas.
For the Q-SYS AD-S6-WH, Q-SYS lists the following. Input connector type: Euroblock connector with parallel output.
For the Q-SYS AD-S6-WH, Q-SYS lists the following. Effective frequency range 1,2,3,8: 58 Hz to 20k Hz; Rated noise power / voltage 6: 150 W / 49 V (rms); Broadband sensitivity 2,3,4,8: 89 dB SPL; Coverage angle (-6 dB) 2,5,8: 105 degrees conical DMT; Maximum continuous SPL 7: 110 dB.
For the Q-SYS AD-S6-WH, Q-SYS lists the following. Rated noise power / voltage 6: 150 W / 49 V (rms); Recommended amplifier power: 300 W.
For the Q-SYS AD-S6-WH, Q-SYS lists the following. Enclosure Details: Operarating temperature range: -20 to 50 C / -4 to 122 F; Enclosure Details: Net weight: 11.6 lb / 5.26 kg; Enclosure Details: Product dimensions (HWD) inches: 14.4 x 8.5 x 8.5; Enclosure Details: Product dimensions (HWD) mm: 365 x 215 x 215.
Trianze Tech stocks the Q-SYS AD-S6-WH in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
