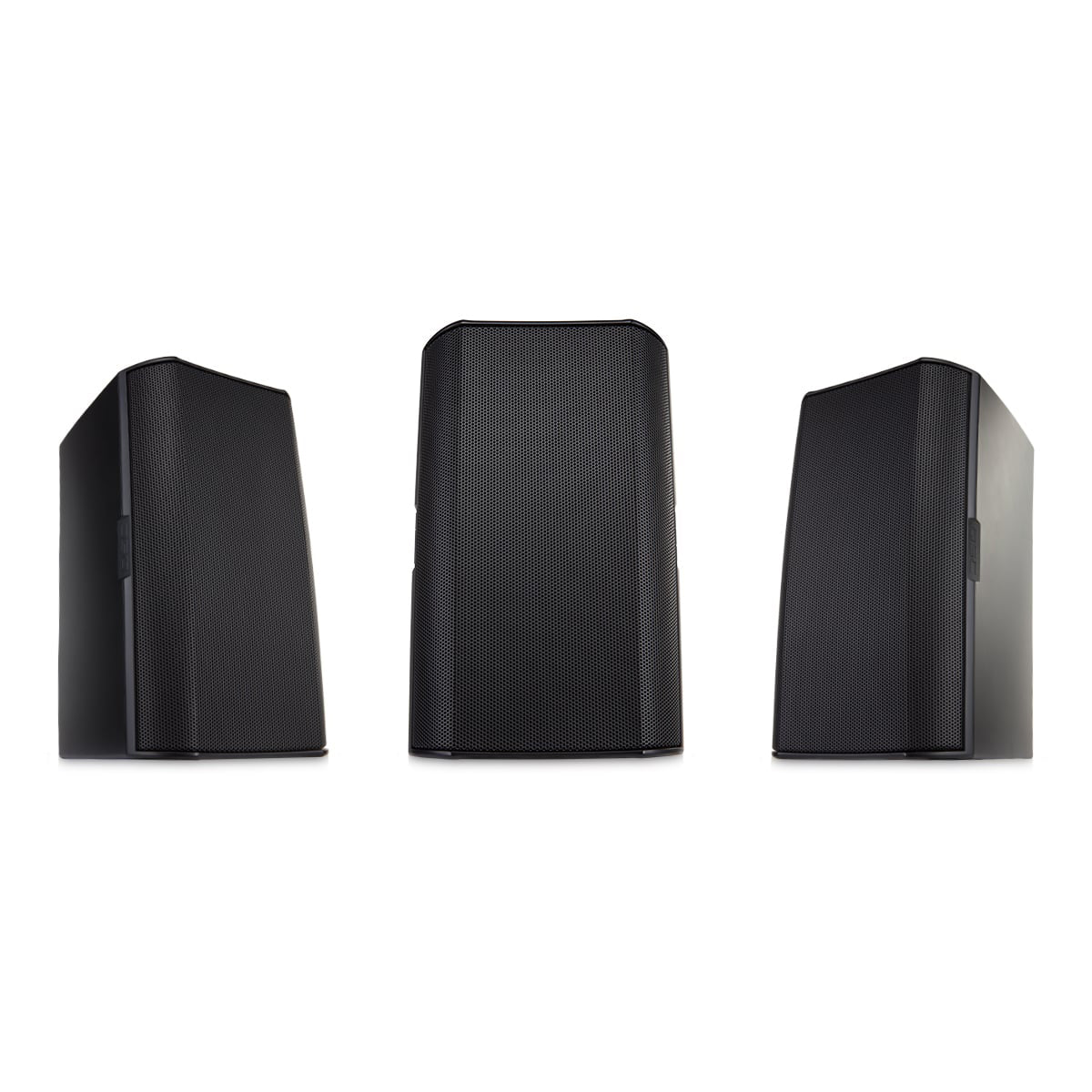

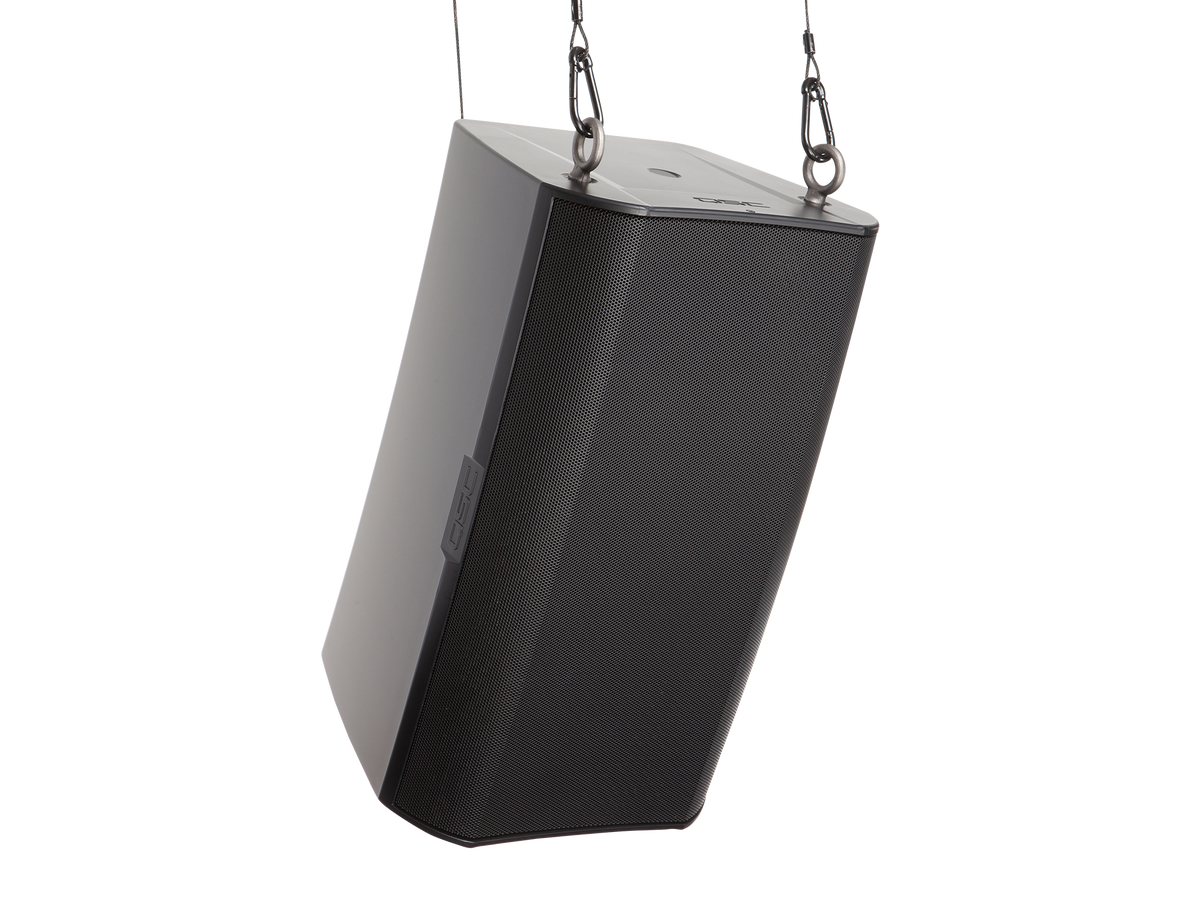

Q-SYS AD-S12: 12-inch 2-way, 75 degree conical DMT
Model
:
AD-S12
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS AD-S12 at a Glance
- Brand
- Q-SYS
- Model
- AD-S12
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS AD-S12 Overview
The Q-SYS AD-S12 is a Q-SYS product supplied by Trianze Tech. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- {{getExtension(resource)}}: {{resource.title}} {{resource.description}} Available for download in {{child.language}}
- Effective frequency range 1: 52 Hz to 20 kHz
- Rated noise power / voltage 2: 300 watts / 50 volts (rms)
- Broadband Sensitivity 3: 95 dB SPL
- Coverage angle (-6 dB): 75 degrees conical DMT
- Directivity factor (Q): 12
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AD-S12 |
| Brand | Q-SYS |
| {{getExtension(resource)}} | {{resource.title}} {{resource.description}} Available for download in {{child.language}} |
| Effective frequency range 1 | 52 Hz to 20 kHz |
| Rated noise power / voltage 2 | 300 watts / 50 volts (rms) |
| Broadband Sensitivity 3 | 95 dB SPL |
| Coverage angle (-6 dB) | 75 degrees conical DMT |
| Directivity factor (Q) | 12 |
| Directivity Index | 11 dB |
| Maximum continuous SPL 4 | 120 dB |
| Maximum peak SPL 4 | 126 dB |
| Rated impedance | 8 ohms |
| Recommended amplifier power (loudspeaker "program" power) | 600 watts |
| Transformer taps | n/a |
| HF transducer | 1-inch exit / 1.4-inch voice coil compression driver |
| LF transducer | 12-inch weather resistant paper cone woofer, 2.5-inch / 64 mm voice coil |
| Input connector type | Euroblock connector with parallel output terminals |
| Enclosure material | Painted ABS polymer |
| Grille material | Powder coated aluminum |
| Enclosure Details: Ingress protection | IP-54 |
| Enclosure Details: Operating environment | Designed for indoor and outdoor use |
| Enclosure Details: Testing | The AD Series loudspeakers qualified for outdoor use using the following tests: Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days High and low |
| Enclosure Details: Product Dimensions (HWD) inches | 23.4 x 13.9 x 12.7 |
| Enclosure Details: Product Dimensions (HWD) mm | 594 x 354 x 323 |
| Enclosure Details: Net weight | 35.2 lb / 16 kg |
| Enclosure Details: Shipping weight | 46.3 lb / 21 kg |
| Enclosure Details: Shipping dimensions | 34.5-inch x 17.9-inch x 17.2-inch (765 x 455 x 437 mm) |
| Enclosure Details: Included accessories | X-Mount mounting system, Euroblock connector, Input panel cover |

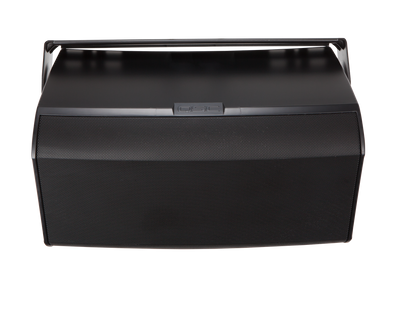

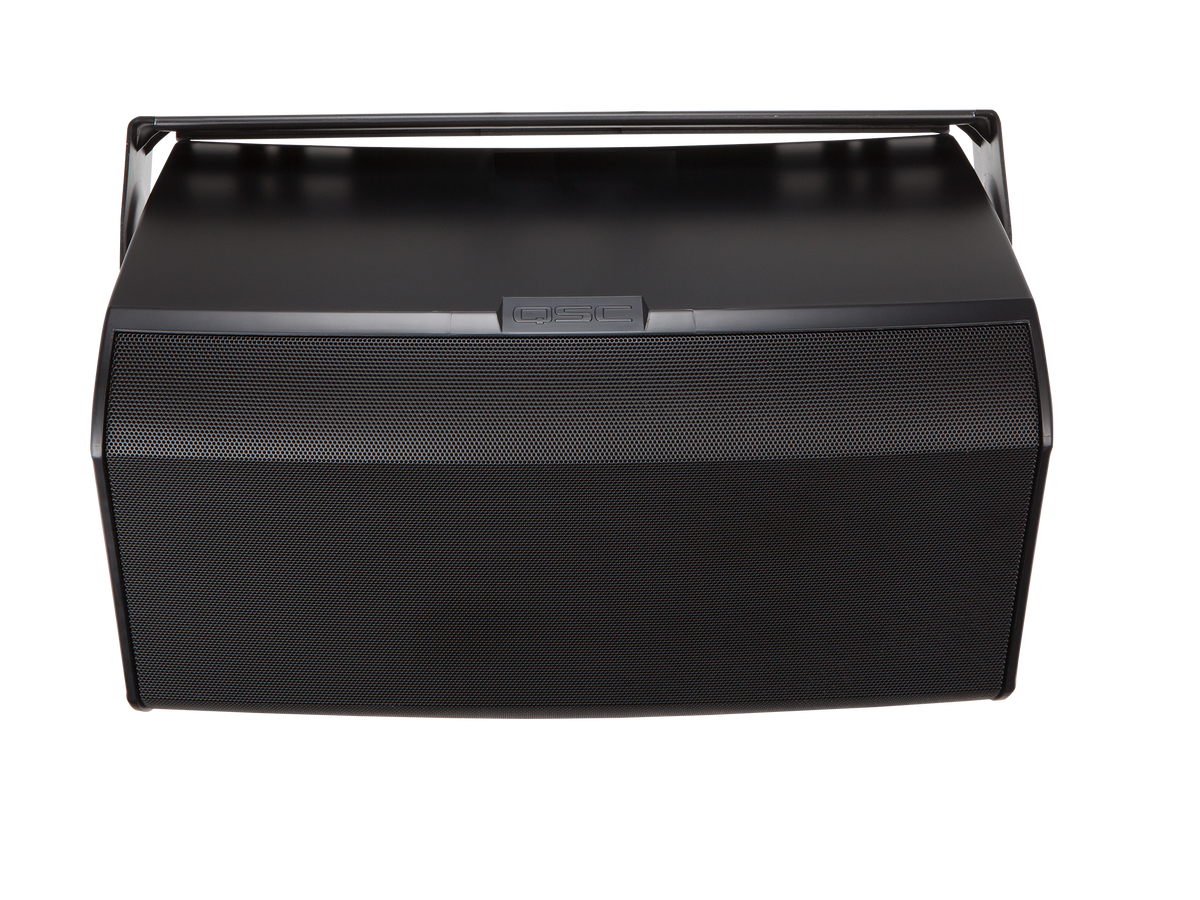

| Enclosure Details: Optional accessories | YMS12 yoke mount, M10 Kit-C |
Why Buy the Q-SYS AD-S12 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the AD-S12
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS AD-S12: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS AD-S12 is a Q-SYS product supplied by Trianze Tech.
For the Q-SYS AD-S12, Q-SYS lists the following. Input connector type: Euroblock connector with parallel output terminals.
For the Q-SYS AD-S12, Q-SYS lists the following. Effective frequency range 1: 52 Hz to 20 kHz; Rated noise power / voltage 2: 300 watts / 50 volts (rms); Broadband Sensitivity 3: 95 dB SPL; Coverage angle (-6 dB): 75 degrees conical DMT; Maximum continuous SPL 4: 120 dB.
For the Q-SYS AD-S12, Q-SYS lists the following. Rated noise power / voltage 2: 300 watts / 50 volts (rms); Recommended amplifier power (loudspeaker "program" power): 600 watts.
For the Q-SYS AD-S12, Q-SYS lists the following. Enclosure Details: Product Dimensions (HWD) inches: 23.4 x 13.9 x 12.7; Enclosure Details: Product Dimensions (HWD) mm: 594 x 354 x 323; Enclosure Details: Net weight: 35.2 lb / 16 kg; Enclosure Details: Shipping weight: 46.3 lb / 21 kg.
Trianze Tech stocks the Q-SYS AD-S12 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
