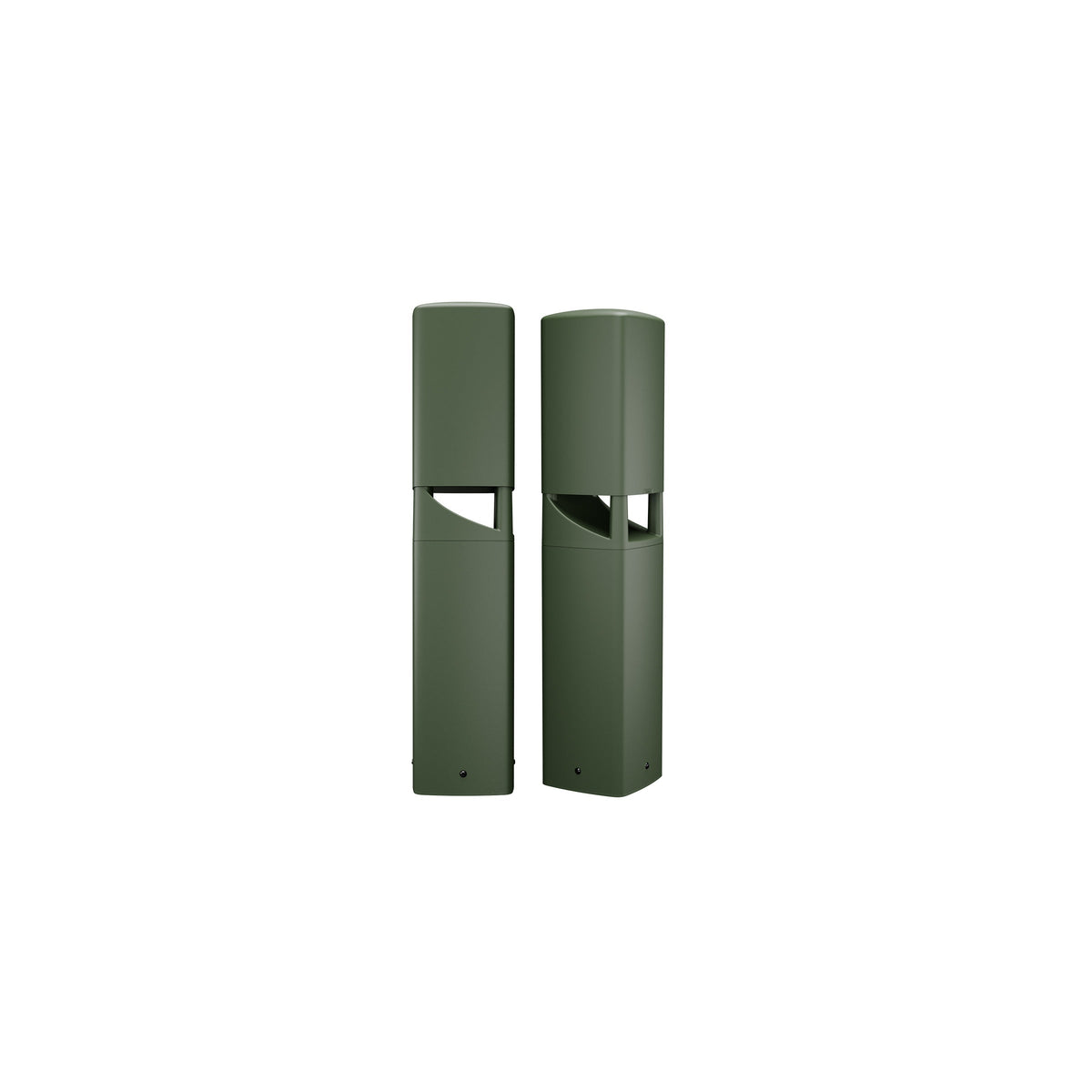

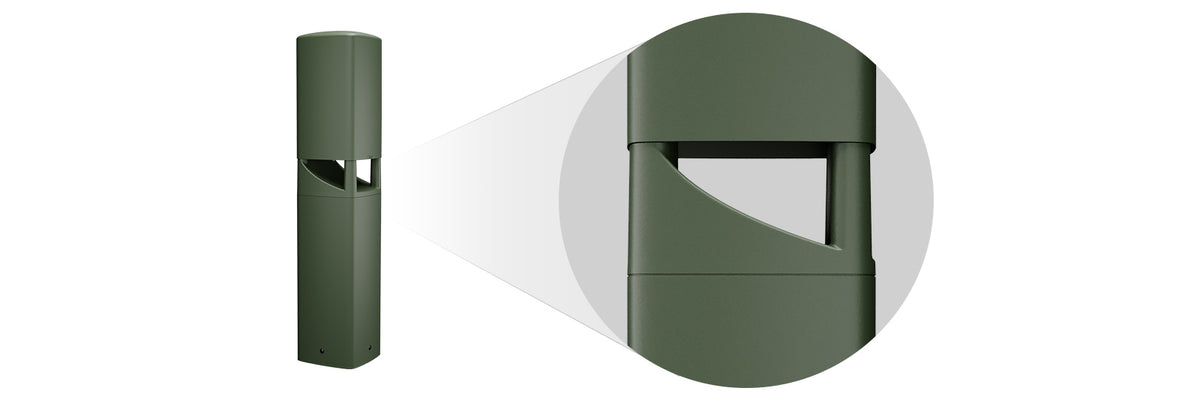

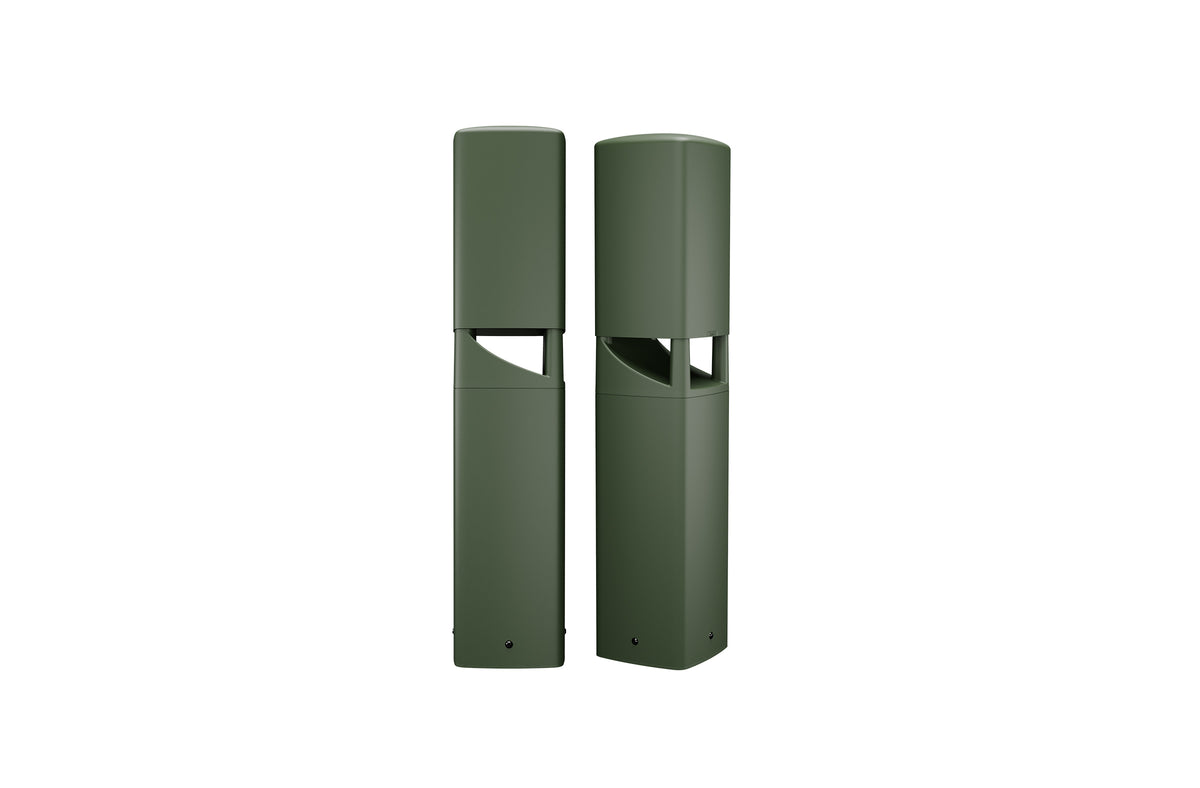

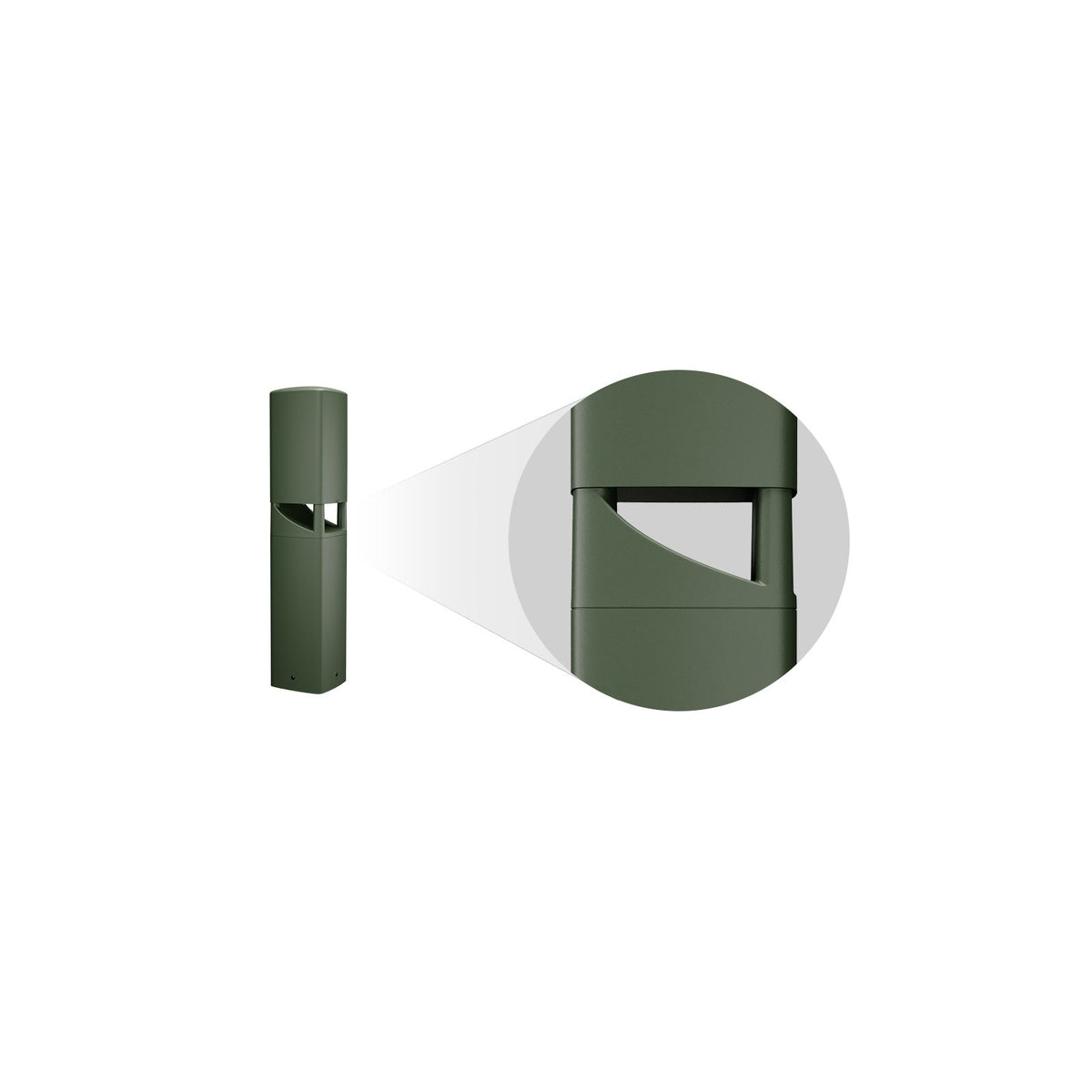

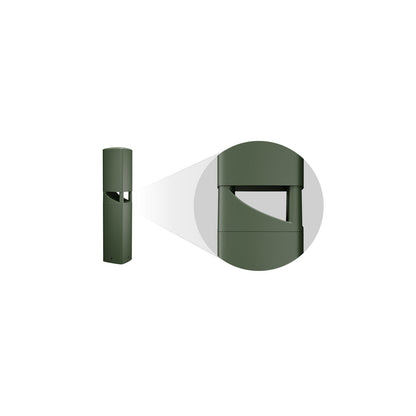

Q-SYS AD-DWL.180: AD-DWL 5.25 inch Landscape Loudspeaker Bollard Outdoor Speaker, 180 degree
Model
:
AD-DWL.180
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS AD-DWL.180 at a Glance
- Brand
- Q-SYS
- Model
- AD-DWL.180
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS AD-DWL.180 Overview
Title User Manual, AD-DWL Series, French User Manual for the AcousticDesign Series Direct Weather Landscape Loudspeakers, including AD-DWL.180, AD-DWL.360, AD-DWL.SUB, and the AD-DWL.BASE accessory. Title Owner User Manual, AD-DWL Series, Chinese User Manual for the AcousticDesign Series Direct Weather Landscape Loudspeakers, including AD-DWL.180, AD-DWL.360, AD-DWL.SUB, and the AD-DWL.BASE accessory. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Title Owner User Manual, AD-DWL Series, Chinese User Manual for the AcousticDesign Series Direct Weather Landscape Loudspeakers, including AD-DWL.180, AD-DWL.360, AD-DWL.SUB, and the AD-DWL.BASE accessory.
- System Details: AD-DWL.180
- Effective frequency range: 55 Hz to 25 kHz
- Rated noise power: 80 W
- Broadband sensitivity: >84 dB @1 W/1M (500 to 5 kHz)
- Coverage angle (-6 dB): 180 degrees (500 Hz, 5 kHz)
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AD-DWL.180 |
| Brand | Q-SYS |
| System Details | AD-DWL.180 |
| Effective frequency range | 55 Hz to 25 kHz |
| Rated noise power | 80 W |
| Broadband sensitivity | >84 dB @1 W/1M (500 to 5 kHz) |
| Coverage angle (-6 dB) | 180 degrees (500 Hz, 5 kHz) |
| Directivity factor (Q) | Coming soon |
| Directivity Index | Coming soon |
| Maximum continuous SPL | 104 dB |
| Maximum peak SPL | 110 dB |
| Rated impedance | 16 ohm |
| Transformer taps | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Transducer | (1) 5.25 in (135 mm) weather resistant cone woofer, ferrite magnet, rubber surround (1) 1 in (25mm) aluminum dome tweeter, rubber surround |
| Input connector type | Wire pig-tail, blunt |
| Enclosure material | Glass-Filled polypropylene, F1-F2 UL Rated |
| Grille material | Polyester fabric on polycarbonate frame |
| Mount | Direct to concrete |
| ENCLOSURE DETAILS: Ingress protection | (IP to 55) |
| ENCLOSURE DETAILS: Operating environment | Designed for outdoor use |
| ENCLOSURE DETAILS: Testing | Exceeded MilSpec819 standard for humidity, salt spray, temperature, and UV Passed Mil-STD-202f standard for salt spray (specific to electrical components) |
| ENCLOSURE DETAILS: Product dimensions (HWD) | 30.16 in (766mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support) |
| ENCLOSURE DETAILS: Net weight | 16.64 lb (7.5 kg) |
| ENCLOSURE DETAILS: Shipping weight | 24.5 lbs (11.1 kg) |
| ENCLOSURE DETAILS: Shipping dimensions (HWD) | 38.23 in (971mm) x 10.63 in (270mm) x 10.63 in (270mm) |
| ENCLOSURE DETAILS: Included accessories | Direct-to-concrete mounting collar |
Why Buy the Q-SYS AD-DWL.180 from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the AD-DWL.180
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS AD-DWL.180: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
Title User Manual, AD-DWL Series, French User Manual for the AcousticDesign Series Direct Weather Landscape Loudspeakers, including AD-DWL.180, AD-DWL.360, AD-DWL.SUB, and the AD-DWL.BASE accessory. Title Owner User Manual, AD-DWL Series, Chinese User Manual for the AcousticDesign Series Direct Weather Landscape Loudspeakers, including AD-DWL.180, AD-DWL.360, AD-DWL.SUB, and the AD-DWL.BASE accessory.
For the Q-SYS AD-DWL.180, Q-SYS lists the following. Input connector type: Wire pig-tail, blunt.
For the Q-SYS AD-DWL.180, Q-SYS lists the following. Effective frequency range: 55 Hz to 25 kHz; Rated noise power: 80 W; Broadband sensitivity: >84 dB @1 W/1M (500 to 5 kHz); Coverage angle (-6 dB): 180 degrees (500 Hz, 5 kHz); Maximum continuous SPL: 104 dB.
For the Q-SYS AD-DWL.180, Q-SYS lists the following. Rated noise power: 80 W.
For the Q-SYS AD-DWL.180, Q-SYS lists the following. ENCLOSURE DETAILS: Product dimensions (HWD): 30.16 in (766mm) x 6.46 in (164mm) x 6.46 in (164mm) (not including base support); ENCLOSURE DETAILS: Net weight: 16.64 lb (7.5 kg); ENCLOSURE DETAILS: Shipping weight: 24.5 lbs (11.1 kg); ENCLOSURE DETAILS: Shipping dimensions (HWD): 38.23 in (971mm) x 10.63 in (270mm) x 10.63 in (270mm).
Trianze Tech stocks the Q-SYS AD-DWL.180 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
