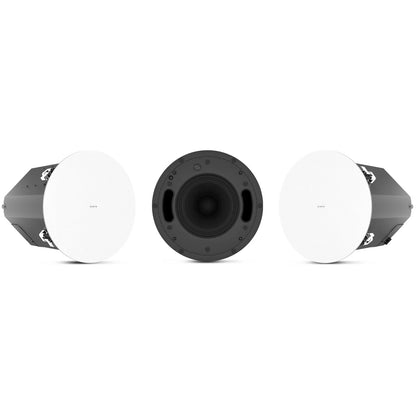

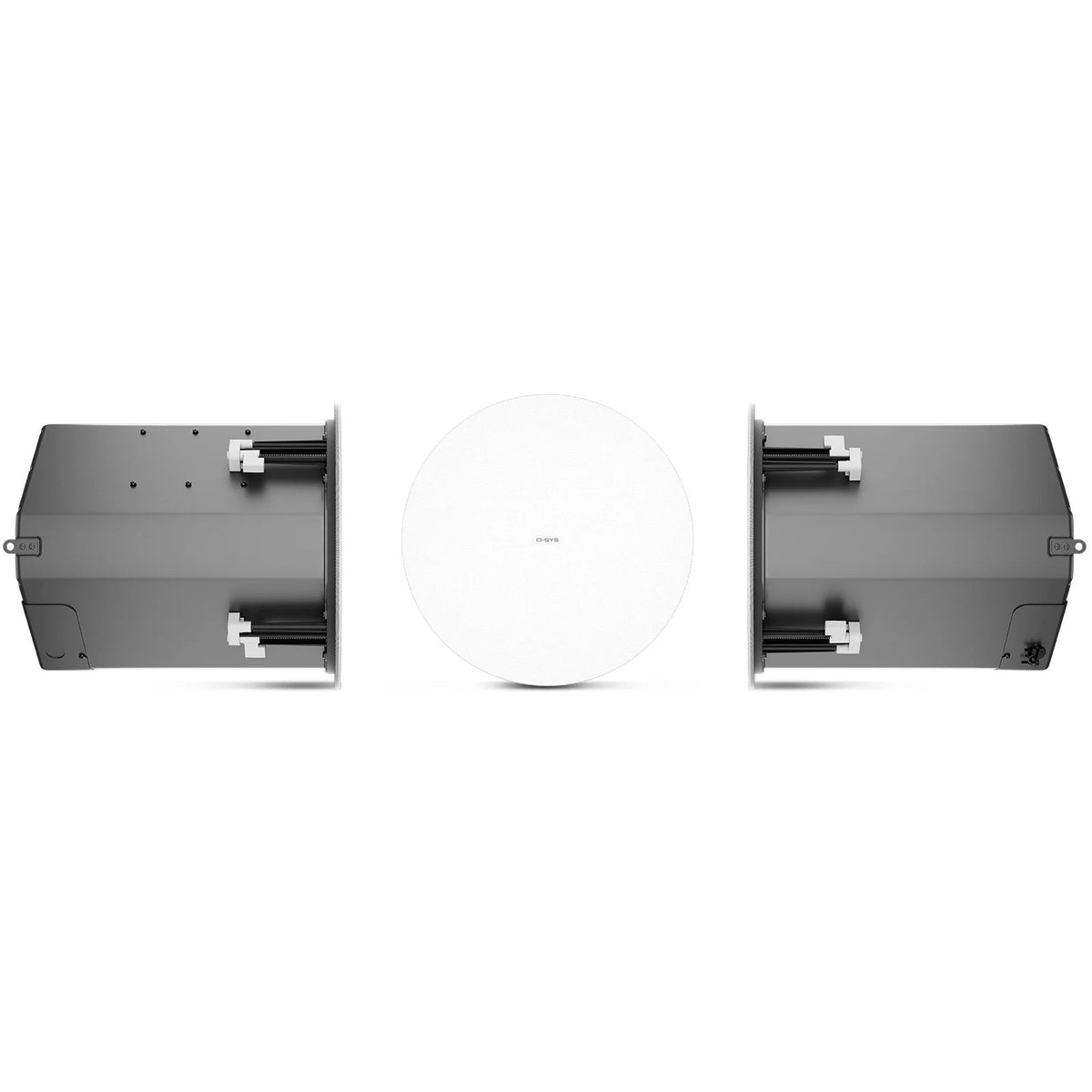

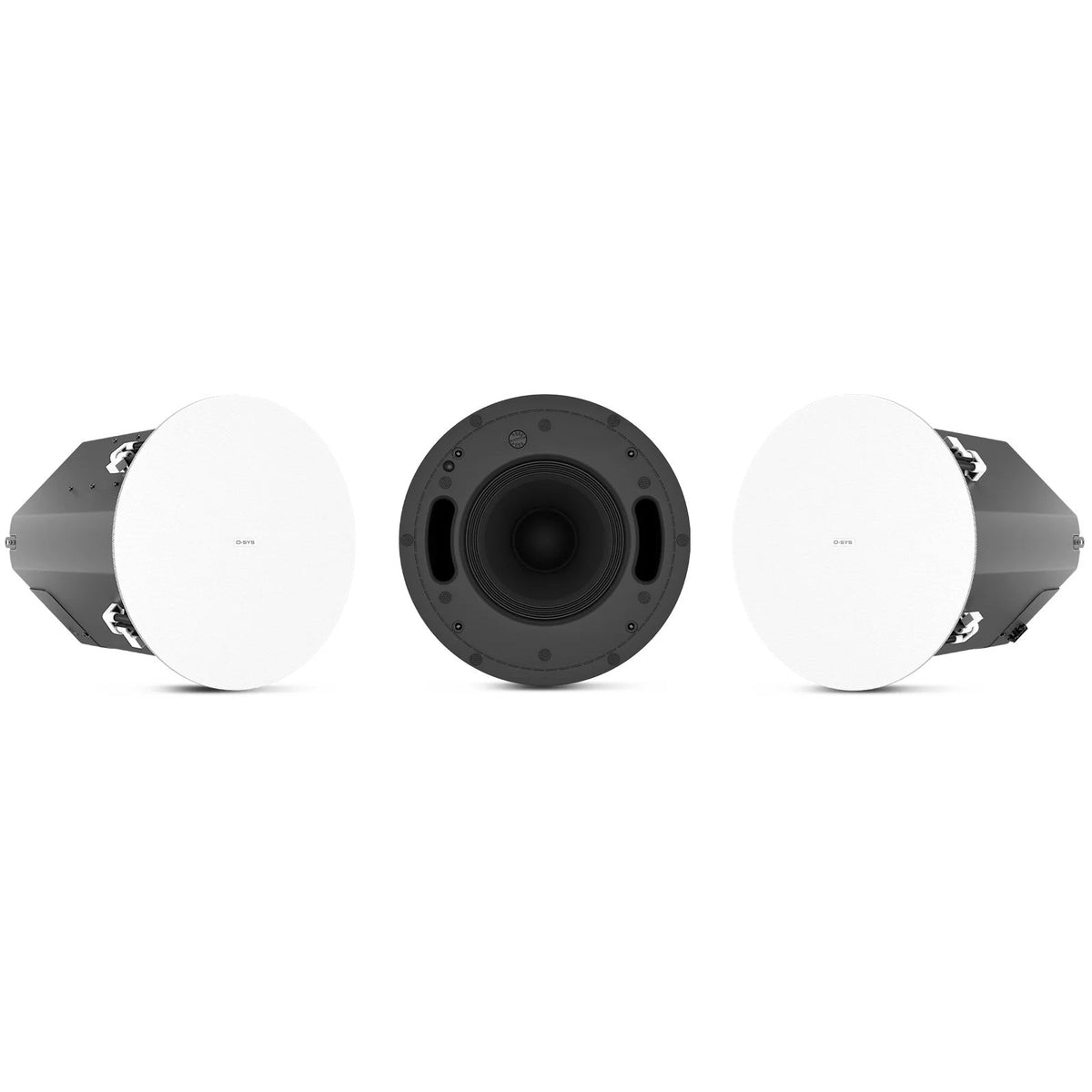

Q-SYS AD-C8T-ZB: AcousticDesign 8 inch Two-Way Ceiling Speaker, Zero Bezel, White
Model
:
AD-C8T-ZB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS AD-C8T-ZB at a Glance
- Brand
- Q-SYS
- Model
- AD-C8T-ZB
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS AD-C8T-ZB Overview
Available for download in Chinese (Simplified) | French | German | Japanese | Spanish Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- LF transducer: 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite
- HF transducer: Coaxial compression driver, 1.5 in (38.1 mm) voice coil
- Enclosure configuration: Two-way, ceiling loudspeaker, Bass Reflex
- System bandwidth (1): -3 dB: 70 Hz to 20 kHz -6dB: 63 Hz-20 kHz -10 dB: 58 Hz-20 kHz
- Sensitivity (2): 92.5 dB @ 1 W/1 m
- Coverage: 90 degrees conical DMT
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AD-C8T-ZB |
| Brand | Q-SYS |
| LF transducer | 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite |
| HF transducer | Coaxial compression driver, 1.5 in (38.1 mm) voice coil |
| Enclosure configuration | Two-way, ceiling loudspeaker, Bass Reflex |
| System bandwidth (1) | -3 dB: 70 Hz to 20 kHz -6dB: 63 Hz-20 kHz -10 dB: 58 Hz-20 kHz |
| Sensitivity (2) | 92.5 dB @ 1 W/1 m |
| Coverage | 90 degrees conical DMT |
| Max SPL (continuous) (3) | 114 dB |
| Max SPL (peak) (4) | 126 dB |
| Max SPL (calculated) (5) | 121 dB |
| Power rating | Continuous power 200 W @ 8 ohm, rated Power 400 W |
| Bypass impedance | 8 ohm |
| Minimum impedance | 6.8 ohm @ 291 hz |
| Transformer taps (70v/100v) | 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W |
| Enclosure material | ABS baffle on powder coated steel back-can |
| Enclosure color | Black back-can, white grille (RAL 9010) |
| Connectors | 4-pin 0.2 in (5 mm) Euroblock connector with parallel output |
| Dimensions (H x W x D) | 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm) |
| Cutout dimensions | 305 mm |
| Shipping dimensions (H x W x D) | 19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed |
| Weight | 23.7 lb (10.75 kg) |
| Shipping weight | 69.5 lb (31.5 kg) |
| Included accessories | Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille |
| Optional accessories (sold separately) | AD-MR8 (pre-install mud ring), AD-C305BG-BK black grille |
| Ingress protection | IP-44 |
| Safety agency | UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces. ROHS, CE compliant. Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems. |
Why Buy the Q-SYS AD-C8T-ZB from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the AD-C8T-ZB
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS AD-C8T-ZB: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
Available for download in Chinese (Simplified) | French | German | Japanese | Spanish
For the Q-SYS AD-C8T-ZB, Q-SYS lists the following. Connectors: 4-pin 0.2 in (5 mm) Euroblock connector with parallel output.
For the Q-SYS AD-C8T-ZB, Q-SYS lists the following. Sensitivity (2): 92.5 dB @ 1 W/1 m; Coverage: 90 degrees conical DMT; Max SPL (continuous) (3): 114 dB; Max SPL (peak) (4): 126 dB; Max SPL (calculated) (5): 121 dB.
For the Q-SYS AD-C8T-ZB, Q-SYS lists the following. Power rating: Continuous power 200 W @ 8 ohm, rated Power 400 W.
For the Q-SYS AD-C8T-ZB, Q-SYS lists the following. Dimensions (H x W x D): 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm); Cutout dimensions: 305 mm; Shipping dimensions (H x W x D): 19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed; Weight: 23.7 lb (10.75 kg).
Trianze Tech stocks the Q-SYS AD-C8T-ZB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
