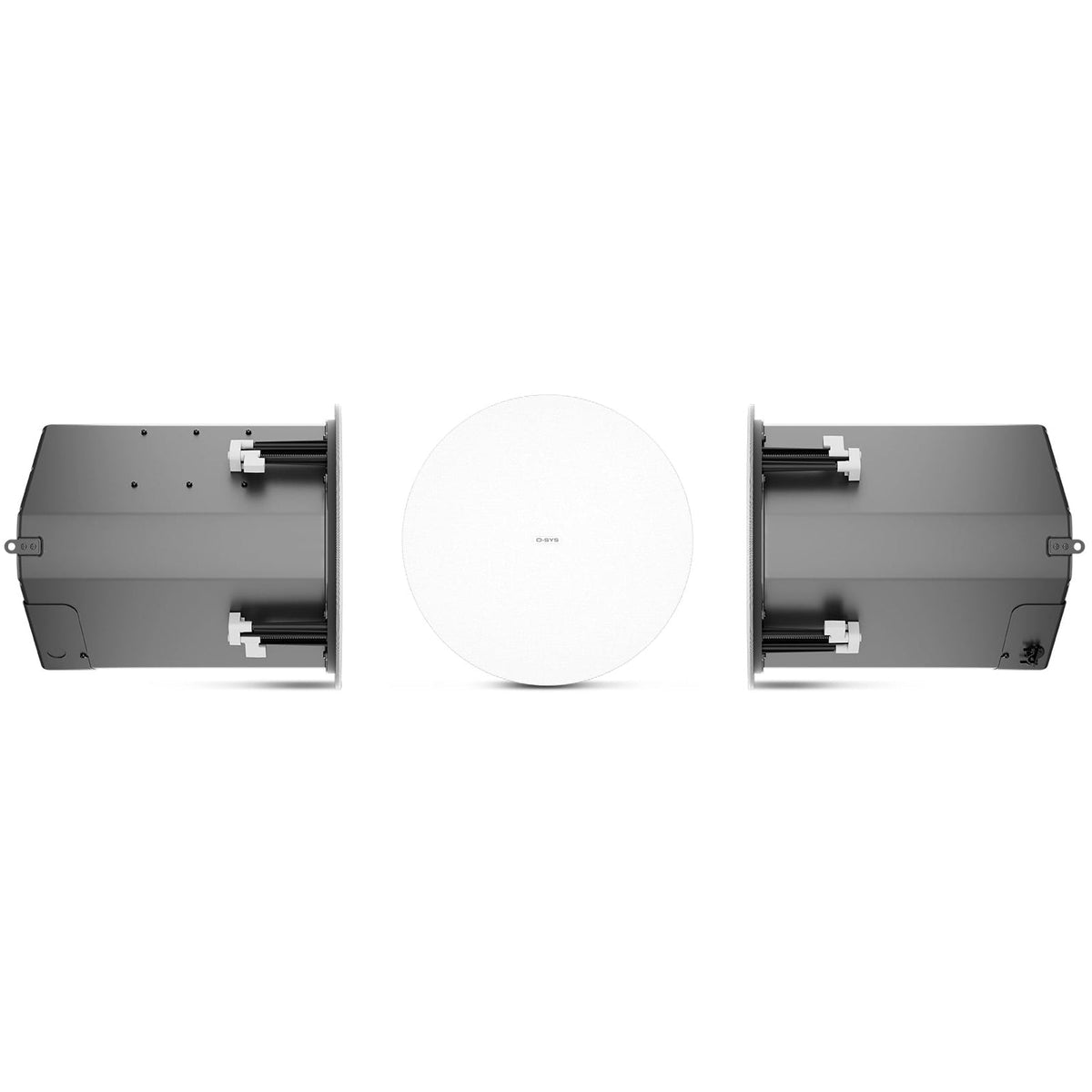

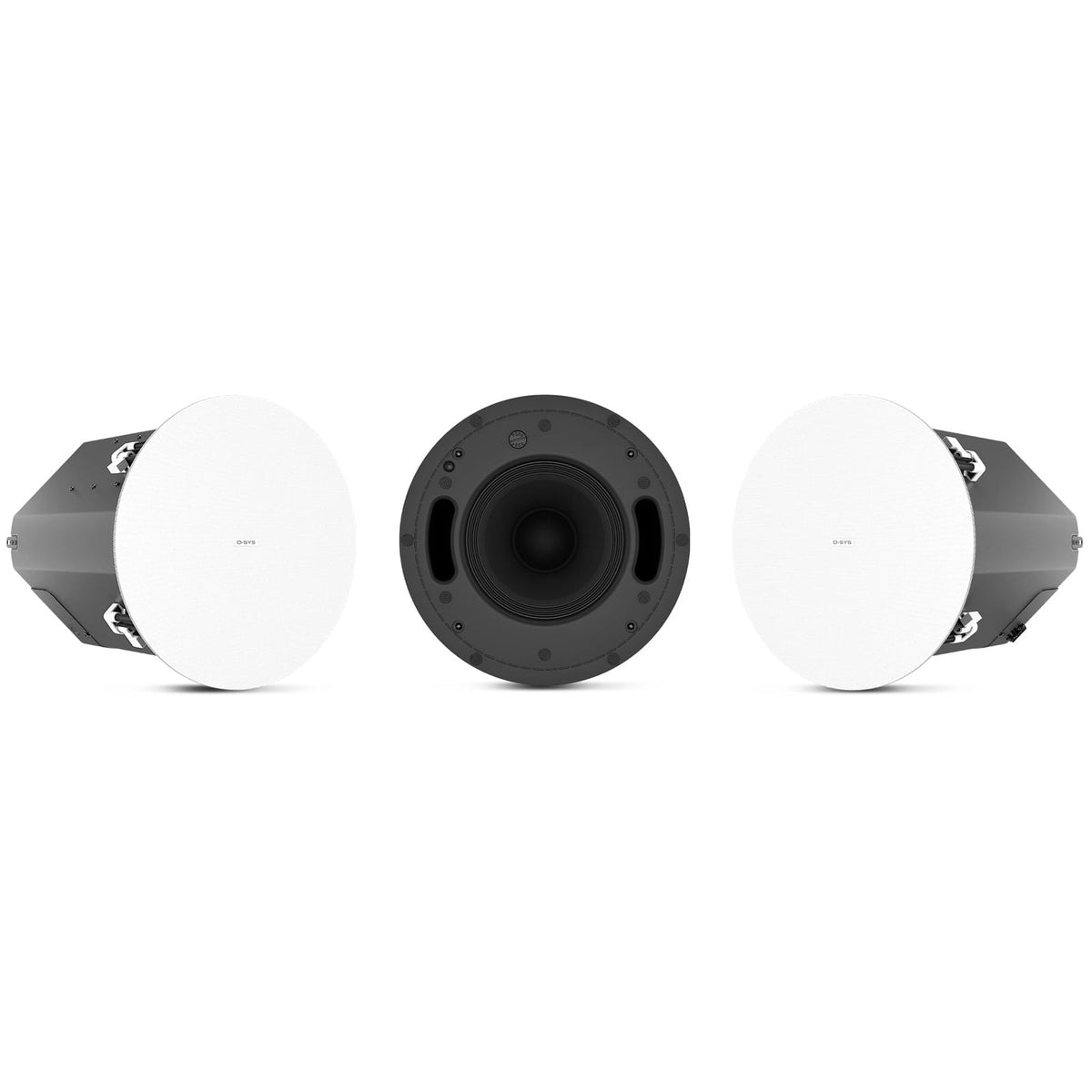

Q-SYS AD-C8T-SWZB: 8-inch, ceiling-mount subwoofer
Model
:
AD-C8T-SWZB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS AD-C8T-SWZB at a Glance
- Brand
- Q-SYS
- Model
- AD-C8T-SWZB
- Category
- Subwoofers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS AD-C8T-SWZB Overview
Available for download in Chinese (Simplified) | French | German | Japanese | Spanish Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- LF transducer: 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite
- Enclosure configuration: Ceiling Subwoofer, Bass Reflex
- Coverage: Omni
- Filter: 125 Hz Low Pass, Passive
- System bandwidth (1): -3 dB: 65 Hz to 155 Hz -6dB: 59 Hz to 170 Hz -10 dB: 53 Hz to 195 Hz
- Sensitivity (2): 92.3 dB @ 1 W/ 1 m
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AD-C8T-SWZB |
| Brand | Q-SYS |
| LF transducer | 8 in (203 mm), 2.0 in. (50.8 mm) voice coil, ferrite |
| Enclosure configuration | Ceiling Subwoofer, Bass Reflex |
| Coverage | Omni |
| Filter | 125 Hz Low Pass, Passive |
| System bandwidth (1) | -3 dB: 65 Hz to 155 Hz -6dB: 59 Hz to 170 Hz -10 dB: 53 Hz to 195 Hz |
| Sensitivity (2) | 92.3 dB @ 1 W/ 1 m |
| Max SPL (continuous) (3) | 113 dB |
| Max SPL (peak) (4) | 125 dB |
| Max SPL (calculated) (5) | 123 dB |
| Power rating | Continuous power 250 W @ 8 ohm, rated Power 500 W |
| Bypass impedance | 8 ohm |
| Minimum impedance | 6.4 ohm @ 118 Hz |
| Taps (70v/100v) | 25 W, 50 W, 100 W, 200 W / 50 W, 100 W, 200 W |
| Enclosure material | ABS baffle on powder coated steel backcan |
| Enclosure color | Black back-can, white grille (RAL 9010) |
| Connectors | 4-pin 0.2 in (5 mm) Euroblock connector with parallel output |
| Dimensions (H x W x D) | 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm) |
| Cutout dimensions | 305 mm |
| Shipping dimensions (H x W x D) | 19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed |
| Weight | 22.4 lb (10.1kg) |
| Included accessories | Tile rails & screws, tile rings, cardboard cutout templates, wire connector, white grille |
| Optional accessories (sold separately) | AD-MR8 (pre-install mud ring), AD-C305BG-BK black grille |
| Ingress protection | IP-44 |
| Safety agency | UL1480A, UL2043, NFPA 90A, NFPA70 suitable for use in air handling spaces. ROHS, CE compliant. Baffle meets UL94-V0 flammability rating; in accordance with IEC60849 / EN60849 systems. |
Why Buy the Q-SYS AD-C8T-SWZB from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the AD-C8T-SWZB
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS AD-C8T-SWZB: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
Available for download in Chinese (Simplified) | French | German | Japanese | Spanish
For the Q-SYS AD-C8T-SWZB, Q-SYS lists the following. Connectors: 4-pin 0.2 in (5 mm) Euroblock connector with parallel output.
For the Q-SYS AD-C8T-SWZB, Q-SYS lists the following. Coverage: Omni; Sensitivity (2): 92.3 dB @ 1 W/ 1 m; Max SPL (continuous) (3): 113 dB; Max SPL (peak) (4): 125 dB; Max SPL (calculated) (5): 123 dB.
For the Q-SYS AD-C8T-SWZB, Q-SYS lists the following. Power rating: Continuous power 250 W @ 8 ohm, rated Power 500 W.
For the Q-SYS AD-C8T-SWZB, Q-SYS lists the following. Dimensions (H x W x D): 13.5 x 13.5 x 13.75 in (342.9 x 342.9 x 349.25 mm); Cutout dimensions: 305 mm; Shipping dimensions (H x W x D): 19.5 x 17.5 x 32 in (495.3 x 444.5 x 812.8 mm), pair packed; Weight: 22.4 lb (10.1kg).
Trianze Tech stocks the Q-SYS AD-C8T-SWZB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
