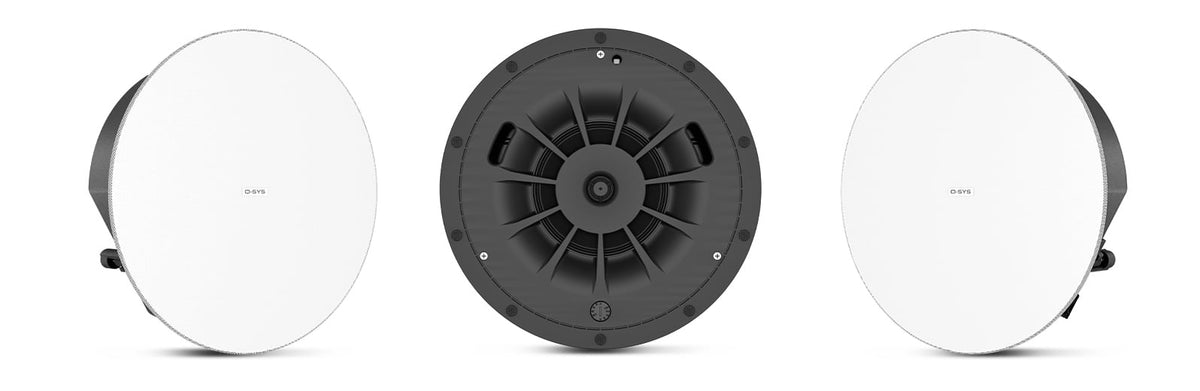

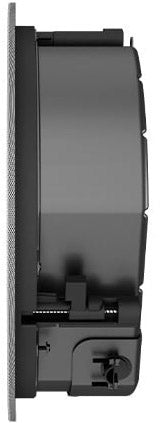

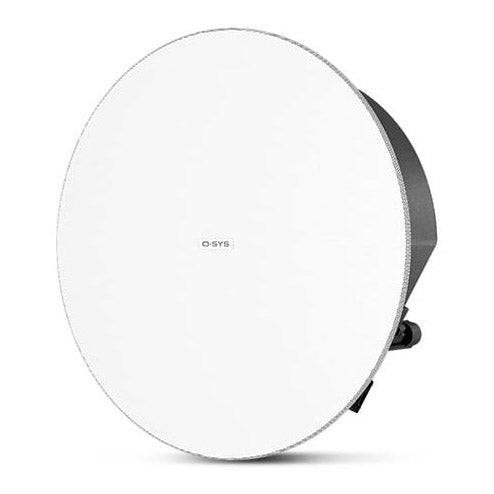

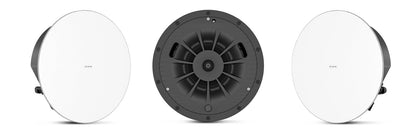

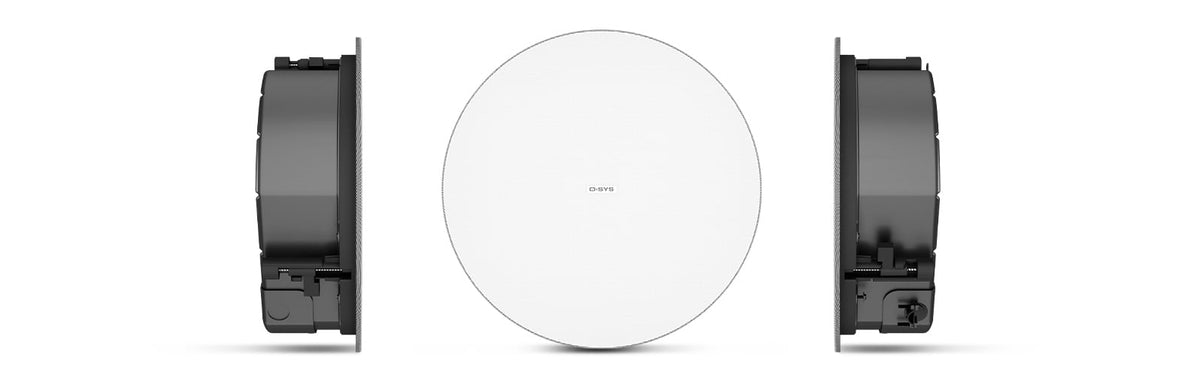

Q-SYS AD-C6T-LPZB: 6.5 inch 2-Way Ceiling Speaker
Model
:
AD-C6T-LPZB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS AD-C6T-LPZB at a Glance
- Brand
- Q-SYS
- Model
- AD-C6T-LPZB
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS AD-C6T-LPZB Overview
Available for download in Arabic | Chinese (Simplified) | French | German | Japanese | Spanish Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Effective frequency range 1: 65 Hz, 20 kHz
- Rated noise power / voltage 2: 60 watts / 31 volts (rms)
- Sensitivity [dB] 3 Sensitivity at 4m, 100V maximum tap: 88 TBD
- Rated coverage (-6 dB) 4: 135 degrees conical DMT
- Directivity factor (Q): 6.5
- Directivity index (DI) [dB]: 8
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AD-C6T-LPZB |
| Brand | Q-SYS |
| Effective frequency range 1 | 65 Hz, 20 kHz |
| Rated noise power / voltage 2 | 60 watts / 31 volts (rms) |
| Sensitivity [dB] 3 Sensitivity at 4m, 100V maximum tap | 88 TBD |
| Rated coverage (-6 dB) 4 | 135 degrees conical DMT |
| Directivity factor (Q) | 6.5 |
| Directivity index (DI) [dB] | 8 |
| Maximum continuous SPL [dB] 5 | 106 |
| Maximum peak SPL [dB] 5 | 112 |
| Nominal impedance [ohms] | 16 |
| Transformer taps / impedance | 16 ohm (in bypass setting) 7.5W (70V); 15W (100V) Tap: 667 ohm 15W (70V); 30W (100V) Tap: 333 ohm 30W (70V); 60W (100V) Tap: 167 ohm 60W (70V); N/A (100V) Tap: 83 ohm |
| LF transducer | 165 mm [6.5-inch] weather resistant paper cone woofer |
| HF transducer | 19 mm [0.75-inch] aluminum dome tweeter |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | ABS baffle on powder coated steel back can |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -20 to 50 C [-4 to 122 F] |
| Cutout dimension | 305 mm ( 12 in) |
| Net weight | 4.3 kg [9.5 lb] |
| Product dimensions (Diameter x Height) | 340 x 100 mm [ 13.37 x 3.95-inch.] |
| Shipping weight | 12.6 kg [27.8 lb] (pair packed) |
| Shipping dimensions (H x W x D) | 178 x 864 x 470 mm (7 x 34 x 18.5 in), pair packed |
| Included accessories | C-ring and tile rails, rail screws, euroblock connector, cut-out template, tether grille |
| Optional accessories | AD-MR8 (pre-install mud ring), 305 mm cutout size AD-C305BG (black ceiling grille), 305 mm cutout size |
| Safety Agency | UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / |
Why Buy the Q-SYS AD-C6T-LPZB from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the AD-C6T-LPZB
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS AD-C6T-LPZB: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
Available for download in Arabic | Chinese (Simplified) | French | German | Japanese | Spanish
For the Q-SYS AD-C6T-LPZB, Q-SYS lists the following. Input connector type: Euroblock connector with parallel output.
For the Q-SYS AD-C6T-LPZB, Q-SYS lists the following. Effective frequency range 1: 65 Hz, 20 kHz; Rated noise power / voltage 2: 60 watts / 31 volts (rms); Sensitivity [dB] 3 Sensitivity at 4m, 100V maximum tap: 88 TBD; Rated coverage (-6 dB) 4: 135 degrees conical DMT; Maximum continuous SPL [dB] 5: 106.
For the Q-SYS AD-C6T-LPZB, Q-SYS lists the following. Rated noise power / voltage 2: 60 watts / 31 volts (rms).
For the Q-SYS AD-C6T-LPZB, Q-SYS lists the following. Operating temperature range: -20 to 50 C [-4 to 122 F]; Cutout dimension: 305 mm ( 12 in); Net weight: 4.3 kg [9.5 lb]; Product dimensions (Diameter x Height): 340 x 100 mm [ 13.37 x 3.95-inch.].
Trianze Tech stocks the Q-SYS AD-C6T-LPZB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
