Q-SYS AD-C6T-HP: AcousticDesign 6.5 inch Two-Way Ceiling Speaker For Install, High Power, 120 degree conical
Model
:
AD-C6T-HP
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS AD-C6T-HP at a Glance
- Brand
- Q-SYS
- Model
- AD-C6T-HP
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS AD-C6T-HP Overview
See document for loudspeaker compatibility. Available for download in Arabic | Chinese (Simplified) | French | German | Japanese | Spanish Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Available for download in Arabic | Chinese (Simplified) | French | German | Japanese | Spanish
- Description: 6.5 in, two-way ceiling-mount loudspeaker with transformer
- Transducers: 6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet 1.4 in (35.6 mm) kapton dome
- Sensitivity: 89 dB @ 1 W, 1 m
- Freq. range (-10 dB): 58 Hz to 20 kHz
- Rated noise power (@16 ohm bypass): 120 W
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AD-C6T-HP |
| Brand | Q-SYS |
| Description | 6.5 in, two-way ceiling-mount loudspeaker with transformer |
| Transducers | 6.5 in (165 mm) paper cone woofer, 1.75 in (44.5 mm) voice coil, ferrite magnet 1.4 in (35.6 mm) kapton dome compression tweeter |
| Sensitivity | 89 dB @ 1 W, 1 m |
| Freq. range (-10 dB) | 58 Hz to 20 kHz |
| Rated noise power (@16 ohm bypass) | 120 W |

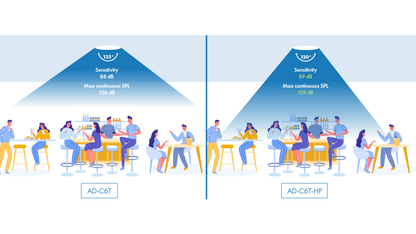

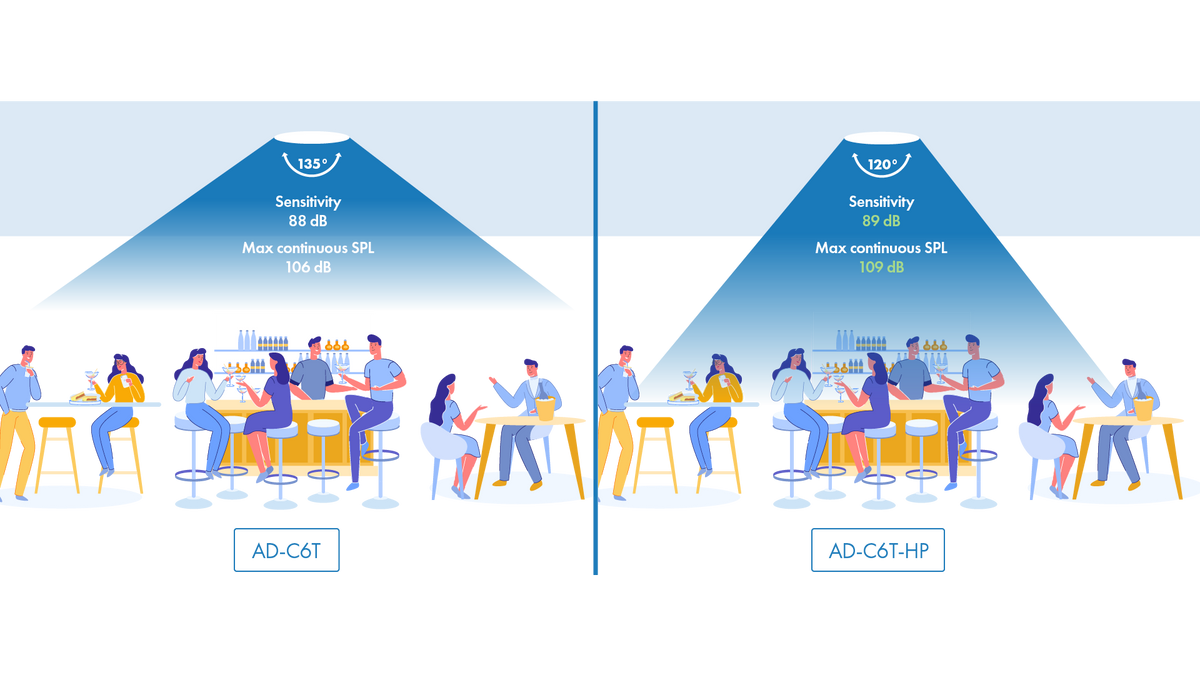

| Coverage (-6 dB) | 120 degrees |
| Directivity factor | 3.6 |
| Directivity index | 5.6 dB |
| Max SPL (continuous/peak) | 109 dB / 115 dB @ 1 m |
| Taps (70 V/100 V) | 7.5 W, 15 W, 30 W, 60 W / 15 W, 30 W, 60 W |
| Bypass impedance | 16 ohm |
| Min impedance | 15.4 ohm @ 281 Hz |
| Crossover frequency | 2.6 kHz |
| Input | 4-pin Euroblock connector with parallel output |
| Cutout dimension | 245 mm ( 9.65 in) |
| Net weight | 13.39 lbs (6.07 kg) |
| Product dimensions (HxWxD) | 9.3 x 11 x 11 in (235 x 280.5 x 280.5 mm) |
| Optional accessories | AD-MR6 (pre-install mud ring) AD-C245C (collar adapter) |
Why Buy the Q-SYS AD-C6T-HP from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the AD-C6T-HP
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS AD-C6T-HP: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
See document for loudspeaker compatibility. Available for download in Arabic | Chinese (Simplified) | French | German | Japanese | Spanish
For the Q-SYS AD-C6T-HP, Q-SYS lists the following. Input: 4-pin Euroblock connector with parallel output.
For the Q-SYS AD-C6T-HP, Q-SYS lists the following. Sensitivity: 89 dB @ 1 W, 1 m; Rated noise power (@16 ohm bypass): 120 W; Coverage (-6 dB): 120 degrees; Max SPL (continuous/peak): 109 dB / 115 dB @ 1 m; Bypass impedance: 16 ohm.
For the Q-SYS AD-C6T-HP, Q-SYS lists the following. Rated noise power (@16 ohm bypass): 120 W.
For the Q-SYS AD-C6T-HP, Q-SYS lists the following. Cutout dimension: 245 mm ( 9.65 in); Net weight: 13.39 lbs (6.07 kg); Product dimensions (HxWxD): 9.3 x 11 x 11 in (235 x 280.5 x 280.5 mm).
Trianze Tech stocks the Q-SYS AD-C6T-HP in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
