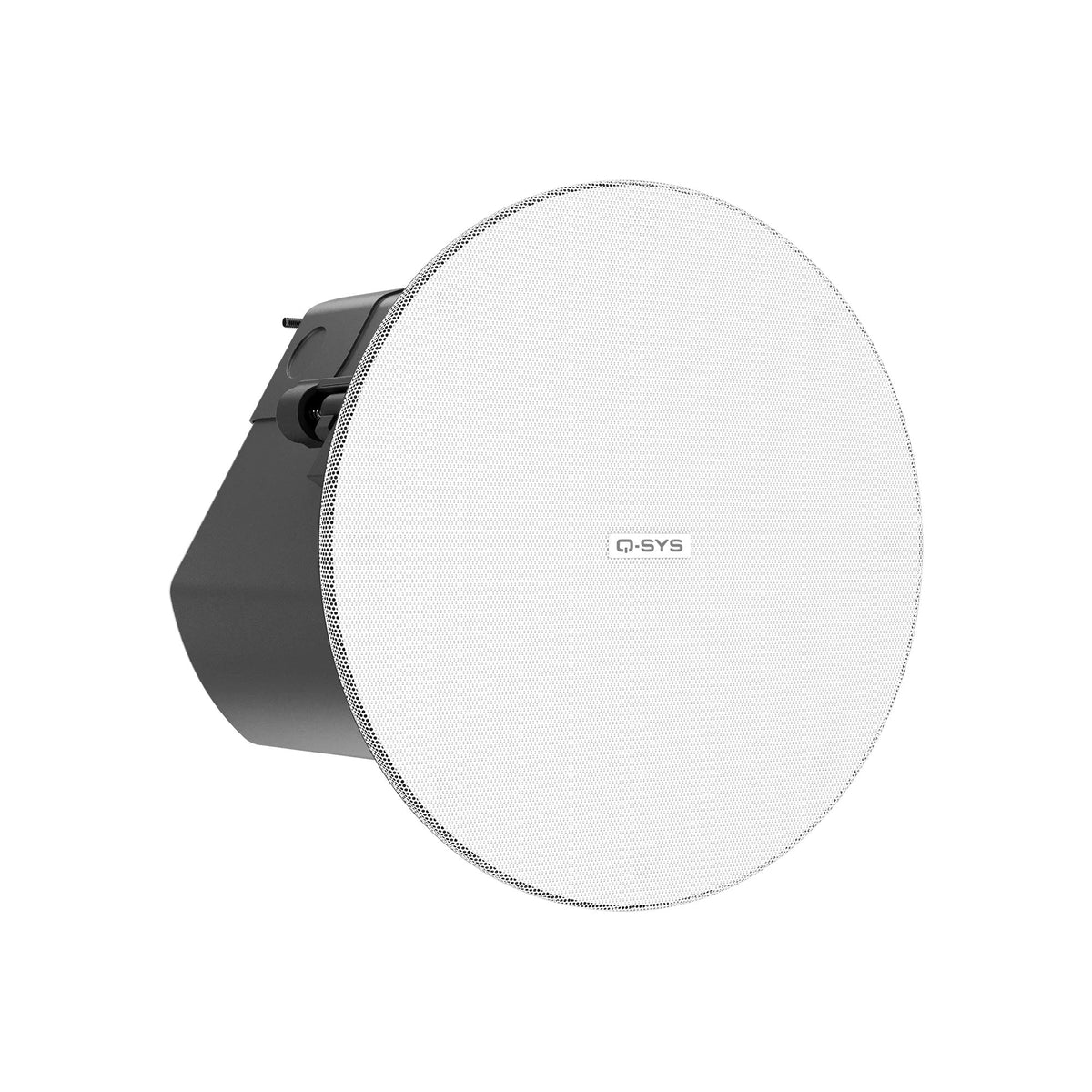

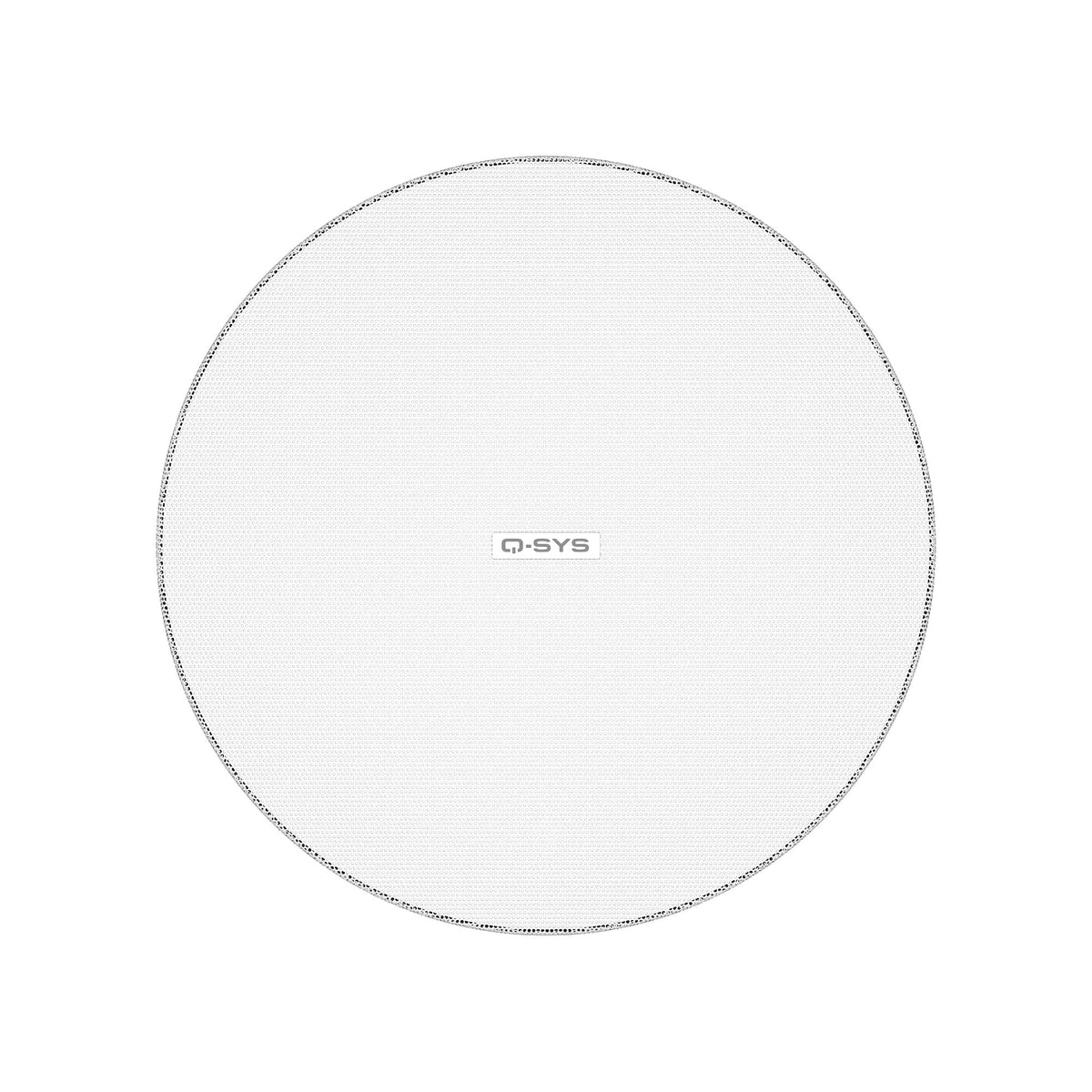

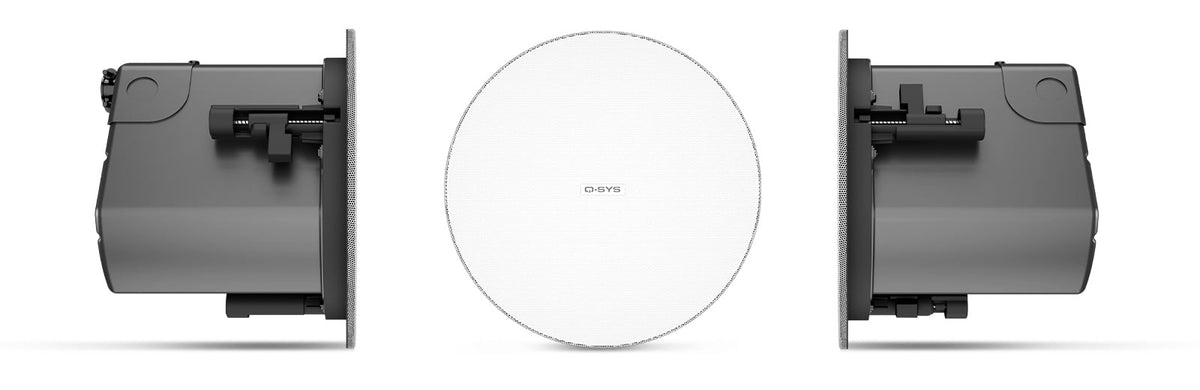

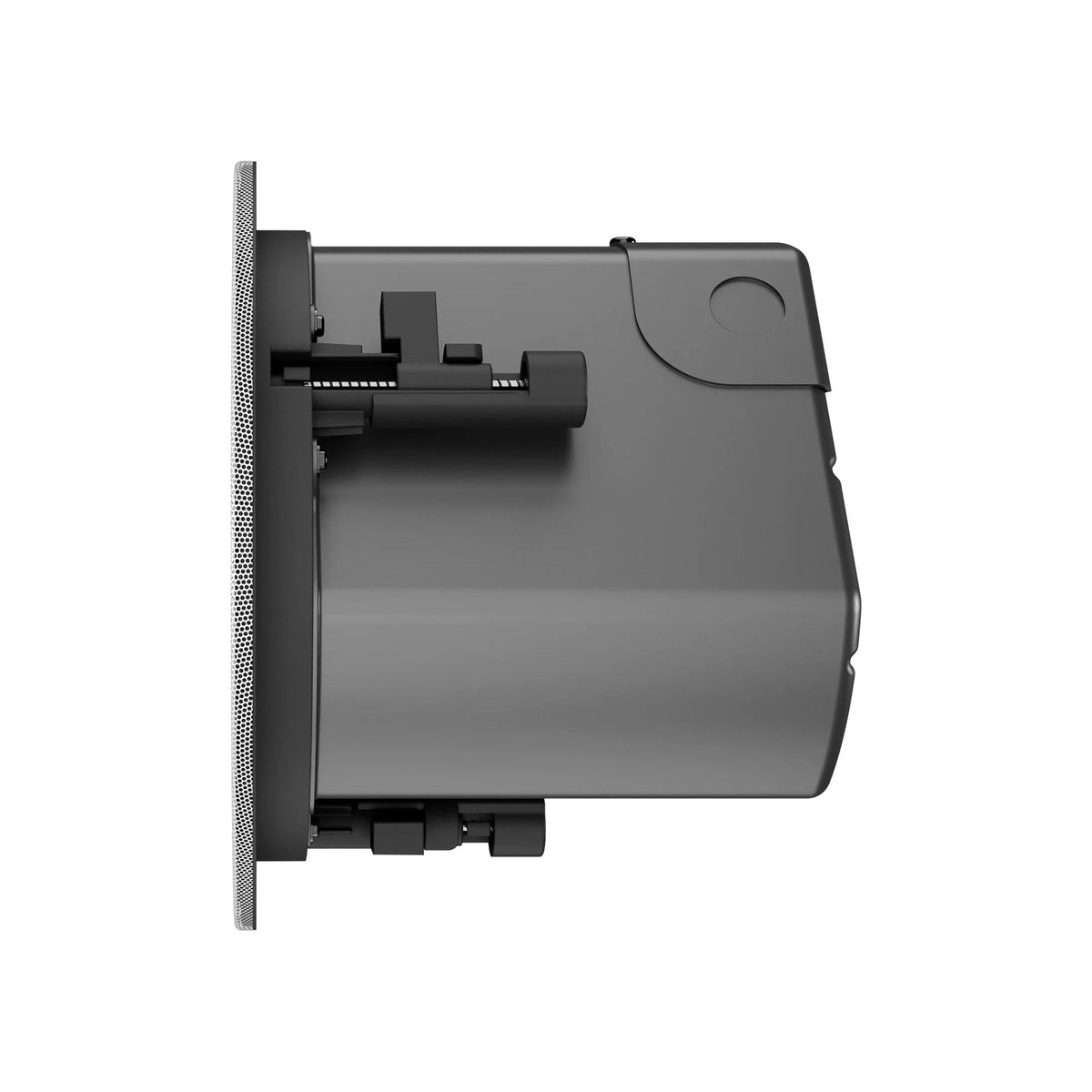

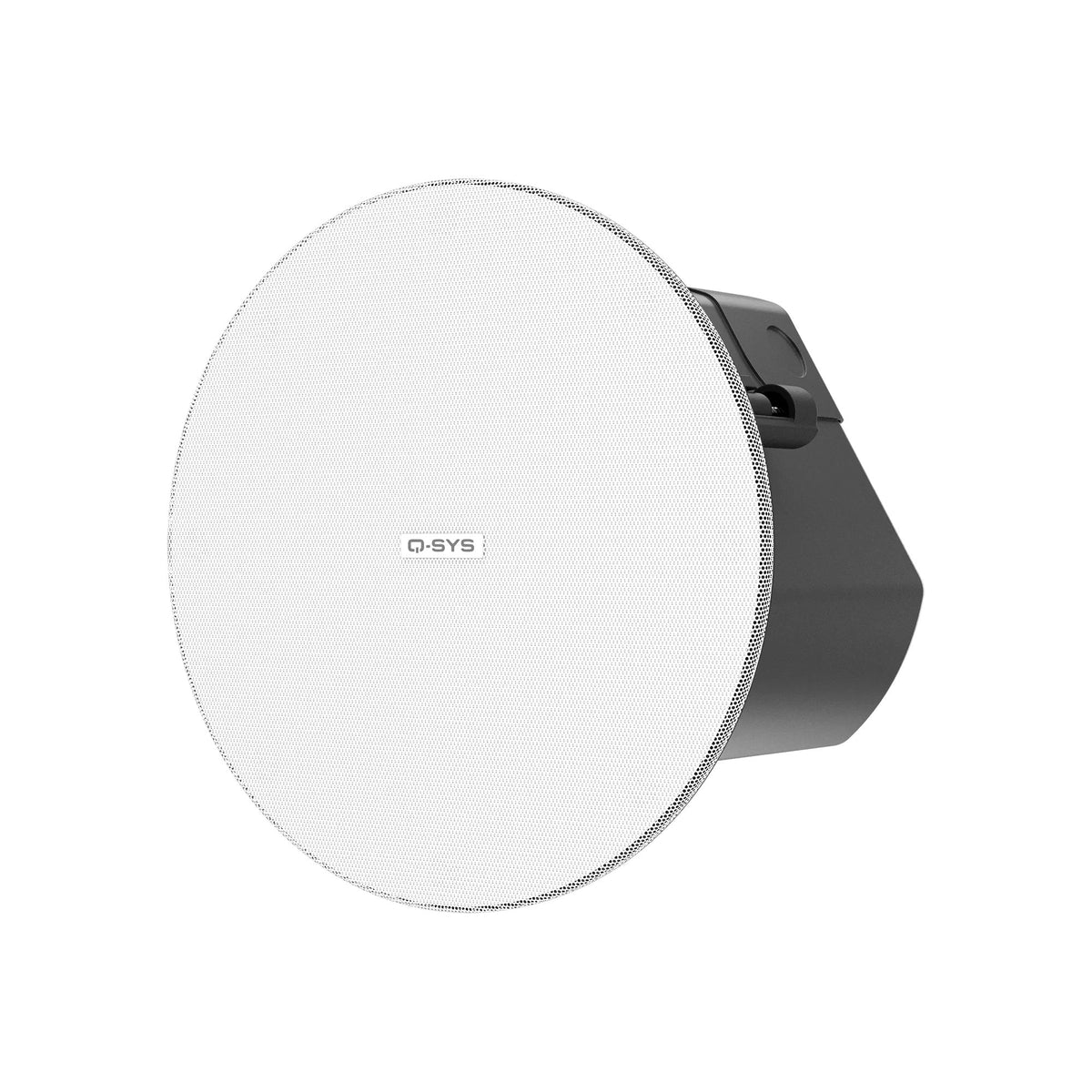

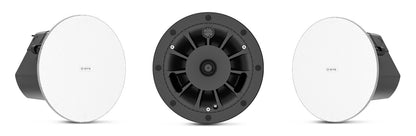

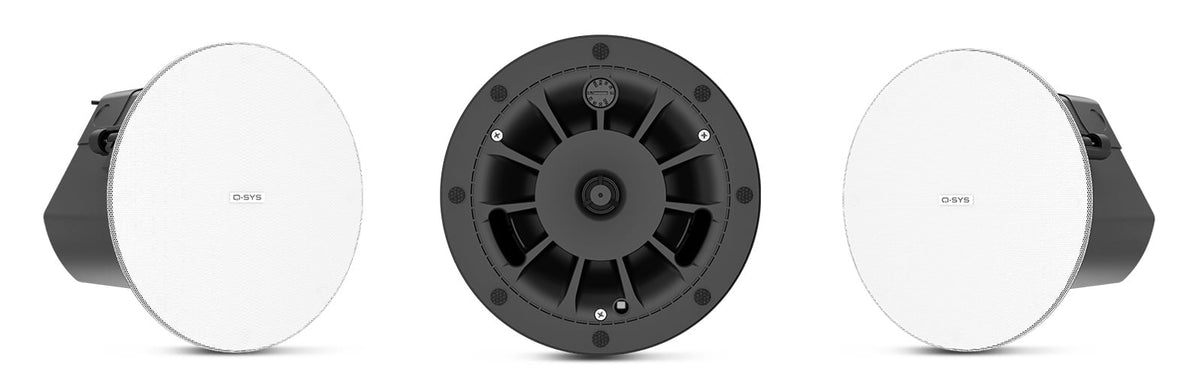

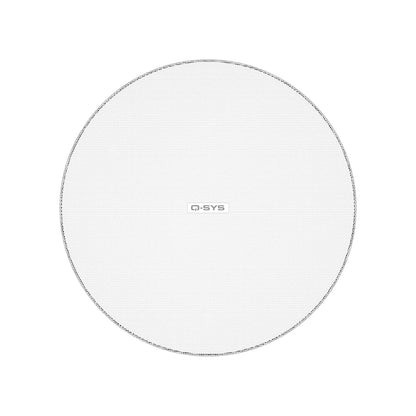

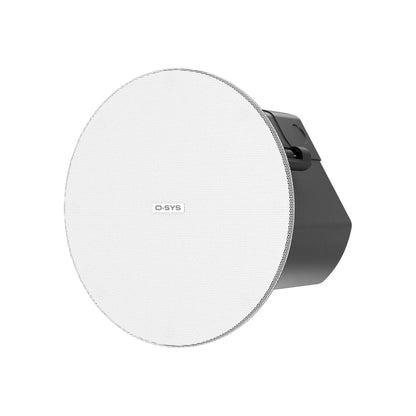

Q-SYS AD-C4T-ZB: AcousticDesign 4.5 inch Two-Way Ceiling Speaker, Zero Bezel, White
Model
:
AD-C4T-ZB
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Q-SYS AD-C4T-ZB at a Glance
- Brand
- Q-SYS
- Model
- AD-C4T-ZB
- Category
- Speakers
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Q-SYS AD-C4T-ZB Overview
The Q-SYS AcousticDesign 4.5" two-way ceiling speaker is engineered for systems integrators and AV designers deploying distributed audio in corporate, hospitality, retail, and institutional environments. Its 150 degrees conical DMT coverage pattern delivers consistent sound pressure across large ceiling grids without the hot spots and roll-off typical of conventional ceiling speakers, reducing the number of speakers required to cover a space effectively. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- Effective frequency range 1: 70 Hz, 20 kHz
- Rated noise power / voltage 2: 30 watts / 22 volts (rms)
- Sensitivity [dB] 3 Sensitivity at 4m, 100V maximum tap: 87.5 TBD
- Rated coverage (-6 dB) 4: 150 degrees conical DMT
- Directivity factor (Q) 4: 4.5
- Directivity index (DI) [dB] 4: 6.5
Technical Specifications:
| Spec | Value |
|---|---|
| Model | AD-C4T-ZB |
| Brand | Q-SYS |
| Effective frequency range 1 | 70 Hz, 20 kHz |
| Rated noise power / voltage 2 | 30 watts / 22 volts (rms) |
| Sensitivity [dB] 3 Sensitivity at 4m, 100V maximum tap | 87.5 TBD |
| Rated coverage (-6 dB) 4 | 150 degrees conical DMT |
| Directivity factor (Q) 4 | 4.5 |
| Directivity index (DI) [dB] 4 | 6.5 |
| Maximum continuous SPL [dB] 5 | 102 |
| Maximum peak SPL [dB] 5 | 108 |
| Nominal impedance [ohms] | 16 |
| Recommended amplifier | 60 watts |
| Transformer taps / impedance | 16 ohm (in bypass setting) 3.75W (70V); 7.5W (100V) Tap: 1333 ohm 7.5W (70V); 15W (100V) Tap: 667 ohm 15W (70V); 30W (100V) Tap: 333 ohm 30W (70V); N/A (100V) Tap: 167 ohm |
| LF transducer | 114 mm [4.5-inch] weather resistant paper cone woofer |
| HF transducer | 19 mm [0.75-inch] aluminum dome tweeter |
| Input connector type | Euroblock connector with parallel output |
| Enclosure material | ABS baffle on powder coated steel back can |
| Grille material | Powder coated steel |
| Ingress protection | IP-34 |
| Operating environment | Designed for indoor use |
| Operating temperature range | -20 to 50 C [-4 to 122 F] |
| Cutout dimension | 195 mm [ 7.7-inch] |
| Net weight | 2.9 kg [6.4 lb] |
| Product dimensions (Diameter x Height) | 230 x 176 mm [ 9.06 x 6.93-inch] |
| Shipping weight | 9.3 kg [20.5 lb] (pair packed) |
| Shipping dimensions (H x W x D) | 279 x 711 x 318 mm [11 x 28 x 12.5-inch] (pair packed) |
| Included accessories | C-ring and tile rails, rail screws, euroblock connector, cut-out template, grille |
| Optional accessories | AD-MR4 (pre-install mud ring) |
| Safety Agency | UL1480, UL2043, NFPA90, NFPA70 suitable for use in air handling spaces. Transformer UL registered per UL1876, ROHS, C-Tick X000, CE compliant. Baffle meets UL94-V0 and UL94-5VB flammability rating; in accordance with IEC60849 / |
Why Buy the Q-SYS AD-C4T-ZB from Trianze Tech?
- Genuine Q-SYS product supplied by Trianze Tech with local UAE support
- Pre-sales help designing the Q-SYS system around the AD-C4T-ZB
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Q-SYS AD-C4T-ZB: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
The Q-SYS AcousticDesign 4.5" two-way ceiling speaker is engineered for systems integrators and AV designers deploying distributed audio in corporate, hospitality, retail, and institutional environments. Its 150 degrees conical DMT coverage pattern delivers consistent sound pressure across large ceiling grids without the hot spots and roll-off typical of conventional ceiling speakers, reducing the number of speakers required to cover a space effectively.
For the Q-SYS AD-C4T-ZB, Q-SYS lists the following. Input connector type: Euroblock connector with parallel output.
For the Q-SYS AD-C4T-ZB, Q-SYS lists the following. Effective frequency range 1: 70 Hz, 20 kHz; Rated noise power / voltage 2: 30 watts / 22 volts (rms); Sensitivity [dB] 3 Sensitivity at 4m, 100V maximum tap: 87.5 TBD; Rated coverage (-6 dB) 4: 150 degrees conical DMT; Maximum continuous SPL [dB] 5: 102.
For the Q-SYS AD-C4T-ZB, Q-SYS lists the following. Rated noise power / voltage 2: 30 watts / 22 volts (rms).
For the Q-SYS AD-C4T-ZB, Q-SYS lists the following. Operating temperature range: -20 to 50 C [-4 to 122 F]; Cutout dimension: 195 mm [ 7.7-inch]; Net weight: 2.9 kg [6.4 lb]; Product dimensions (Diameter x Height): 230 x 176 mm [ 9.06 x 6.93-inch].
Trianze Tech stocks the Q-SYS AD-C4T-ZB in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
