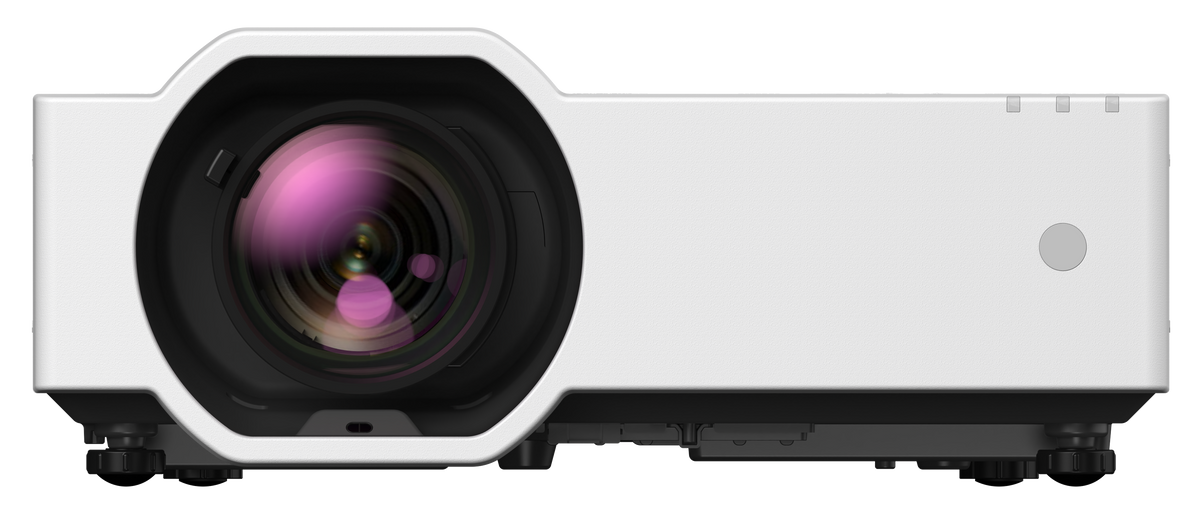

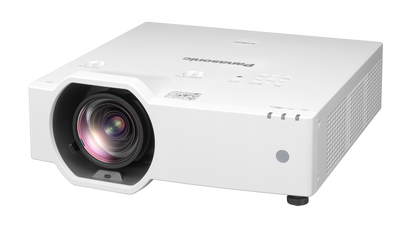

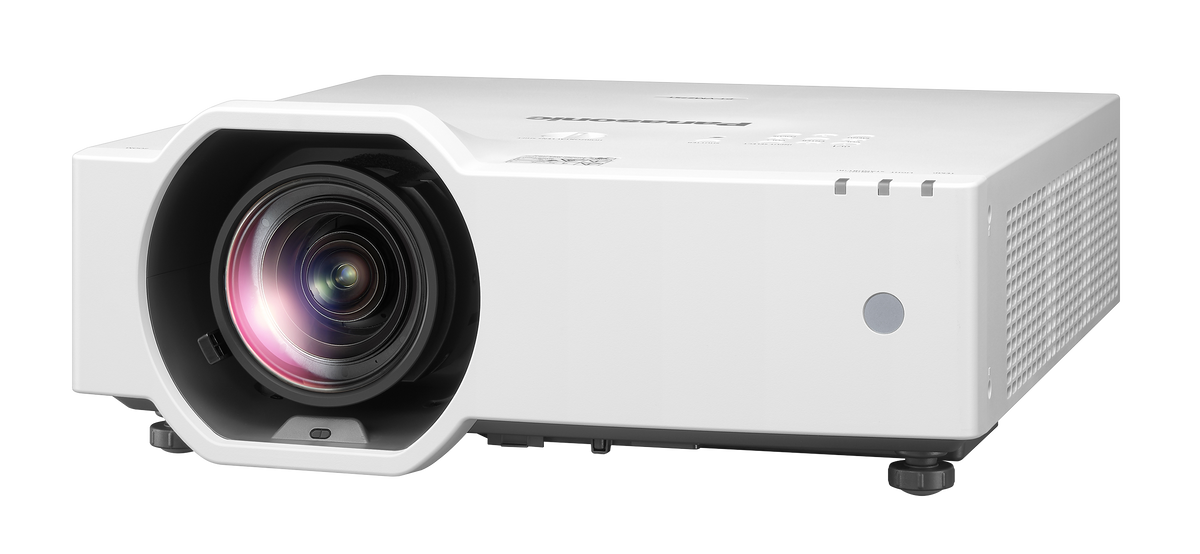

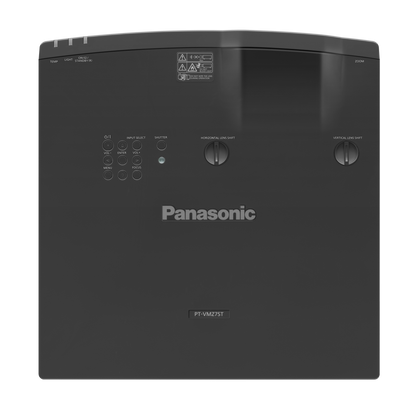

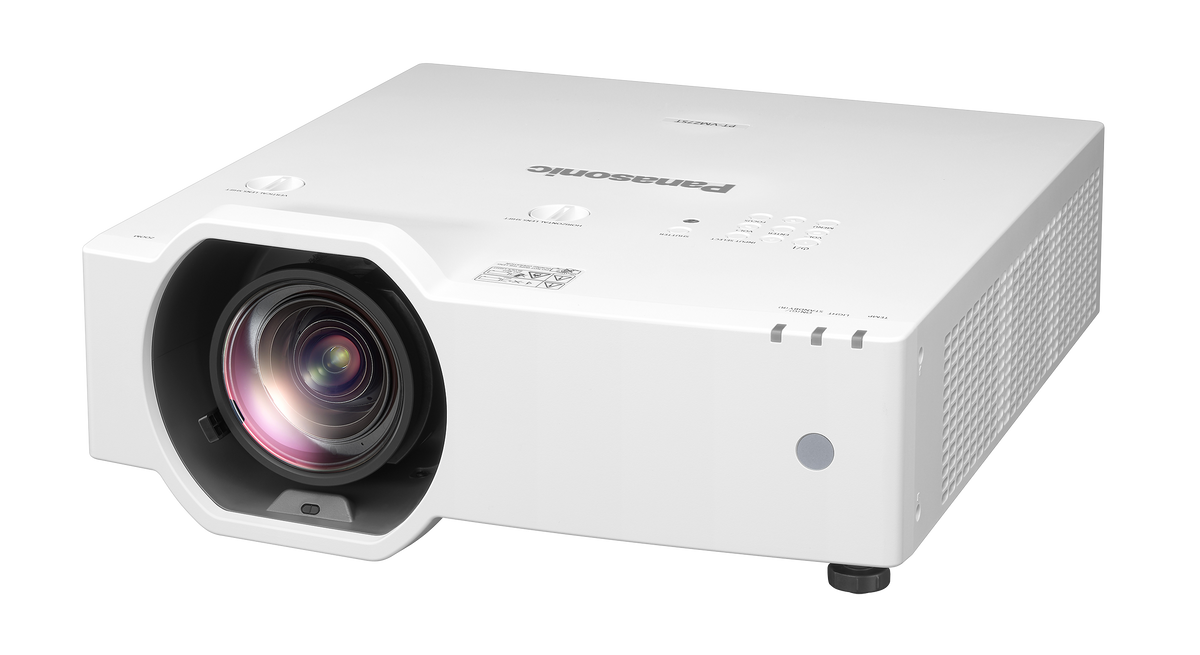

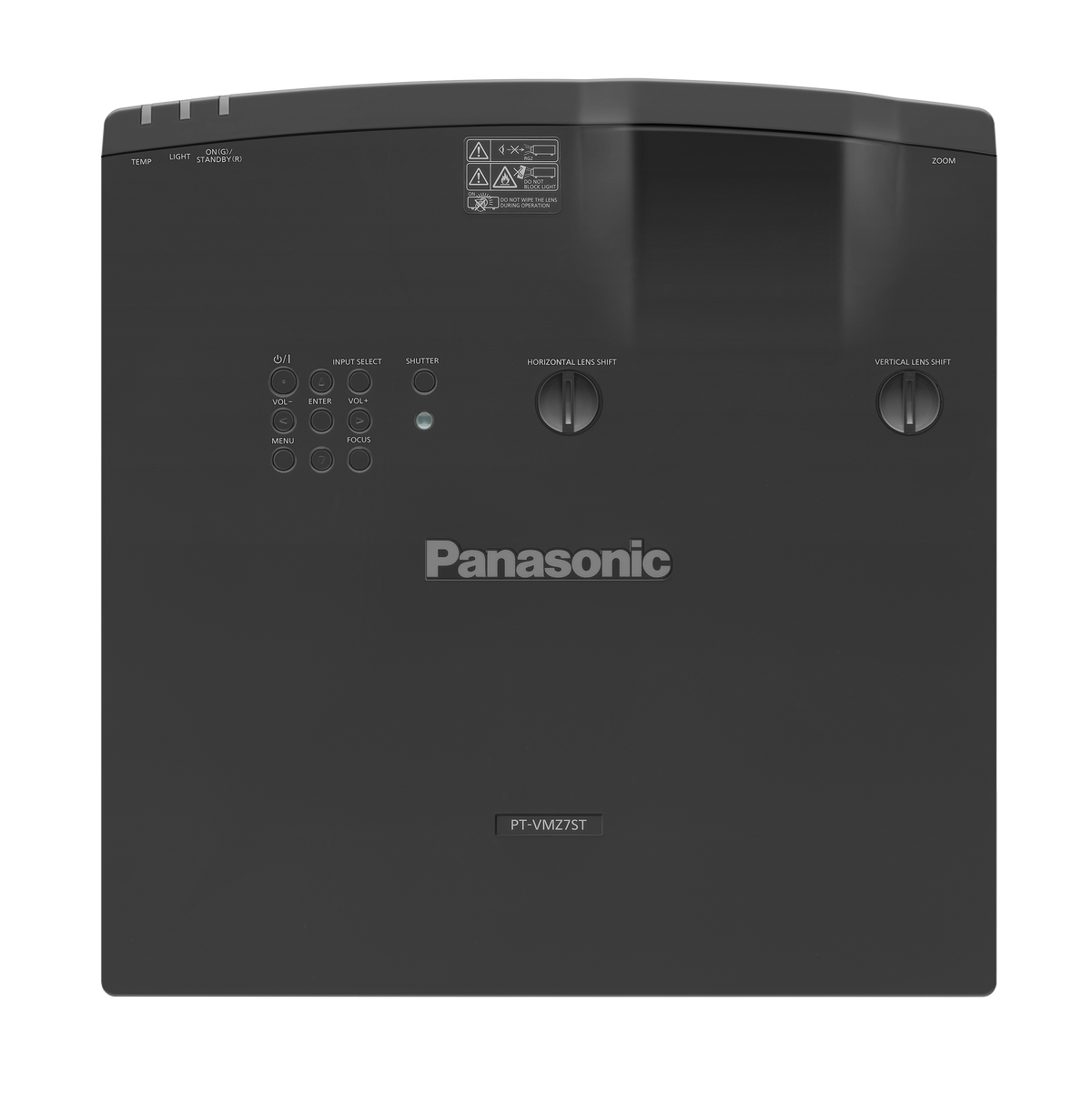

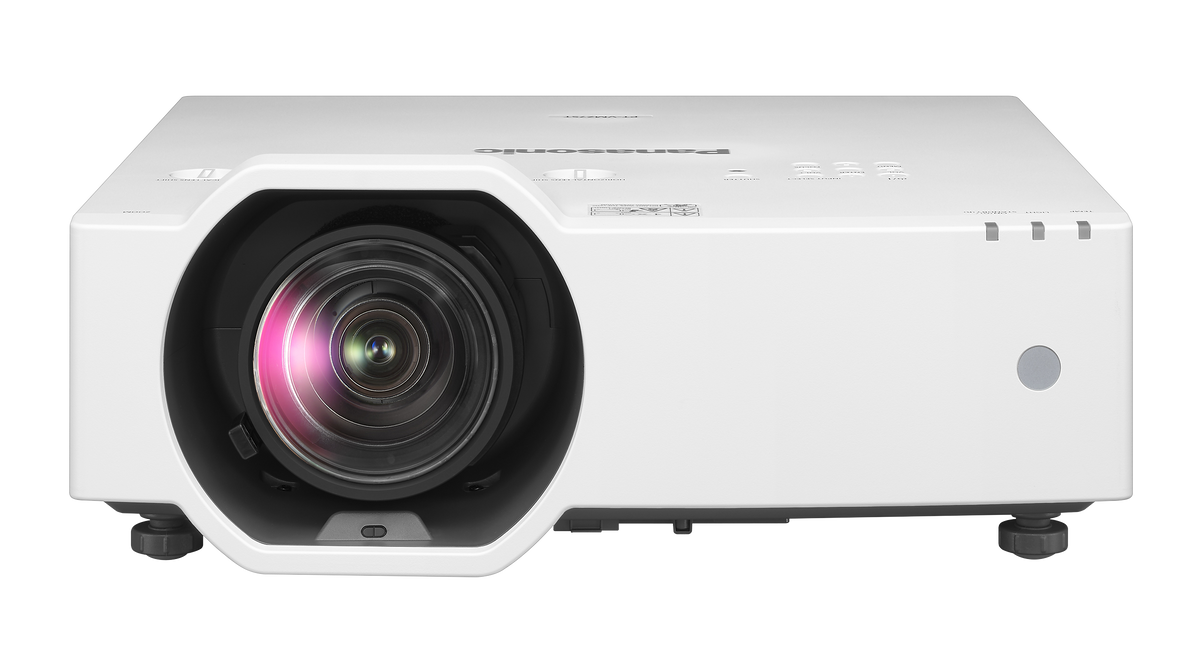

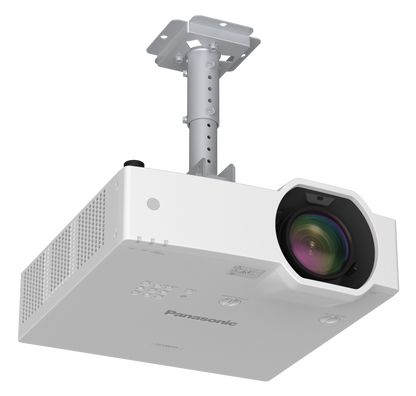

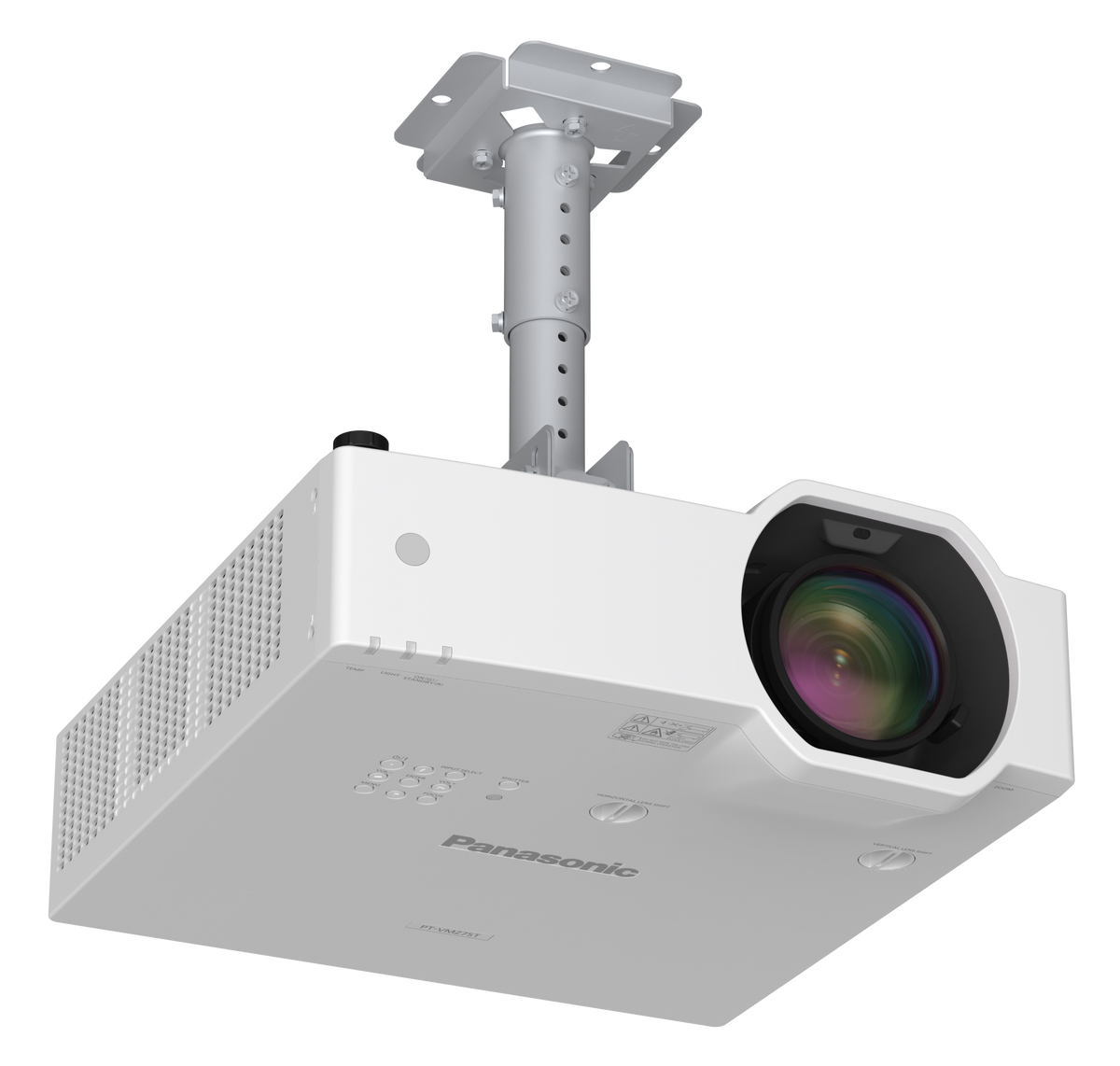

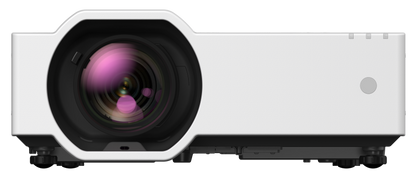

Panasonic PT-VMZ7STBU7: 7,000 Lumen WUXGA Laser LCD Projector with Short Throw Lens, Black
Model
:
PT-VMZ7STBU7
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-VMZ7STBU7 at a Glance
- Brand
- Panasonic
- Model
- PT-VMZ7STBU7
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-VMZ7STBU7 Overview
The Panasonic PT-VMZ7STBU7 is a 7,000 lumen WUXGA laser LCD projector with a supplied short throw lens. This listing is the black model. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 7,000 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: WUXGA (1920 x 1200 pixels)
- Lens: 1.2x manual zoom (throw ratio: 0.797 to 1.01:1), powered focus, F 1.53 to 1.66, f 11.3 to 14.2 mm
- Lens shift: +50 % vertical, +/-20 % horizontal
- Contrast ratio 5,000,000:1 (Full On/Full O)
- Operation noise 37 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-VMZ7STBU7 |
| Type | Laser lcd projector |
| Projector type | LCD projectors |
| Display method | Transparent LCD panel (x 3, R/G/B) |
| Display Device: Panel size | 0.64 inch (16:10 aspect ratio) |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200) pixels x 3 |
| Light source | Laser diodes |
| Light output | 7,000 lmVMZ6ST: 6,200 lm |
| Light output (ANSI) | 7,000 lm (ANSI) |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | WUXGA (1920 x 1200 pixels) |
| Contrast Ratio (typ.) | 5,000,000:1 (Full On/Full O) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 1.77-7.62 m (70-300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio | 85 % |
| Lens | 1.2x manual zoom (throw ratio: 0.797 to 1.01:1), powered focus, F 1.53 to 1.66, f 11.3 to 14.2 mm |
| Digital Zoom Extender | Throw Ratio 0.797 to 1.27:1 (Corresponding value. When used together with optical zoom.) |
| Lens shift: Vertical(from center of screen) | +50 % |
| Lens shift: Horizontal(from center of screen) | +/-20 % |
| Keystone correction range | Vertical +/-25 degrees, Horizontal +/-35 degrees |
| Terminals: HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input), CEC supported |
| Terminals: COMPUTER IN(D-SUB 15pin) | D-sub 15-pin (female) (RGB/YPBPR/YCBCR) |
| Terminals: AUDIO IN(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals: AUDIO OUT(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals: DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2], HDCP, Deep Color, 4K/30p signal input) |
| Terminals: LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink [Class 2] |
| Terminals: USB TYPE A | USB Connector Type A x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A) |
| Protocol versions | IPv4, IPv6 |
| Power supply | AC 100 to 240 V, 50/60 Hz |
| Maximum power consumption | 345 W (3.6 A) (350 VA) (Power consumption is 335 W at 200 to 240 V) |
| On-mode power consumption(Operating mode): Normal | 310 W (100 to 240 V), 295 W (200 to 240 V) [NORMAL] |
| On-mode power consumption(Operating mode): Eco | 235 W (100 to 240 V), 225 W (200 to 240 V) [ECO] |
| On-mode power consumption(Operating mode): Quiet | 270 W (100 to 240 V), 260 W (200 to 240 V) [QUIET1]230 W (100 to 240 V), 220 W (200 to 240 V) [QUIET2] |
| Built-in speaker | 10 W monaural |
Why Buy the Panasonic PT-VMZ7STBU7 from Trianze Tech?
- Genuine Panasonic Laser LCD projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-VMZ7STBU7
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-VMZ7STBU7: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-VMZ7STBU7, Panasonic lists the following. Light output: 7,000 lmVMZ6ST: 6,200 lm; Light output (ANSI): 7,000 lm (ANSI); Resolution: WUXGA (1920 x 1200 pixels); Contrast ratio: 5,000,000:1 (Full On/Full O) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].).
For the Panasonic PT-VMZ7STBU7, Panasonic lists the following. Lens: 1.2x manual zoom (throw ratio: 0.797 to 1.01:1), powered focus, F 1.53 to 1.66, f 11.3 to 14.2 mm; Screen size: 1.77-7.62 m (70-300 in), 16:10 aspect ratio; Lens shift vertical: +50 %; Keystone: Vertical +/-25 degrees, Horizontal +/-35 degrees.
For the Panasonic PT-VMZ7STBU7, Panasonic lists the following. HDMI IN: HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input), CEC supported; COMPUTER IN(D-SUB 15pin): D-sub 15-pin (female) (RGB/YPBPR/YCBCR); AUDIO IN(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; AUDIO OUT(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; SERIAL IN: D-sub 9-pin (female) x 1 for computer control (RS-232C compliant); DIGITAL LINK IN / LAN: RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX.
For the Panasonic PT-VMZ7STBU7, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 37 dB [NORMAL].
For the Panasonic PT-VMZ7STBU7, Panasonic lists the following. Dimensions: Approx.414 x 120 x 424 mm (16 5/16" x 4 23/32" x 16 11/16") (not including protruding parts)Approx. 414 x 167 x 424 mm (16 5/16" x 6 9/16" x 16 11/16"); Weight: Approx. 8.4 kg (18.52 lbs); Power supply: AC 100 to 240 V, 50/60 Hz; Maximum power consumption: 345 W (3.6 A) (350 VA) (Power consumption is 335 W at 200 to 240 V).
Trianze Tech stocks the Panasonic PT-VMZ7STBU7 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
