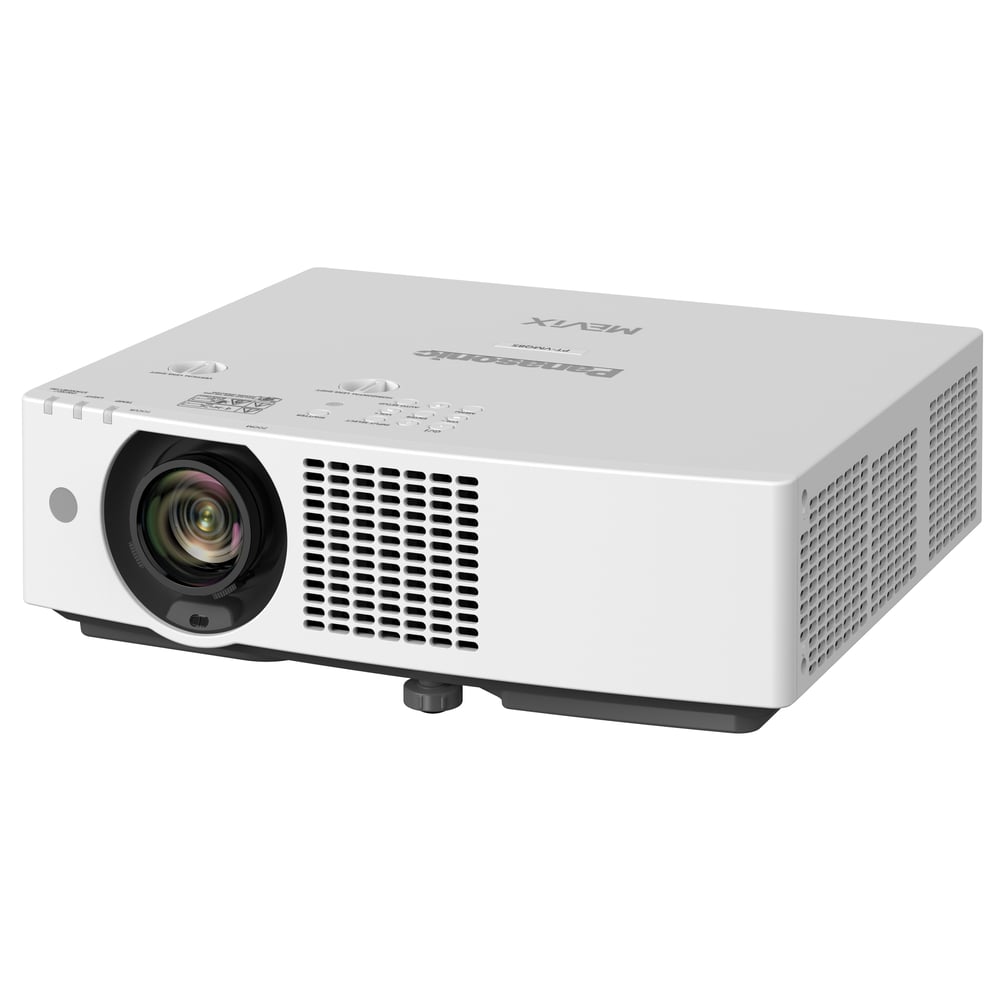

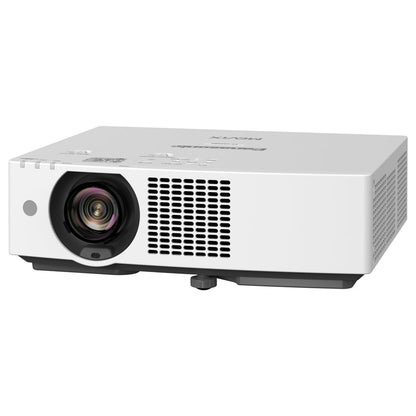

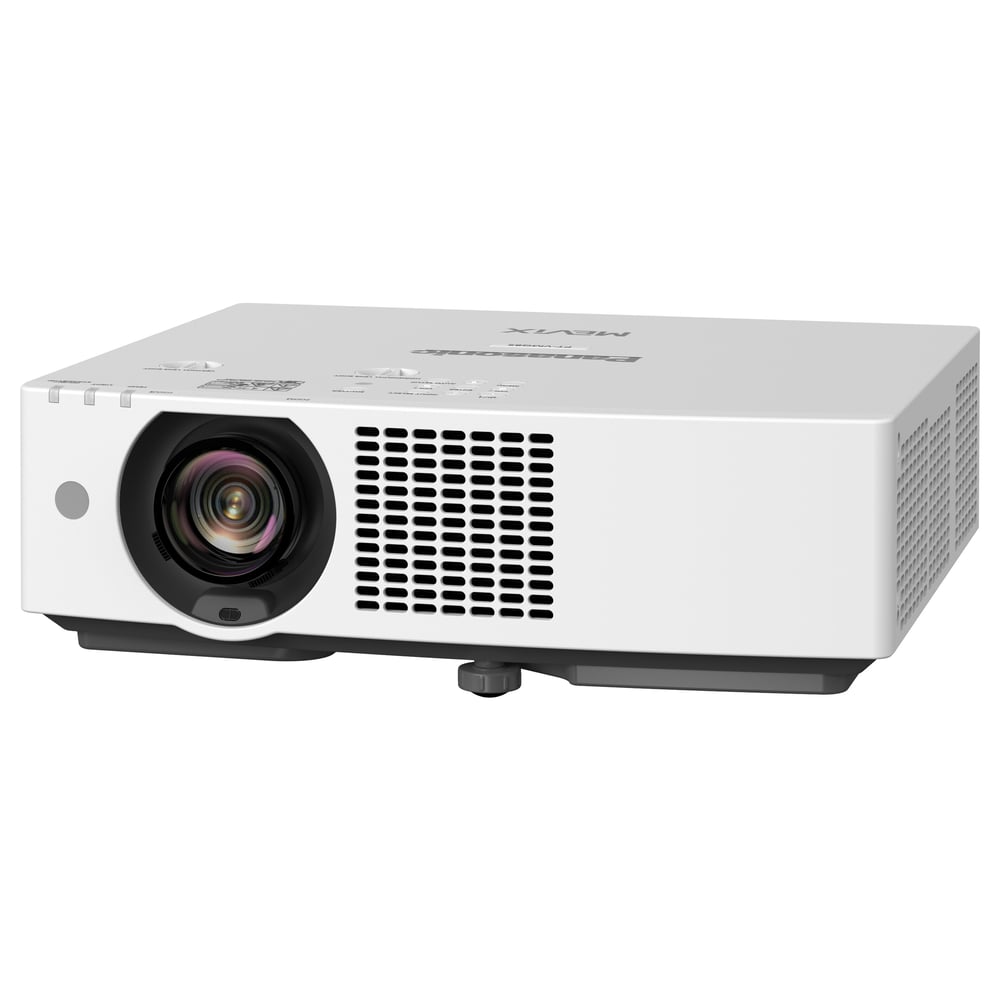

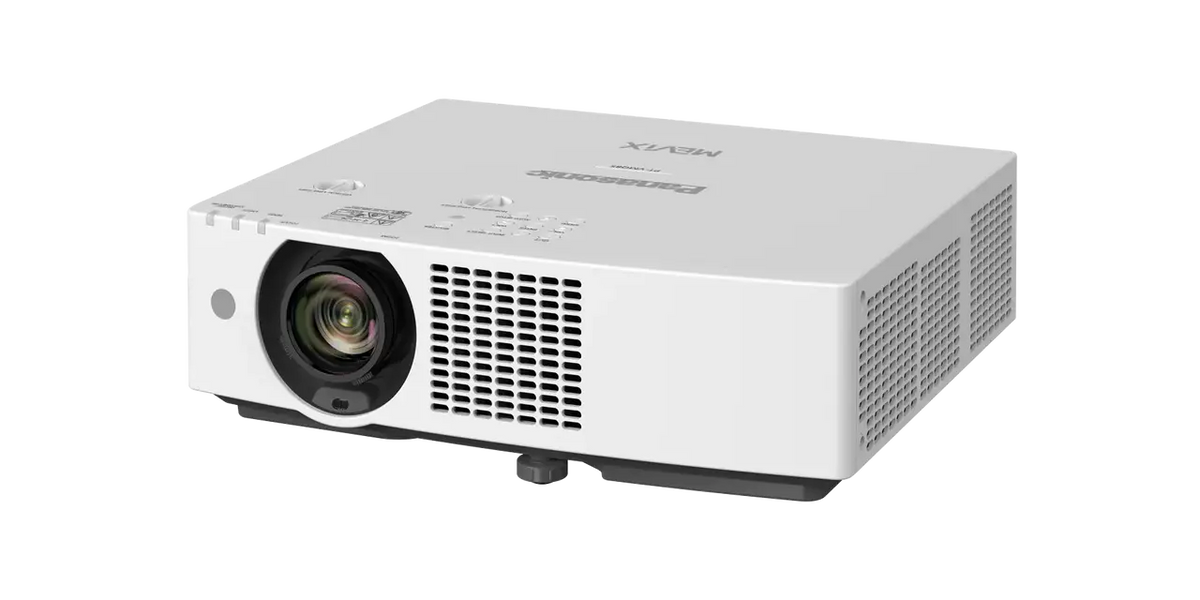

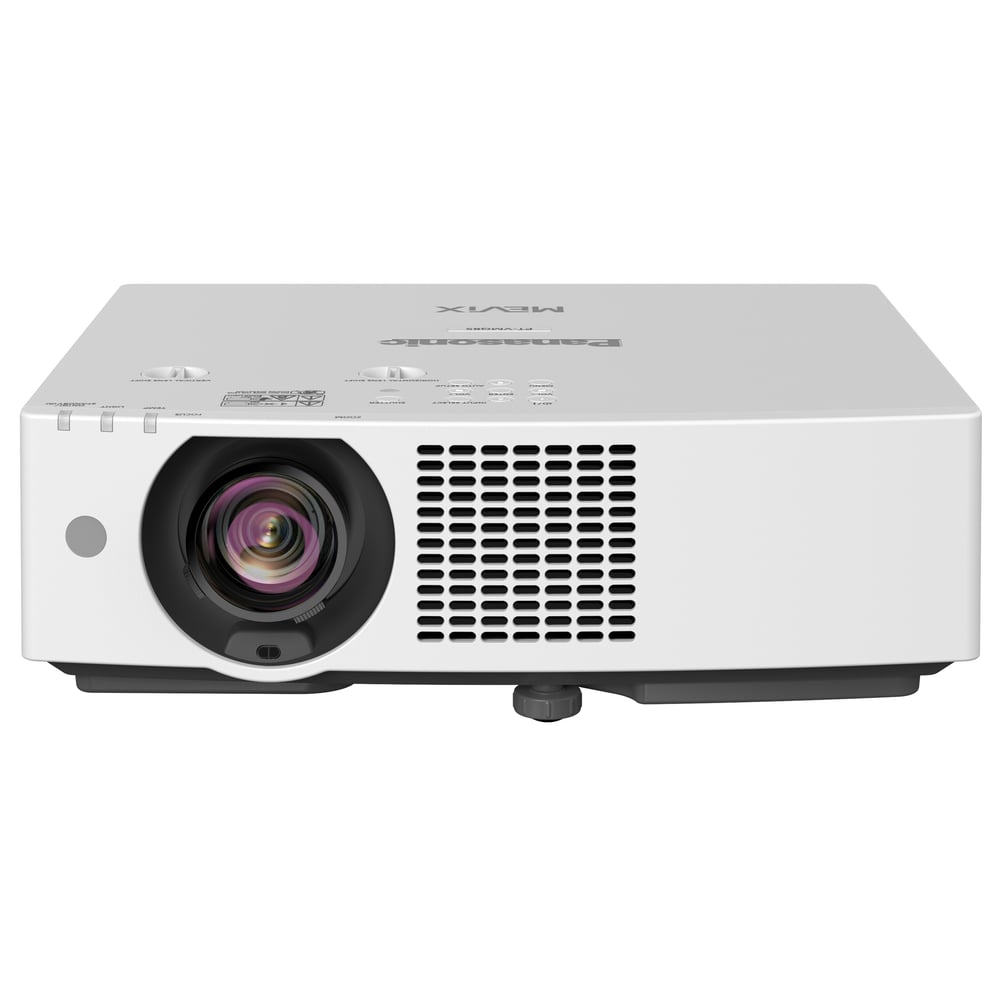

Panasonic PT-VMQ75U: 7,300 Lumen 4K Laser LCD Projector with Standard Throw Lens, White
Brand
:Panasonic
Model
:
PT-VMQ75U
Genuine Products
Original Brand Warranty
Product Training
Installation, Maintenance & Support
Panasonic PT-VMQ75U at a Glance
- Brand
- Panasonic
- Model
- PT-VMQ75U
- Category
- Projectors
- Solution
- Boardroom AV
- Supply
- Dubai, Abu Dhabi and across the UAE
- Pricing
- Quoted per project
Applications & Use Cases
Panasonic PT-VMQ75U Overview
The Panasonic PT-VMQ75U is a 7,300 lumen 4K laser LCD projector with a supplied standard throw lens. This listing is the white model. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.
Key Features:
- 7,300 lumens of brightness (laser light source rated up to 20,000 hours)
- Resolution: 4K (3840 x 2400 pixels)
- Lens: 1.6x manual zoom (throw ratio: 1.09 to 1.77:1), manual focus lens, F=1.58 to 1.91, f=15.30 to 24.60 mm
- Lens shift: +44 % vertical, +/-20 % horizontal
- Contrast ratio 5,000,000:1 (Full On/Full Off)
- Operation noise 37 dB [NORMAL]
Technical Specifications:
| Spec | Value |
|---|---|
| Model | PT-VMQ75U |
| Type | Laser lcd projector |
| Projector type | LCD projectors |
| Display Device: Panel size | 0.64 inch (16:10 aspect ratio) |
| Display Device: Number of pixels | 2,304,000 (1920 x 1200) pixels |
| Light source | Laser diodes |
| Light output | 7,300 lm |
| Light output (ANSI) | 7,300 lm |
| Light output (Center) | 7,600 lm |
| Time until light output declines to 50 %: NORMAL | 20,000 hours [NORMAL] |
| Time until light output declines to 50 %: ECO | 24,000 hours [ECO] |
| Time until light output declines to 50 %: QUIET | 20,000 hours [QUIET] |
| Resolution | 4K (3840 x 2400 pixels) |
| Contrast Ratio (typ.) | 5,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen size (diagonal) | 0.76 to 7.62 m (30 to 300 in), 16:10 aspect ratio |
| Center-to-corner zone ratio | 85% |
| Lens | 1.6x manual zoom (throw ratio: 1.09 to 1.77:1), manual focus lens, F=1.58 to 1.91, f=15.30 to 24.60 mm |
| Digital Zoom Extender | Throw ratio 1.09 to 2.21:1 (Corresponding value. When used together with optical zoom.) |
| Lens shift: Vertical(from center of screen) | +44 % |
| Lens shift: Horizontal(from center of screen) | +/-20 % |
| Keystone correction range | Vertical +/-25 degrees, Horizontal +/-35 degrees |
| Terminals: HDMI IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/60p signal input), CEC supported |
| Terminals: HDMI OUT | HDMITMx 1, CEC not supported |
| Terminals: AUDIO IN(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals: AUDIO OUT(M3 Stereo Mini Jack) | M3 stereo mini-jack x 1 |
| Terminals: SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals: DIGITAL LINK IN / LAN | RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX (Compatible with PJLink [Class 2],HDCP, Deep Color, 4K/60p signal input) |
| Terminals: LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink [Class 2] |
| Terminals: USB TYPE A | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A) |
| Protocol versions | IPv4, IPv6 |
| Power supply | Single-phase AC 100 to 240 V, 50/60 Hz |
| Maximum power consumption | 350 W (3.6 to 1.5 A) (355 VA)(Power consumption is 335 W at 200 to 240 V) |
| On-mode power consumption(Operating mode): Normal | 315 W (100 to 120 V), 300 W (200 to 240 V) [NORMAL] |
| On-mode power consumption(Operating mode): Eco | 240 W (100 to 120 V), 230 W (200 to 240 V) [ECO] |
| On-mode power consumption(Operating mode): Quiet | 275 W (100 to 120 V), 265 W (200 to 240 V) [QUIET1]235 W (100 to 120 V), 225 W (200 to 240 V) [QUIET2] |
| Filter | Included |
Why Buy the Panasonic PT-VMQ75U from Trianze Tech?
- Genuine Panasonic Laser LCD projector supplied by Trianze Tech with local UAE support
- Pre-sales help choosing the right accessories and installation for the PT-VMQ75U
- Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
- Installation advice for meeting rooms, classrooms and venues
What's Included and Support
Frequently asked
Panasonic PT-VMQ75U: Frequently Asked Questions
If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-VMQ75U, Panasonic lists the following. Light output: 7,300 lm; Light output (ANSI): 7,300 lm; Resolution: 4K (3840 x 2400 pixels); Contrast ratio: 5,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].).
For the Panasonic PT-VMQ75U, Panasonic lists the following. Lens: 1.6x manual zoom (throw ratio: 1.09 to 1.77:1), manual focus lens, F=1.58 to 1.91, f=15.30 to 24.60 mm; Screen size: 0.76 to 7.62 m (30 to 300 in), 16:10 aspect ratio; Lens shift vertical: +44 %; Keystone: Vertical +/-25 degrees, Horizontal +/-35 degrees.
For the Panasonic PT-VMQ75U, Panasonic lists the following. HDMI IN: HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/60p signal input), CEC supported; HDMI OUT: HDMITMx 1, CEC not supported; AUDIO IN(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; AUDIO OUT(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; SERIAL IN: D-sub 9-pin (female) x 1 for computer control (RS-232C compliant); DIGITAL LINK IN / LAN: RJ-45 x 1 for network and DIGITAL LINK connection (video/network/serial control) (HDBaseT compliant), 100Base-TX.
For the Panasonic PT-VMQ75U, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 37 dB [NORMAL].
For the Panasonic PT-VMQ75U, Panasonic lists the following. Dimensions: Approx. 399 x 115 x 348 mm (15 23/32" x 4 17/32" x 13 11/16") (Excluding protruding parts)Approx. 399 x 133 x 348 mm (15 23/32" x 5 1/4" x 13 11/16"); Weight: Approx. 7.0 kg (15.4 lbs); Power supply: Single-phase AC 100 to 240 V, 50/60 Hz; Maximum power consumption: 350 W (3.6 to 1.5 A) (355 VA)(Power consumption is 335 W at 200 to 240 V).
Trianze Tech stocks the Panasonic PT-VMQ75U in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
