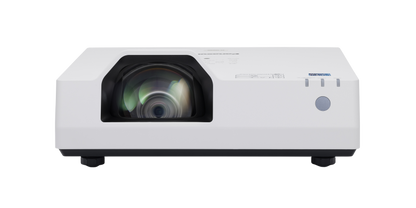

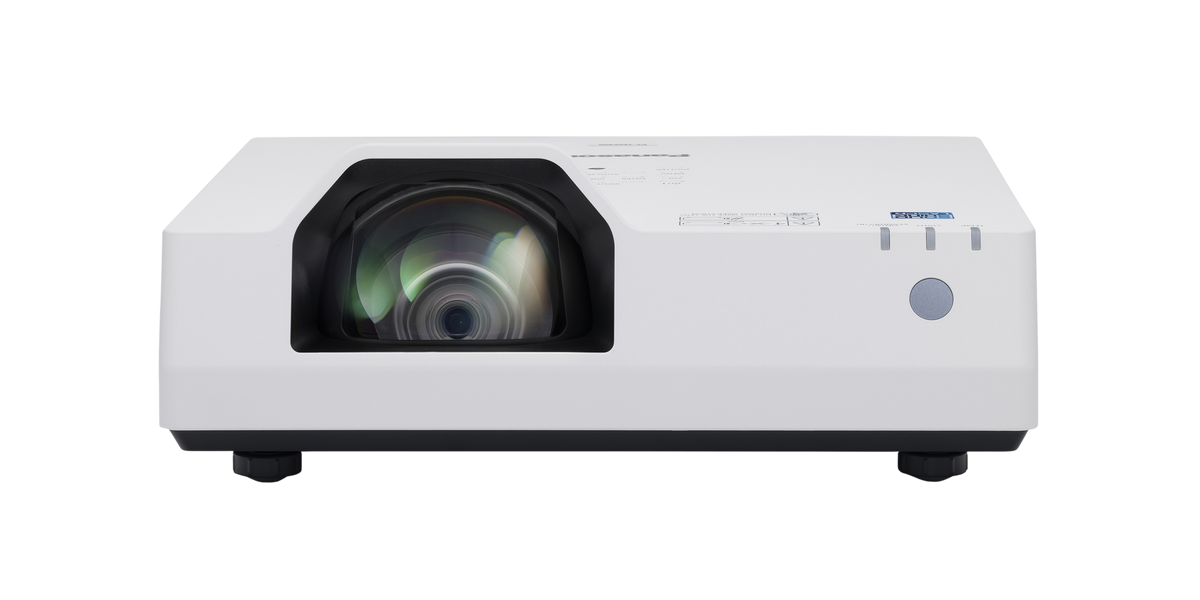

  • Panasonic PT-TMZ400: 4,000 Lumen WUXGA Laser LCD Projector with Short Throw Lens

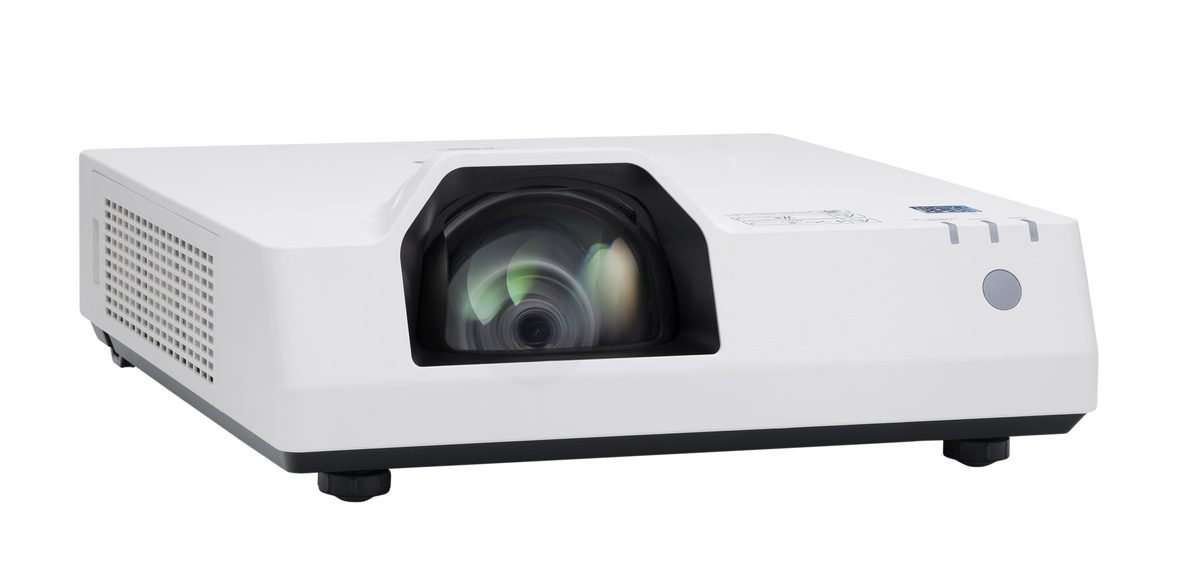

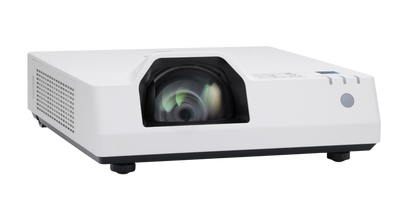

  • Panasonic PT-TMZ400: 4,000 Lumen WUXGA Laser LCD Projector with Short Throw Lens, view 2

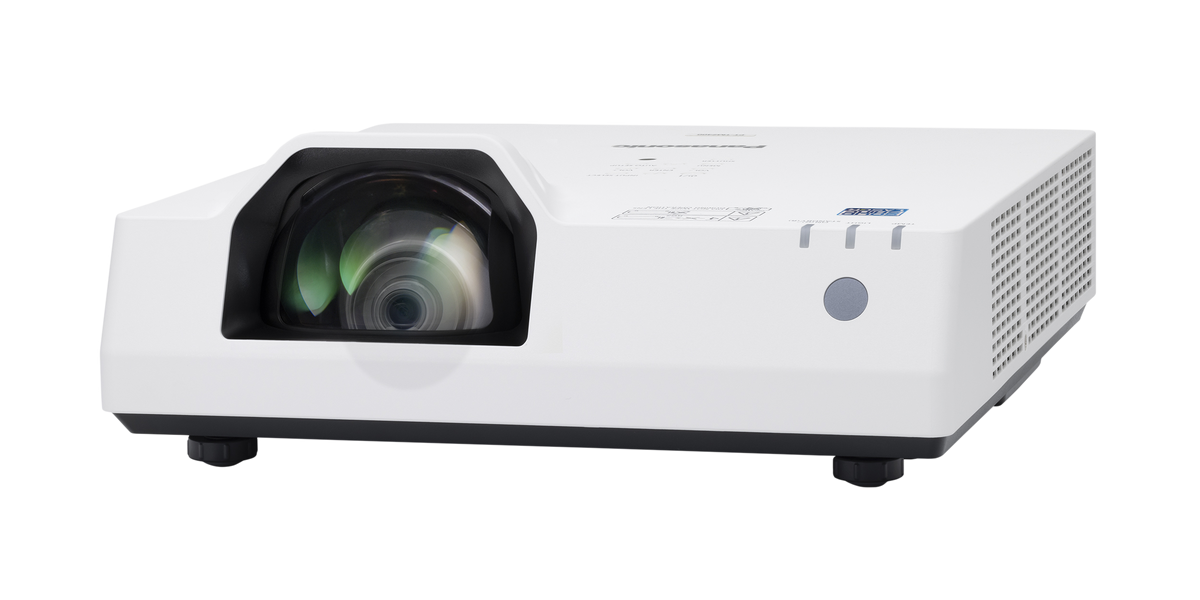

  • Panasonic PT-TMZ400: 4,000 Lumen WUXGA Laser LCD Projector with Short Throw Lens, view 3

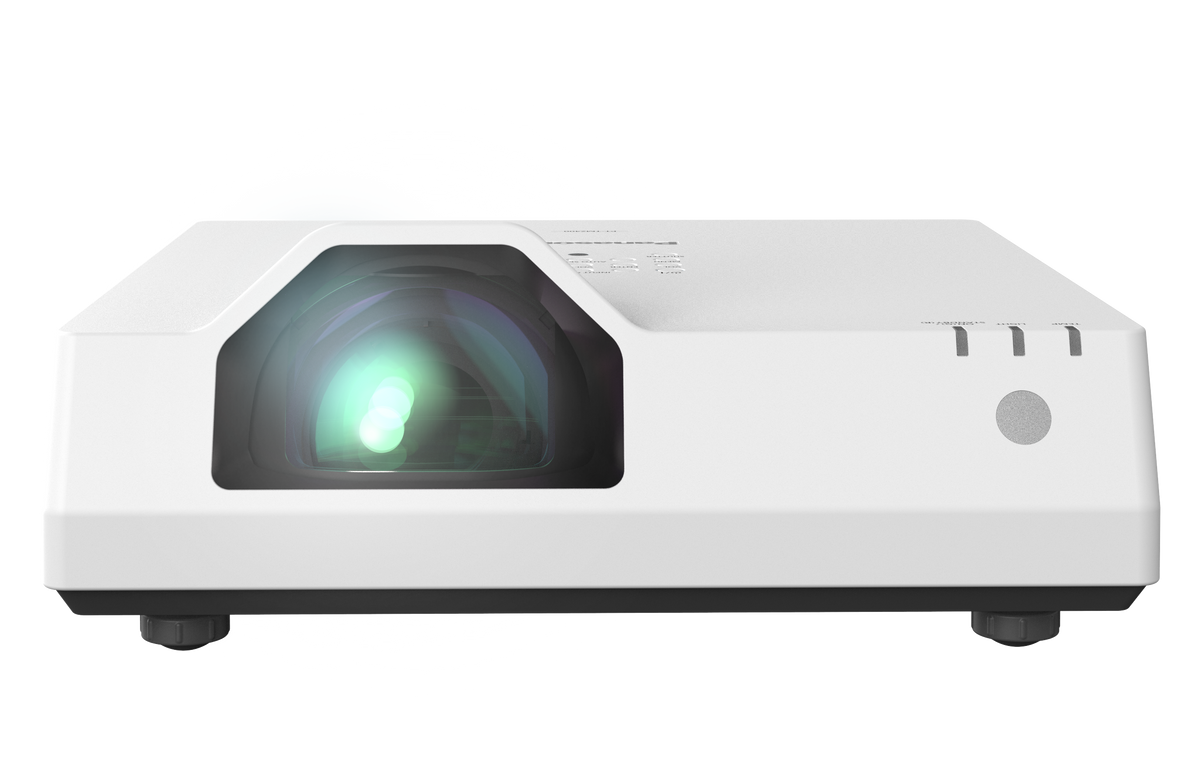

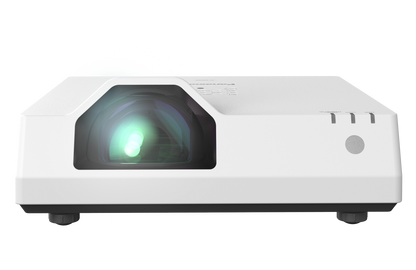

  • Panasonic PT-TMZ400: 4,000 Lumen WUXGA Laser LCD Projector with Short Throw Lens, view 4

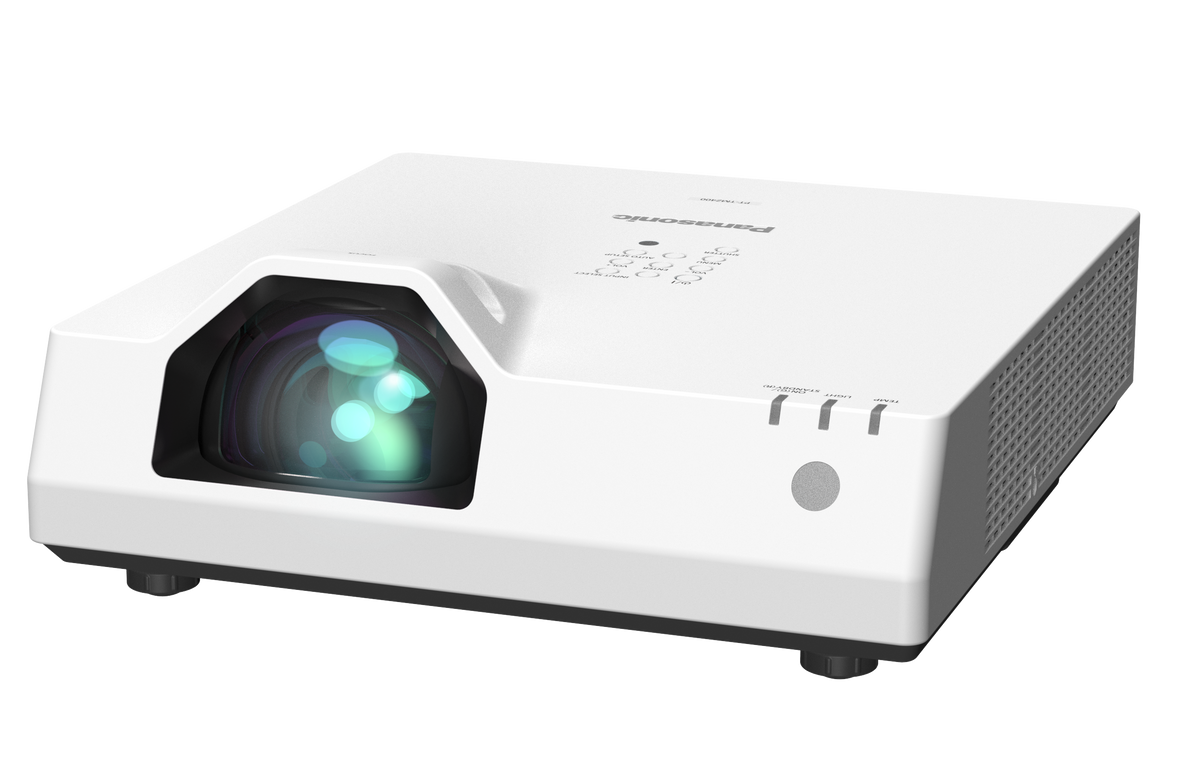

  • Panasonic PT-TMZ400: 4,000 Lumen WUXGA Laser LCD Projector with Short Throw Lens, view 5

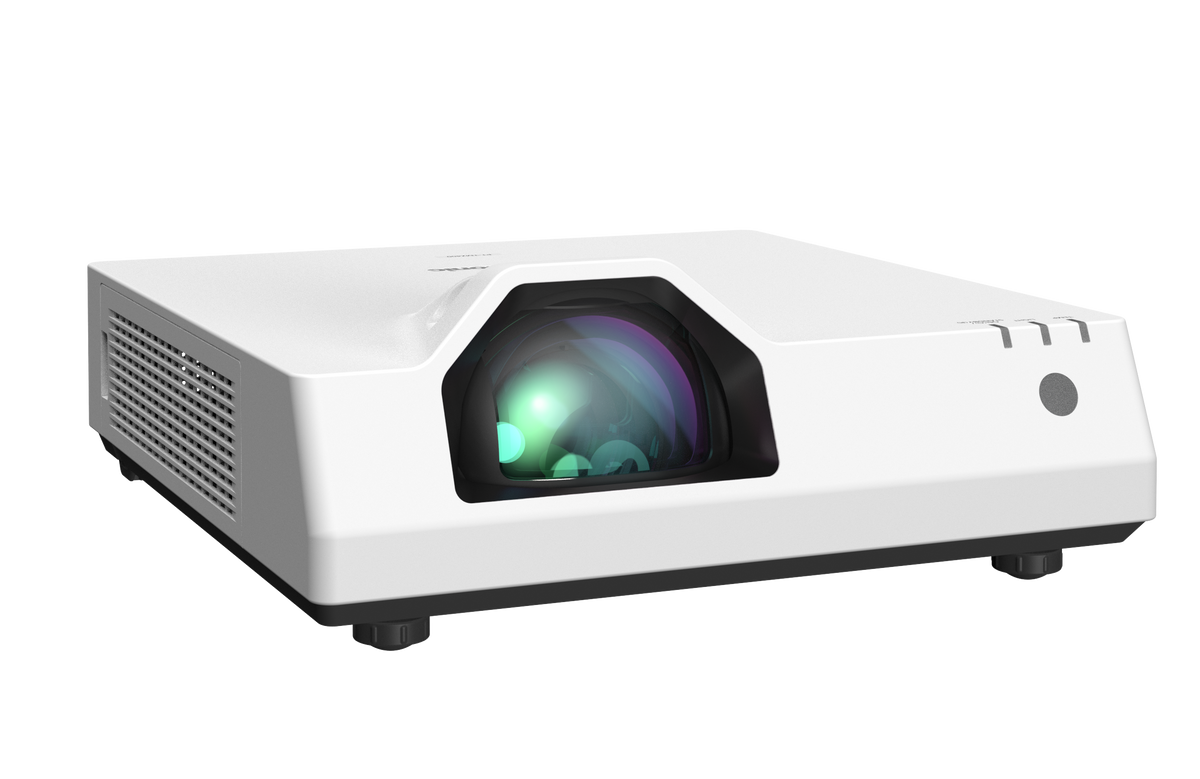

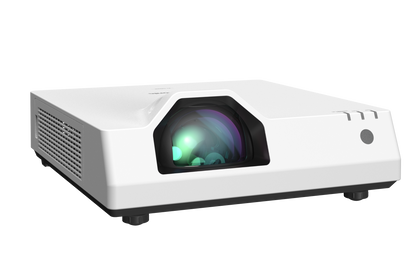

  • Panasonic PT-TMZ400: 4,000 Lumen WUXGA Laser LCD Projector with Short Throw Lens, view 6
1 6

Panasonic PT-TMZ400: 4,000 Lumen WUXGA Laser LCD Projector with Short Throw Lens

  • 4,000 lumens, WUXGA resolution
  • Laser light source up to 20,000 hours
  • Short Throw lens, throw ratio 0.43:1
  • Weight 4.9 kg
Brand :Panasonic
Model : PT-TMZ400

Part of Our Solution Boardroom AV
View full details
Genuine Products

Genuine Products

Original Brand Warranty

Original Brand Warranty

Product Training

Product Training

Installation, Maintenance & Support

Installation, Maintenance & Support

Request a Quote

Panasonic PT-TMZ400 at a Glance

Model
PT-TMZ400
Category
Projectors
Solution
Boardroom AV
Supply
Dubai, Abu Dhabi and across the UAE
Pricing
Quoted per project

Applications & Use Cases

  • Meeting rooms, boardrooms and classrooms
  • Lecture halls and training centres
  • Digital signage and large format projection
  • Fixed installations in venues and showrooms

Panasonic PT-TMZ400 Overview

The Panasonic PT-TMZ400 is a 4,000 lumen WUXGA laser LCD projector with a supplied short throw lens. Supplied by Trianze Tech to projects in Dubai, Abu Dhabi and across the UAE and GCC.

Key Features:

  • 4,000 lumens of brightness (laser light source rated up to 20,000 hours)
  • Resolution: WUXGA (1920 x 1200 pixels)
  • Lens: Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image)
  • Contrast ratio 3,000,000:1 (Full On/Full Off)
  • Operation noise 35 dB [NORMAL]
  • Installation: Ceiling/floor, front/rear, free 360-degree installation

Technical Specifications:

Spec Value
Model PT-TMZ400
Type Laser lcd projector
Projector type LCD projectors
Display method Transparent LCD panel (x 3, R/G/B)
Display Device: Panel size 16.3 mm (0.64 in) diagonal (16:10 aspect ratio)
Display Device: Drive method Active matrix method
Display Device: Number of pixels 2,304,000 (1920 x 1200) pixels
Light source Laser diodes
Light output 4,000 lm
Light output (ANSI) 4,000 lm
Time until light output declines to 50 %: NORMAL 20,000 hours [NORMAL]
Time until light output declines to 50 %: ECO 24,000 hours [ECO]
Time until light output declines to 50 %: QUIET 20,000 hours [QUIET]
Resolution WUXGA (1920 x 1200 pixels)
Contrast Ratio (typ.) 3,000,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].)
Screen size (diagonal) 1.27 to 2.67 m (50 to 105 in), 16:10 aspect ratio
Center-to-corner zone ratio 85%
Lens Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image)
Digital Zoom Extender Throw ratio: 0.43 to 0.54:1 (Corresponding value)
Keystone correction range Vertical: +/-15 degrees (Auto, Manual),Horizontal: +/-15 degrees (Manual)
Installation Ceiling/floor, front/rear, free 360-degree installation
Terminals: HDMI IN HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported
Terminals: COMPUTER IN(D-SUB 15pin) D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
Terminals: AUDIO IN(M3 Stereo Mini Jack) M3 stereo mini-jack x 2
Terminals: AUDIO OUT(M3 Stereo Mini Jack) M3 stereo mini-jack x 1
Terminals: SERIAL IN D-sub 9-pin (female) x 1 for computer control (RS-232C compliant)
Terminals: LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX
Terminals: USB TYPE A USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module,power supply (DC 5 V, maximum 2 A)
Protocol versions IPv4, IPv6
Power supply AC 100 V, 240 V, 50/60 Hz
Maximum power consumption 240 W
On-mode power consumption(Operating mode): Normal [NORMAL]215 W (100 to 240 V), 205 W (200 to 240 V)
On-mode power consumption(Operating mode): Eco [ECO]165 W (100 to 240 V), 160 W (200 to 240 V)
On-mode power consumption(Operating mode): Quiet [QUIET]160 W (100 to 240 V), 155 W (200 to 240 V)
Built-in speaker 10 W monaural
Cabinet materials Molded plastic

Why Buy the Panasonic PT-TMZ400 from Trianze Tech?

  • Genuine Panasonic Laser LCD projector supplied by Trianze Tech with local UAE support
  • Pre-sales help choosing the right accessories and installation for the PT-TMZ400
  • Fast delivery across Dubai, Abu Dhabi, the wider UAE and the GCC
  • Installation advice for meeting rooms, classrooms and venues

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

What's Included and Support

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Package Contents

  • Panasonic PT-TMZ400
  • Package contents and the supplied lens are confirmed by Trianze Tech at order

Warranty

  • Manufacturer warranty from Panasonic applies; the term for the PT-TMZ400 is confirmed at order
  • Trianze Tech supports UAE installations and can advise on claims

Sustainability

  • Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]
  • Power: 240 W

Expandability

  • Software: Multi Monitoring & Control Software, Projector Network Setup Software, Logo Transfer Software,Presenter Light Software for Windows, Wireless
  • Mounting and screen options from Trianze Tech
  • Trianze Tech can confirm accessories and fit before you order

Distribution

  • Supplied by Trianze Tech in Dubai and Abu Dhabi
  • Delivery across the UAE and to other GCC countries on request

Suggested Mounting Accessories

Call for Best Price: +971 58 161 3661 | Chat on WhatsApp

Frequently asked

Panasonic PT-TMZ400: Frequently Asked Questions

If you don't see your question here, our consultants will gladly walk you through specifics on a discovery call.
Still have questions?
Talk to a consultant. Most queries are answered in a 15-minute call.
For the Panasonic PT-TMZ400, Panasonic lists the following. Light output: 4,000 lm; Light output (ANSI): 4,000 lm; Resolution: WUXGA (1920 x 1200 pixels); Contrast ratio: 3,000,000:1 (Full On/Full Off)(When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].).
For the Panasonic PT-TMZ400, Panasonic lists the following. Lens: Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.43:1 (Projection distance: 0.73 m [2.40 ft] for 80-inch image); Screen size: 1.27 to 2.67 m (50 to 105 in), 16:10 aspect ratio; Keystone: Vertical: +/-15 degrees (Auto, Manual),Horizontal: +/-15 degrees (Manual).
For the Panasonic PT-TMZ400, Panasonic lists the following. HDMI IN: HDMI 19-pin x 2 (Compatible with HDCP 1.4, Deep Color, 4K/30p signal input), CEC supported; COMPUTER IN(D-SUB 15pin): D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR); AUDIO IN(M3 Stereo Mini Jack): M3 stereo mini-jack x 2; AUDIO OUT(M3 Stereo Mini Jack): M3 stereo mini-jack x 1; SERIAL IN: D-sub 9-pin (female) x 1 for computer control (RS-232C compliant); LAN: RJ-45 x 1 for network control, 10Base-T, 100Base-TX.
For the Panasonic PT-TMZ400, Panasonic lists the following. Time until light output declines to 50 %: NORMAL: 20,000 hours [NORMAL]; Time until light output declines to 50 %: ECO: 24,000 hours [ECO]; Time until light output declines to 50 %: QUIET: 20,000 hours [QUIET]; Operation noise: 35 dB [NORMAL].
For the Panasonic PT-TMZ400, Panasonic lists the following. Dimensions: 349 mm x 138 mm x 370 mm (13 3/4" x 5 7/16" x 14 9/16") (with feet at shortest position); Weight: 4.9 kg (10.8 lbs); Power supply: AC 100 V, 240 V, 50/60 Hz; Maximum power consumption: 240 W.
Trianze Tech stocks the Panasonic PT-TMZ400 in Dubai with fast delivery across the UAE and GCC. Call +971 58 161 3661 or message us on WhatsApp for the best price and current stock availability.
